Heating and Air Conditioning

COMPONENT

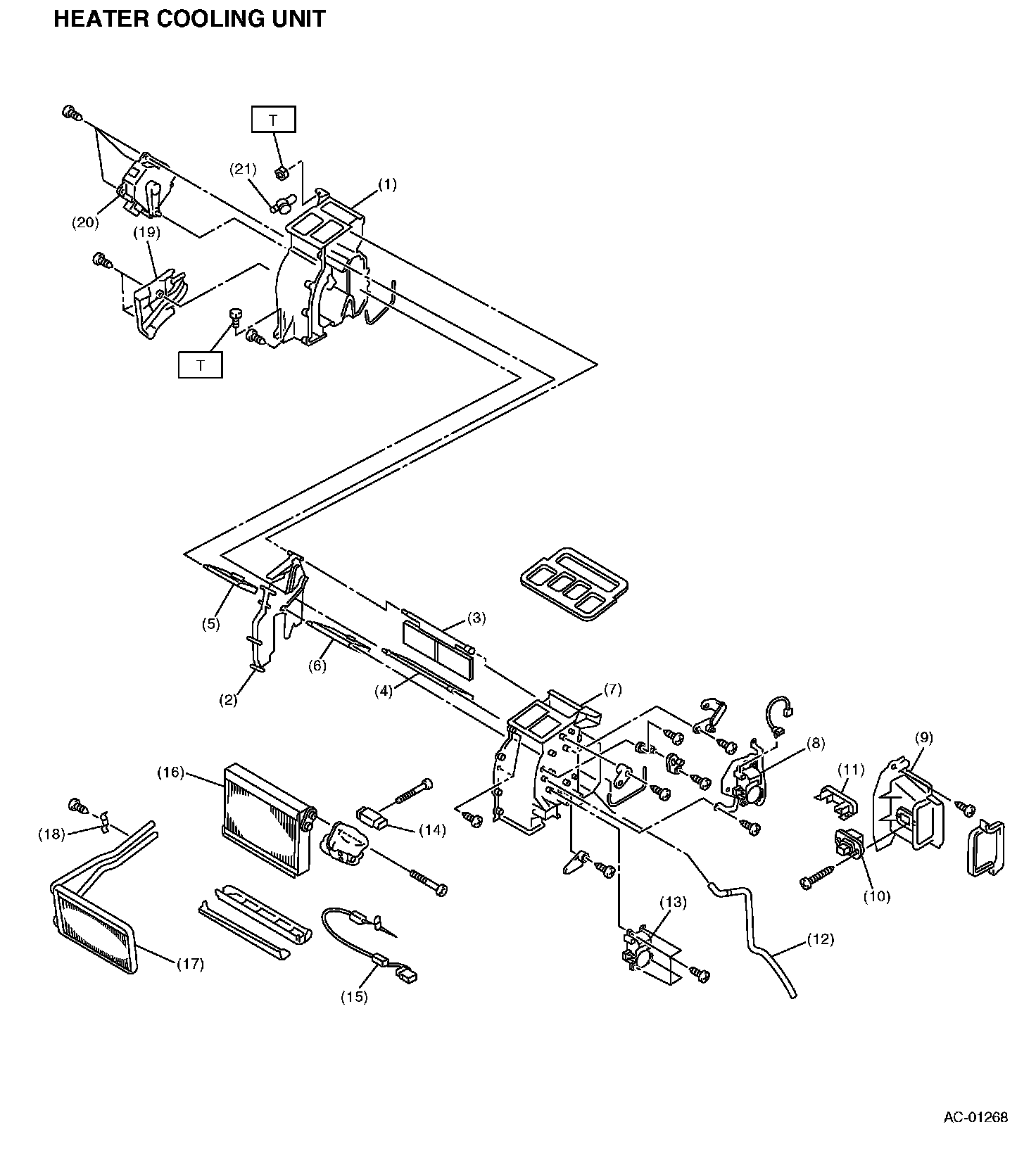

1. HEATER COOLING UNIT

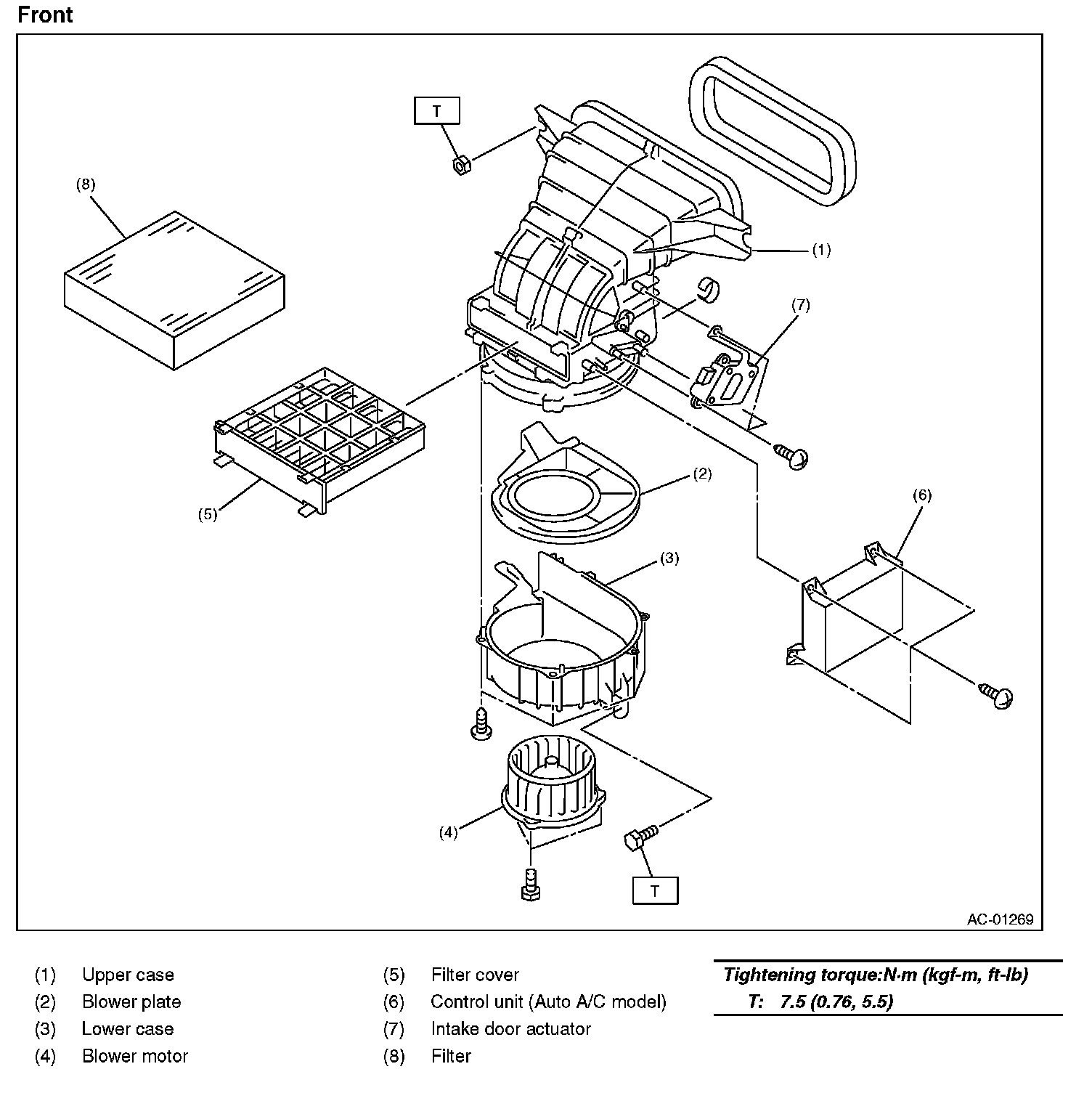

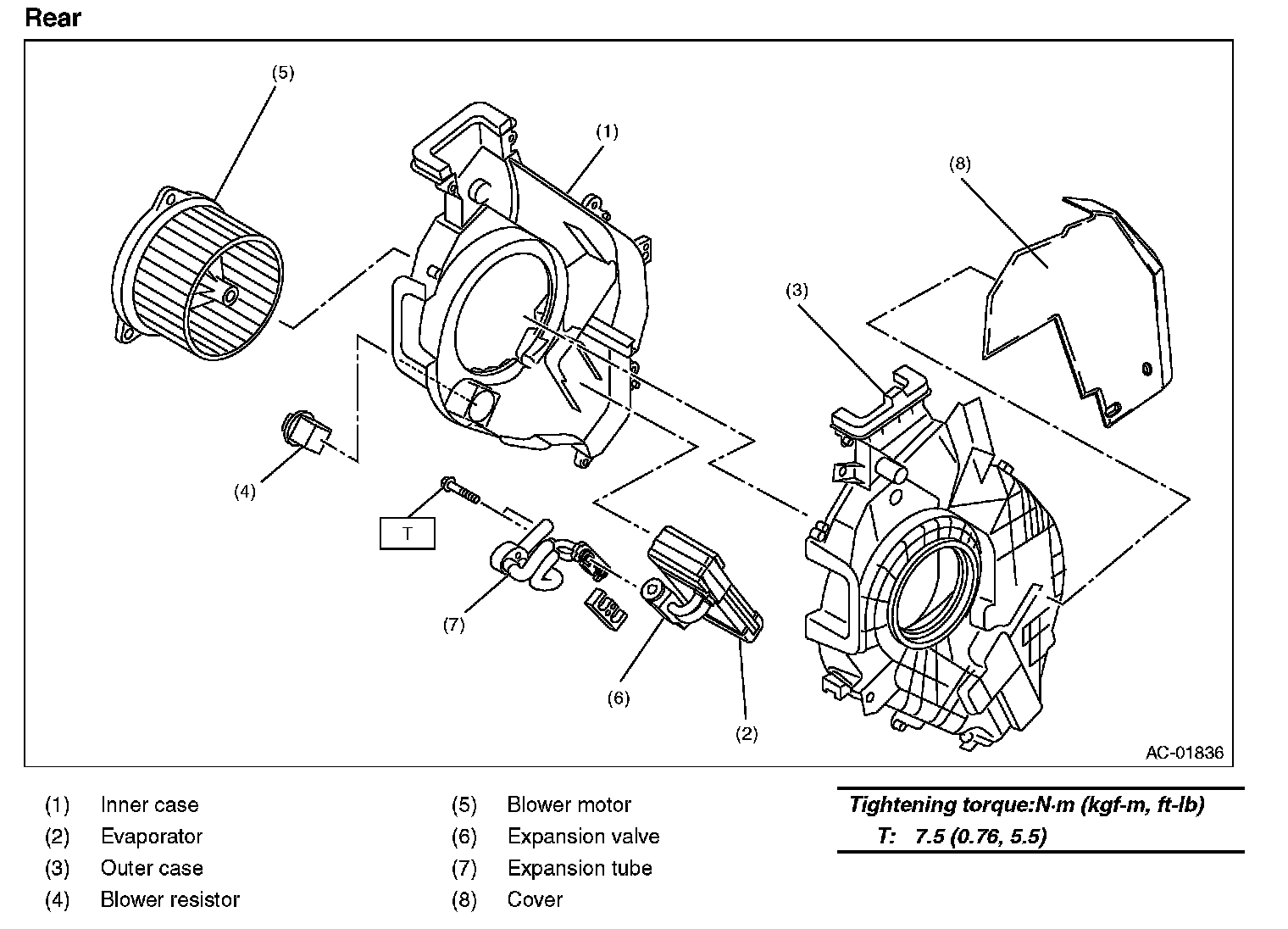

2. BLOWER MOTOR UNIT

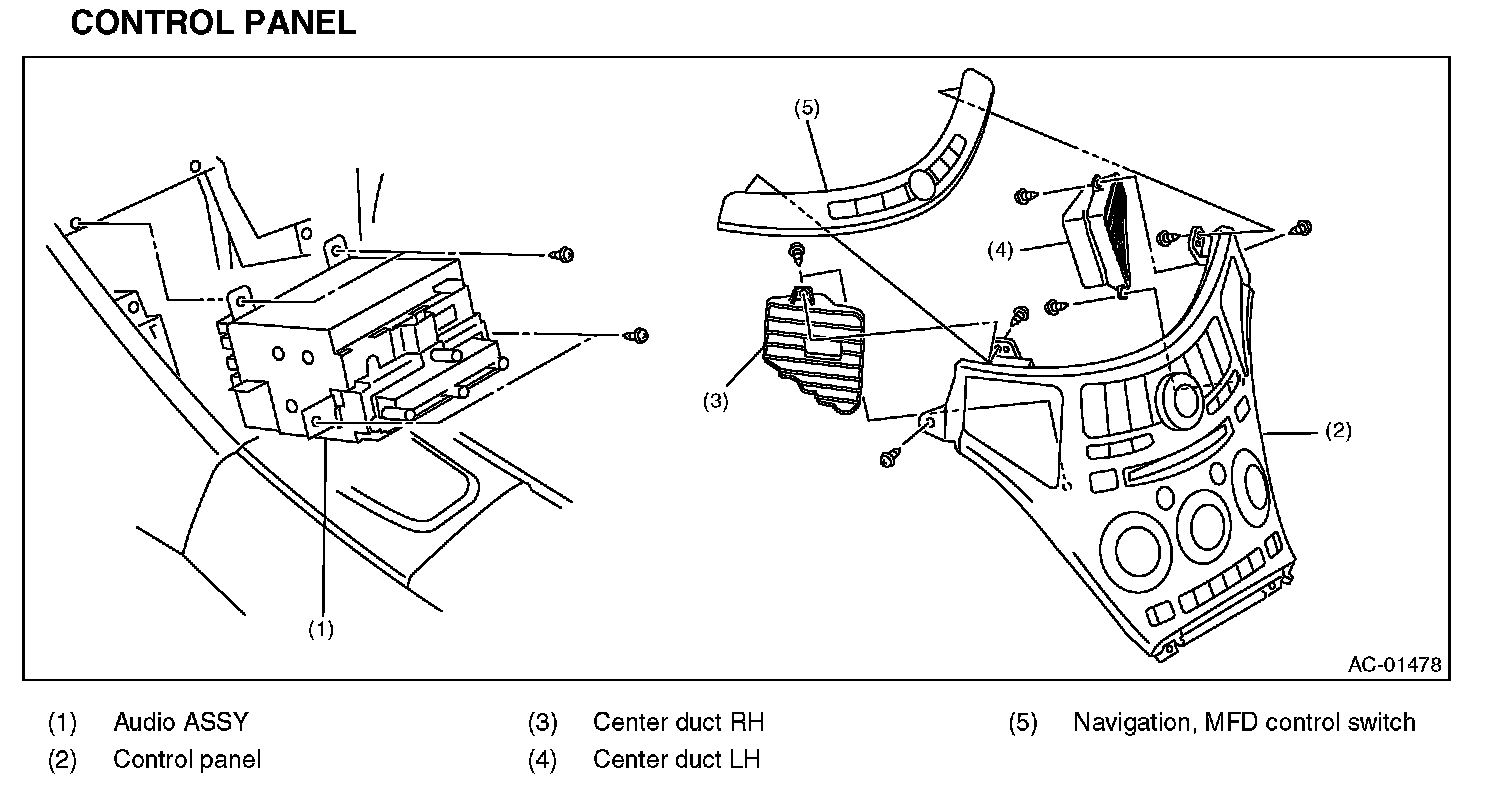

3. CONTROL PANEL

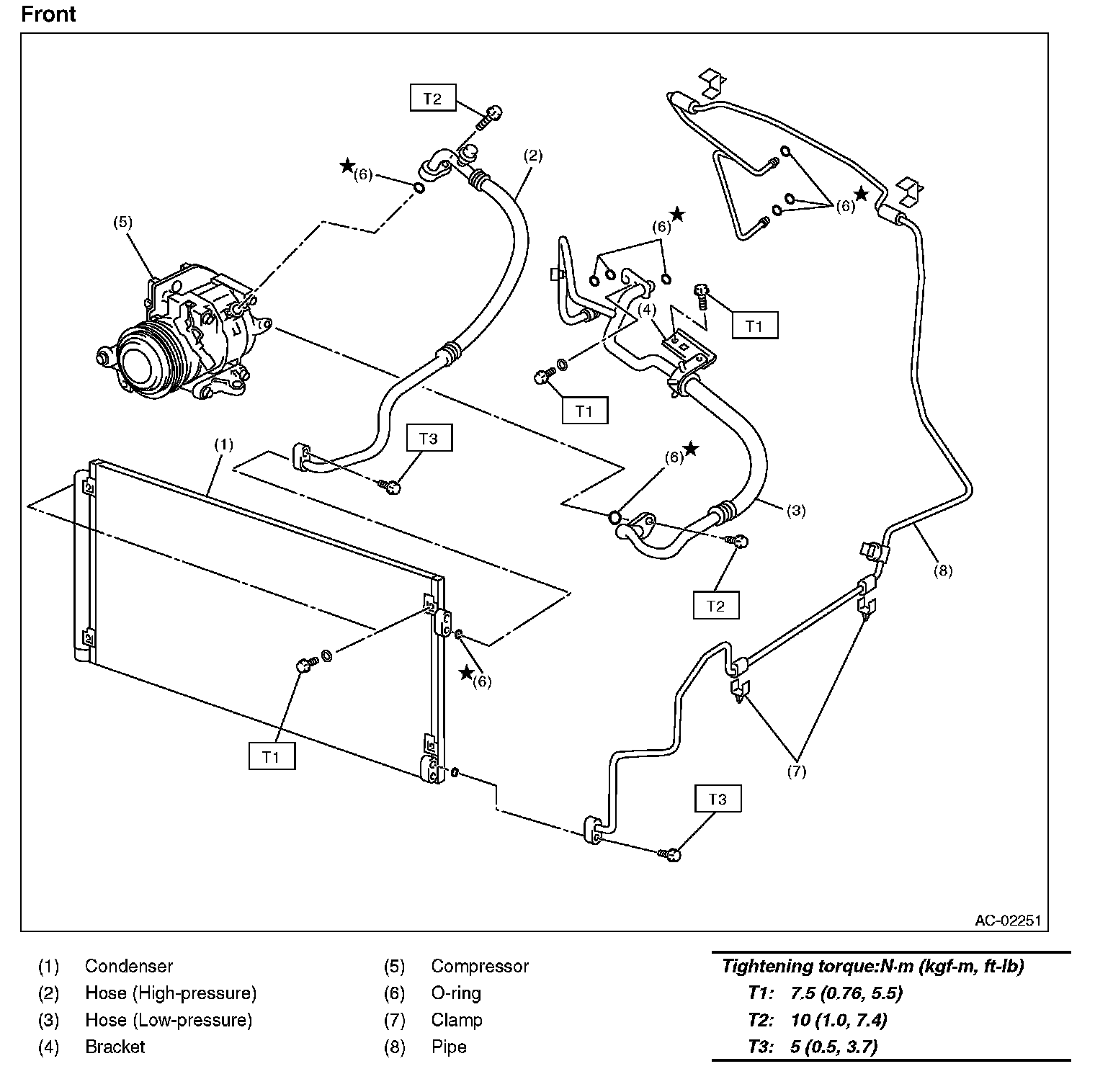

4. AIR CONDITIONING UNIT

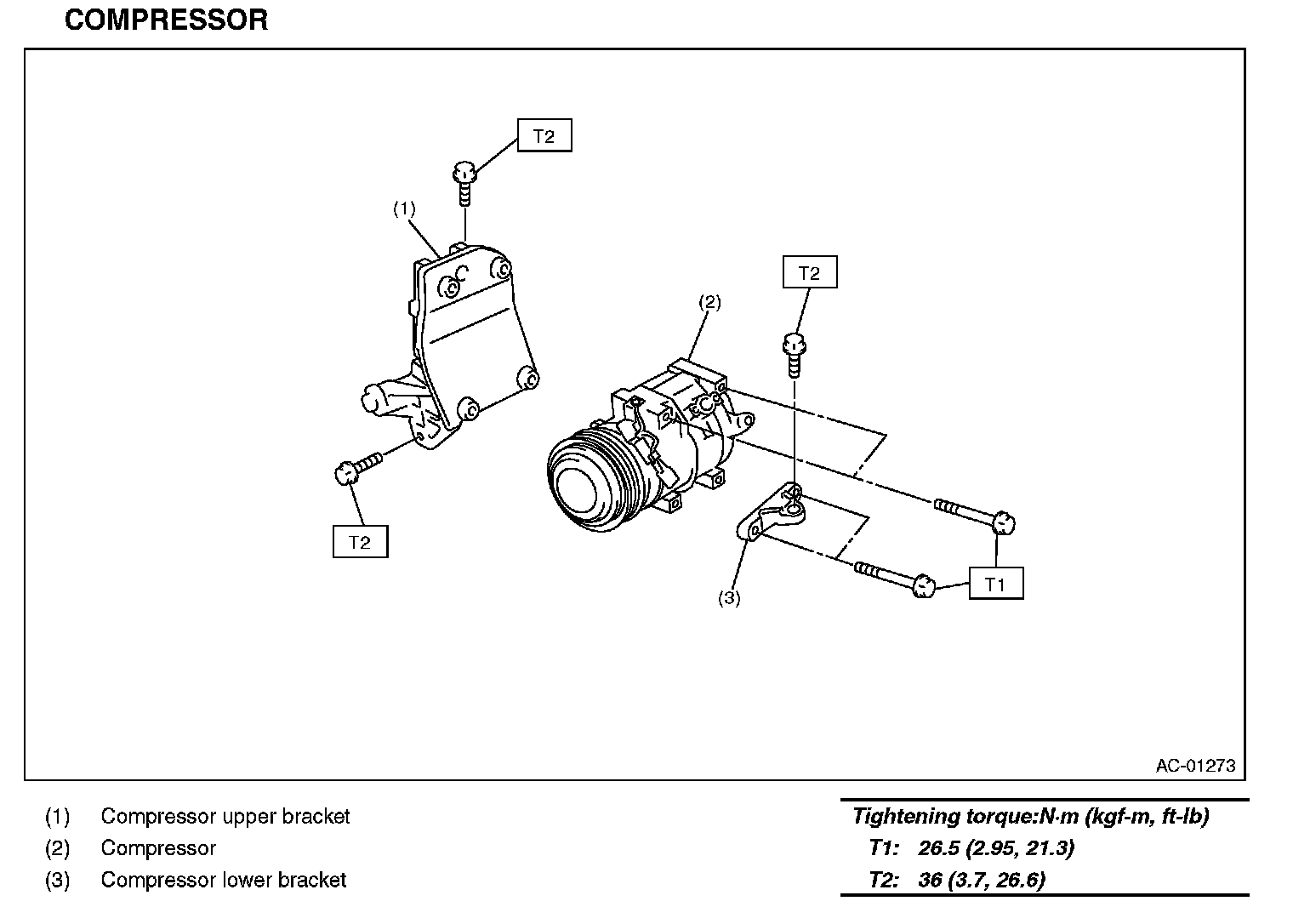

5. COMPRESSOR

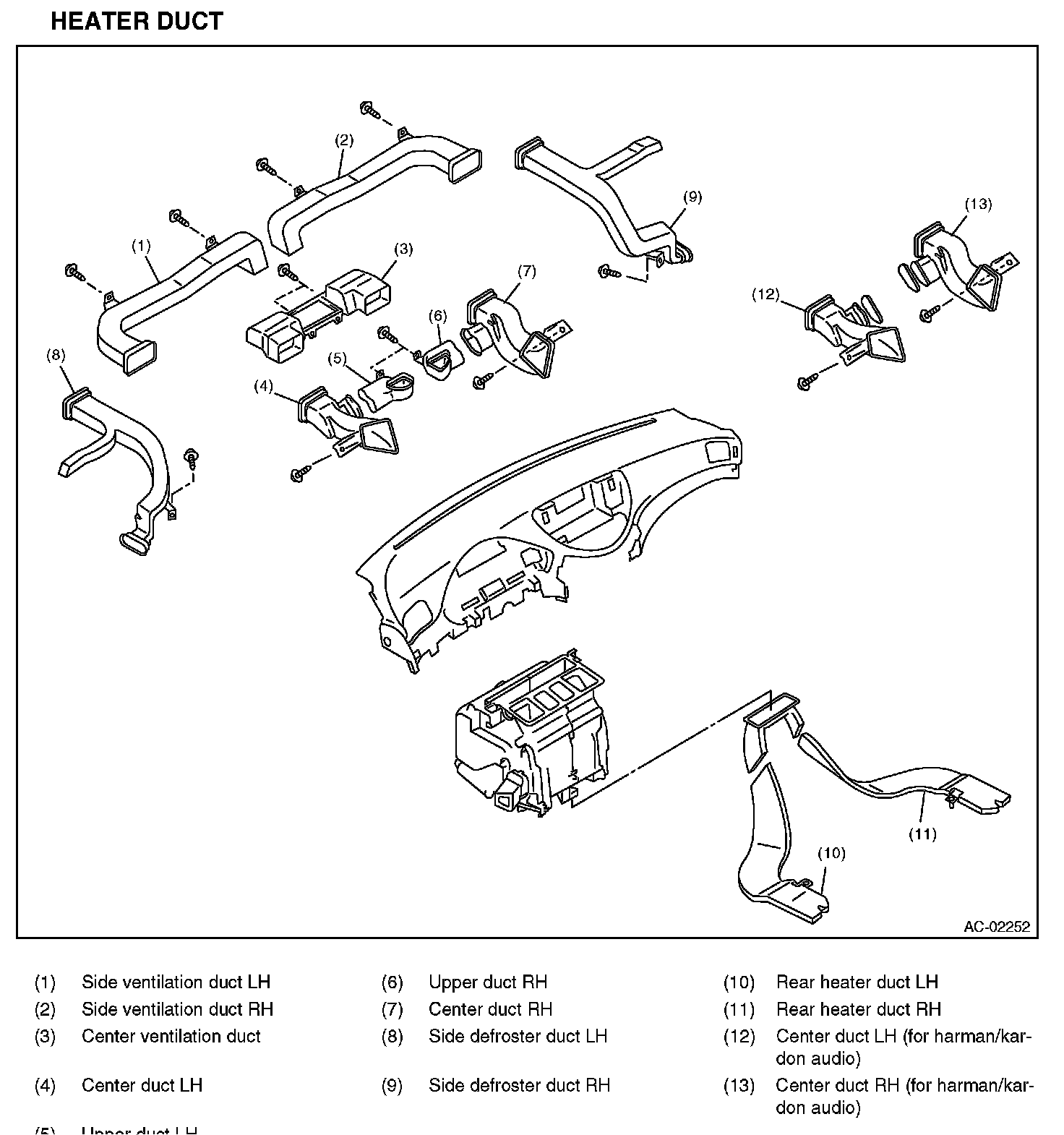

6. HEATER DUCT
