Ignition Lock: Testing and Inspection

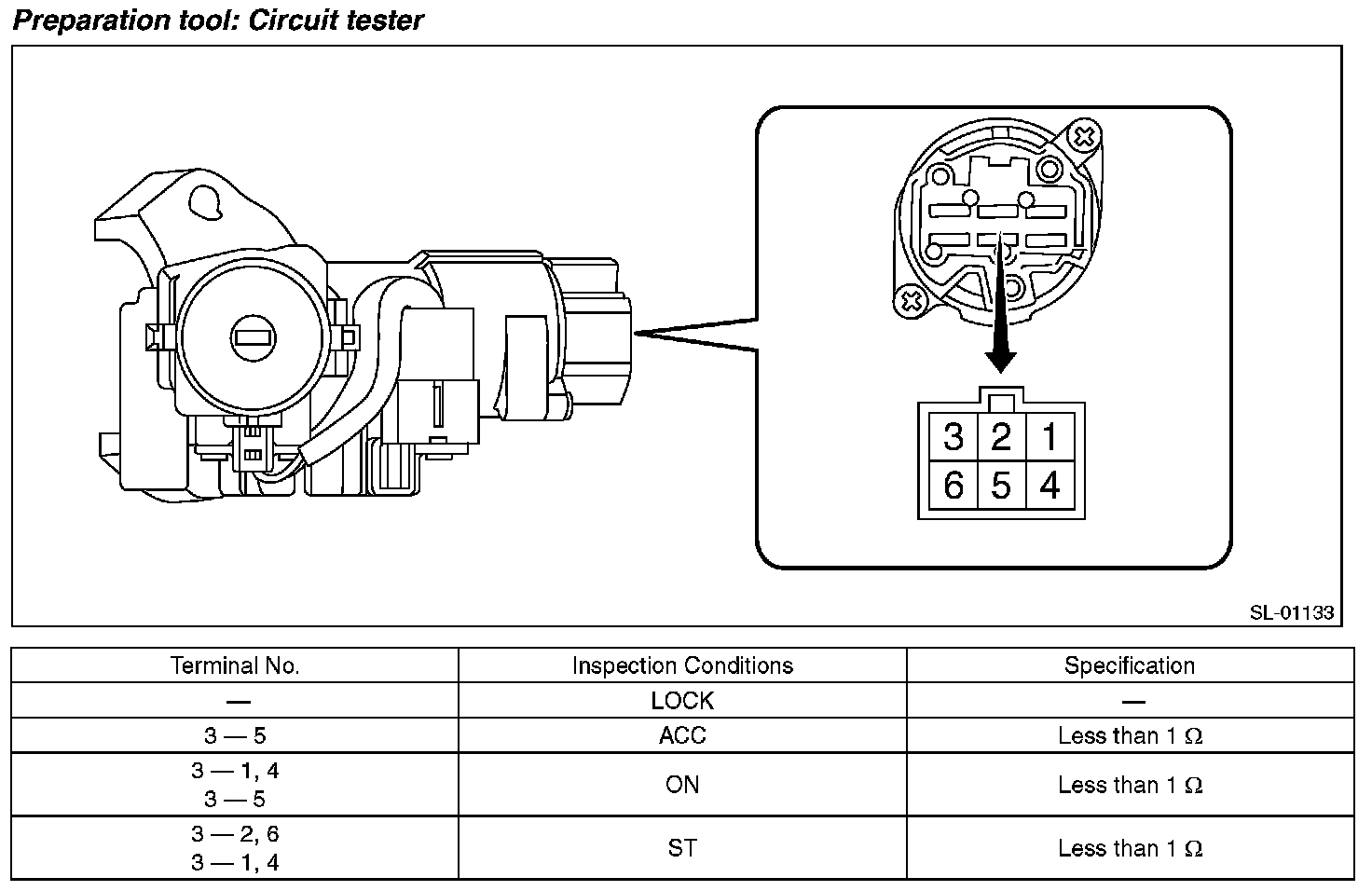

Ignition Key LockINSPECTION
1. Disconnect the ignition switch connector.
2. Measure the resistance between ignition switch terminals.
3. Replace the ignition switch if the inspection result is not within the standard value.
