System Overview Schematic

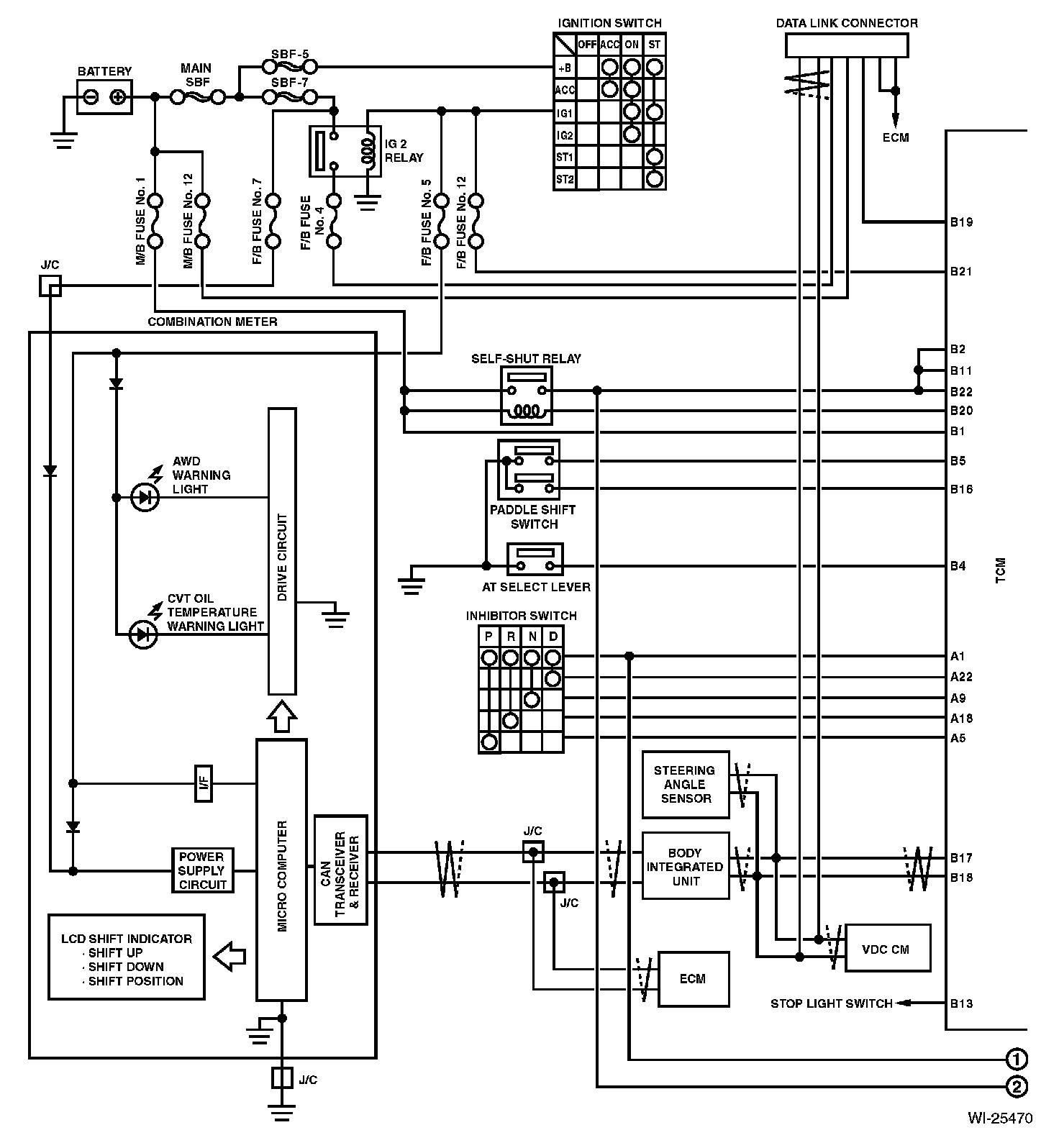

System Overview Schematic (Part 1):



System Overview Schematic (Part 2):
