Locations
>>
Connector Locations
>>
R16-R351 & AB31-AB34
R16-R351 & AB31-AB34
Rear Wiring Harness and Trunk Lid Cord

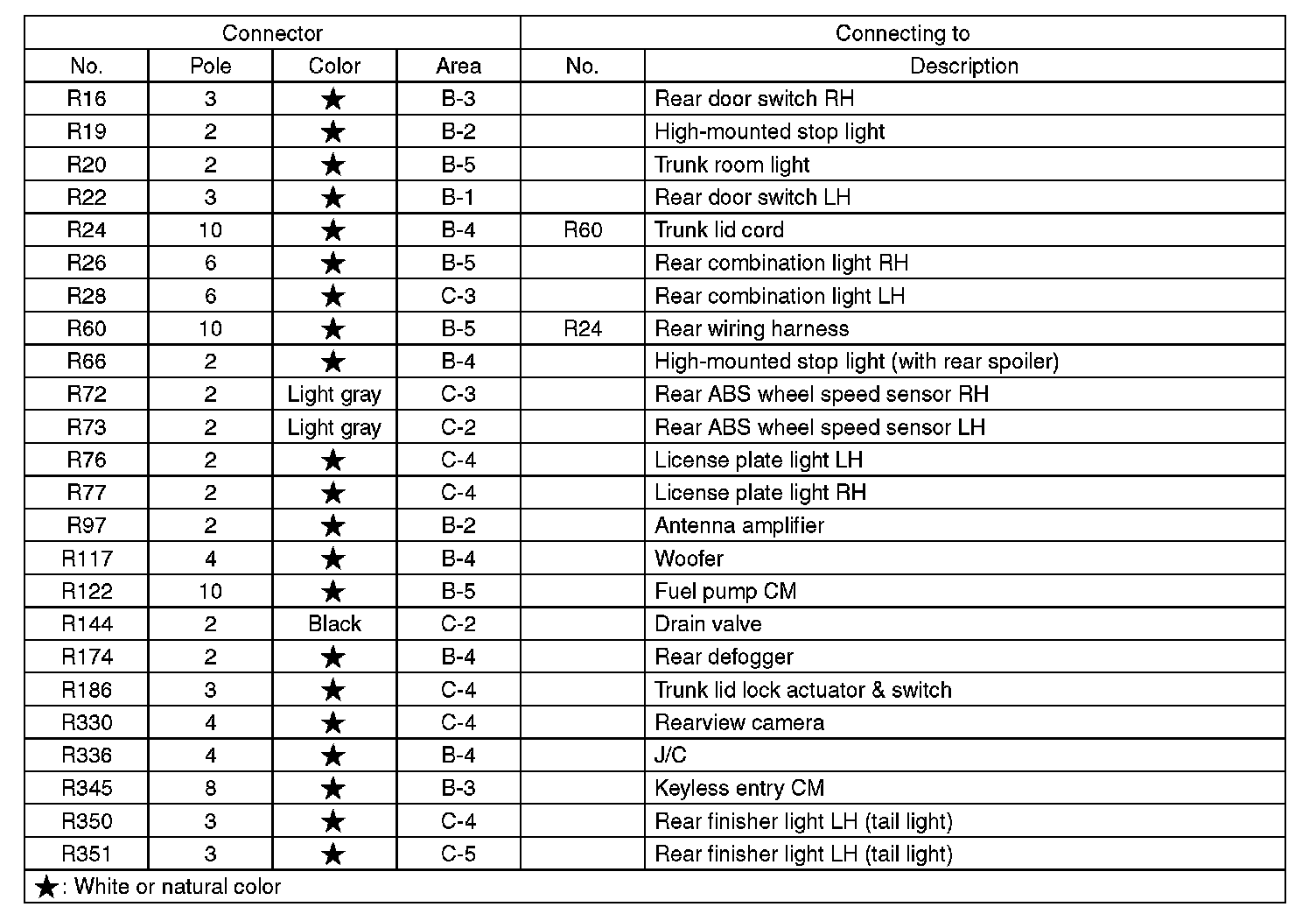

R16-R351:
AB31-AB34:

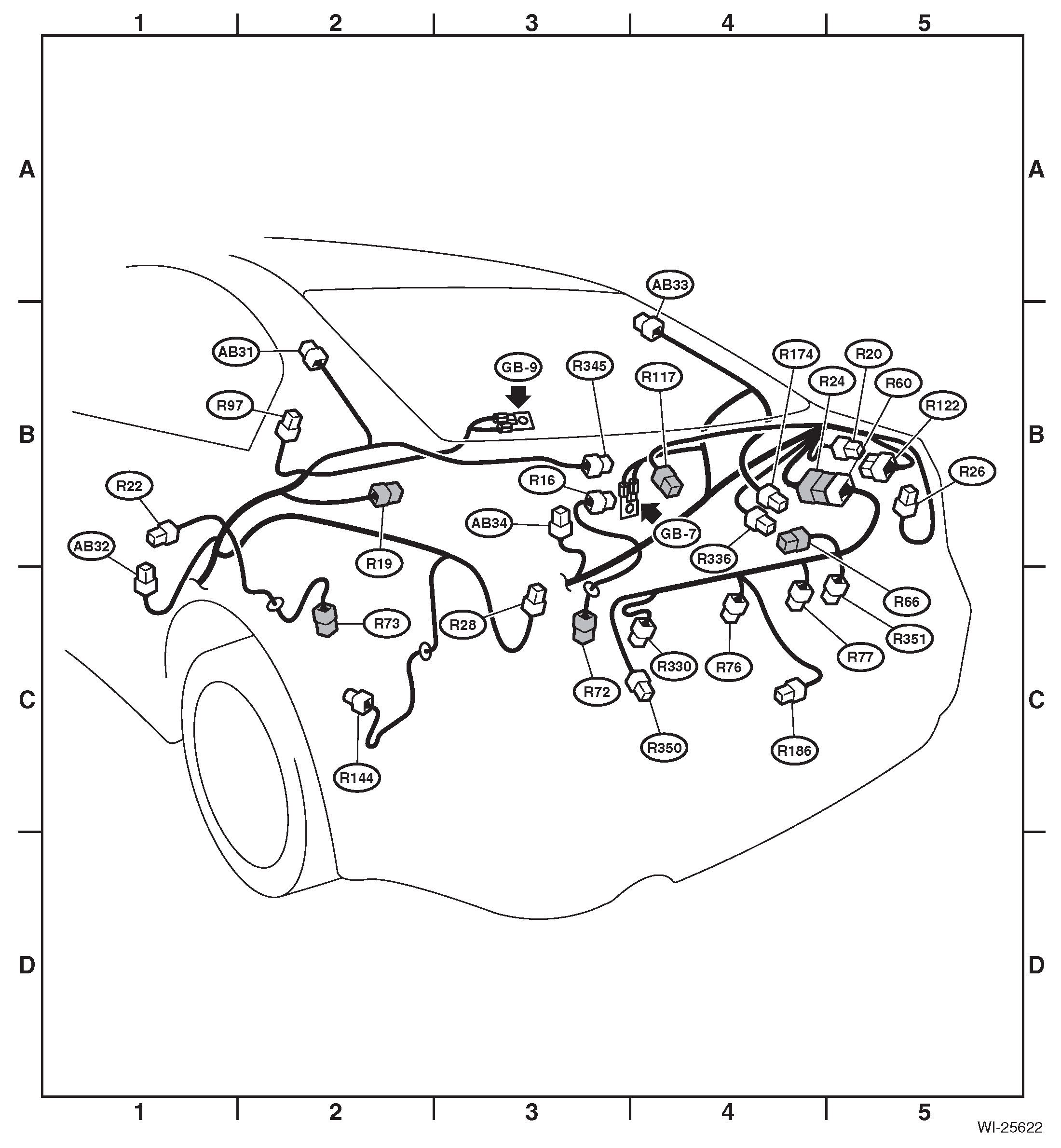

Area View:
