Main Shaft For Single-Range
Main Shaft For Single-Range
MAIN SHAFT FOR SINGLE-RANGE

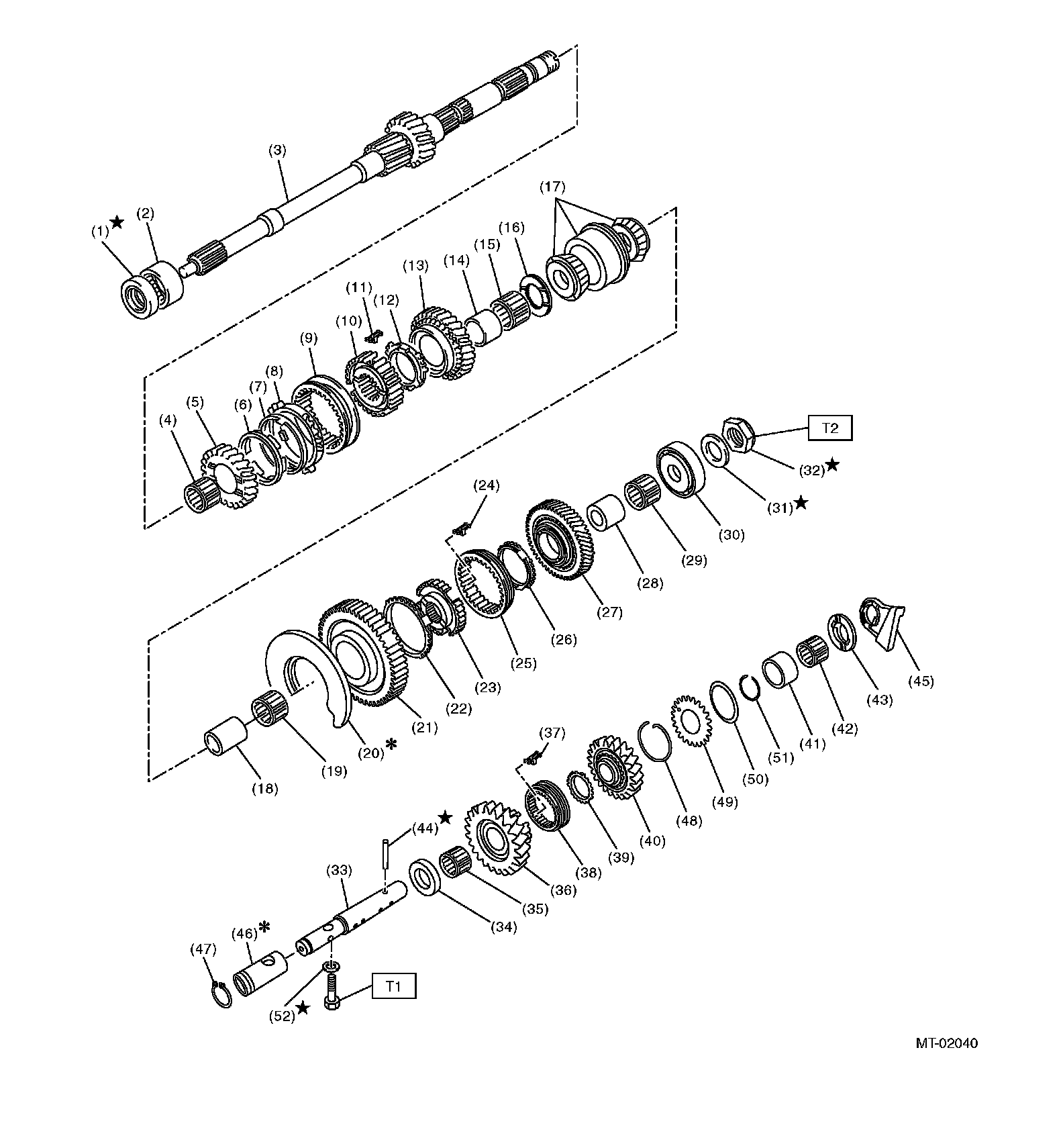

Main Shaft For Single-Range Components (Part 1):

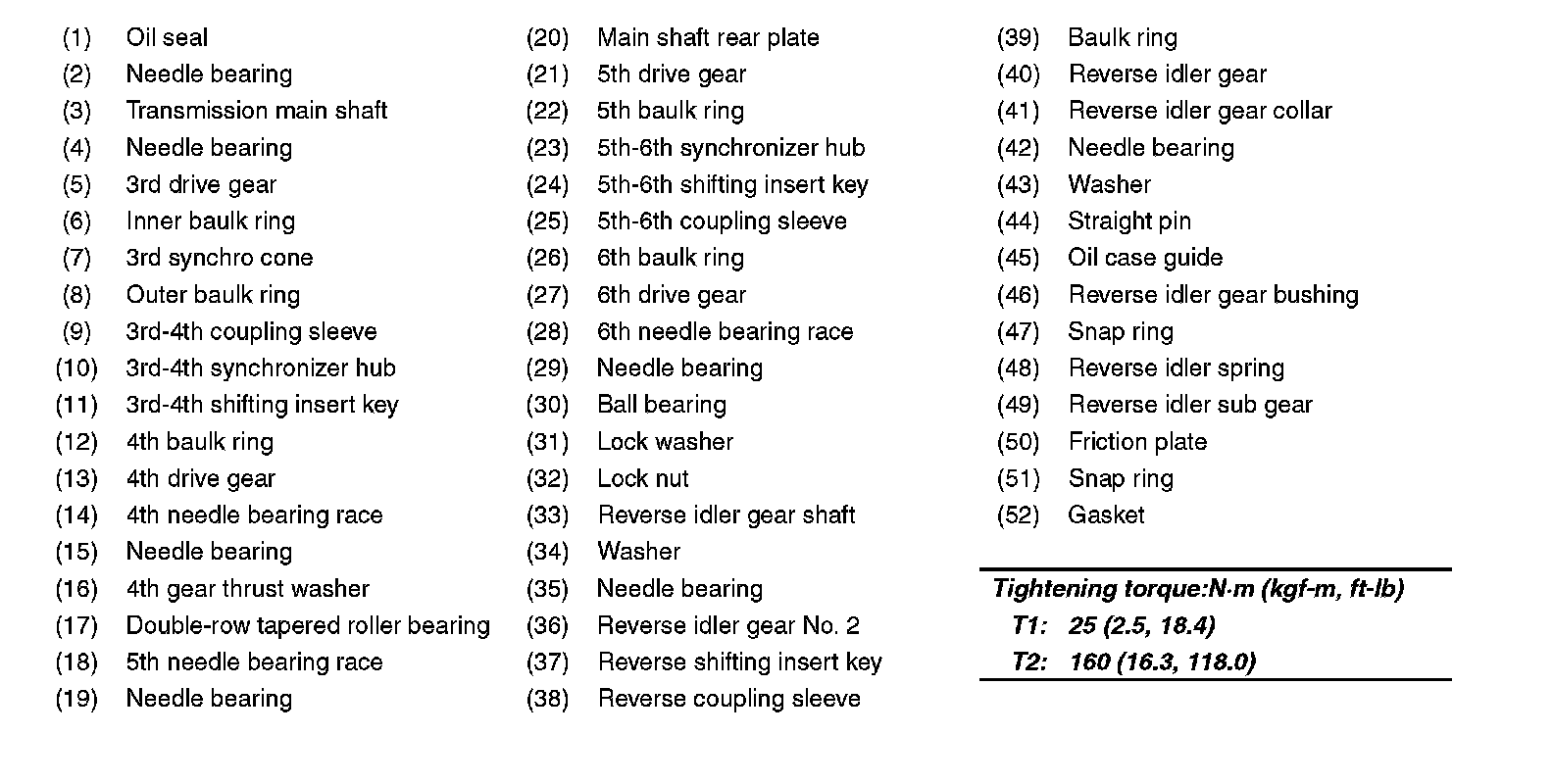

Main Shaft For Single-Range Components (Part 2):
