Continuously Variable Transmission/Transaxle, CVT
>>
System Diagram
>>
Transmission Case
Transmission Case
TRANSMISSION CASE

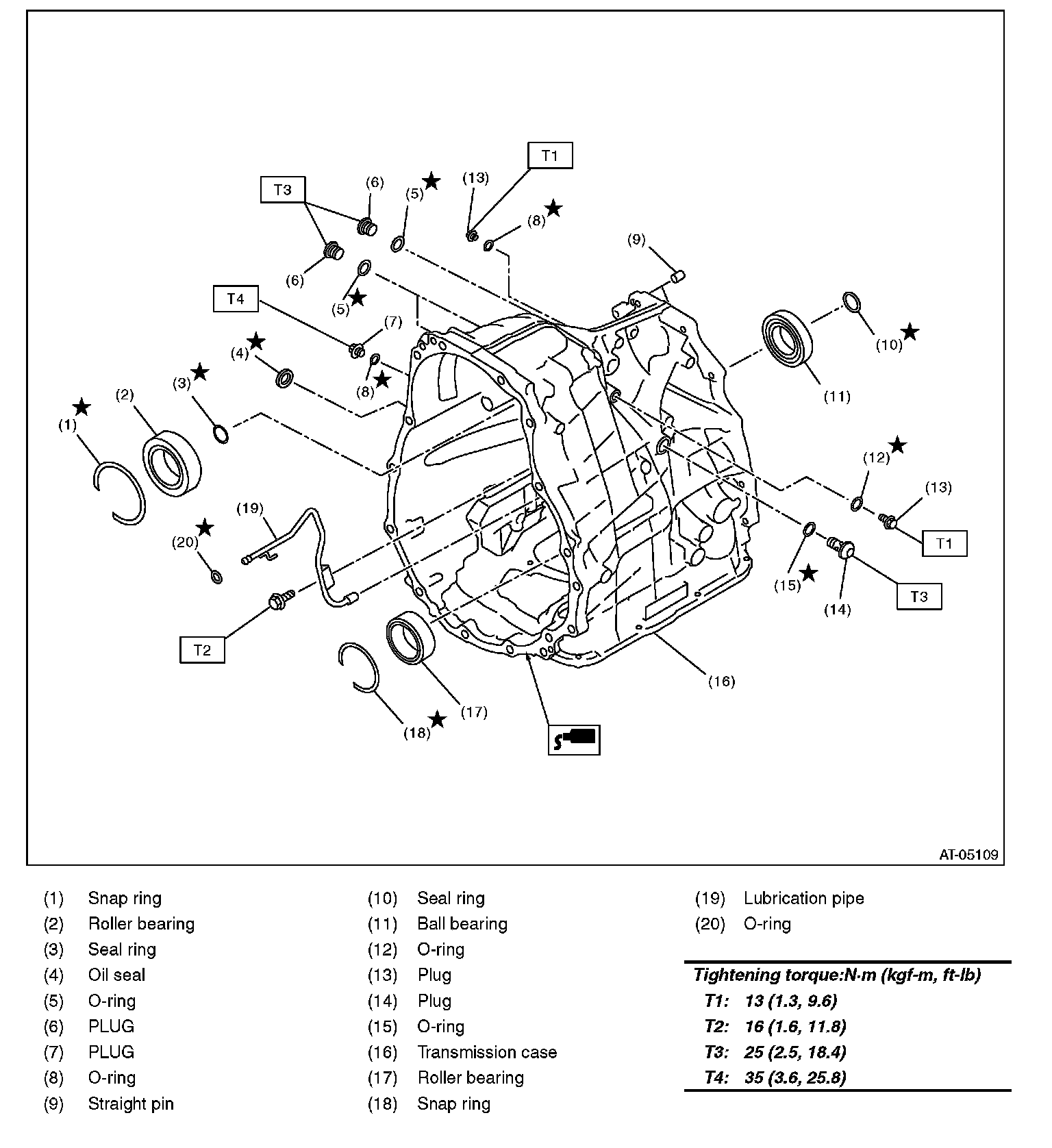

Transmission Case Components:
