System Diagram

COMPONENT

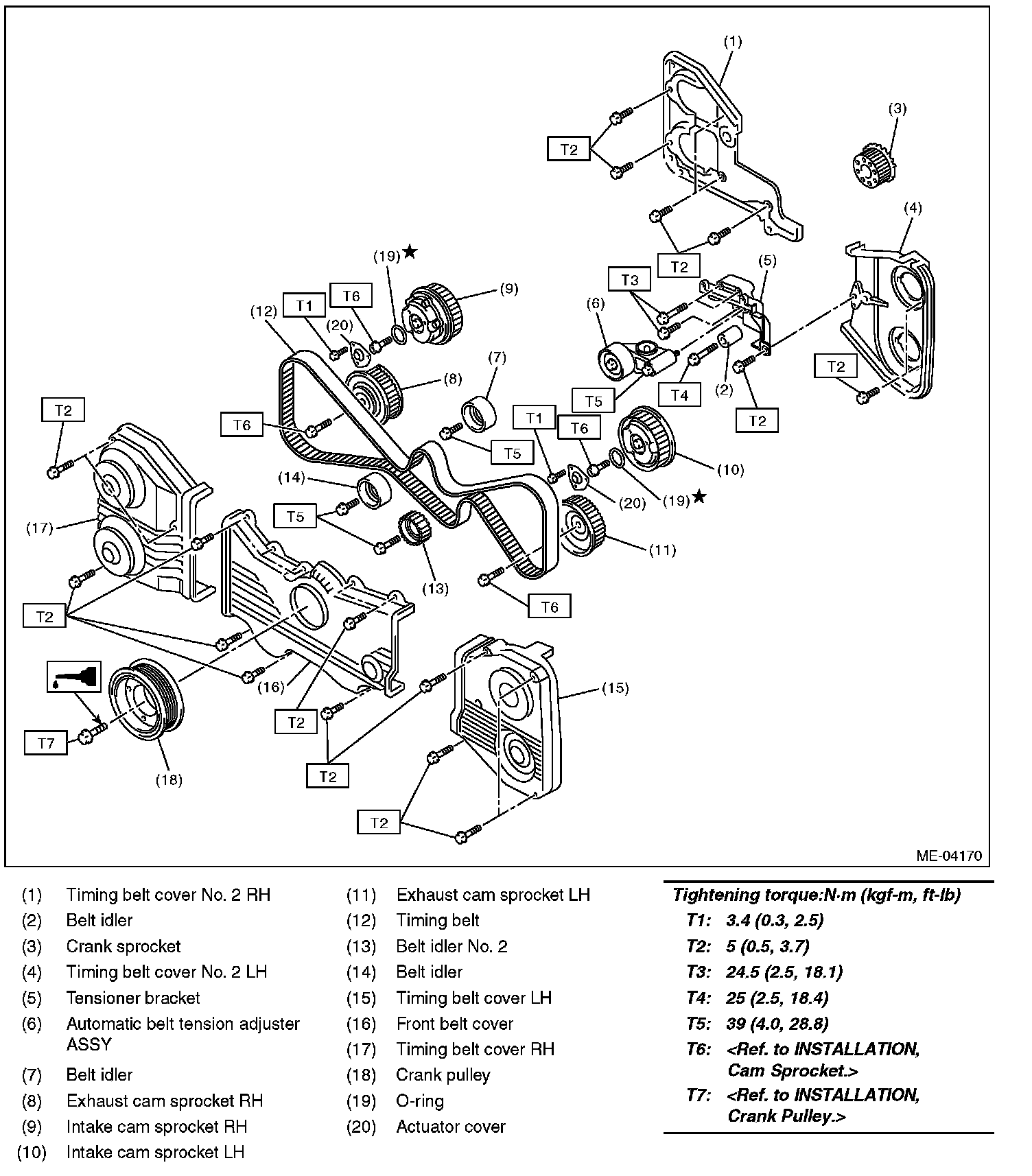

TIMING BELT

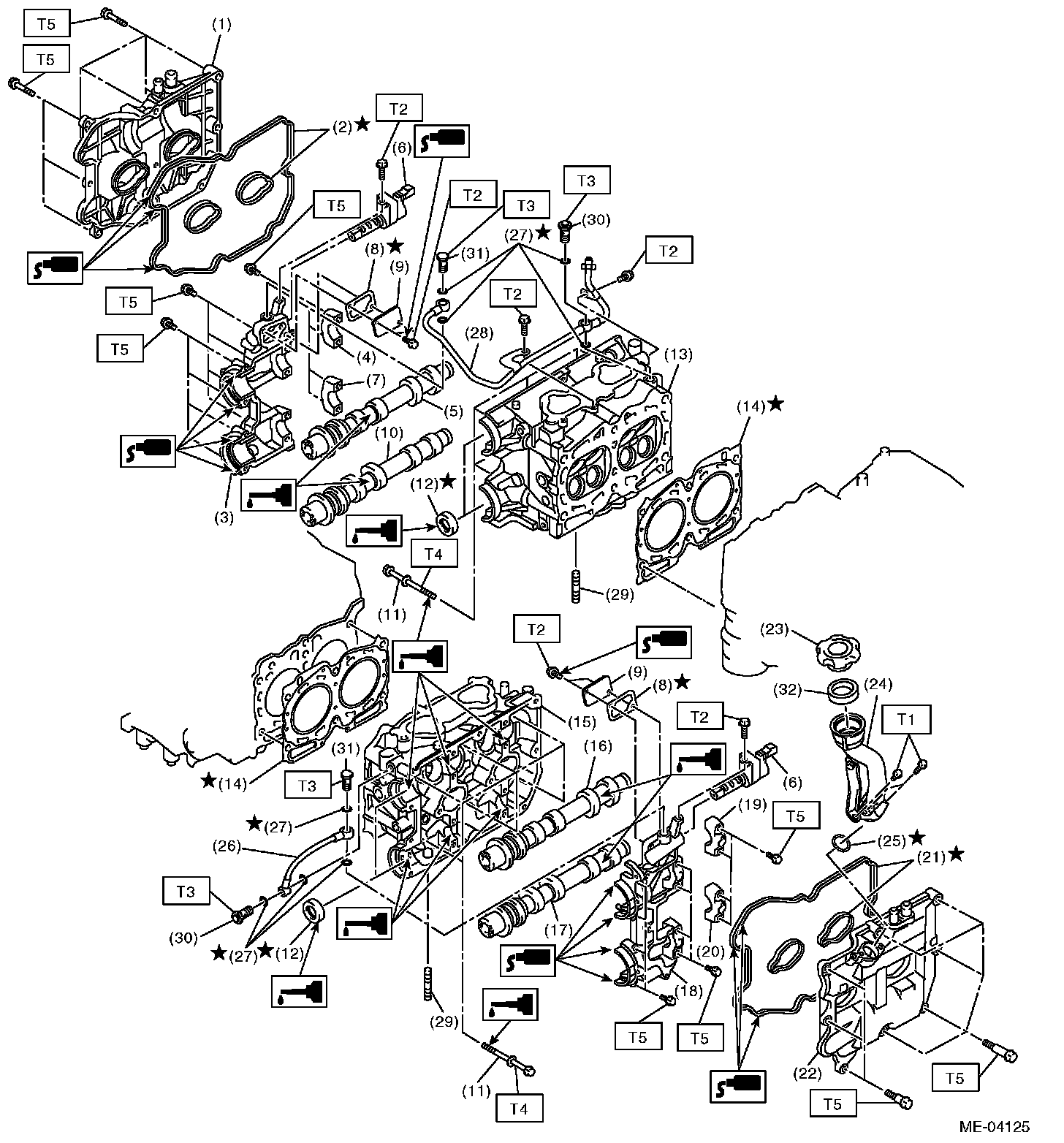

CYLINDER HEAD AND CAMSHAFT

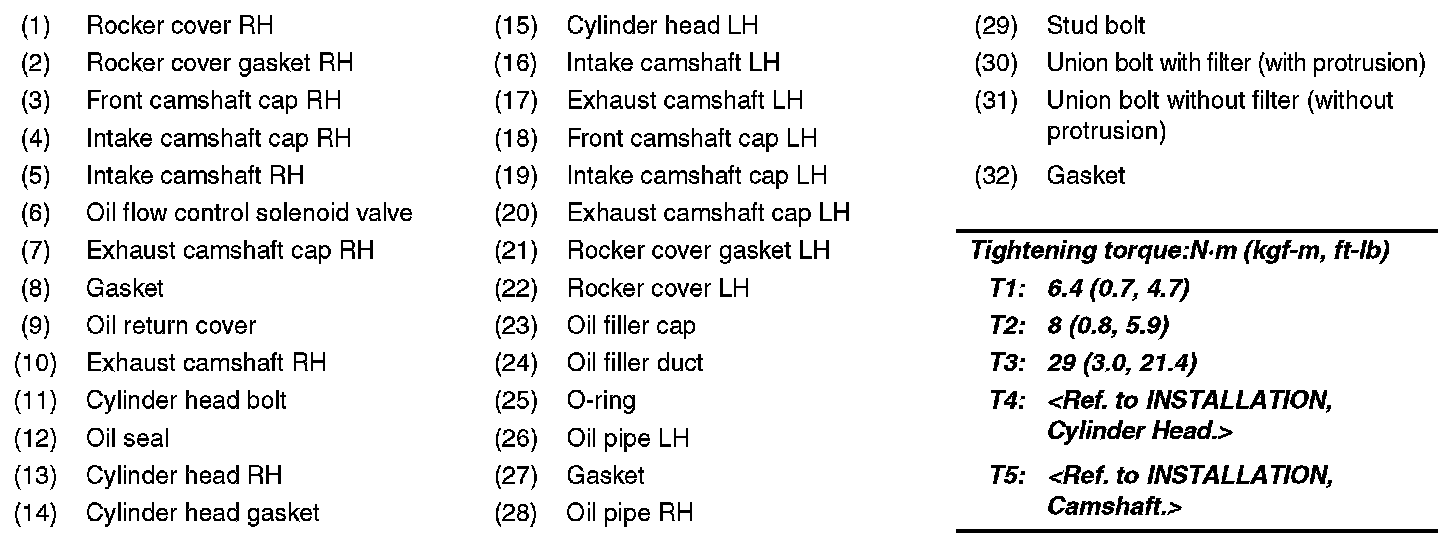

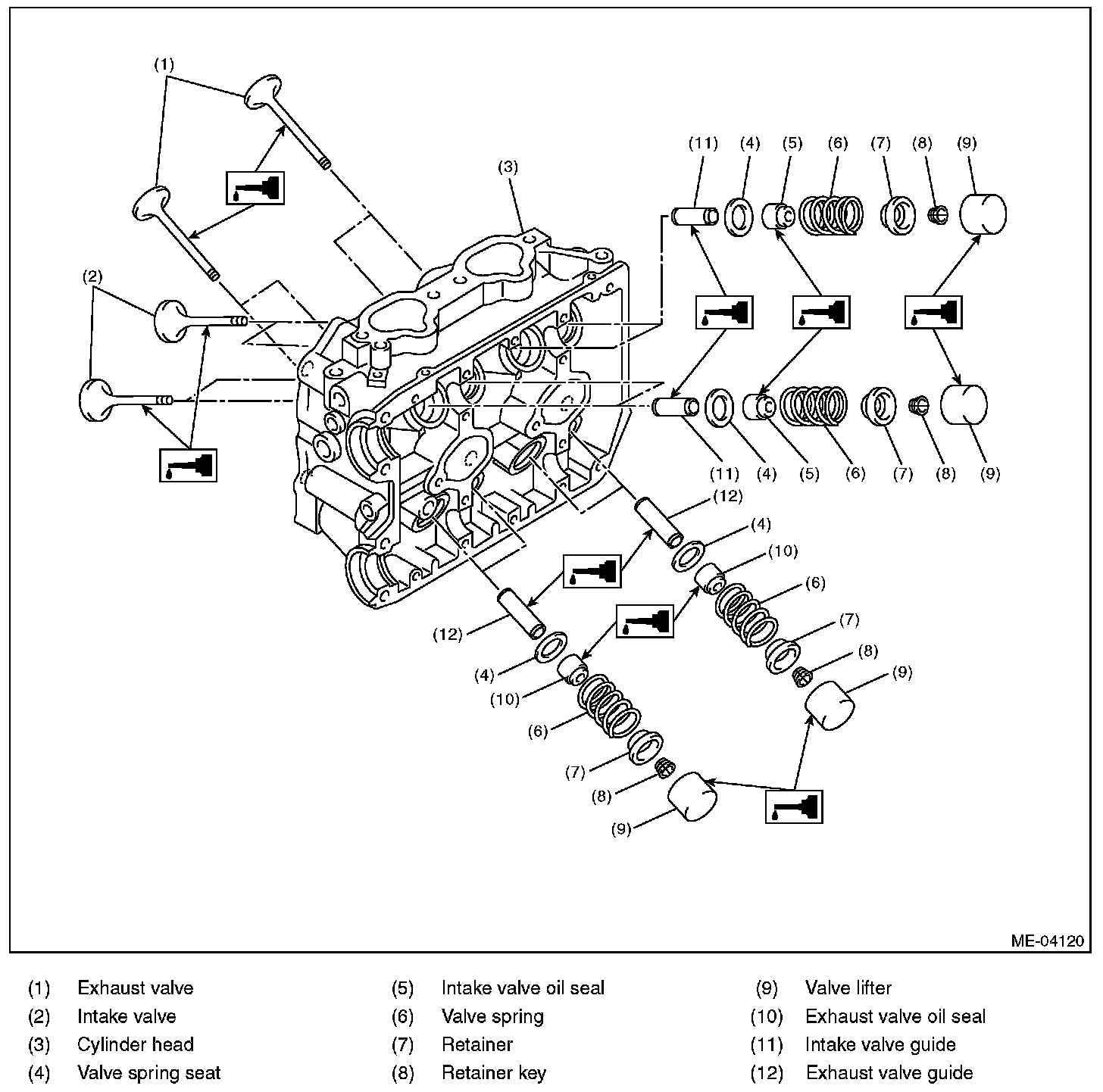

CYLINDER HEAD AND VALVE ASSEMBLY

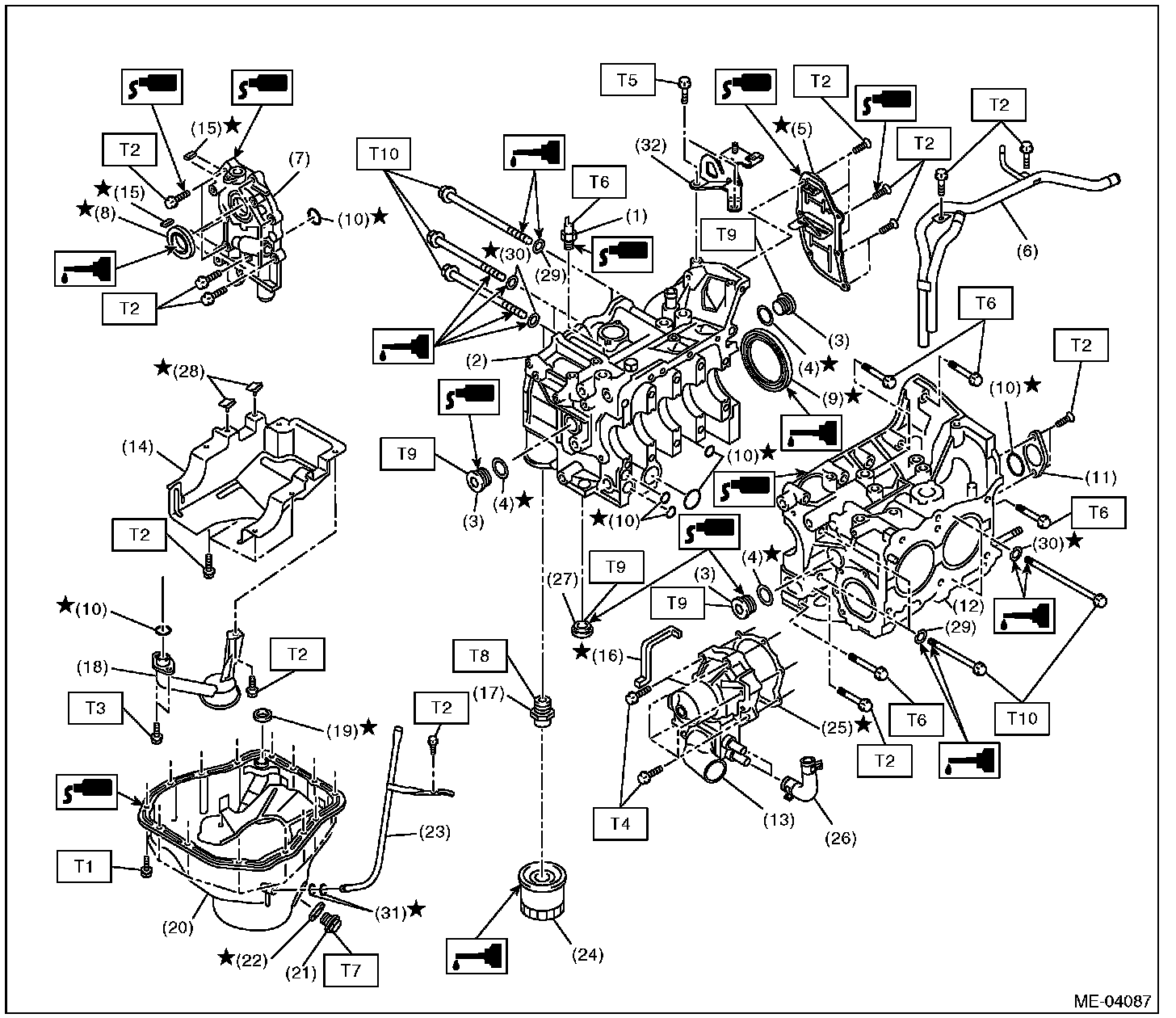

CYLINDER BLOCK

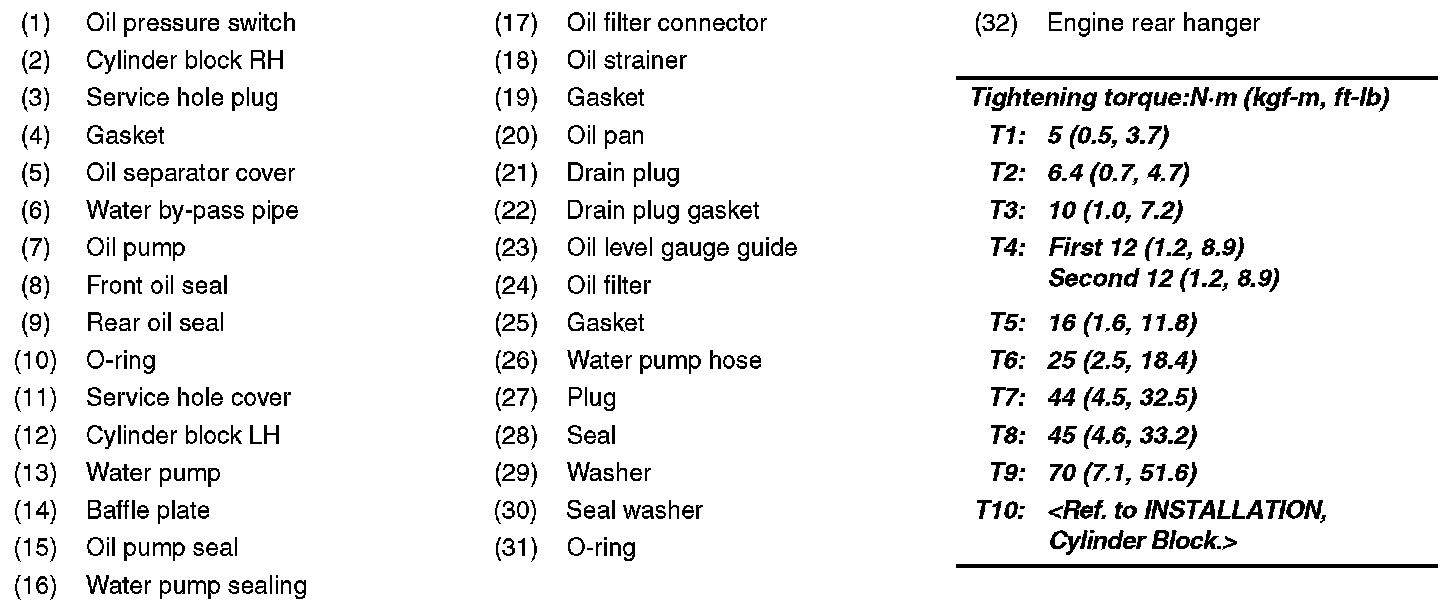

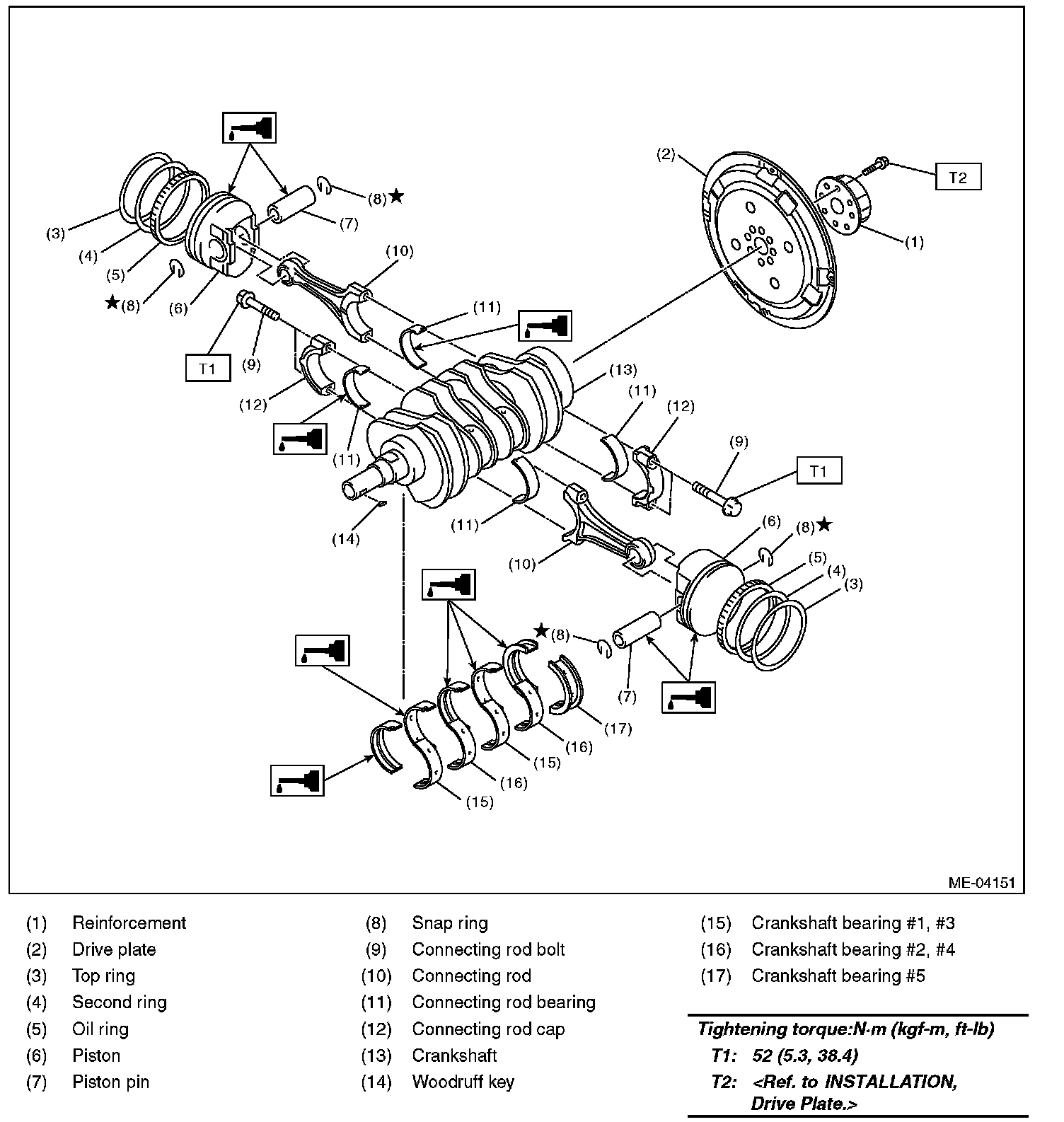

CRANKSHAFT AND PISTON

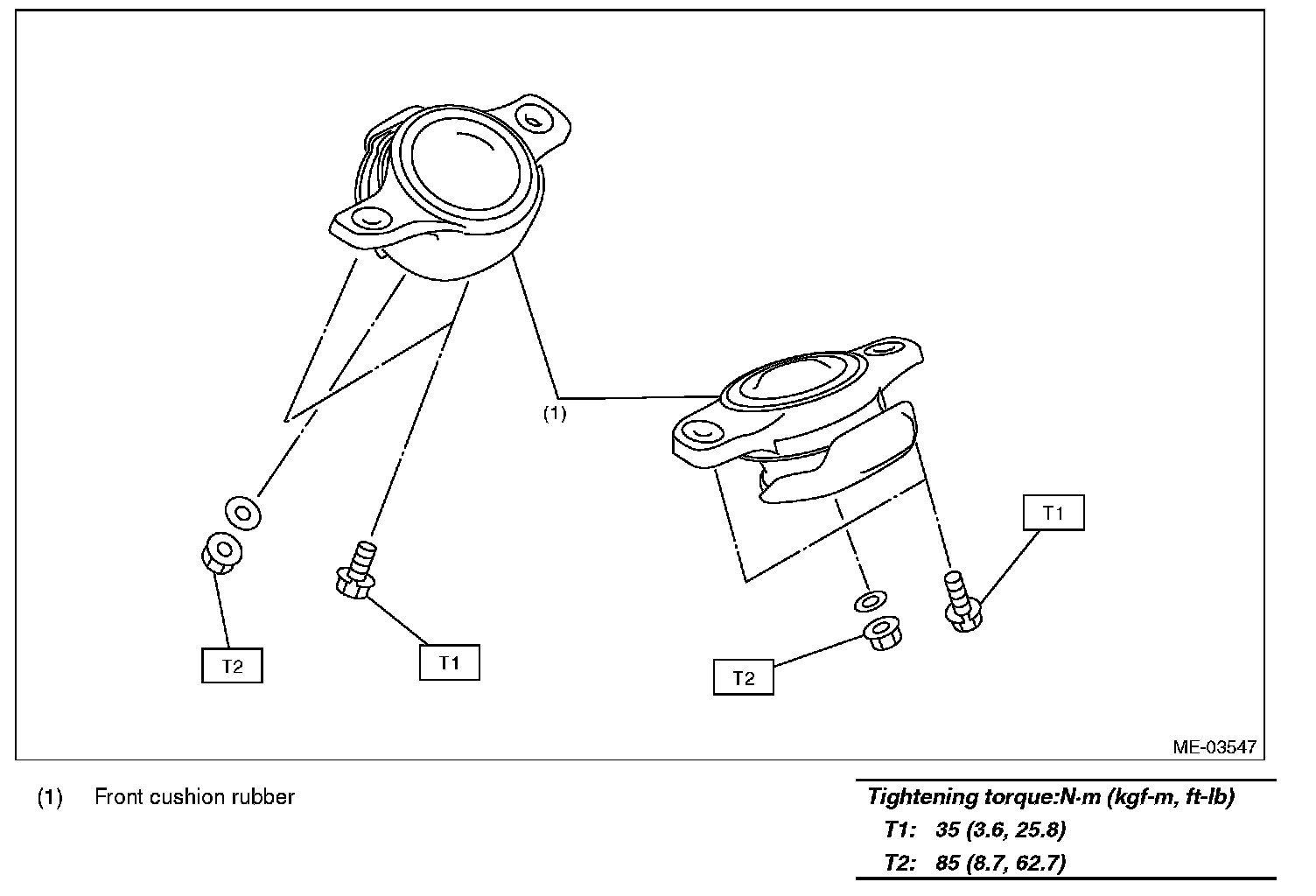

ENGINE MOUNTING
