Exploded Views

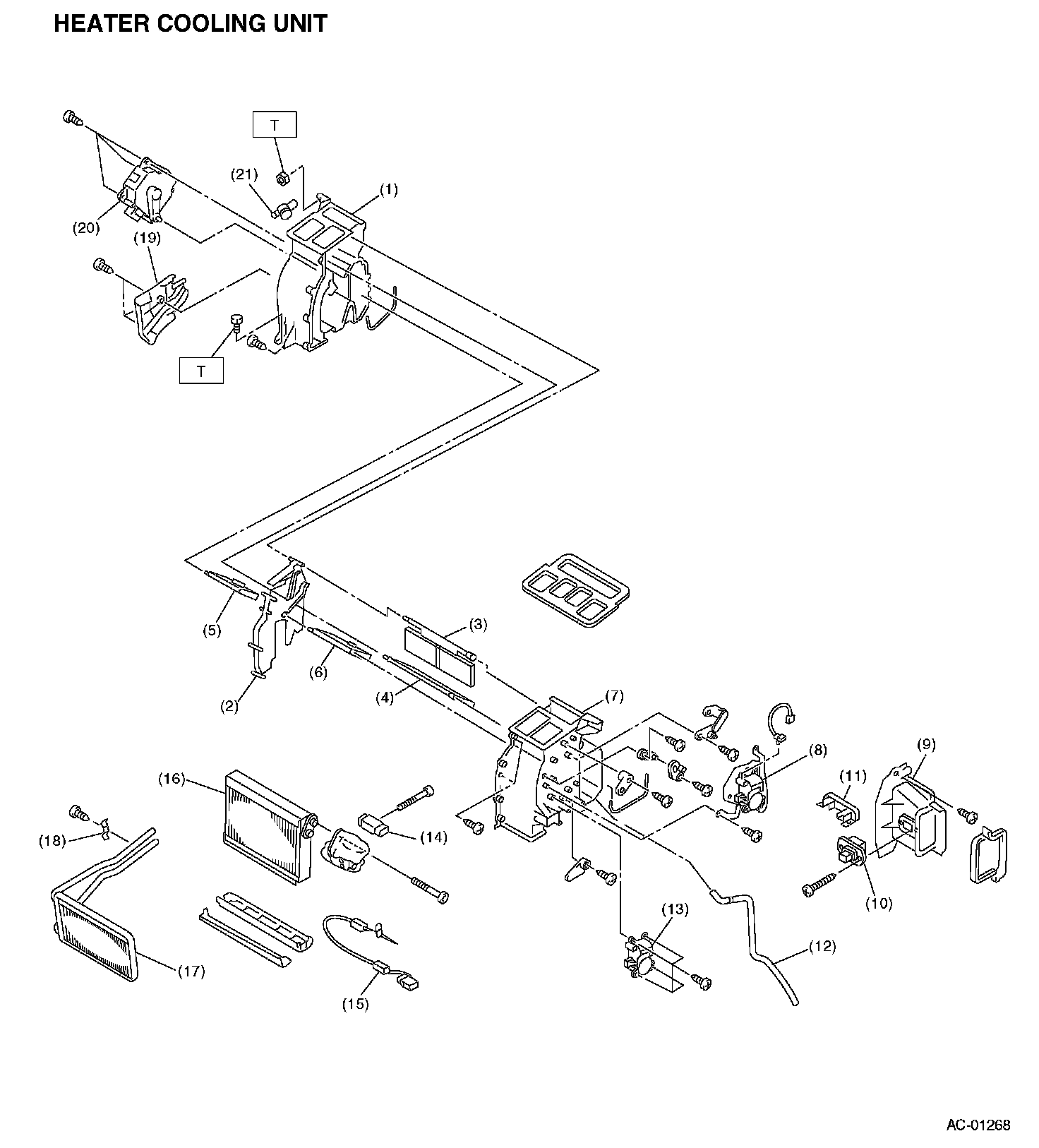

Heater Cooling Unit (Part 1):

Heater Cooling Unit (Part 2):

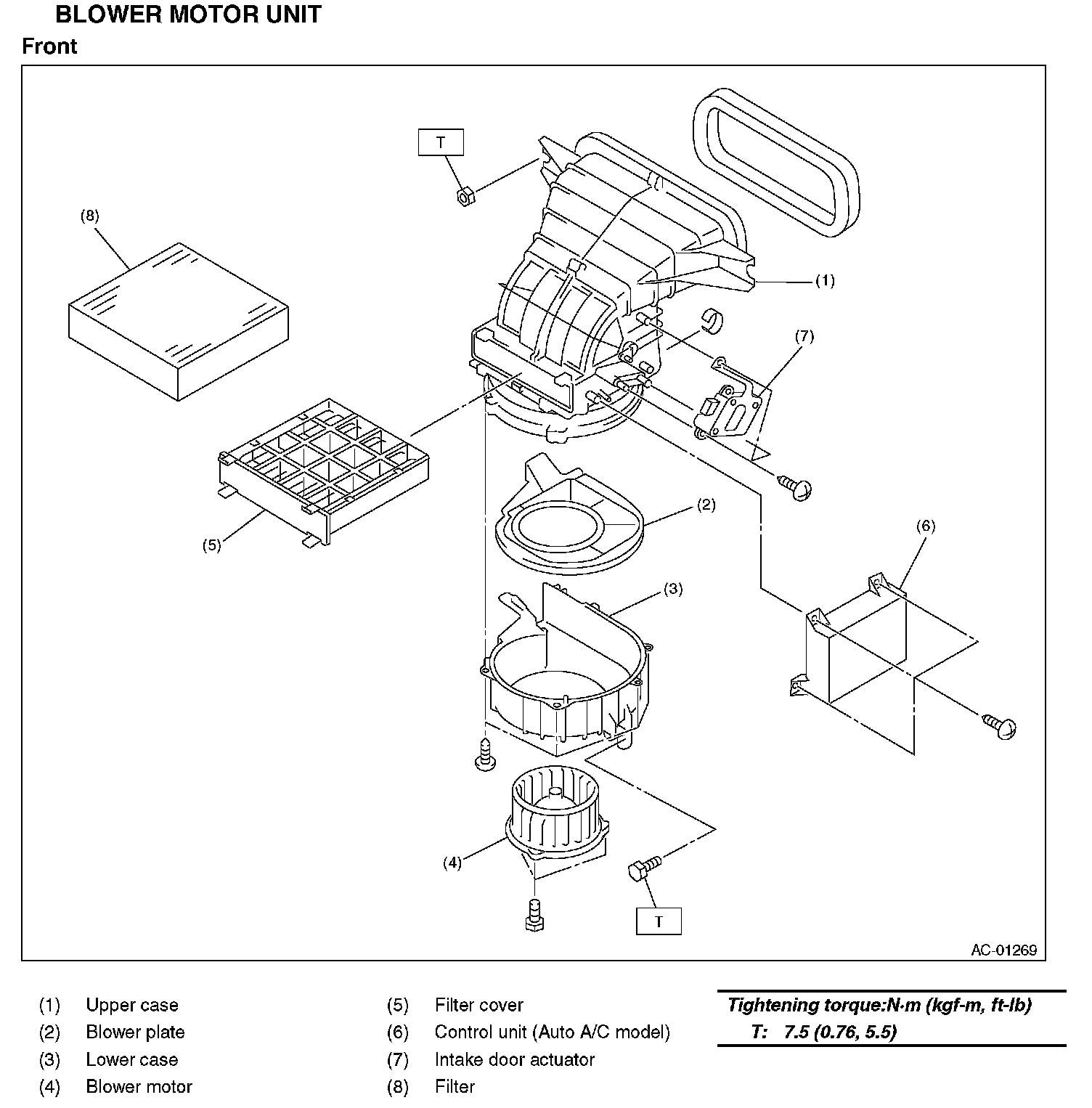

Blower Motor Unit-Front:

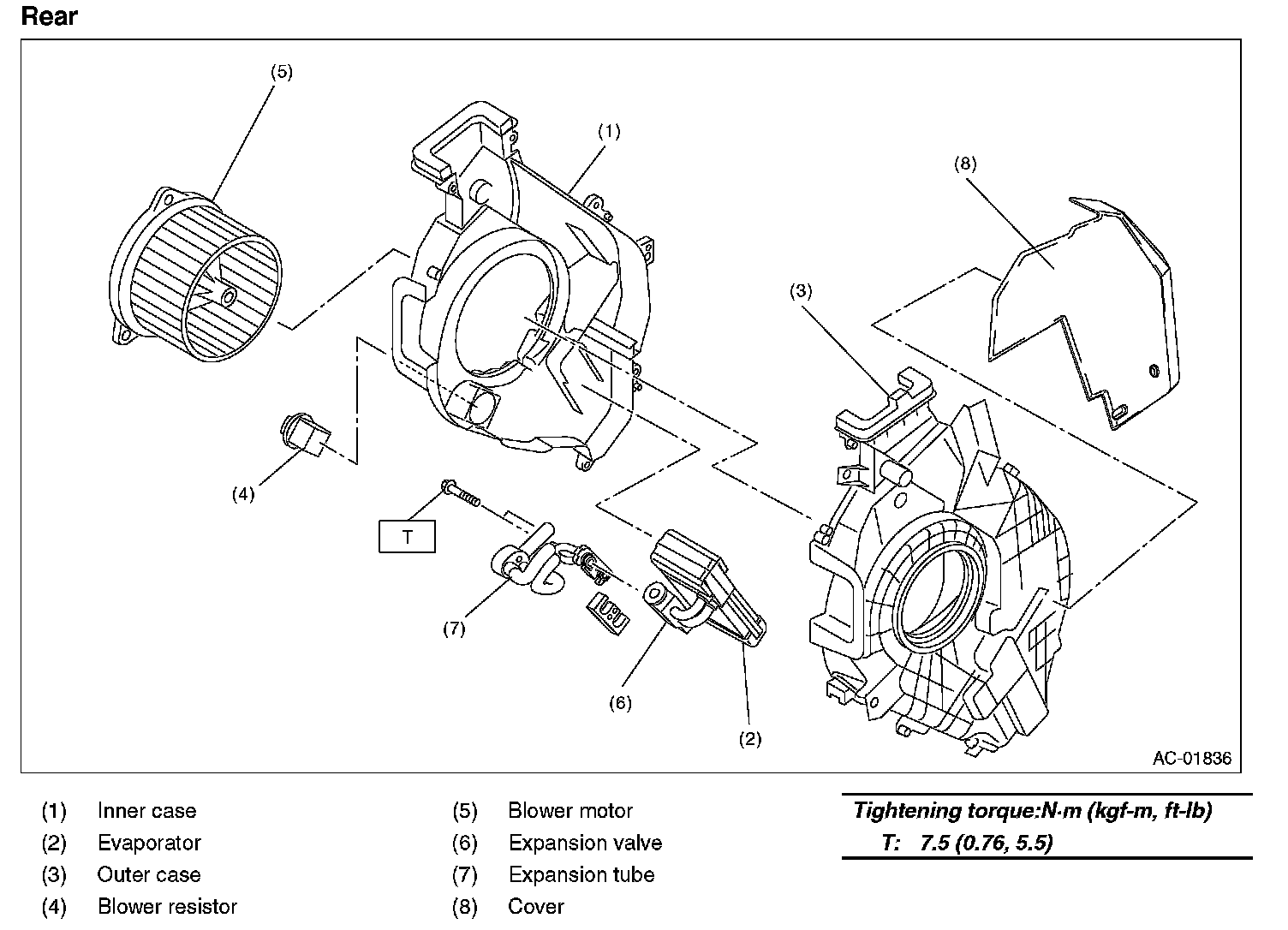

Blower Motor Unit-Rear:

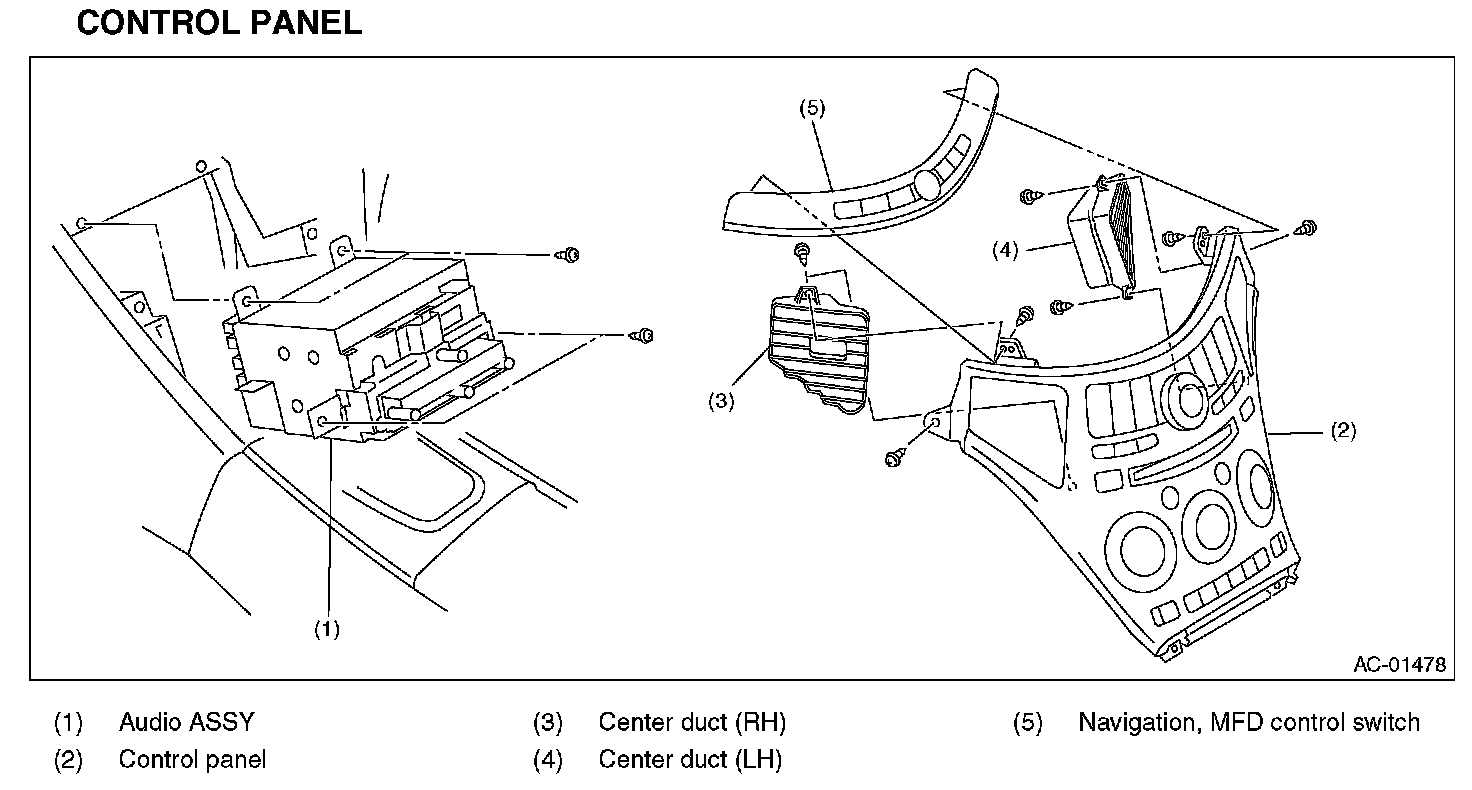

Control Panel:

Rear Cooler Model:

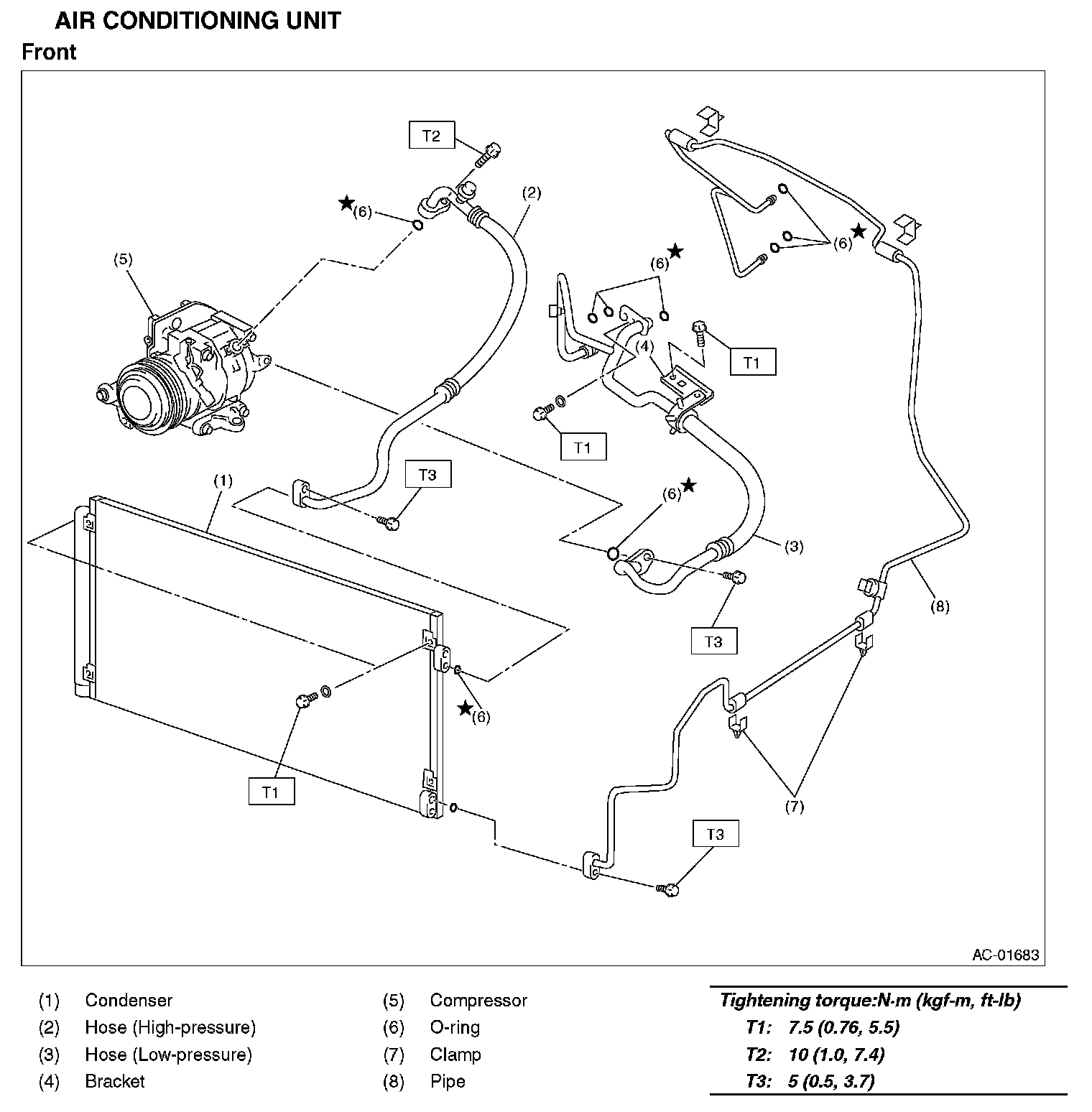

Air Conditioning Unit-Front:

Air Conditioning Unit-Rear:

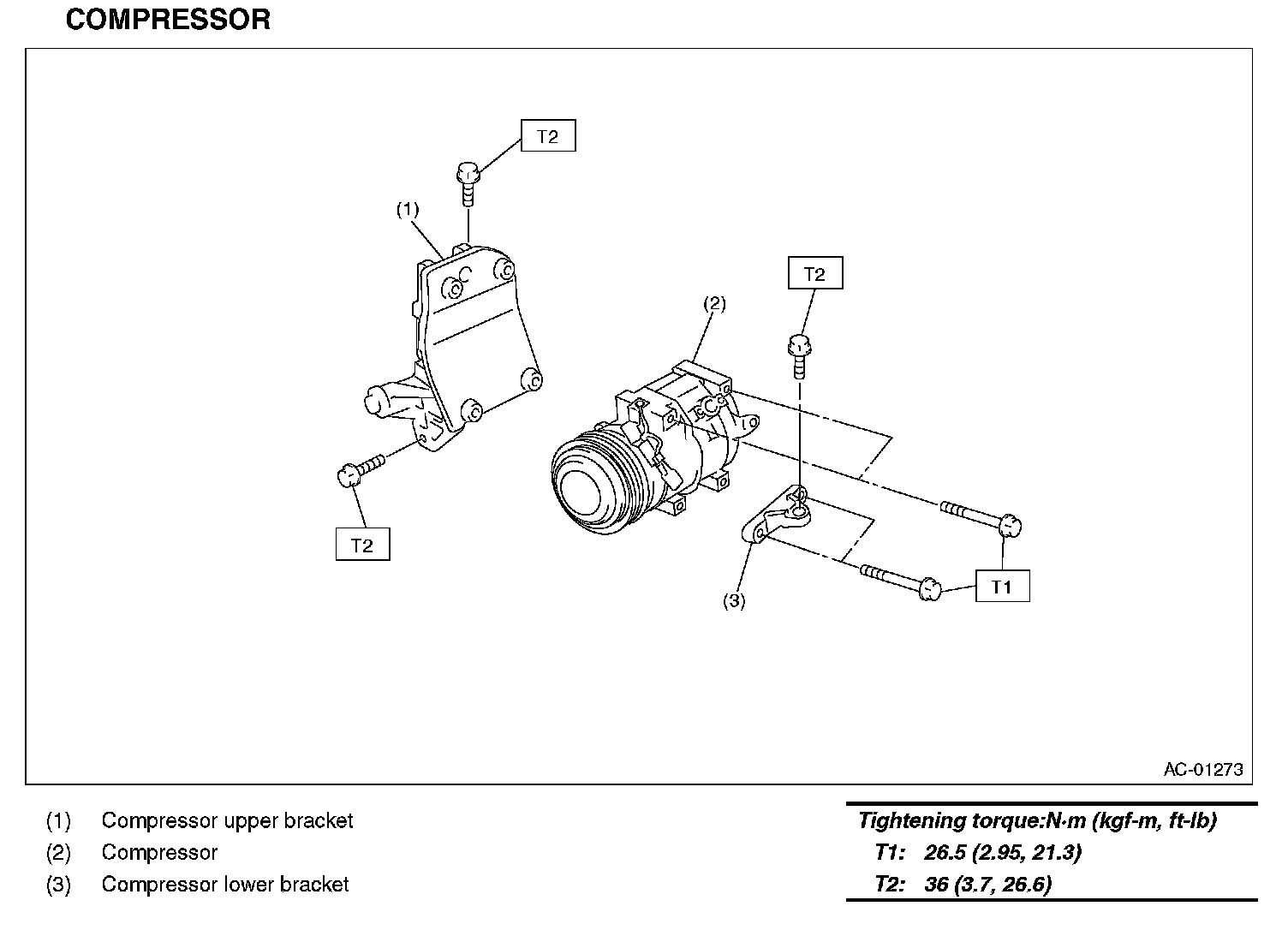

Compressor:

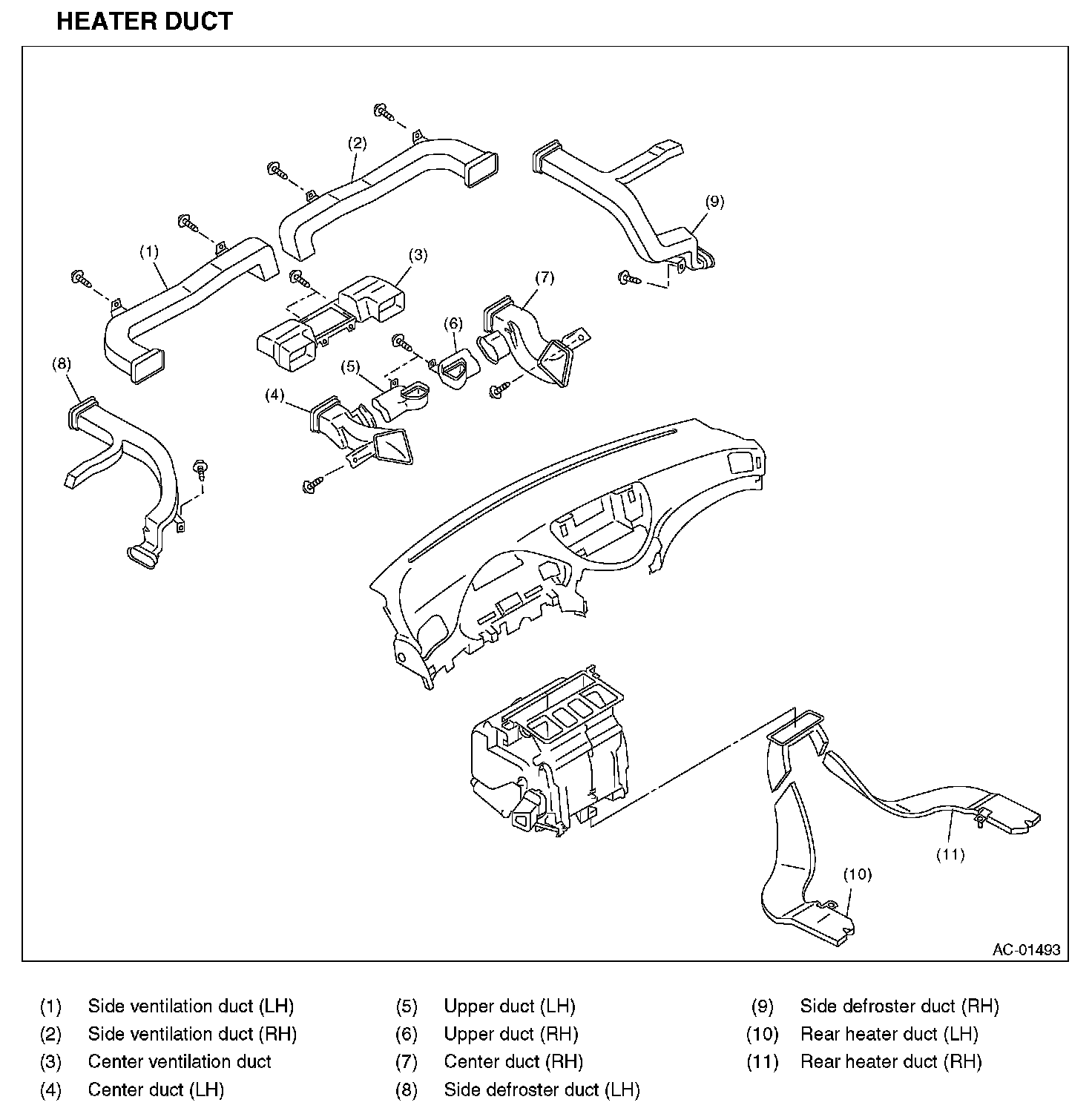

Heater Duct:
