Locks

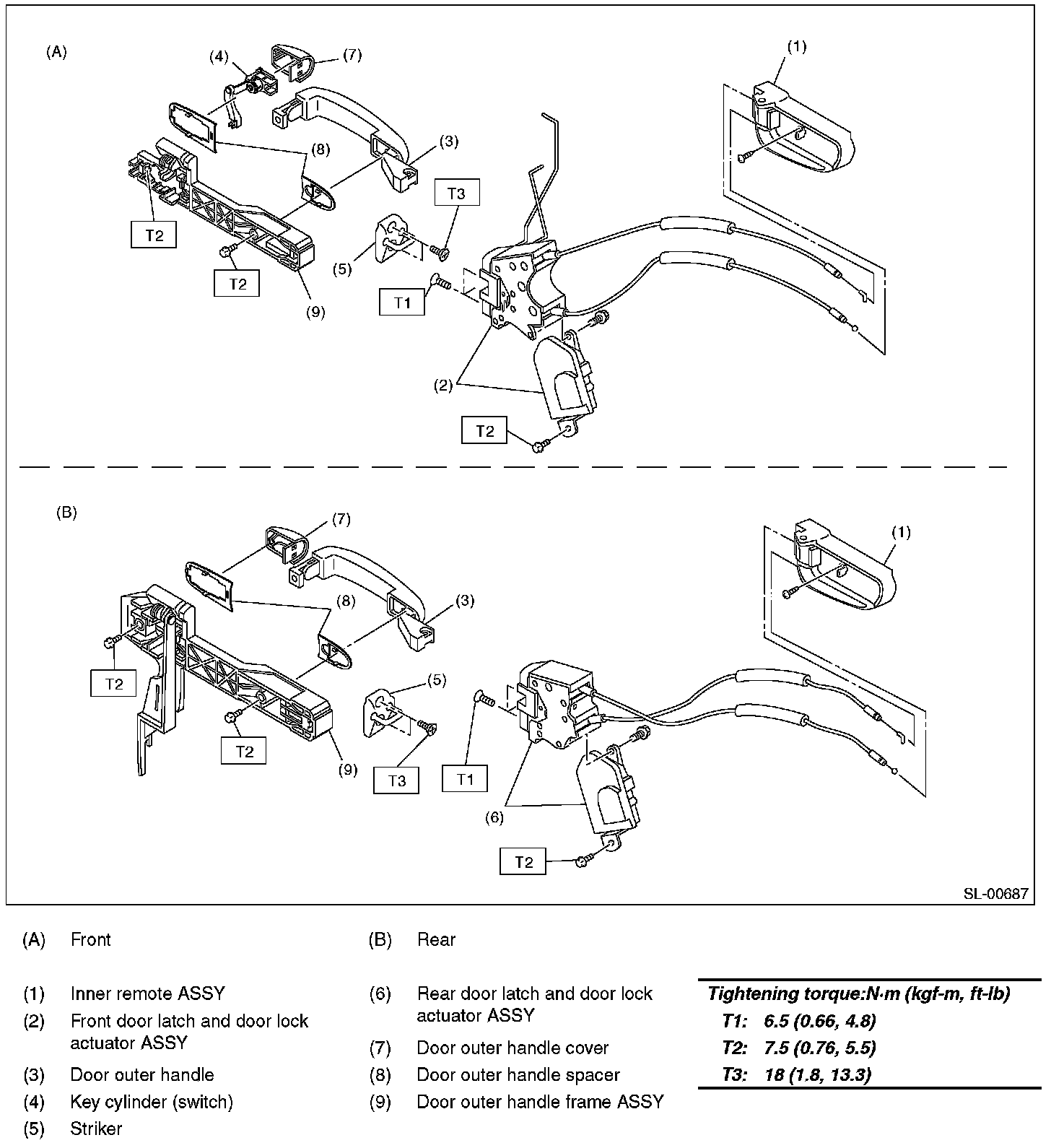

Door Lock Assembly:

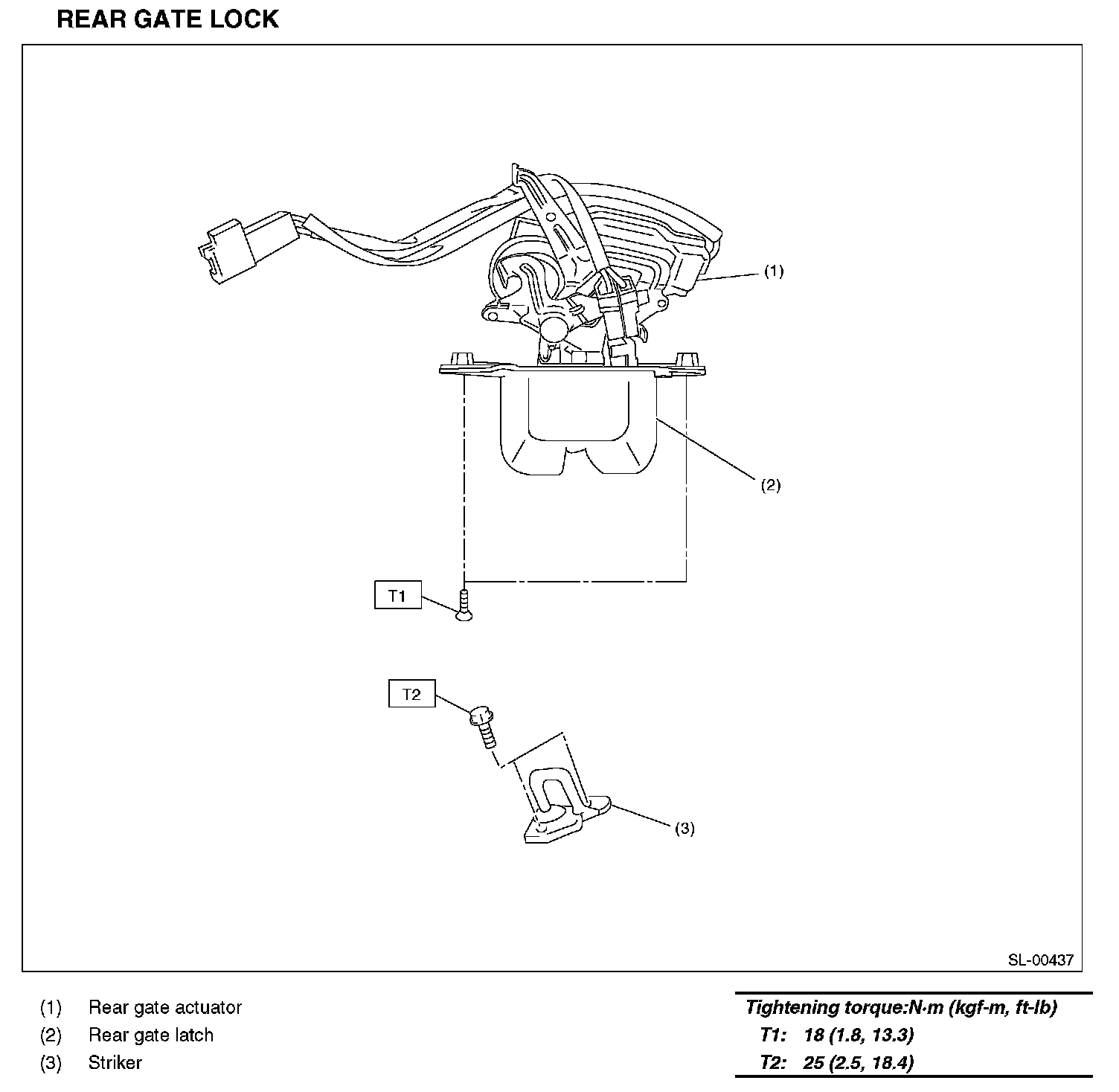

Rear Gate Lock:

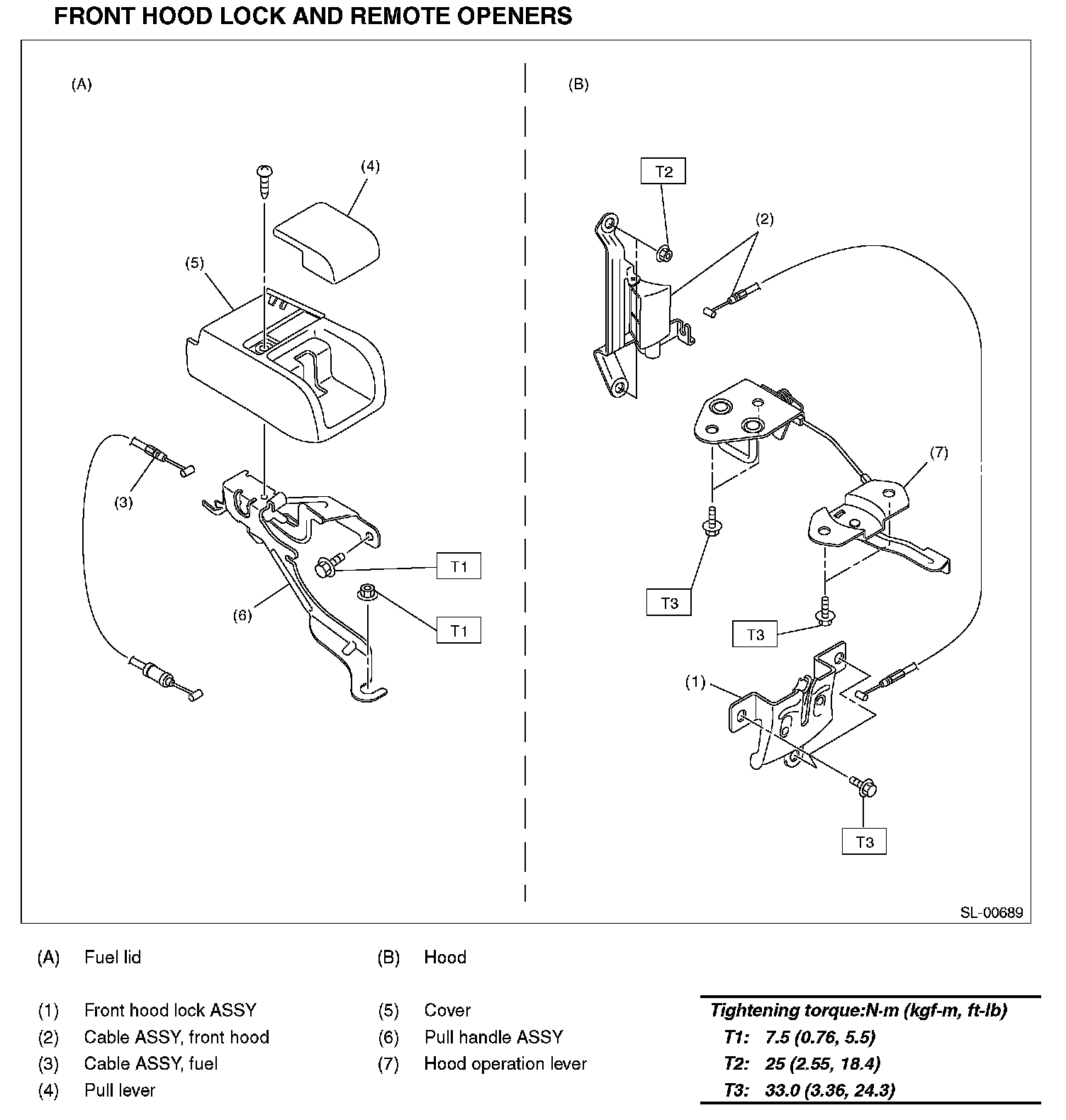

Front Hood Lock And Remote Openers:

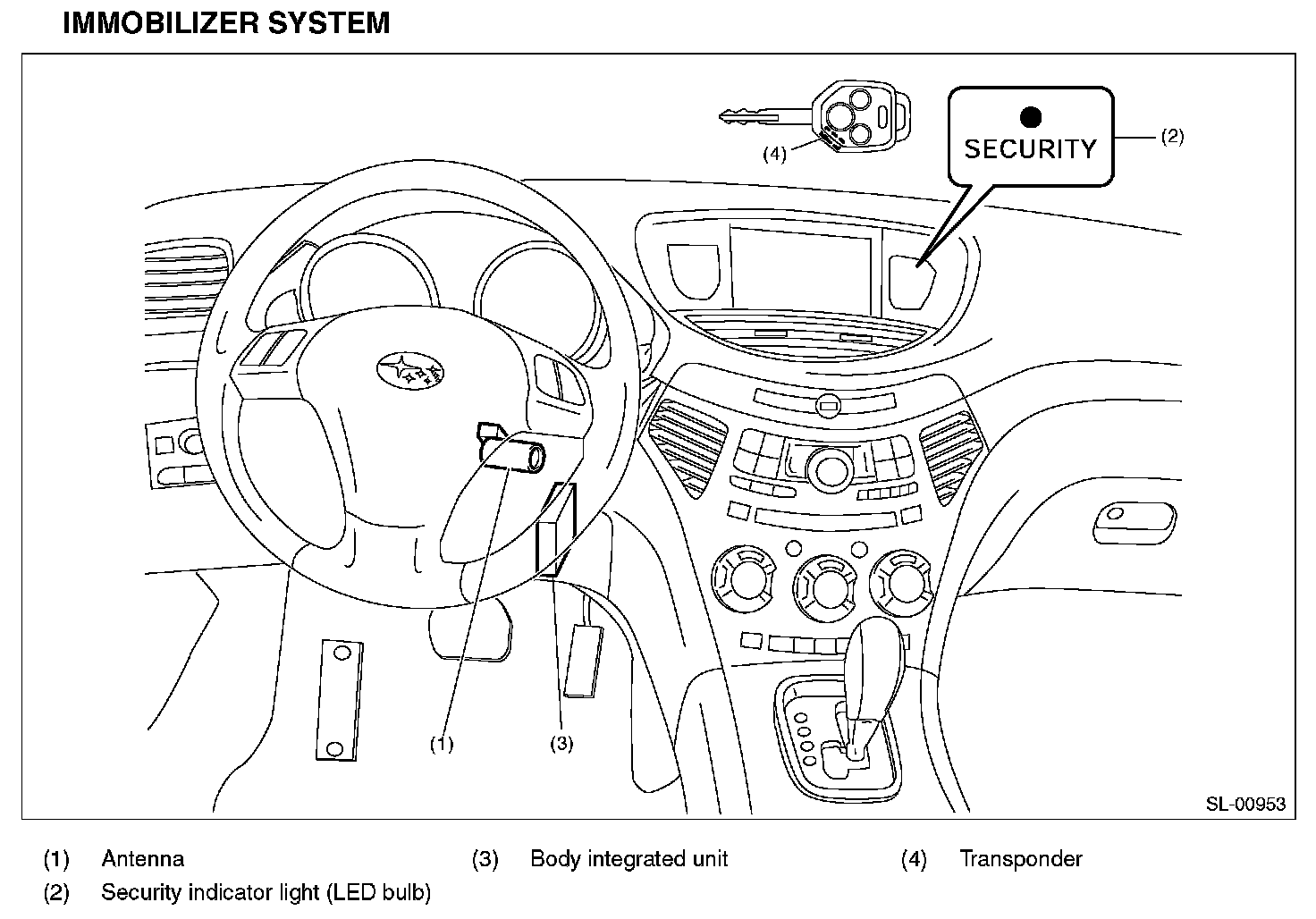

Immobilizer System:

Keyless Entry System:
