Heating and Air Conditioning

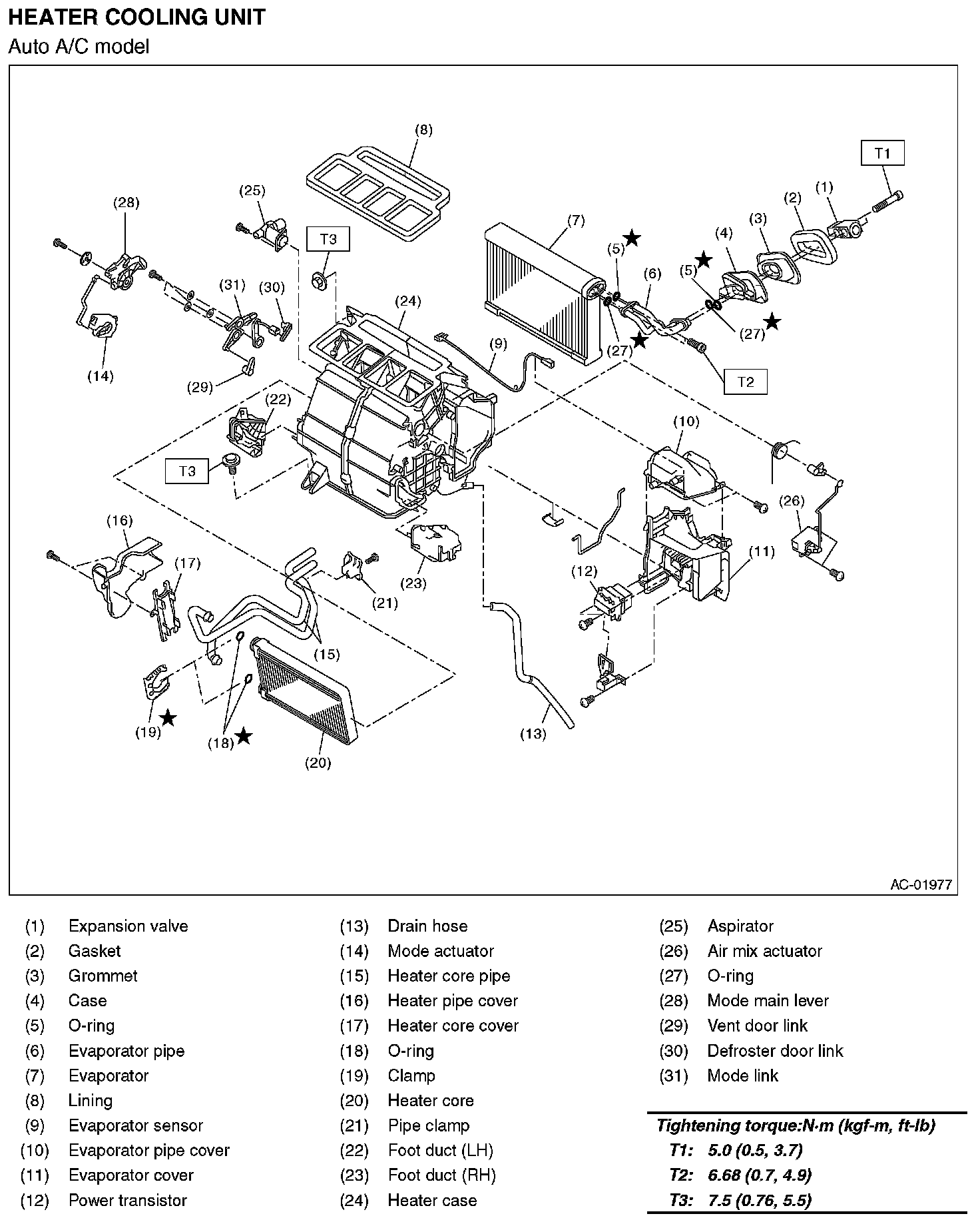

Heater Cooling Unit-Auto A/C Model:

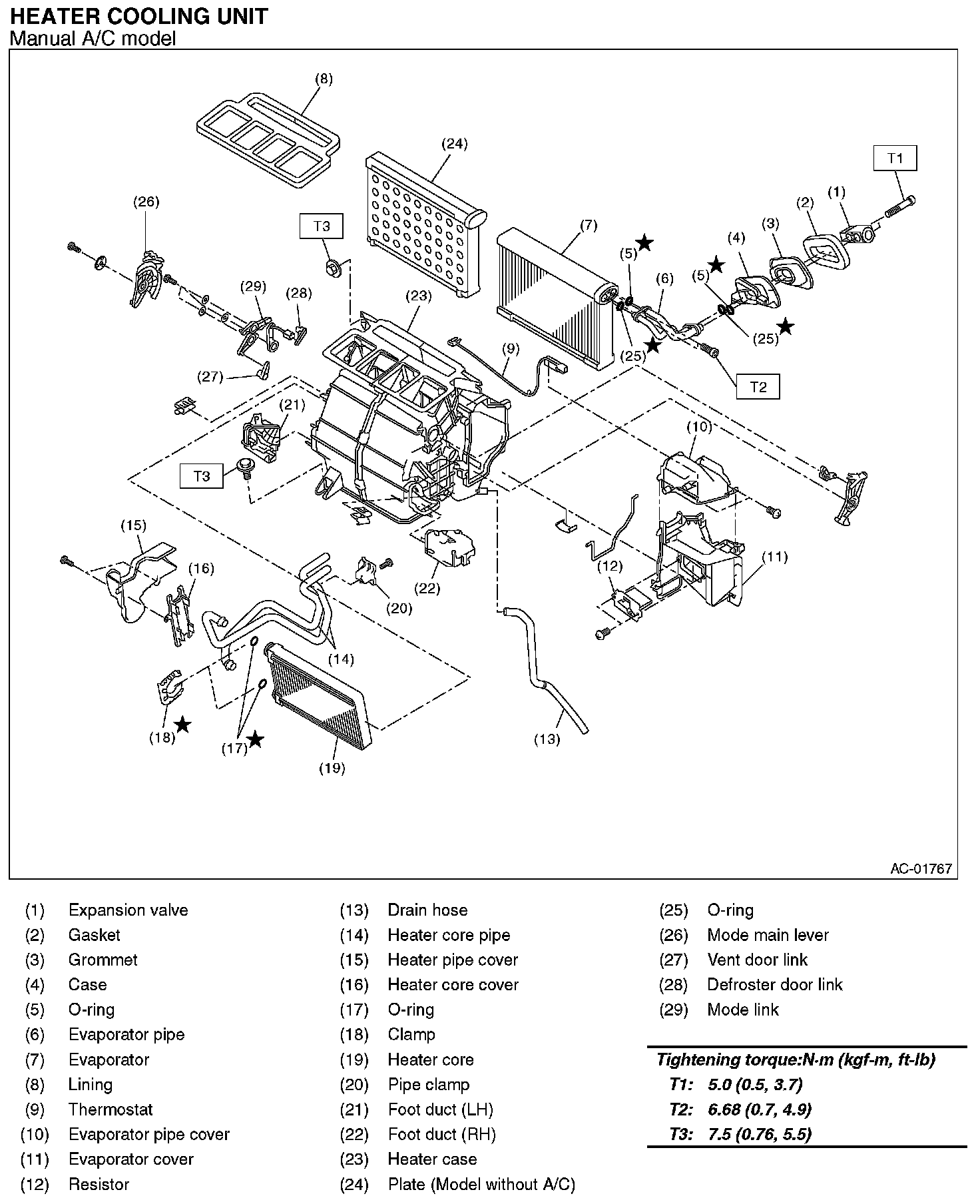

Heater Cooling Unit-Manual A/C Model:

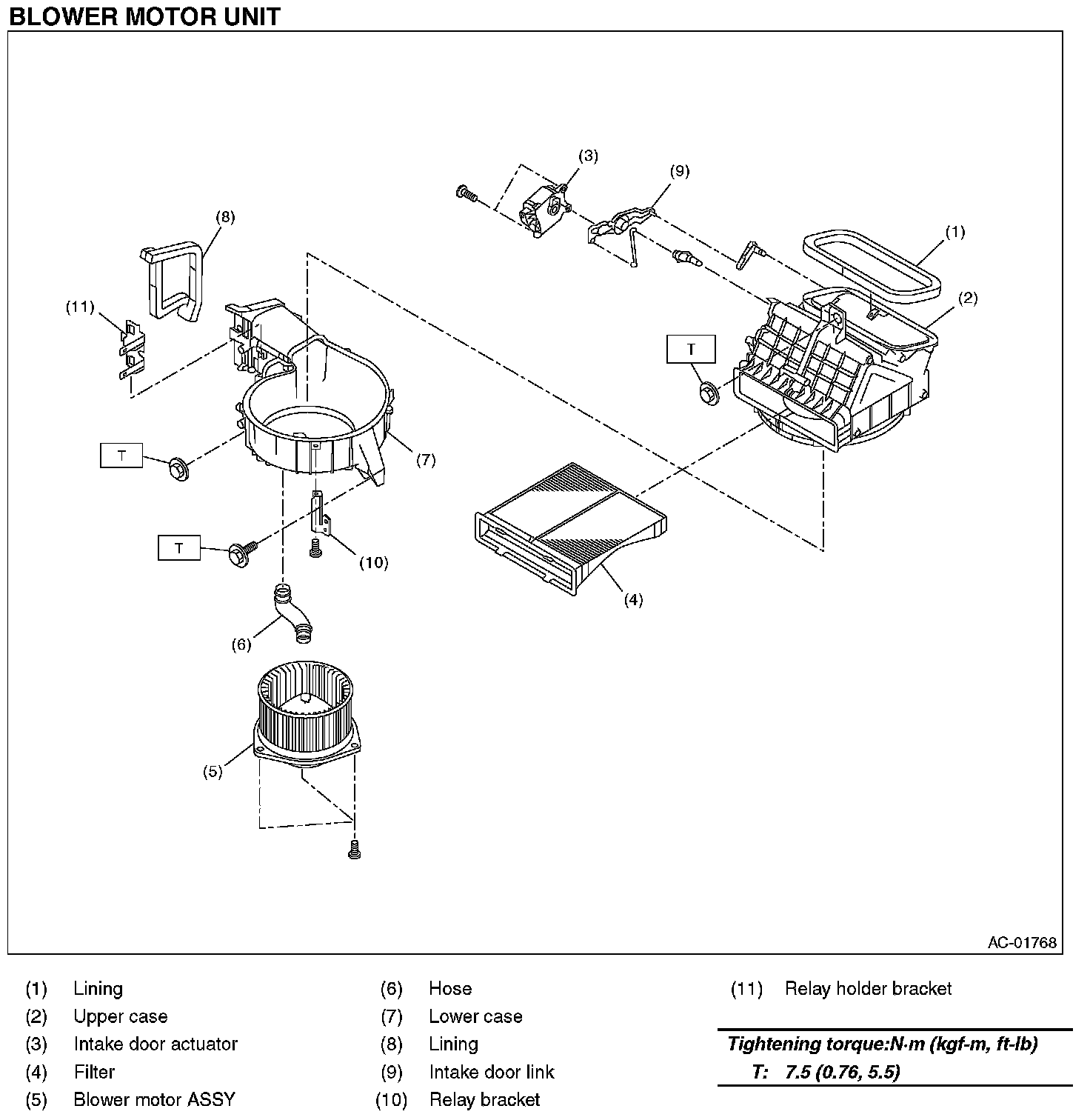

Blower Motor Unit:

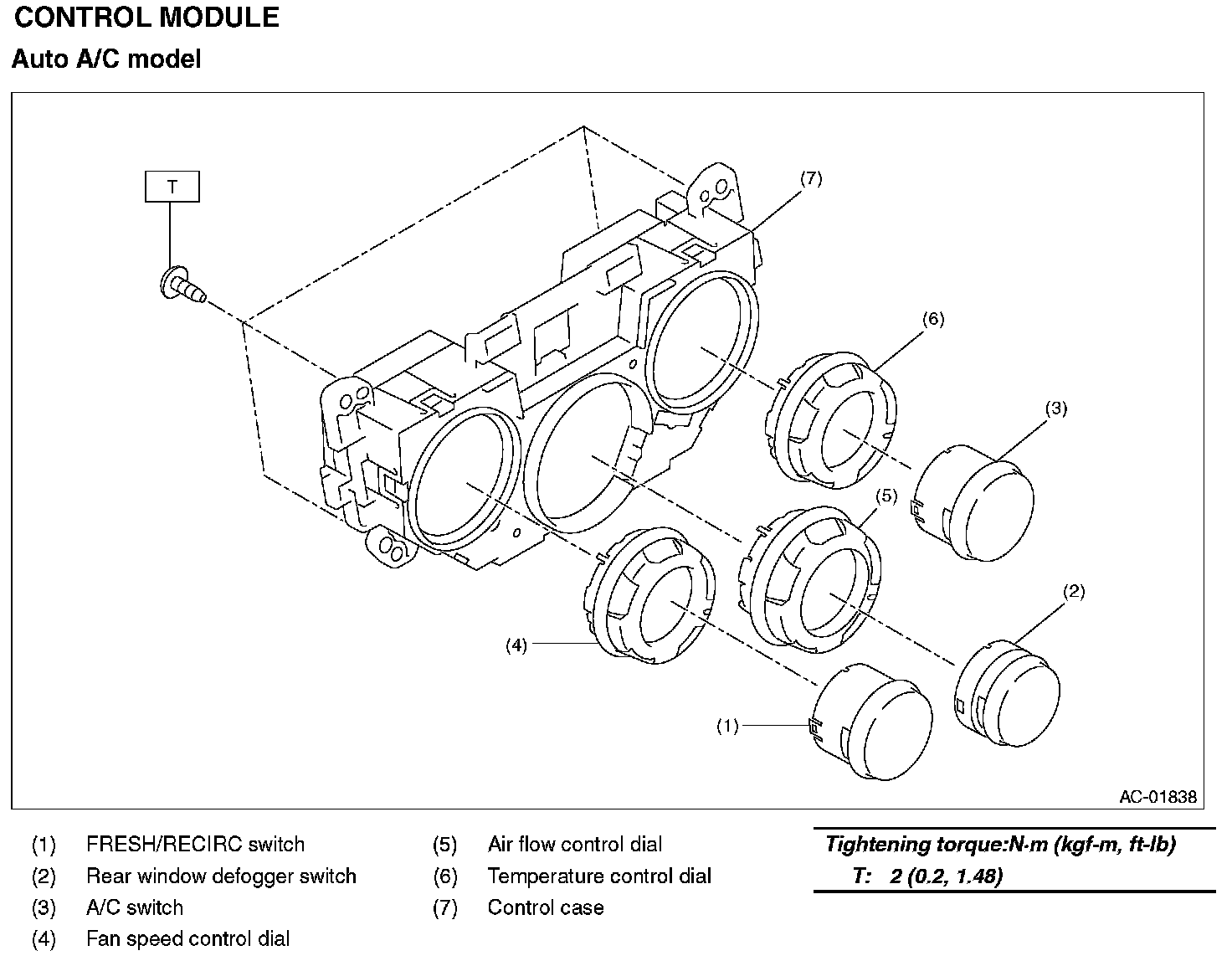

Control Module-Auto A/C Model:

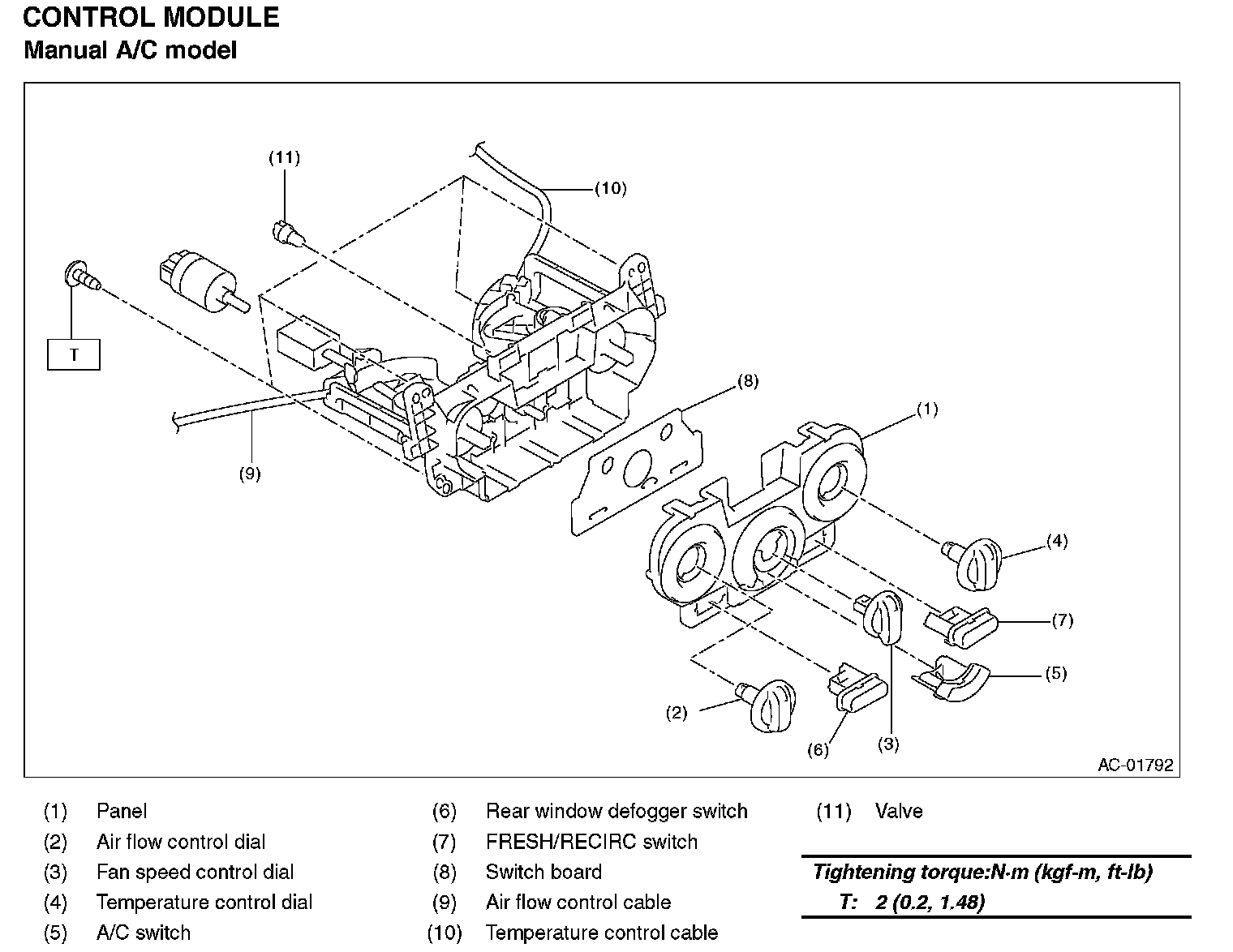

Control Module-Manual A/C Model:

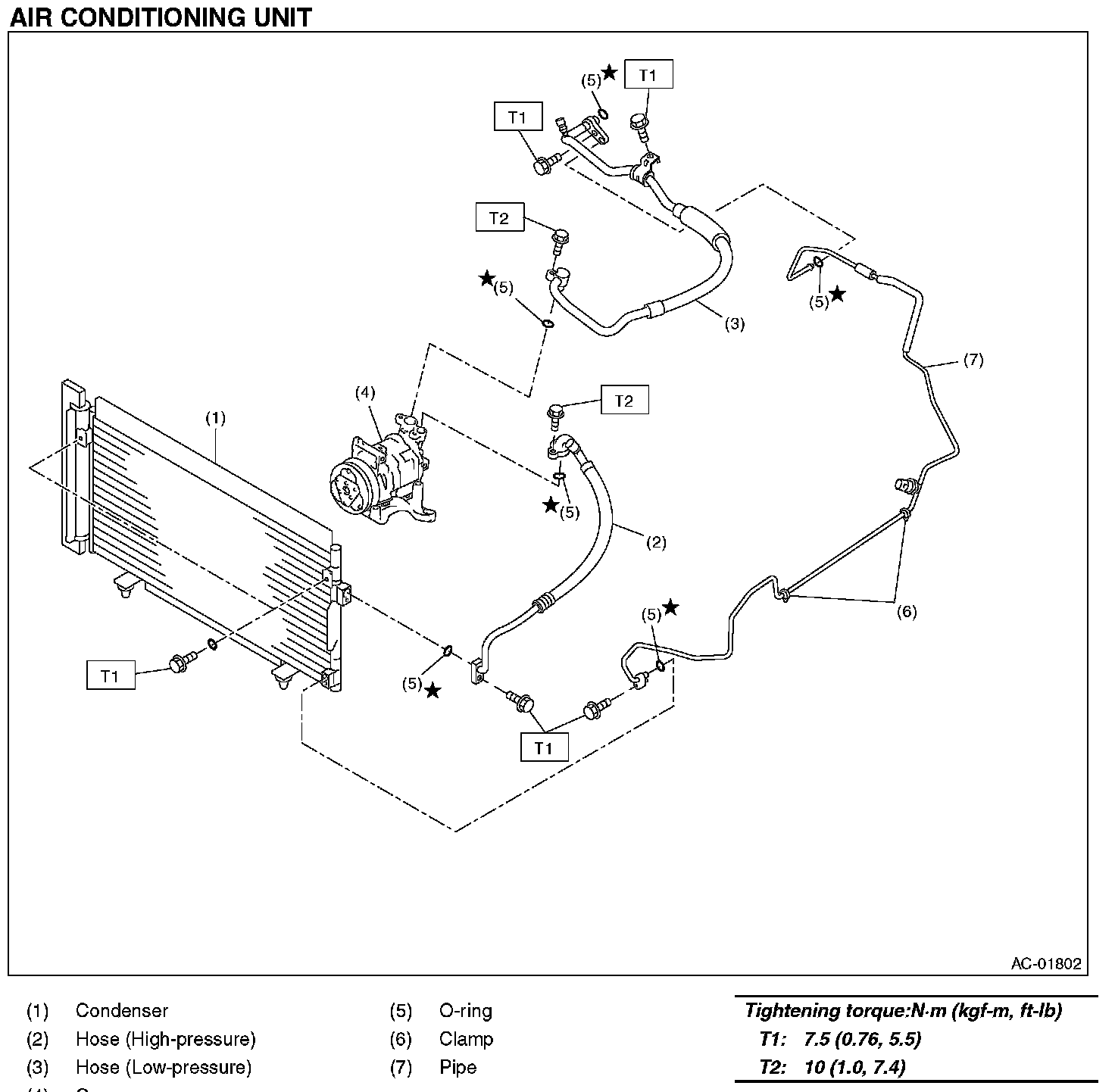

Air Conditioning Unit:

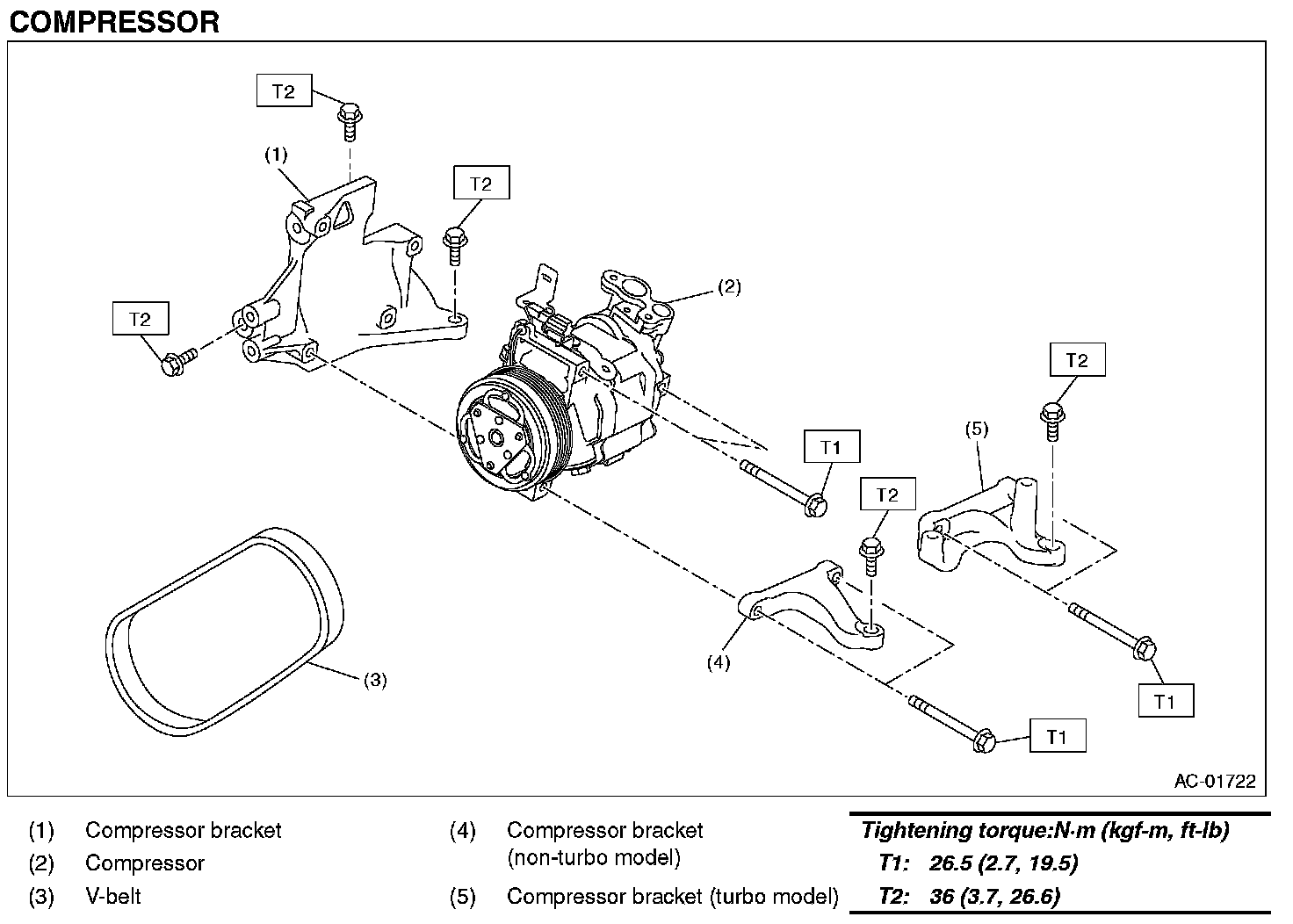

Compressor:

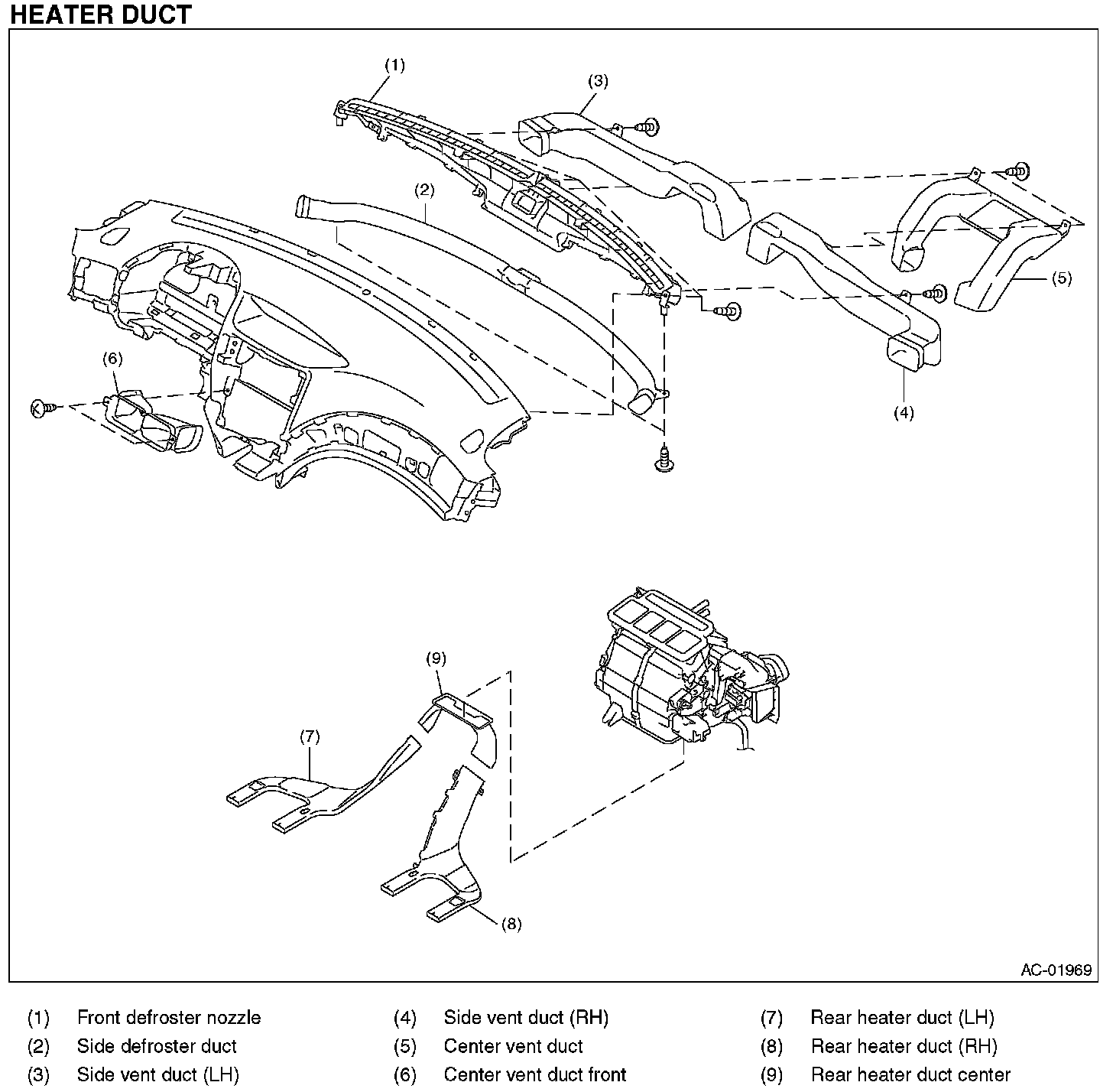

Heater Duct:
