Operating Cylinder

WARNING: This page is about a different variant/trim than selected.

5MT non-turbo model

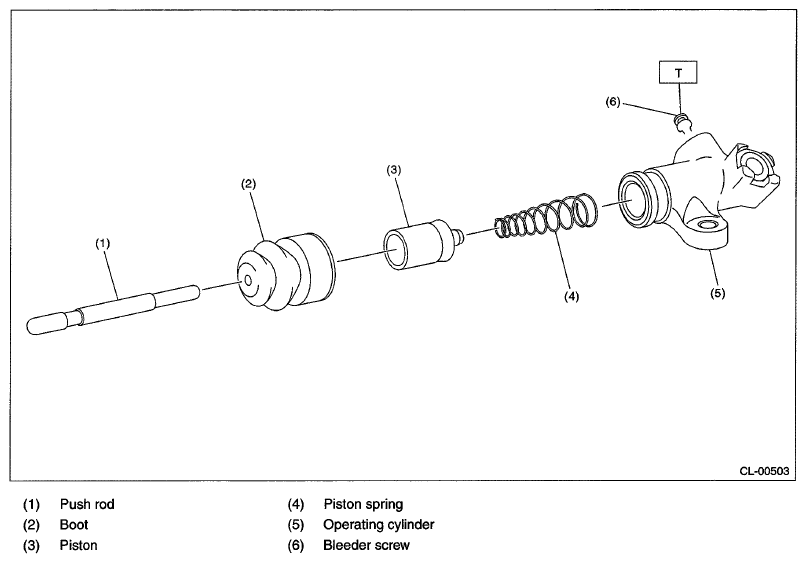

Fig 1: Identifying Operating Cylinder Components - 5MT Non-Turbo Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8,5.8)
5MT turbo model

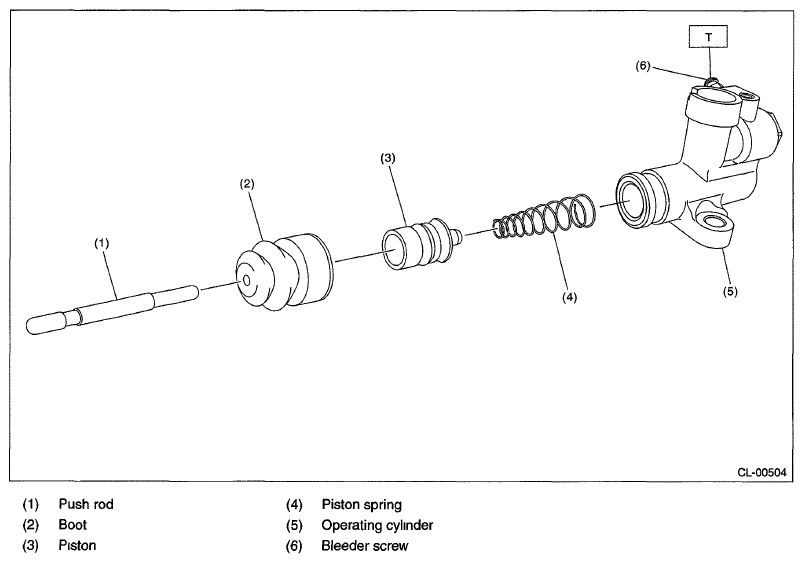

Fig 2: Identifying Operating Cylinder Components - 5MT Turbo Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8,5.8)
