Home >> Subaru >> 2009 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly >> Rear Drive Shaft Assembly

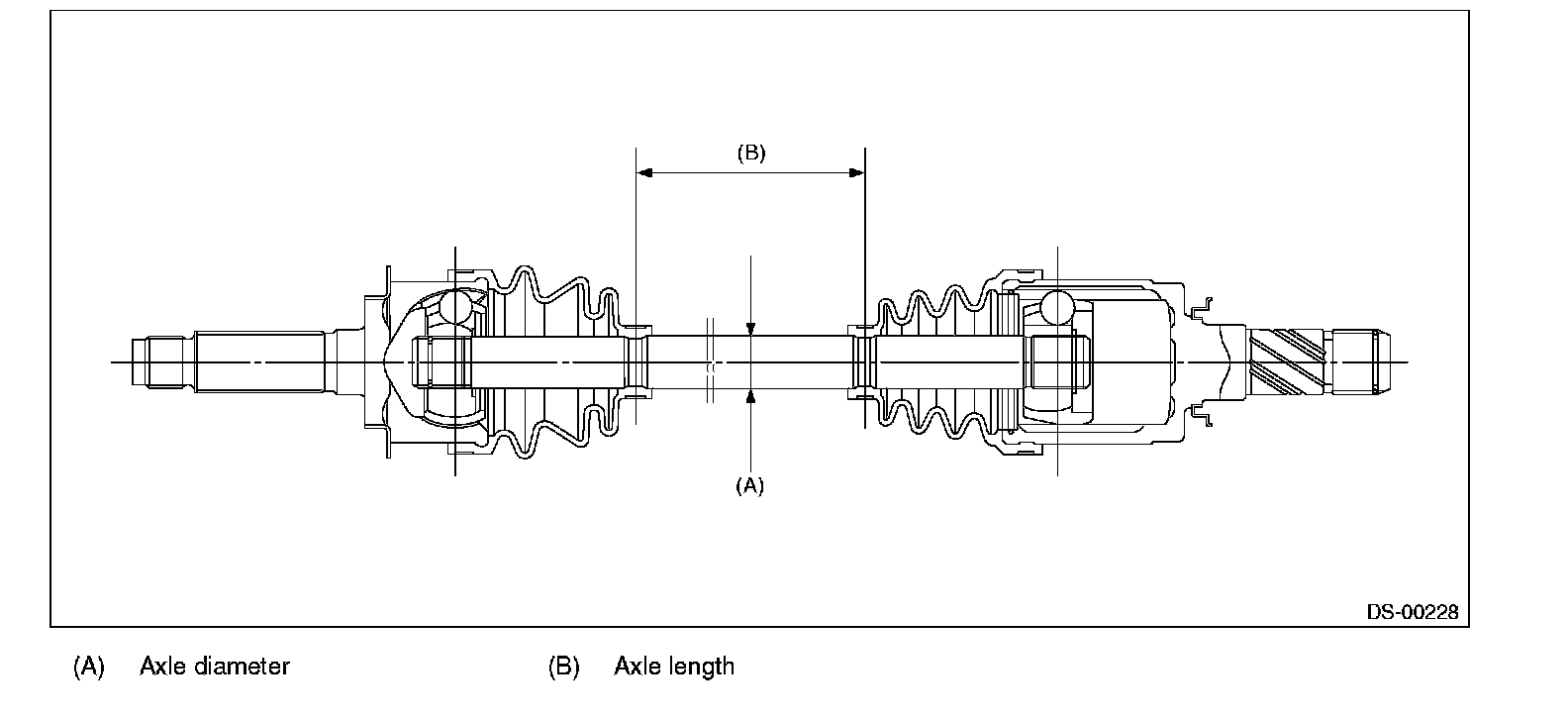

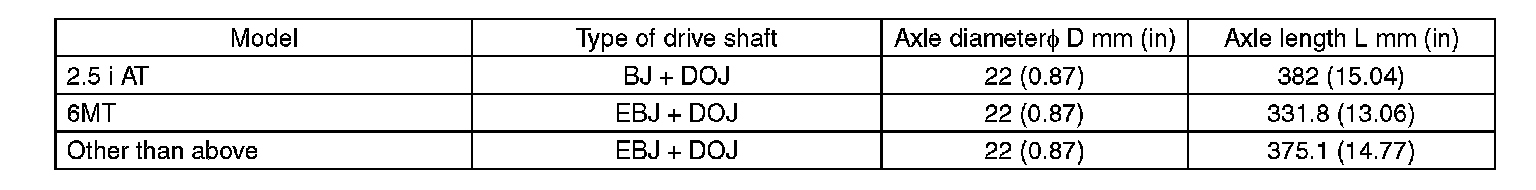

Rear Drive Shaft Assembly
