Wiper Switch: Service and Repair

Combination Switch (Wiper)

REMOVAL

1. Disconnect the ground cable from the battery.

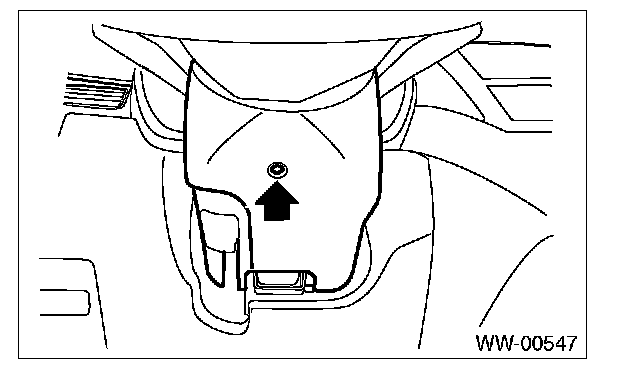

2. Loosen the screw to remove the steering column cover, lower.

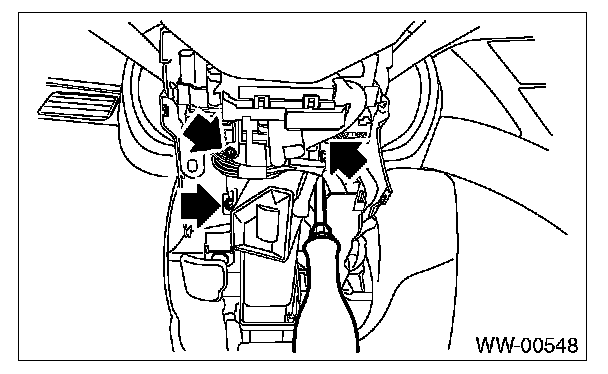

3. Remove the three screws securing the steering column cover, upper.






4. Disconnect the connector from the wiper switch.

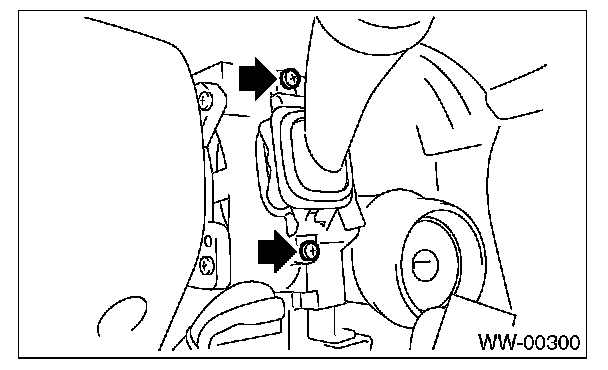

5. Loosen the screws and remove the wiper switch.






INSTALLATION

Install in the reverse order of removal.
