Trailer Hitch: Service and Repair

Trailer Hitch

Trailer Hitch:

REMOVAL

1. Remove the muffler.

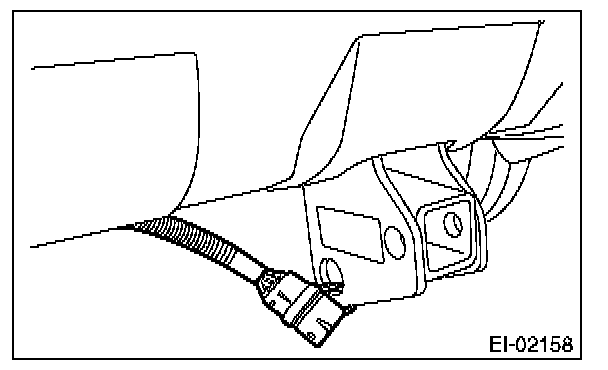

2. Remove the trailer hitch harness.






3. Remove the rear bumper face.

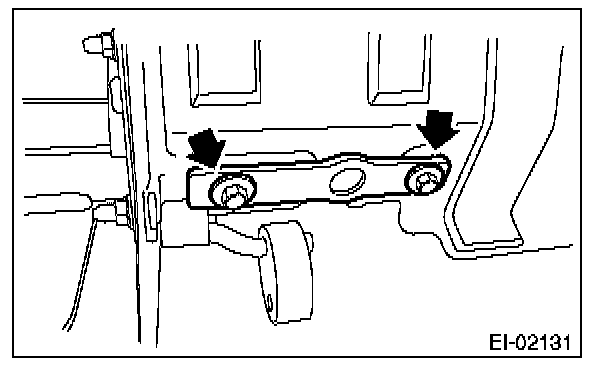

4. Remove the bolts and side plate lower.

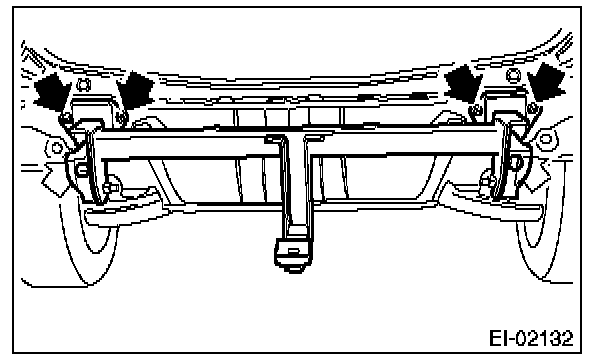

5. Remove the nuts and trailer hitch main frame assembly.

CAUTION: The trailer hitch main frame assembly is very heavy. Be careful when removing.






6. Remove the side plate upper from the vehicle body.

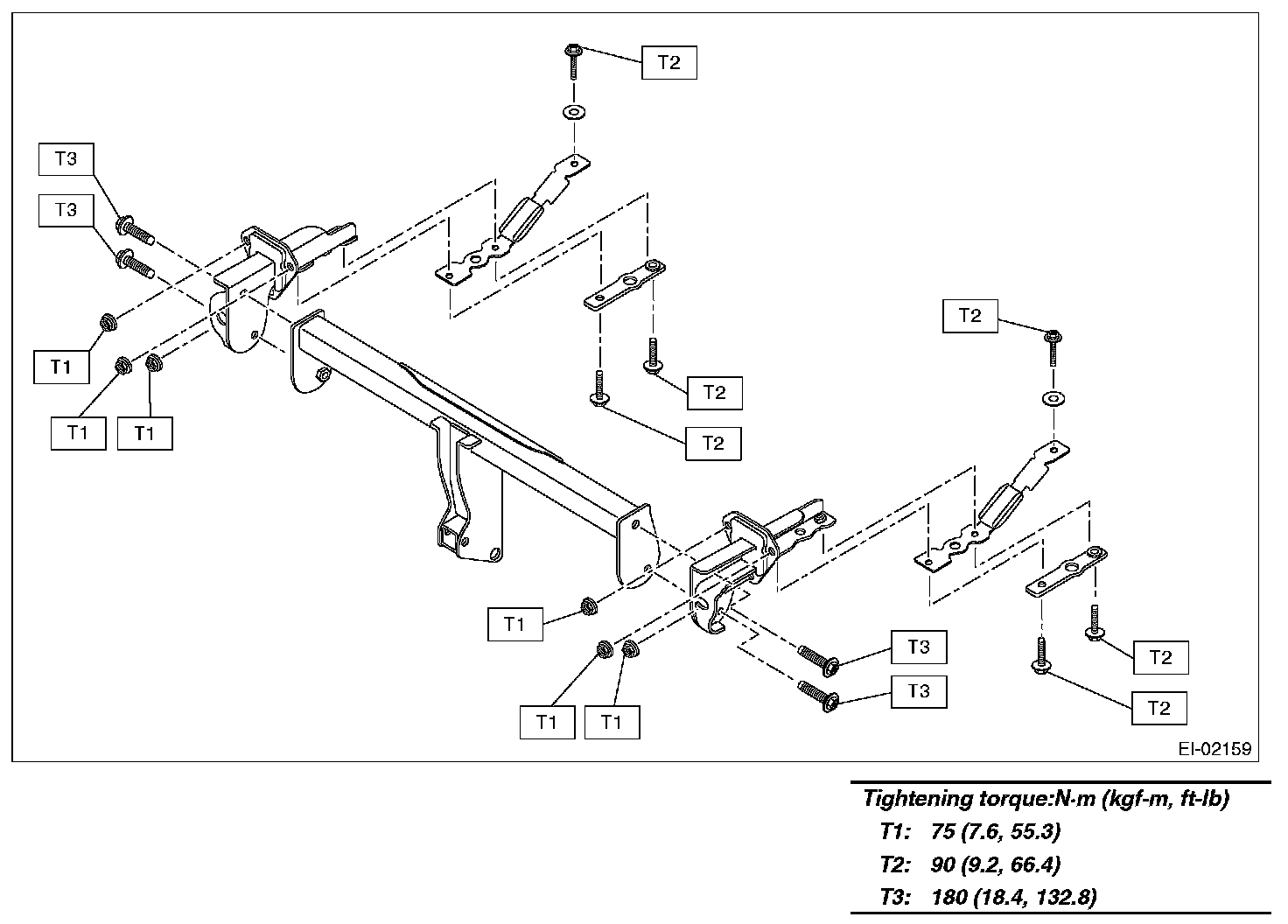

INSTALLATION

Install in the reverse order of removal.
