Control Module I/O Signal

Control Module I/O Signal

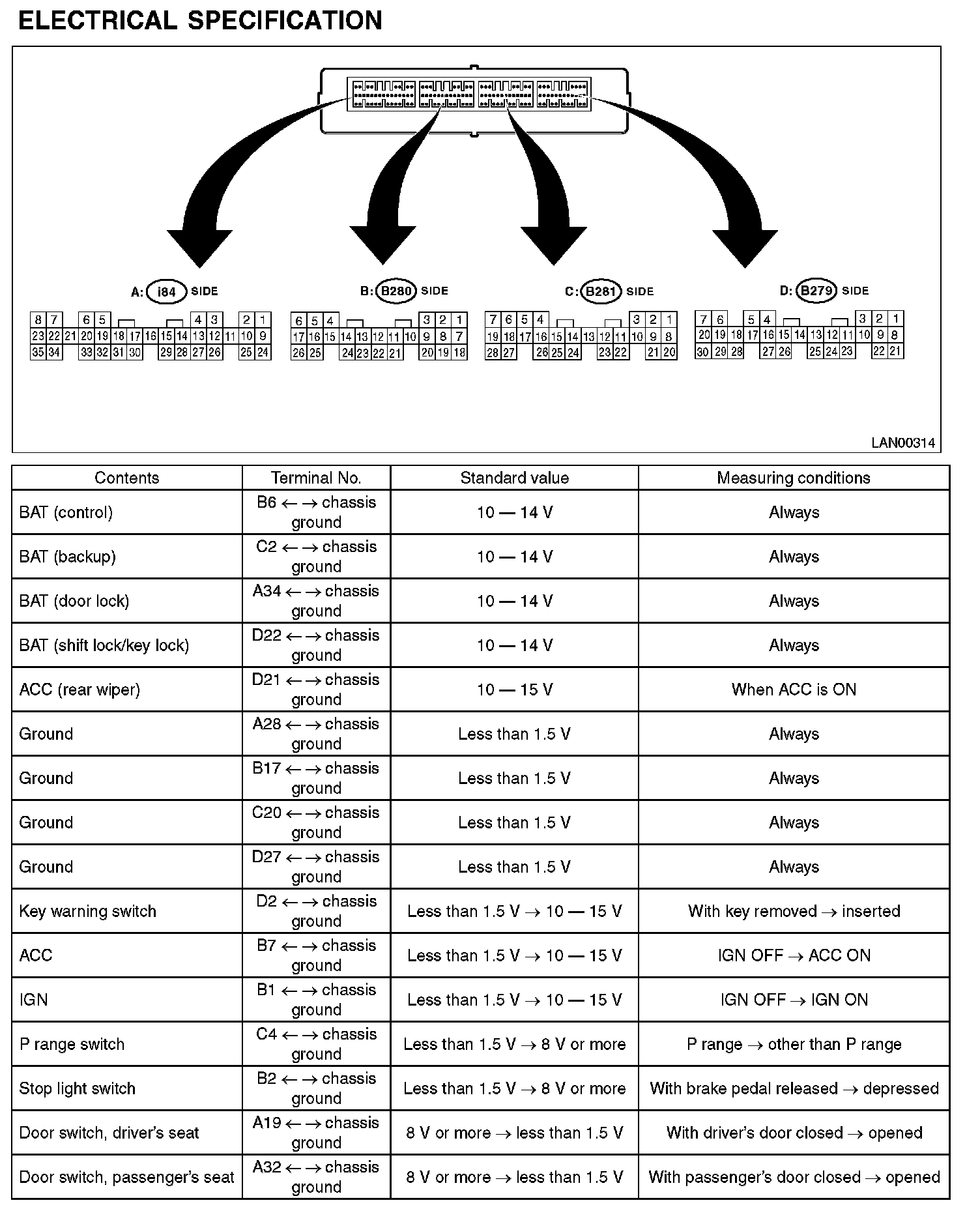

ELECTRICAL SPECIFICATION

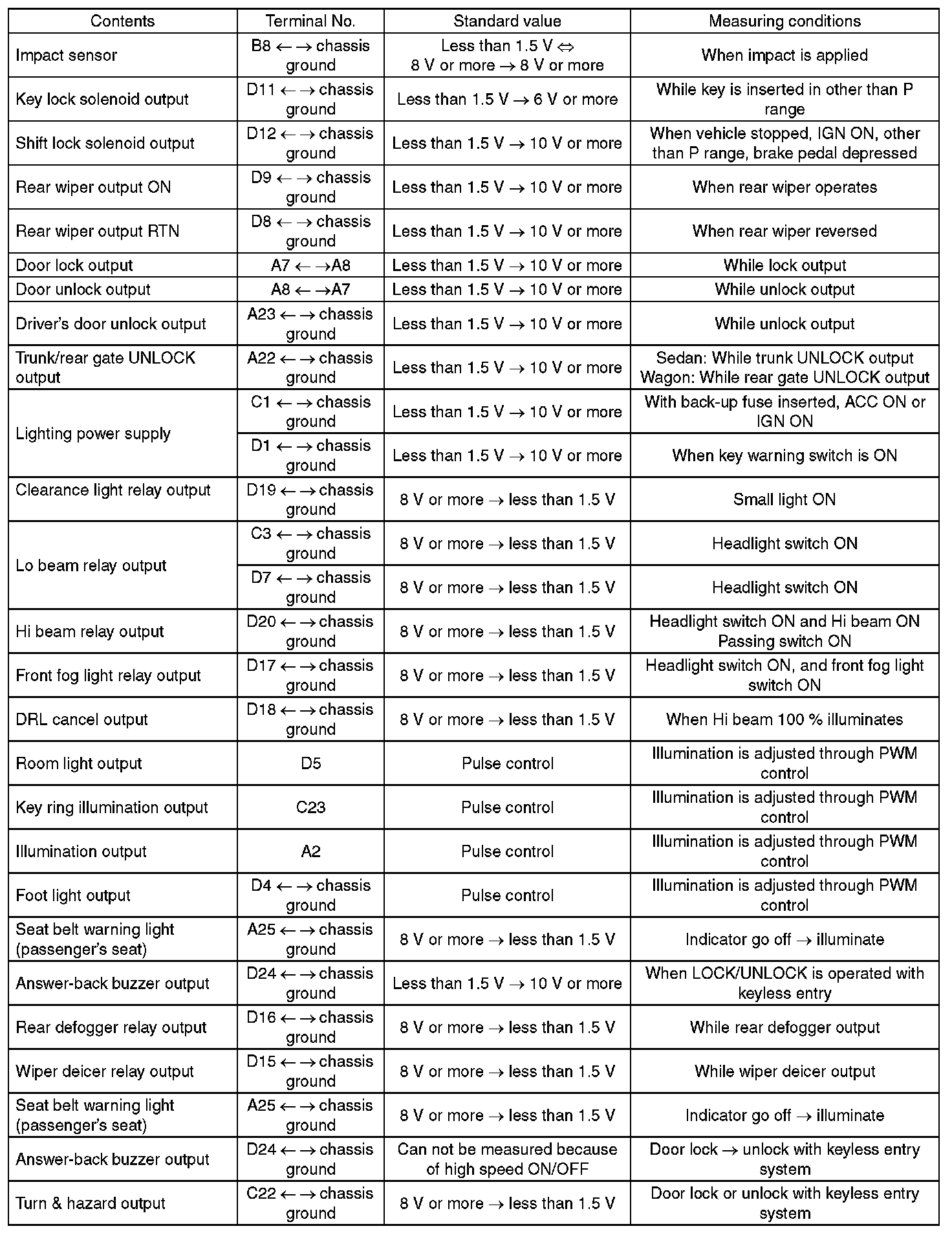

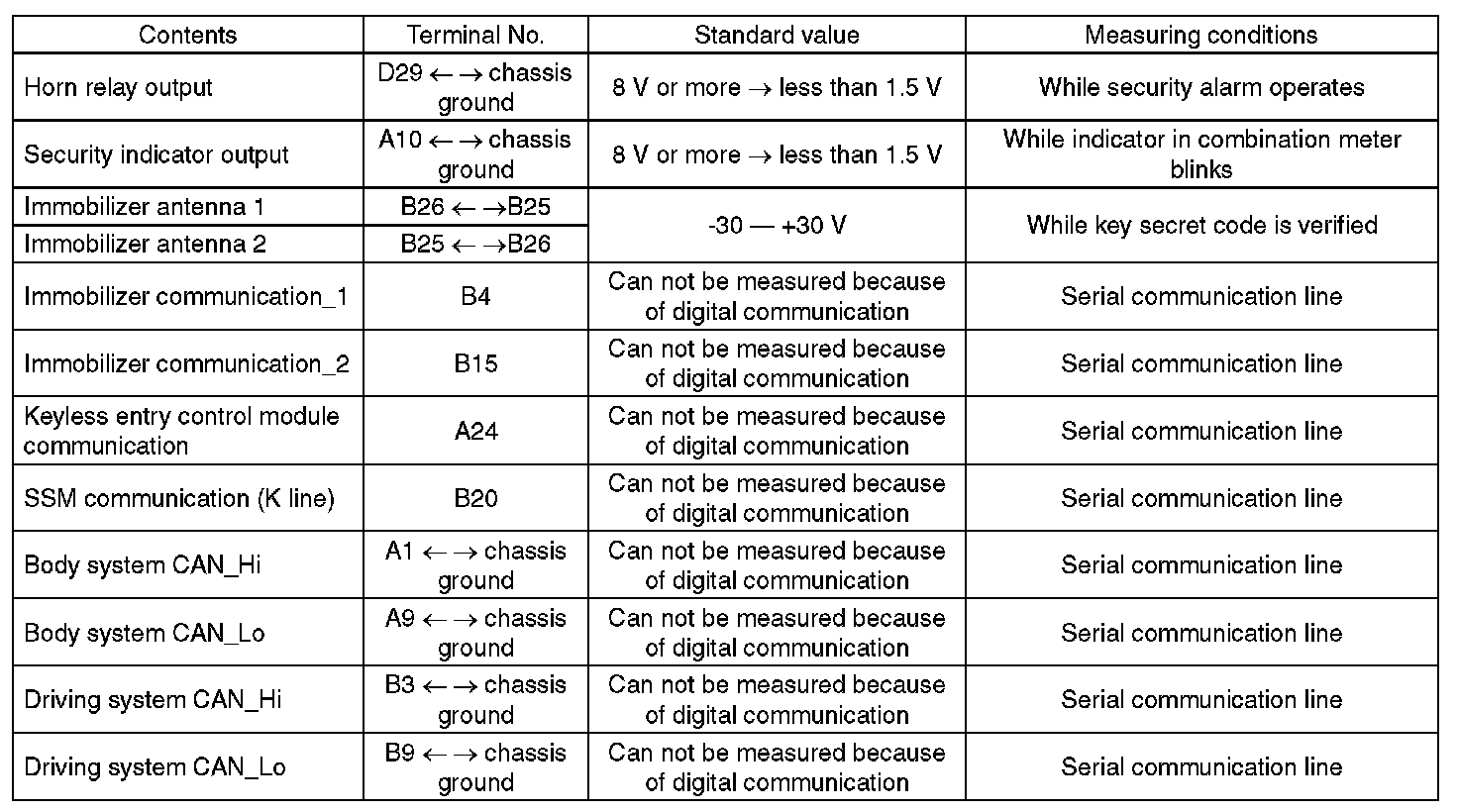

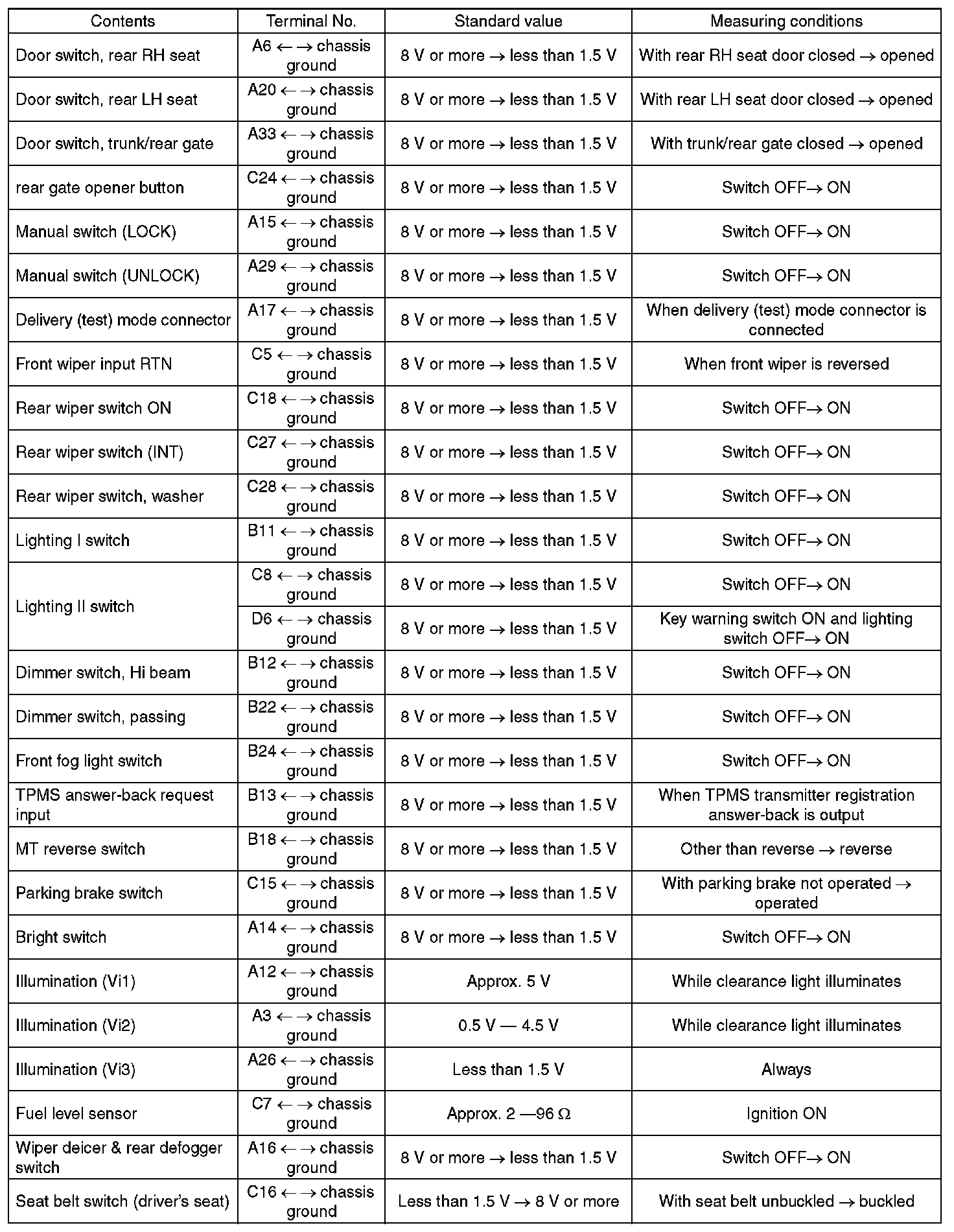

Electrical Specification (Part 1):




Electrical Specification (Part 2):




Electrical Specification (Part 3):




Electrical Specification (Part 4):
