Home >> Subaru >> 2009 >> Forester F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning

Heating and Air Conditioning

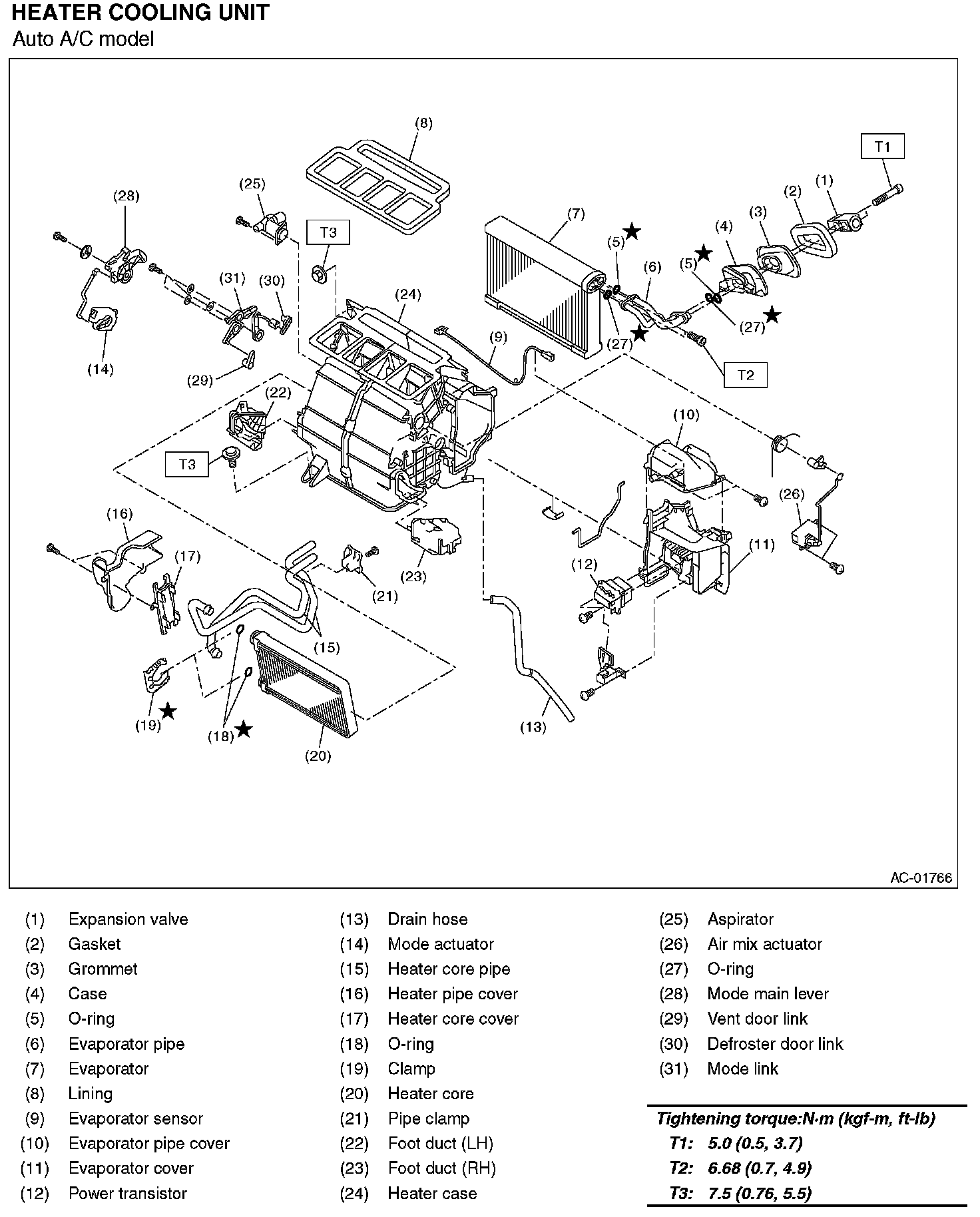

Heater Cooling Unit - Auto A/C Model:

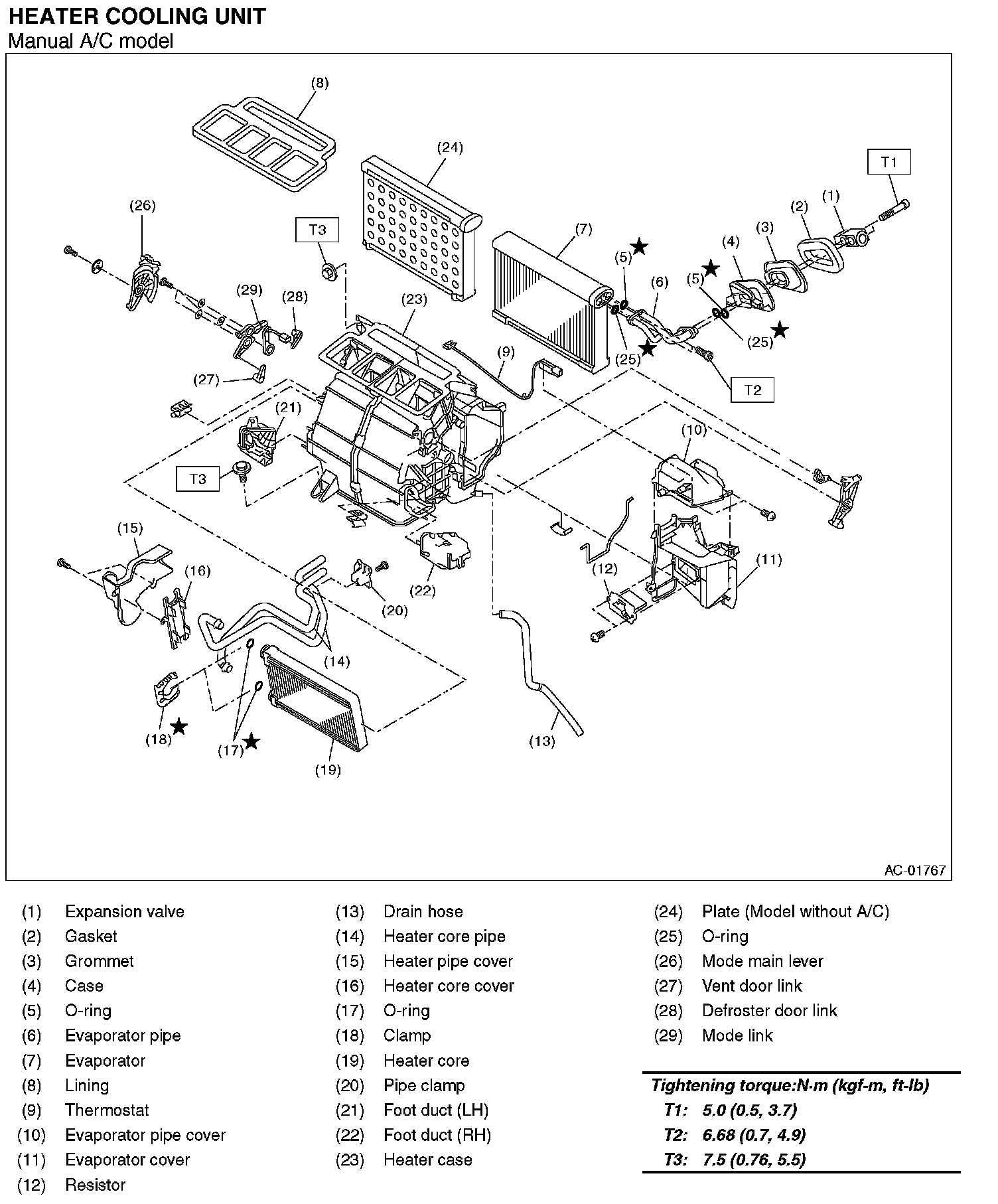

Heater Cooling Unit - Manual A/C Model:

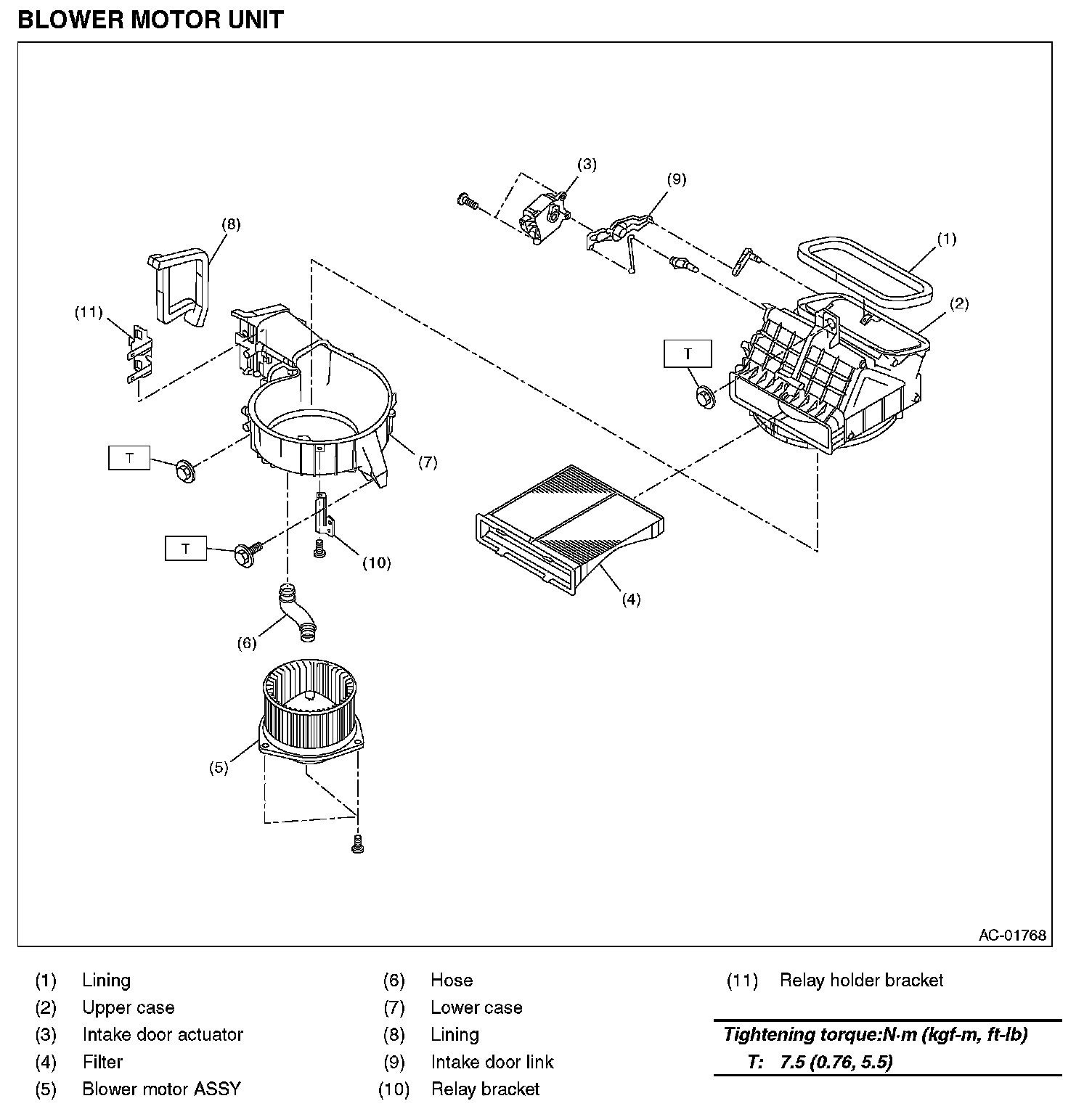

Blower Motor Unit:

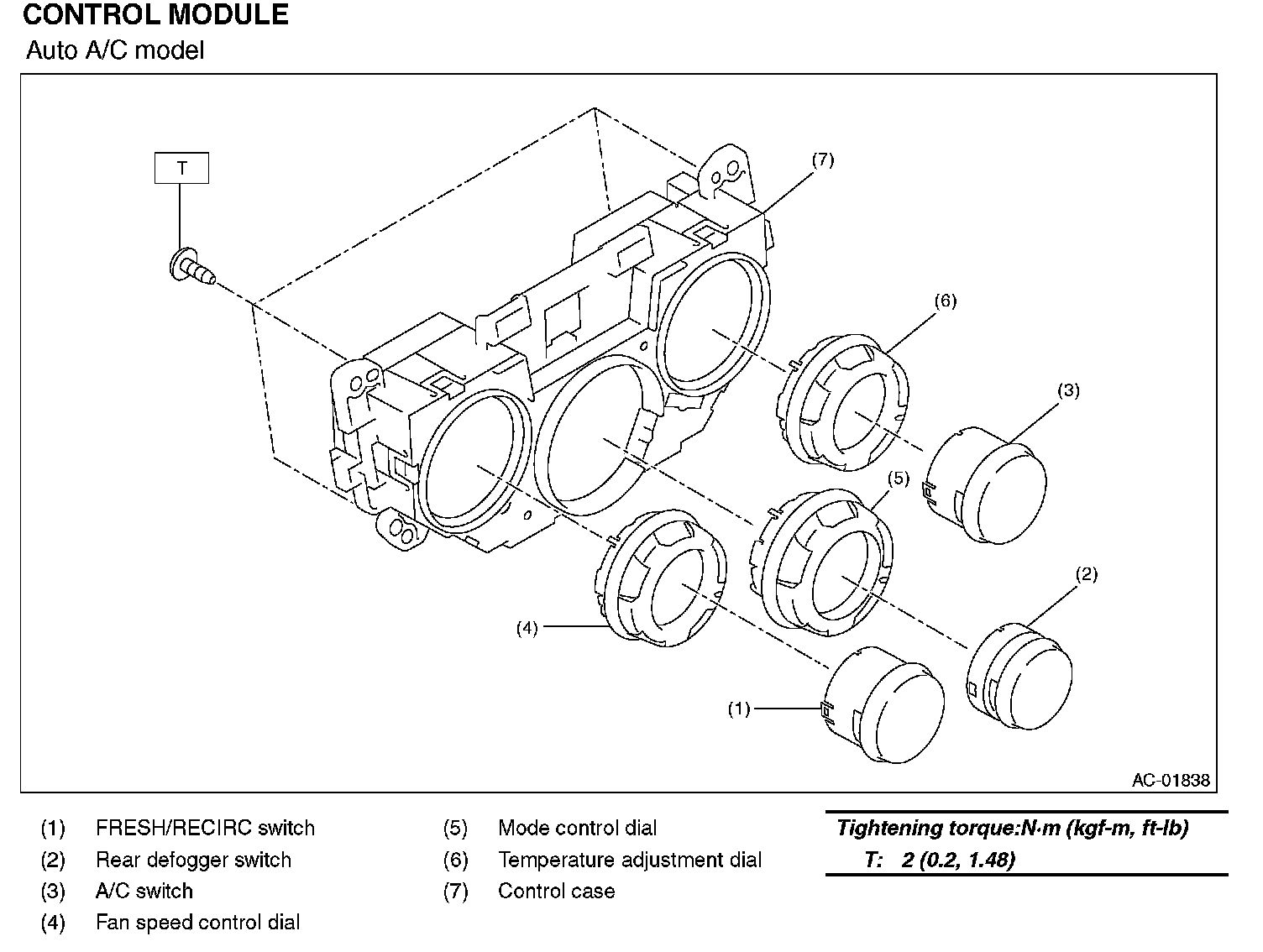

Control Module - Auto A/C Model:

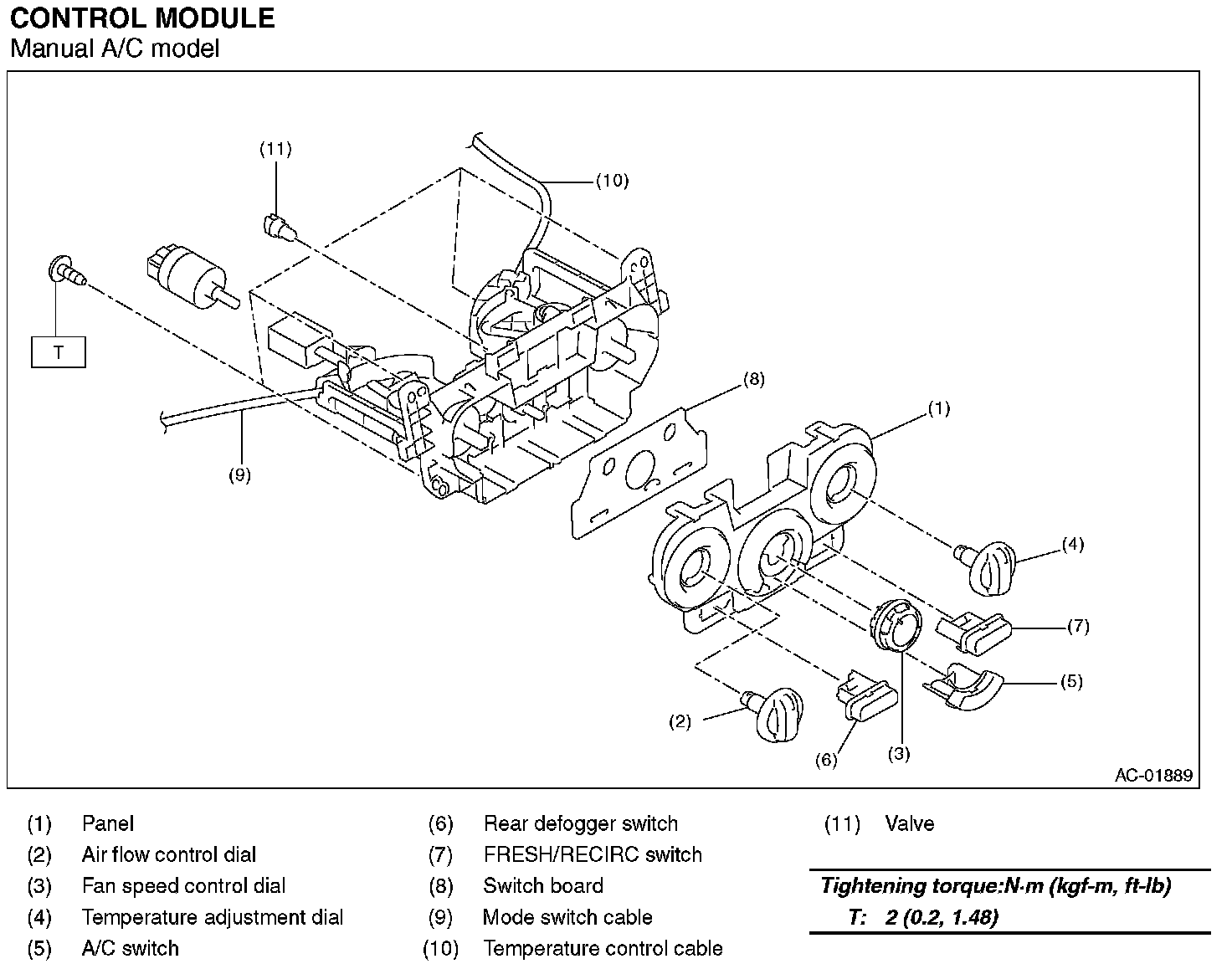

Control Module - Manual A/C Model:

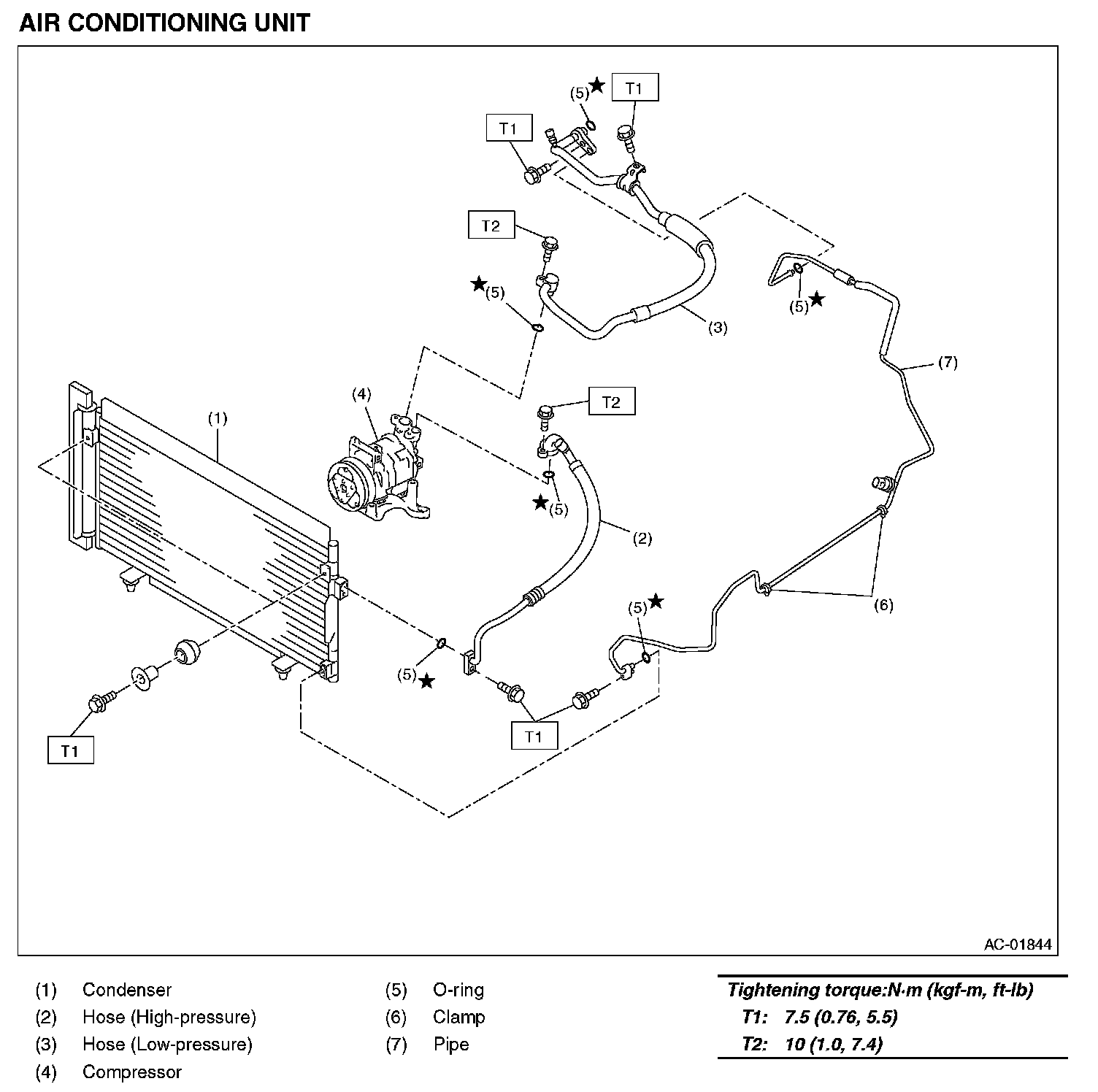

Air Conditioning Unit:

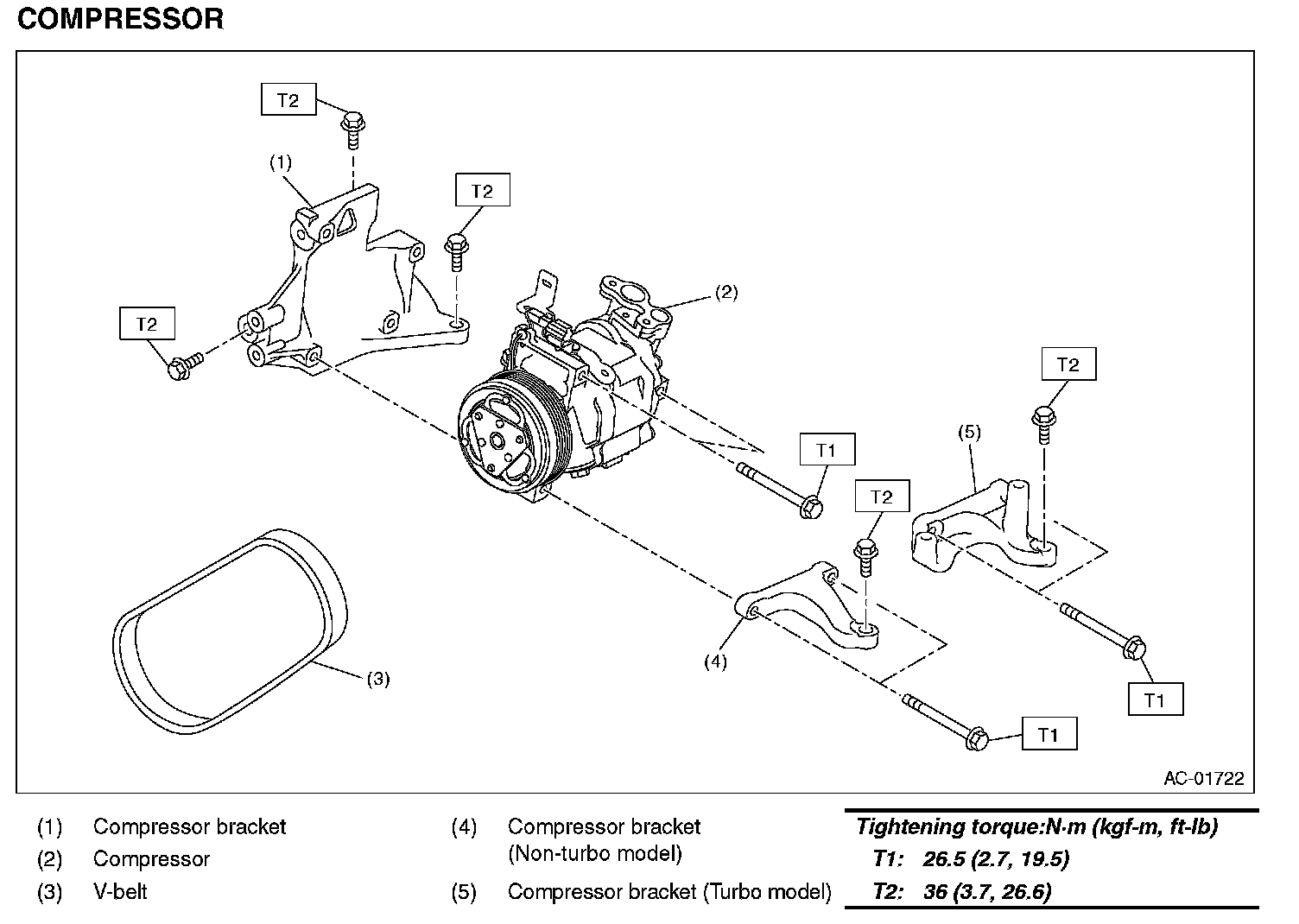

Compressor:

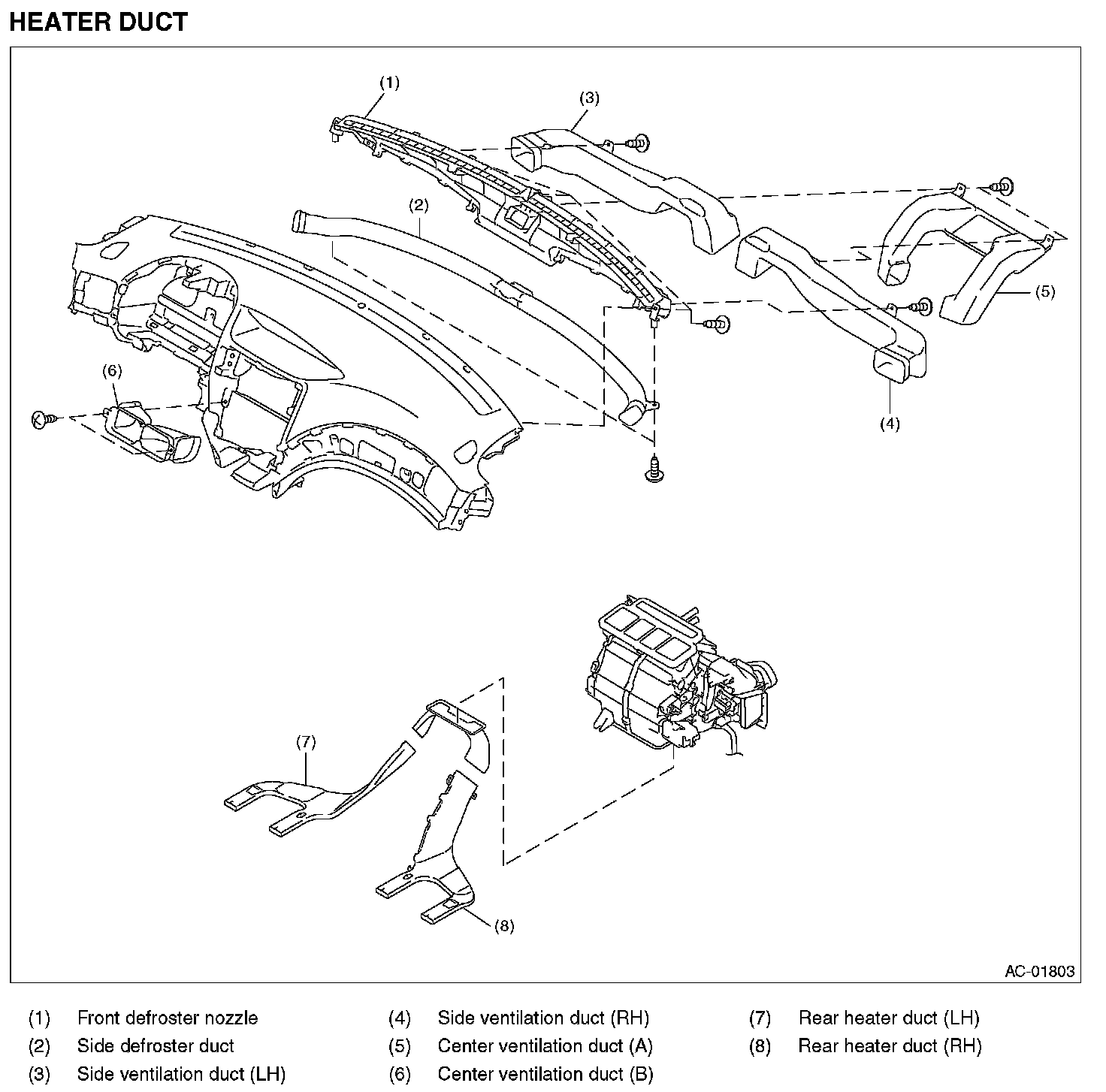

Heater Duct:
