System Specifications

COMPONENT

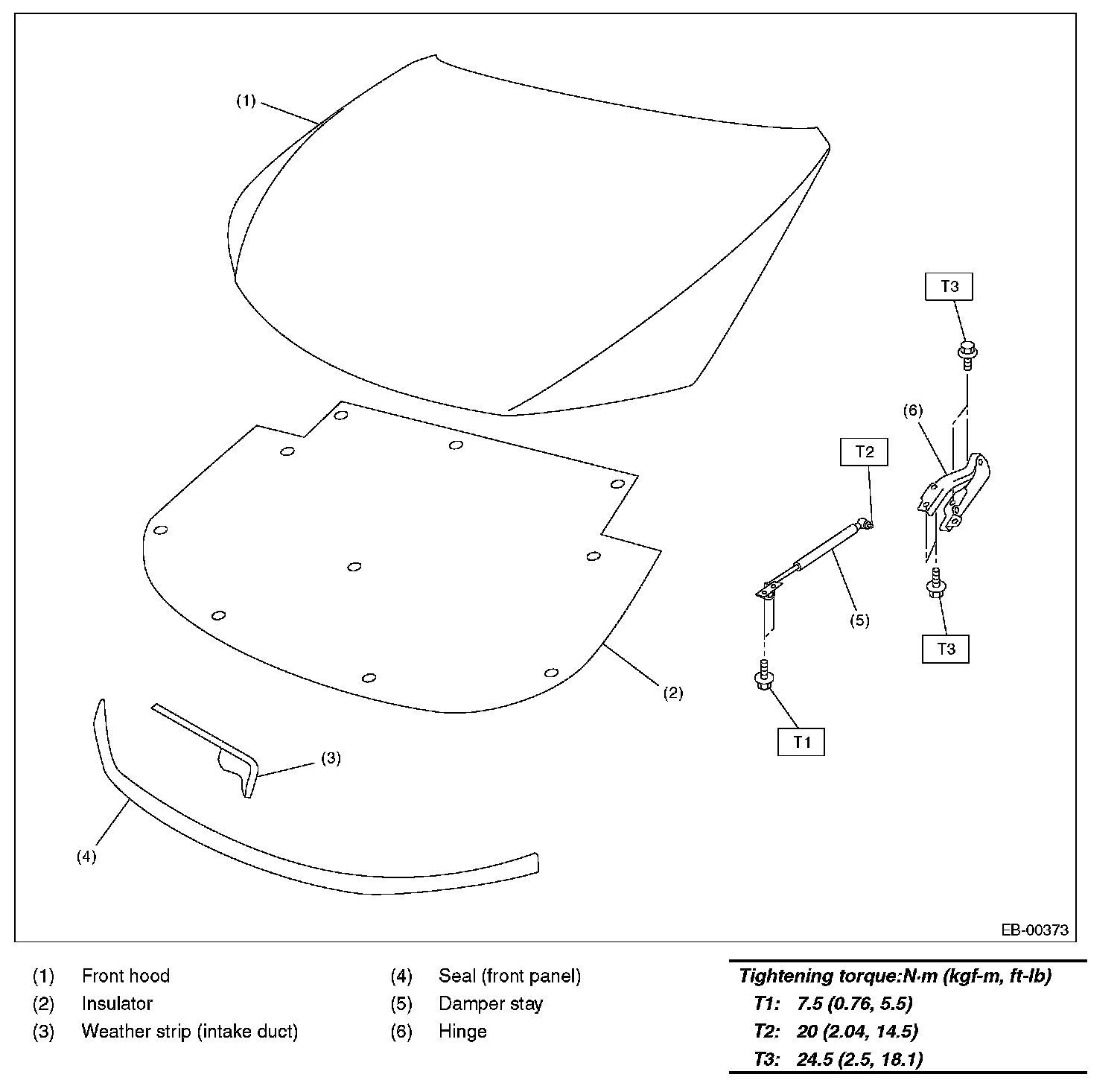

1. FRONT HOOD

Front Hood:






2. FRONT FENDER

Front Fender:

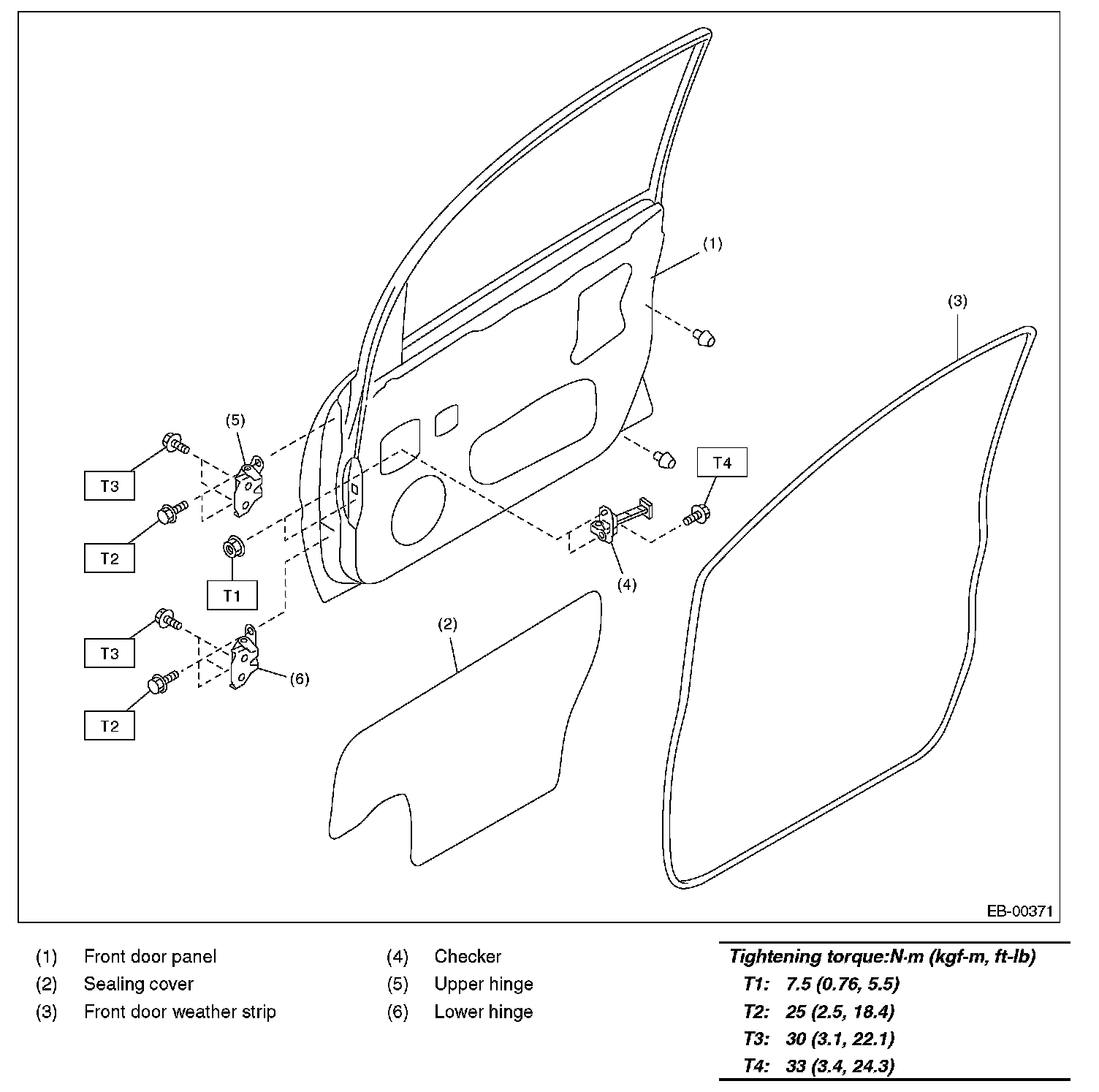

3. FRONT DOOR

Front Door:

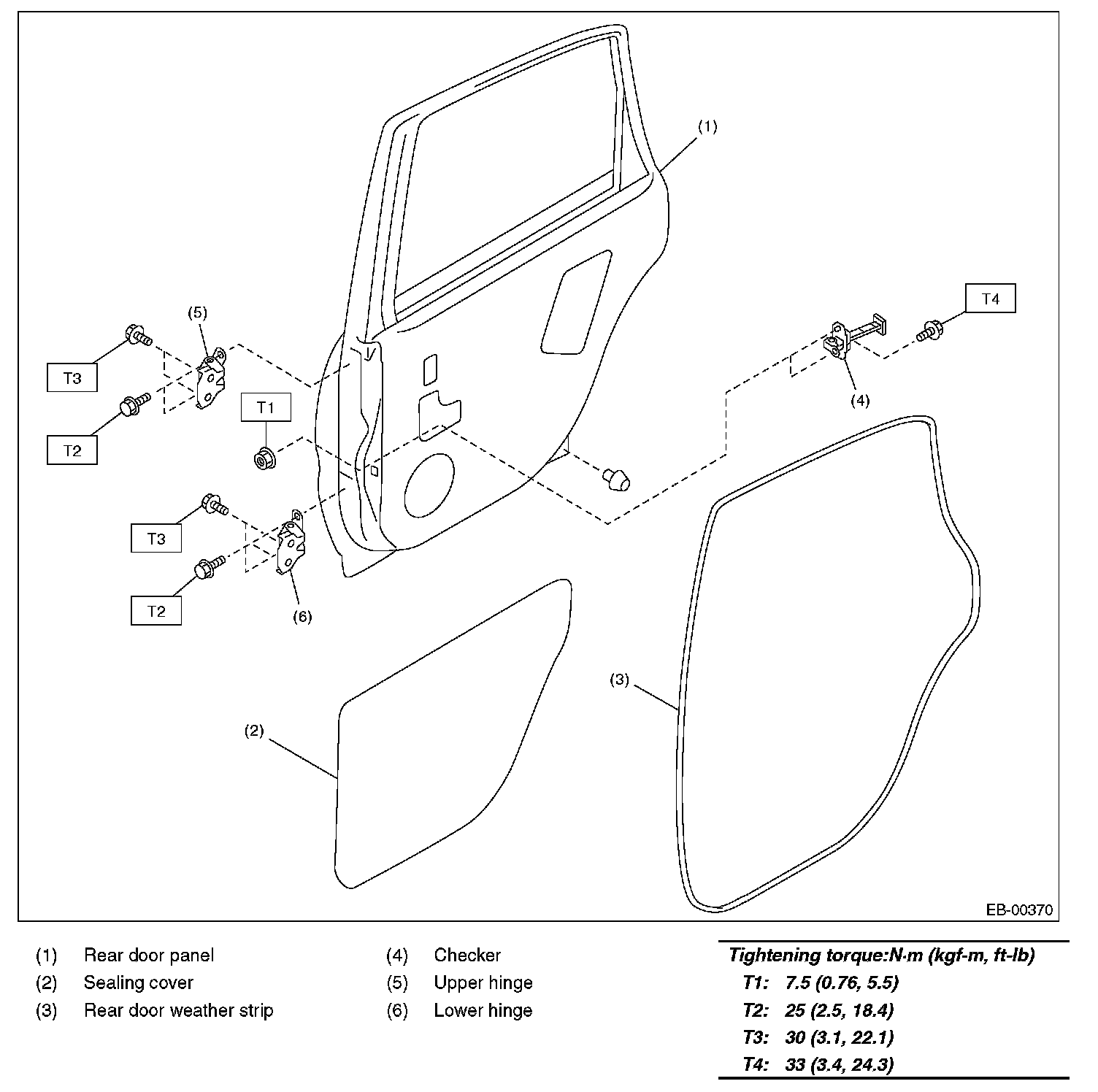

4. REAR DOOR

Rear Door:

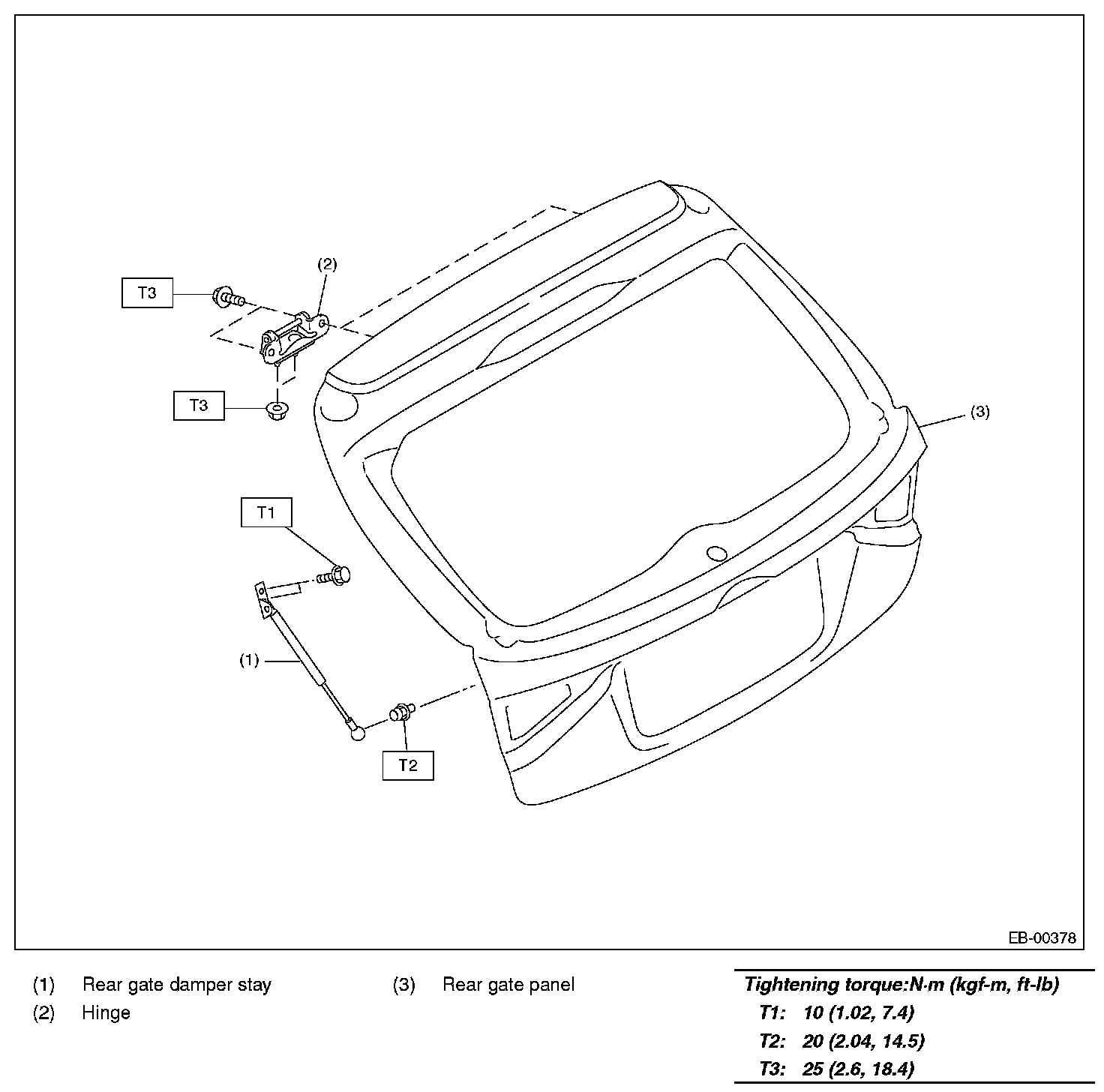

5. REAR GATE

Rear Gate:

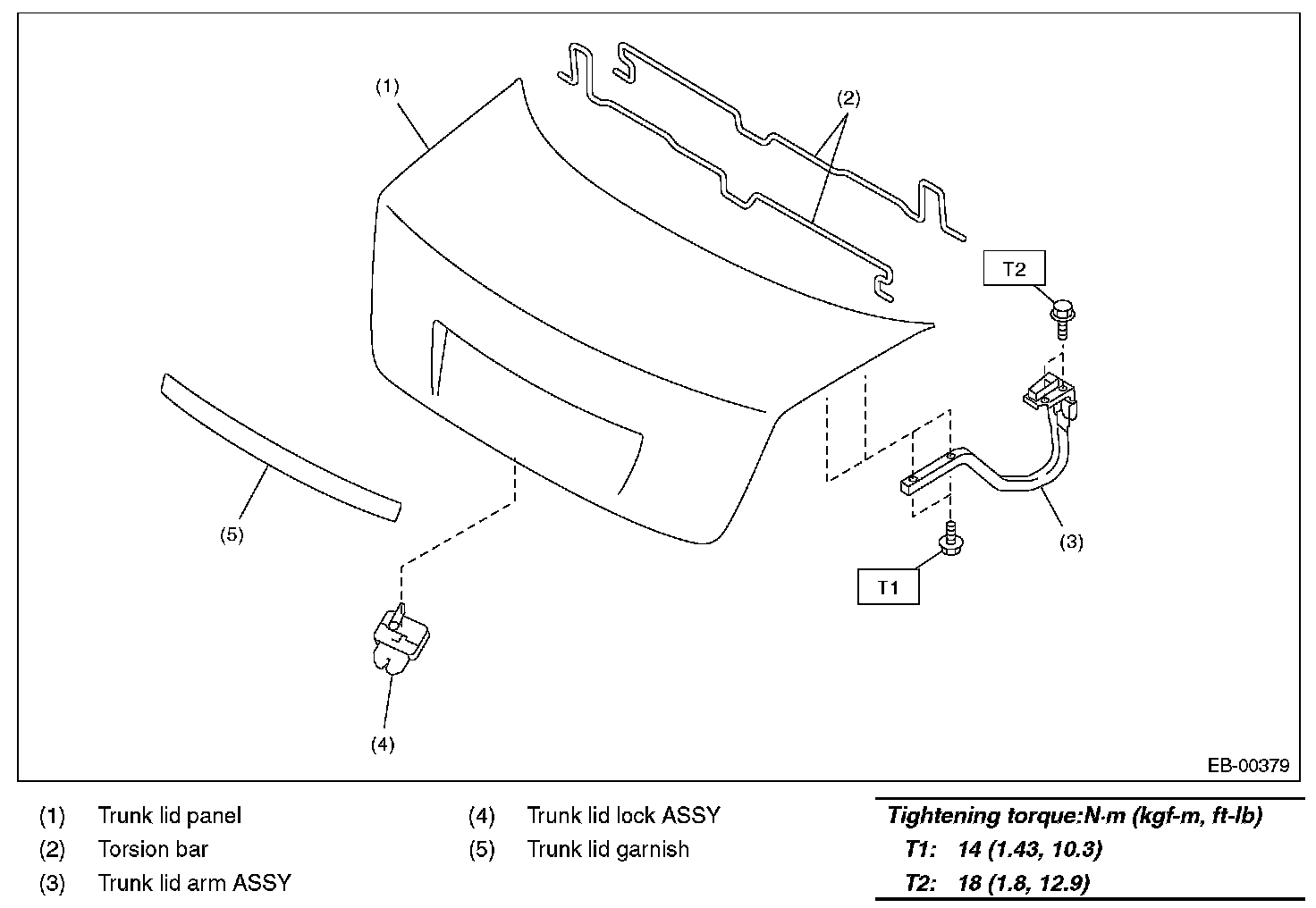

6. TRUNK LID PANEL

Trunk Lid Panel:
