Ignition System: Testing and Inspection

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode. Clear Memory Mode

WIRING DIAGRAM:

Wiring Diagram:

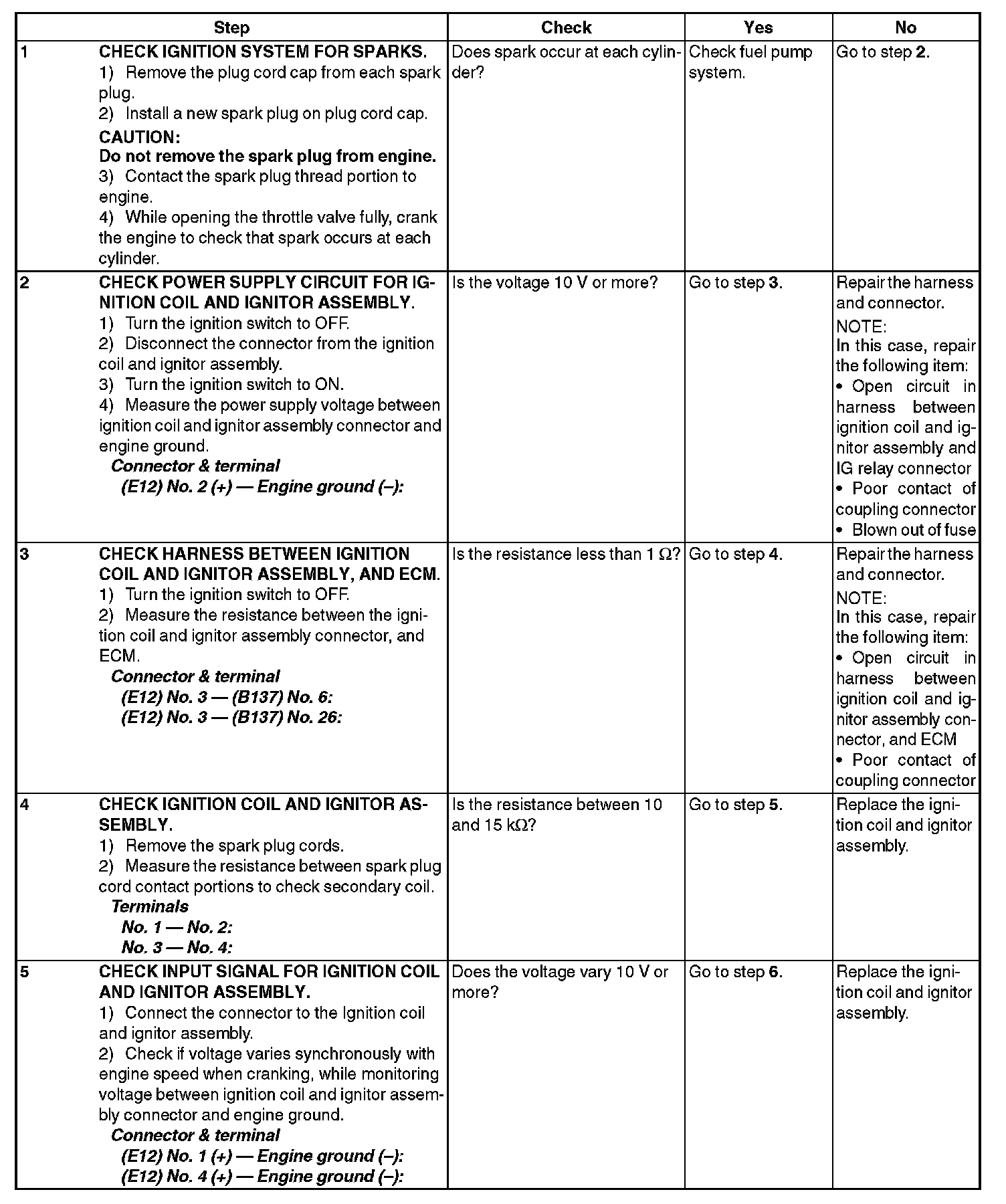

Step 1-5:

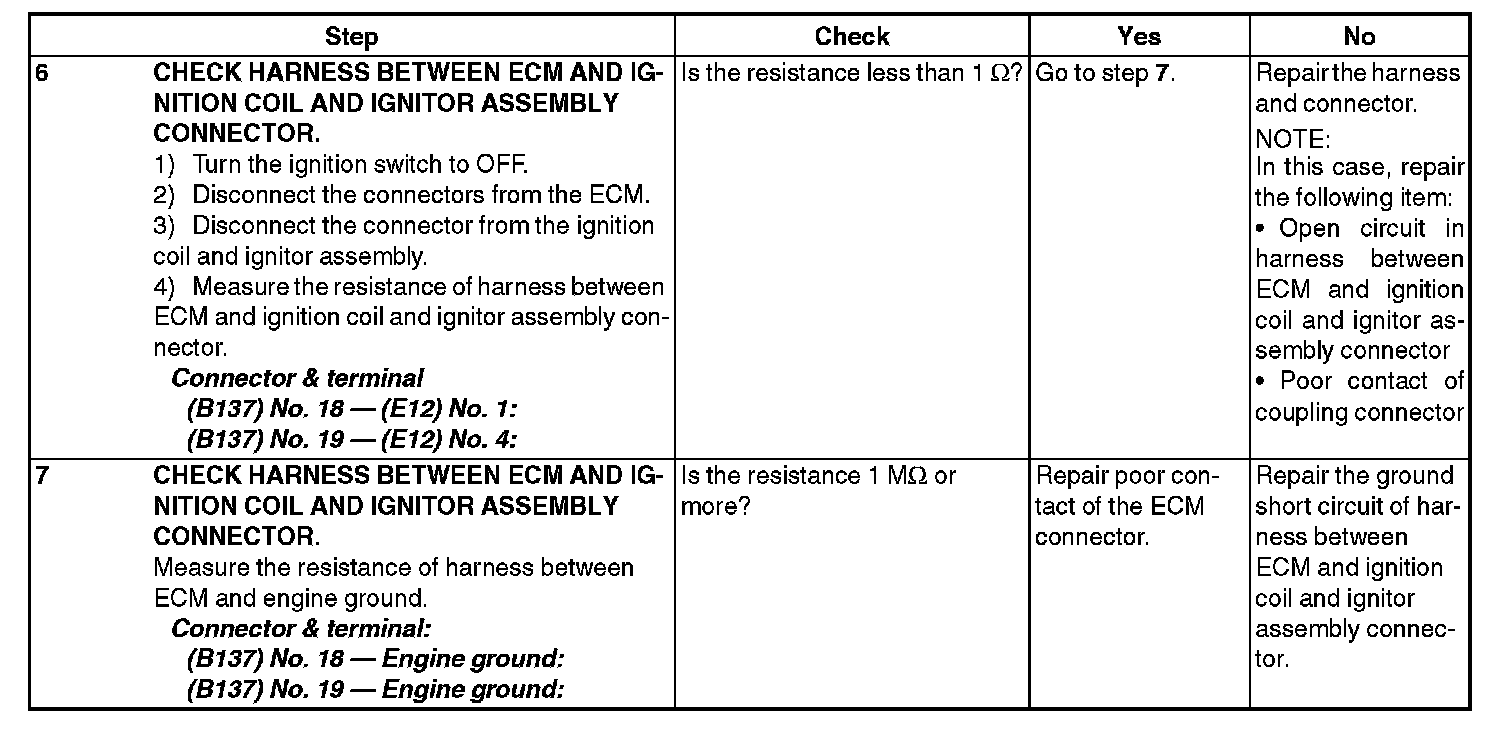

Step 6-7:
