Power Transistor

Power Transistor (Auto A/C Model)

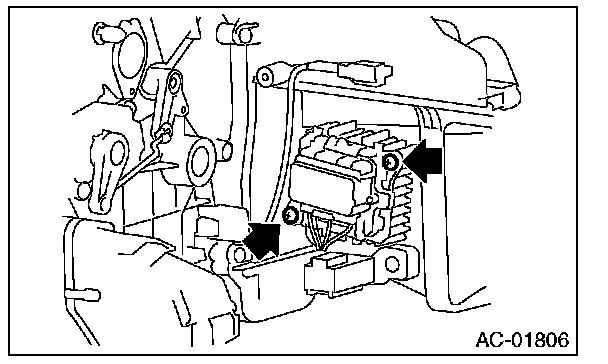

REMOVAL
1. Remove the instrument panel lower cover.
2. Disconnect the power transistor connector.
3. Remove the two screws and remove the power transistor.






INSTALLATION
Install in the reverse order of removal.
