Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Transmission Control Module (TCM) I/O Signal

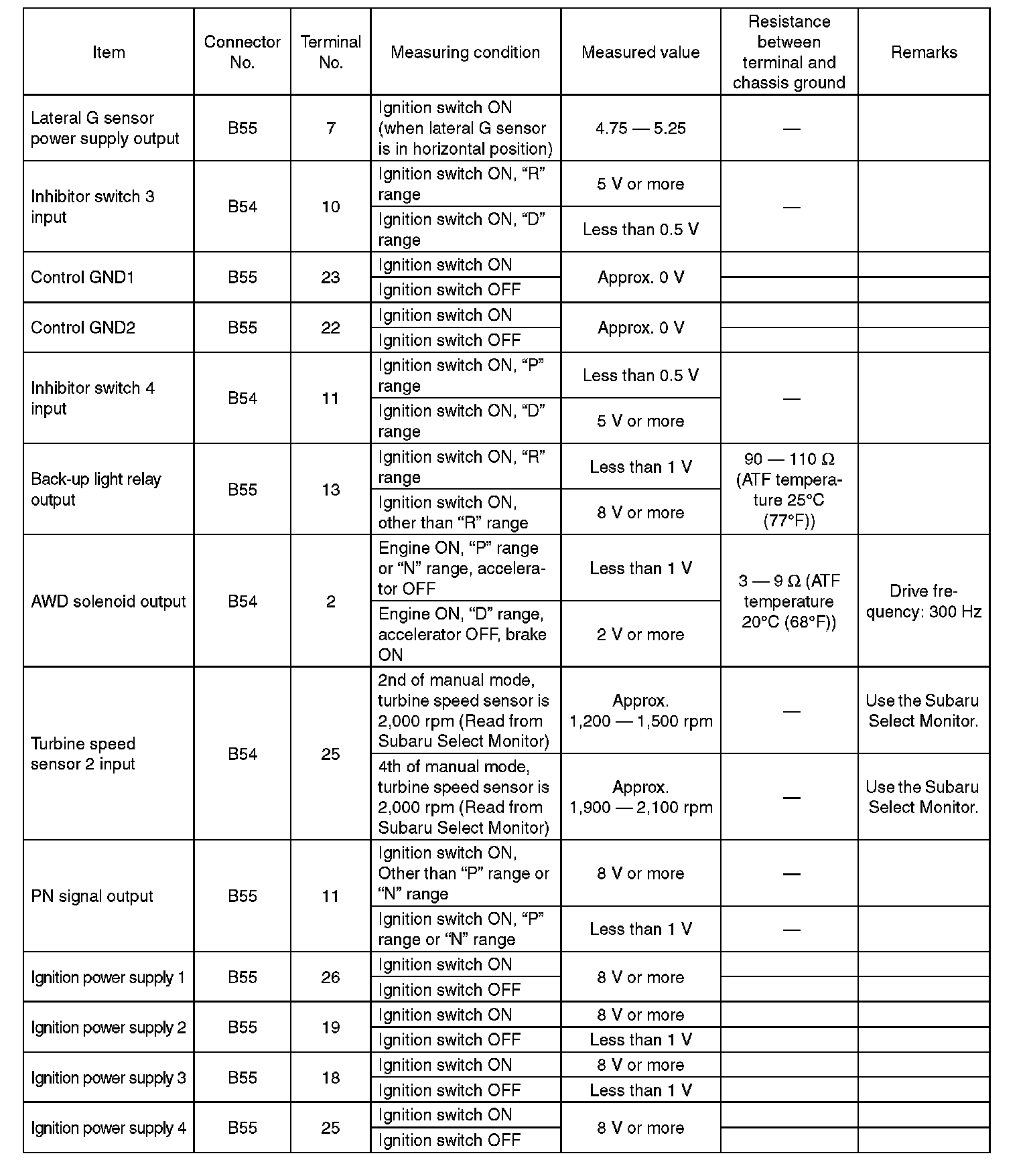

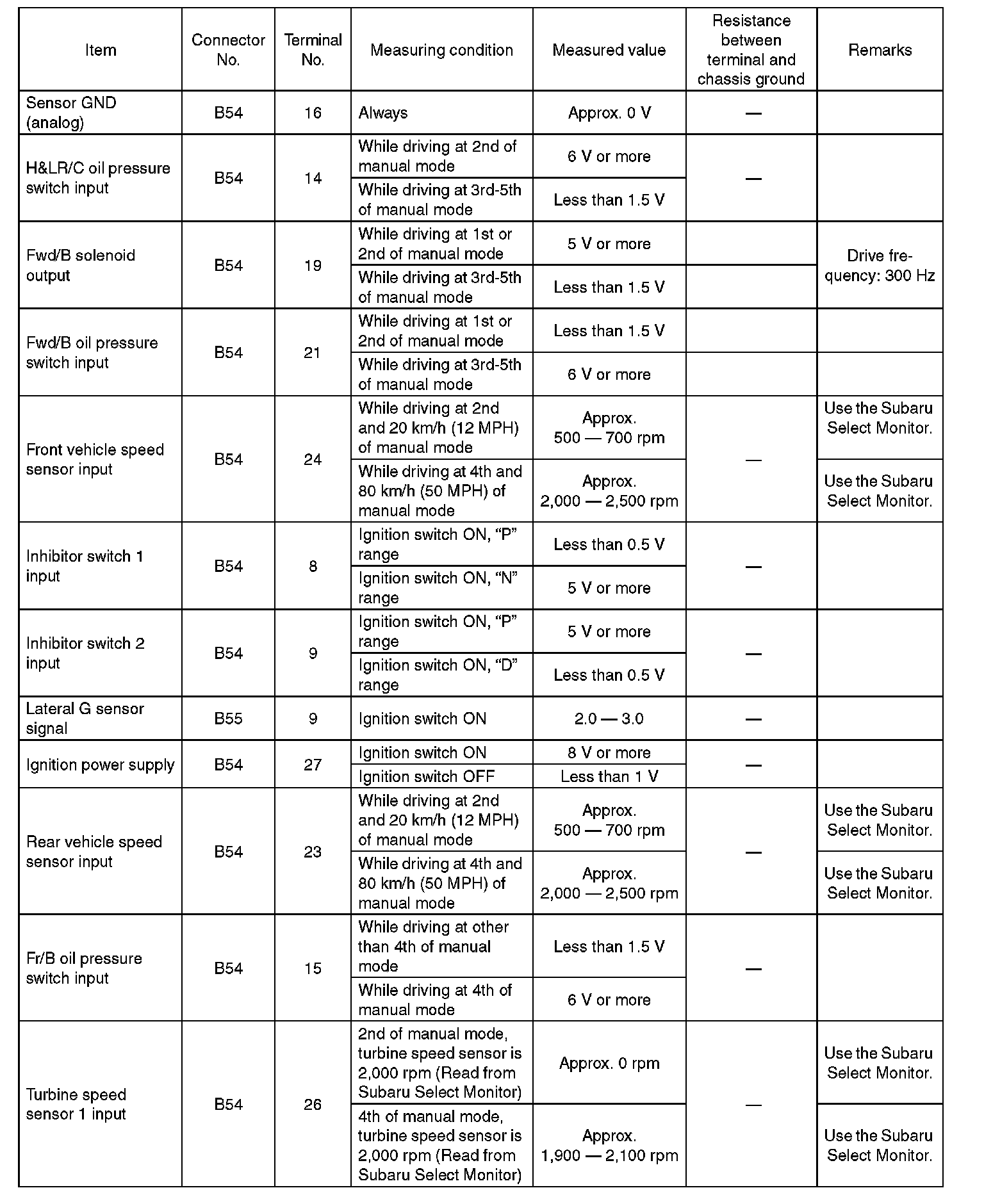

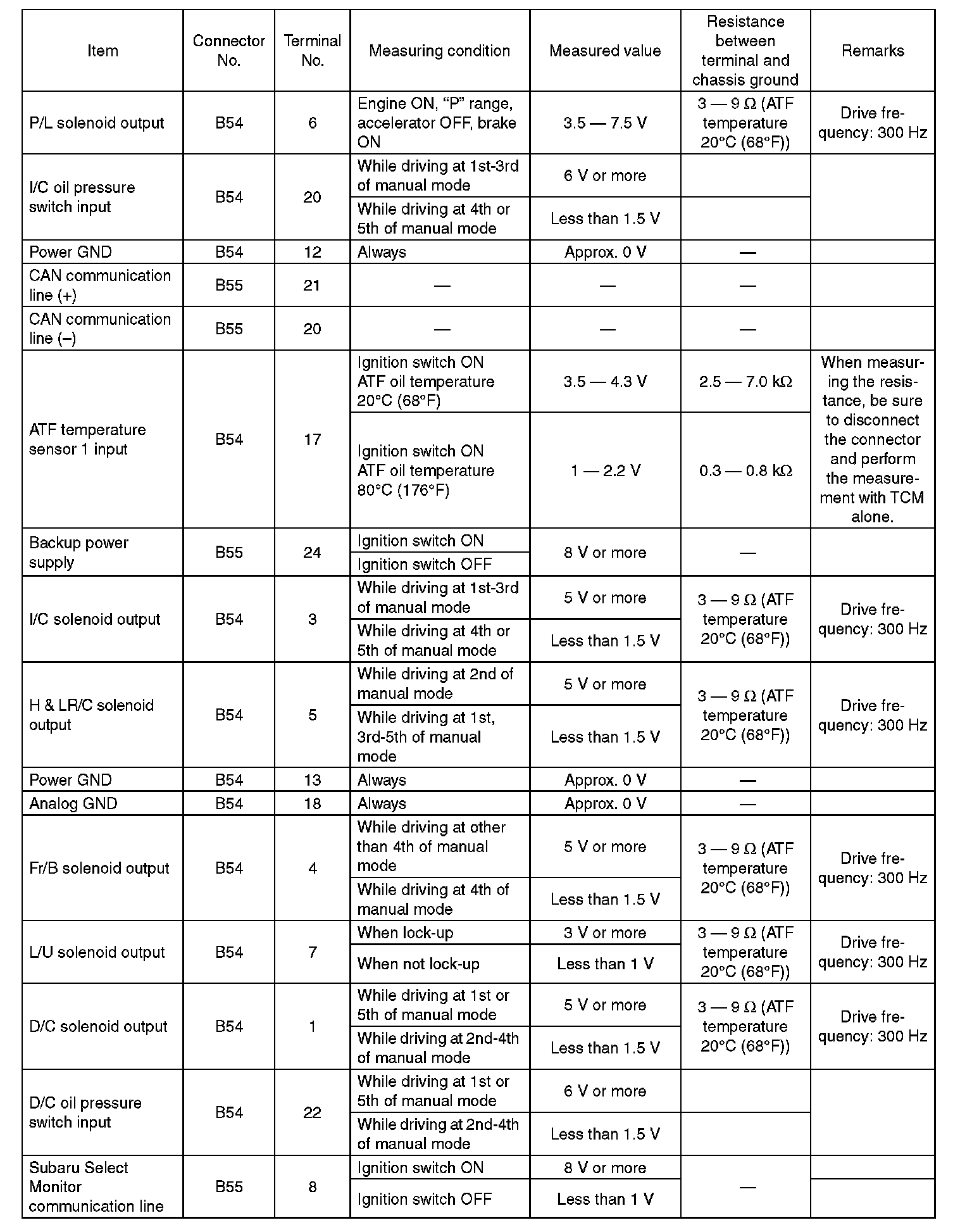

Transmission Control Module (TCM) I/O Signal
