Outback F6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Control Valve and Harness Routing

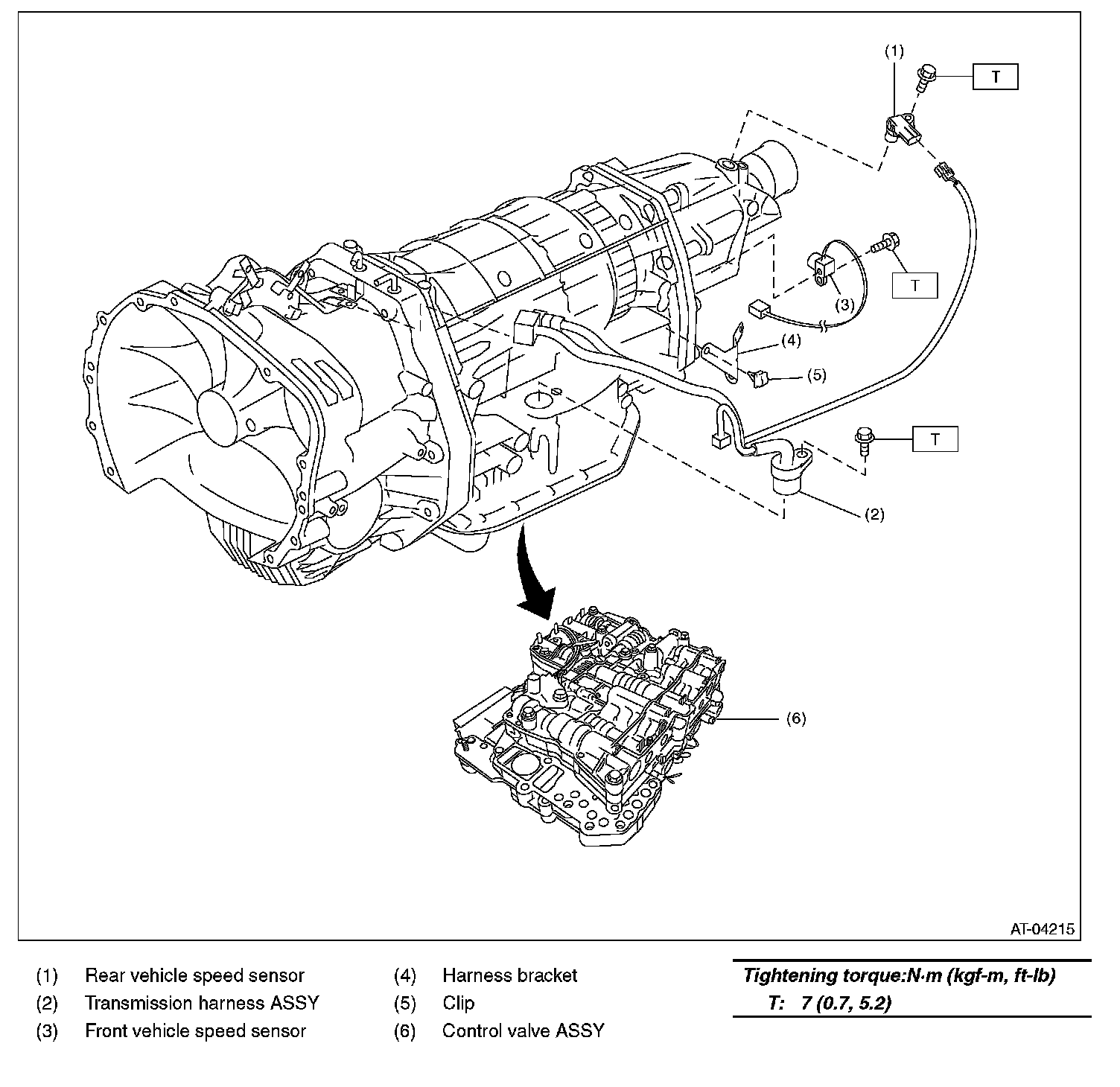

Control Valve and Harness Routing
CONTROL VALVE & TRANSMISSION HARNESS:
