Differential Assembly
>>
Rear Differential (VM-Type)
Rear Differential (VM-Type)

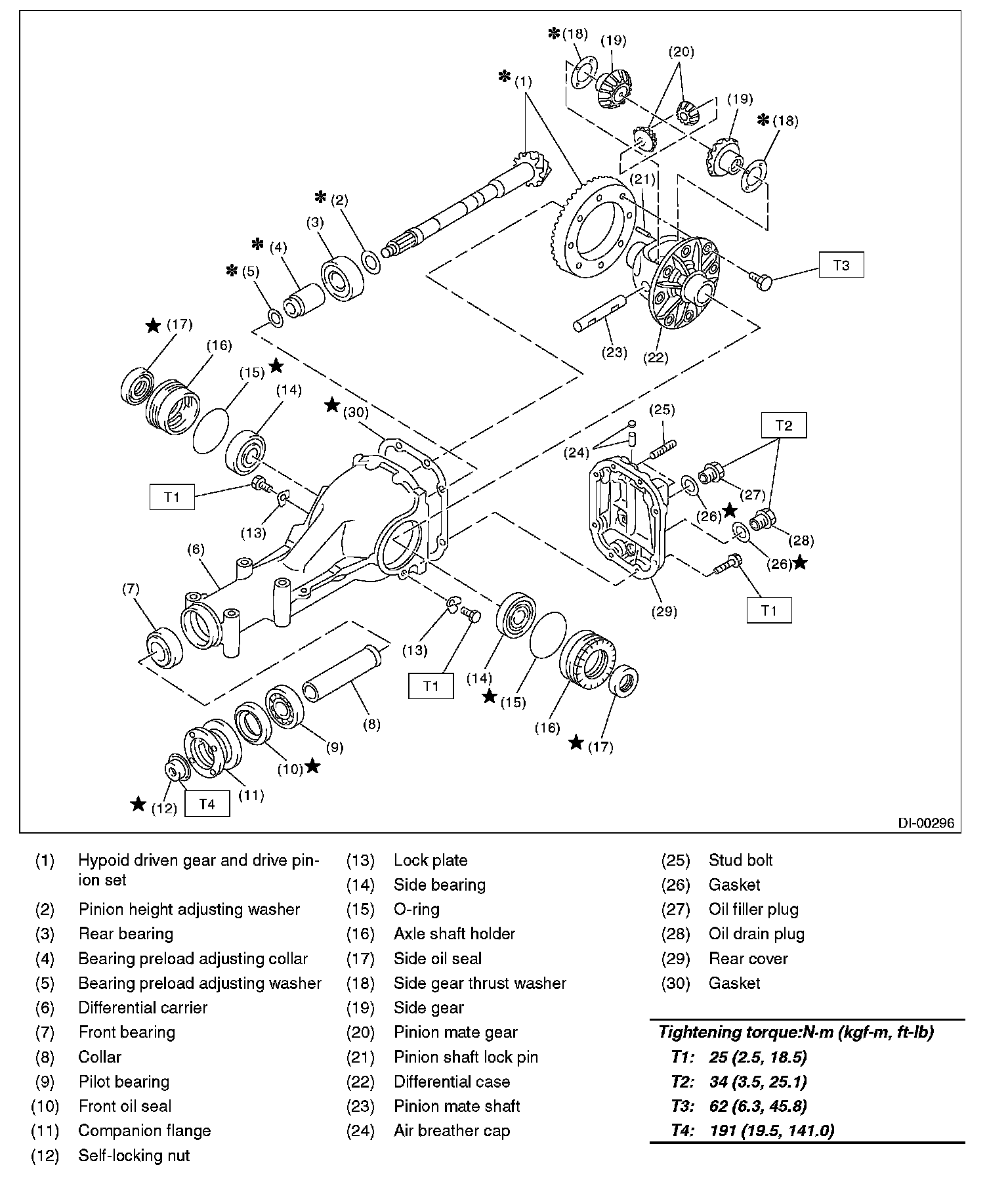

REAR DIFFERENTIAL (VM-TYPE):
