Section 11 (Fuel Injection System (H6DO))
>>
General Description
>>
Components With Torque Specifications
>>
Fuel Injector
Fuel Injector
WARNING:
This page is about a different variant/trim than selected.

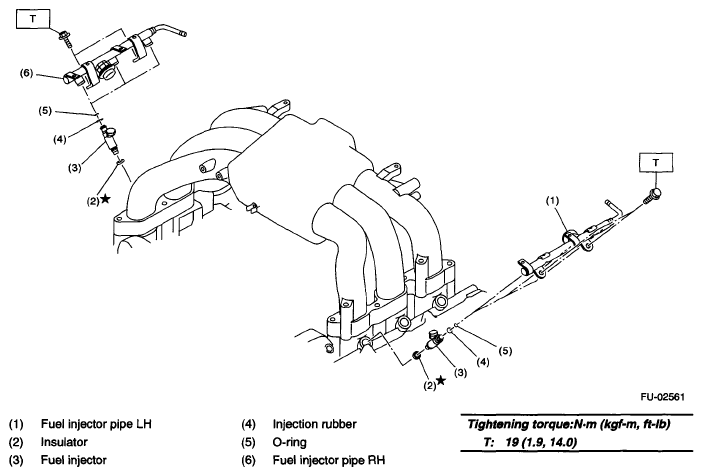

Fig 1: Fuel Injector Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
