General Description
>>
Components With Torque Specifications
>>
Oil Pump
Oil Pump

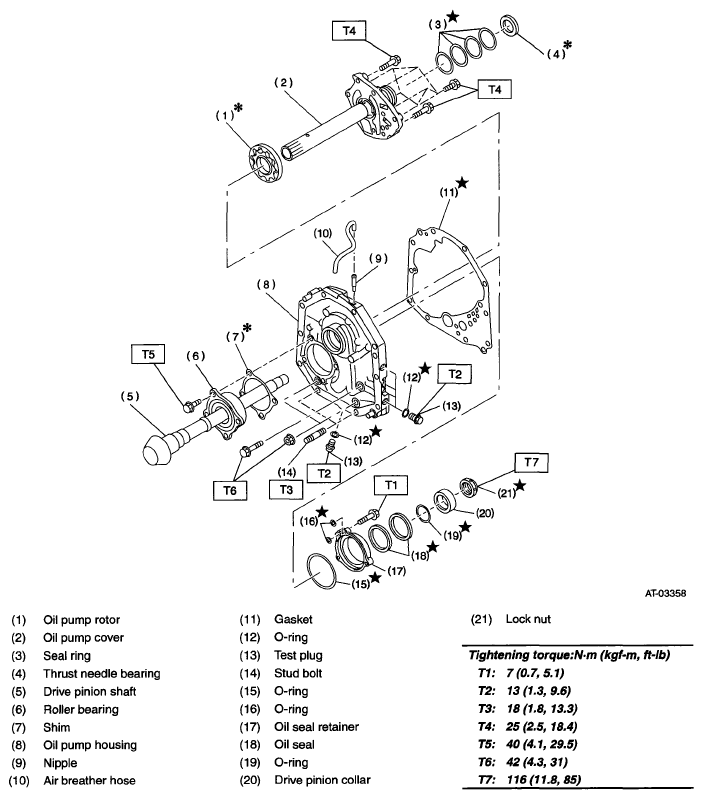

Fig 1: Oil Pump Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
