Procedures
Differential Gear OilINSPECTION

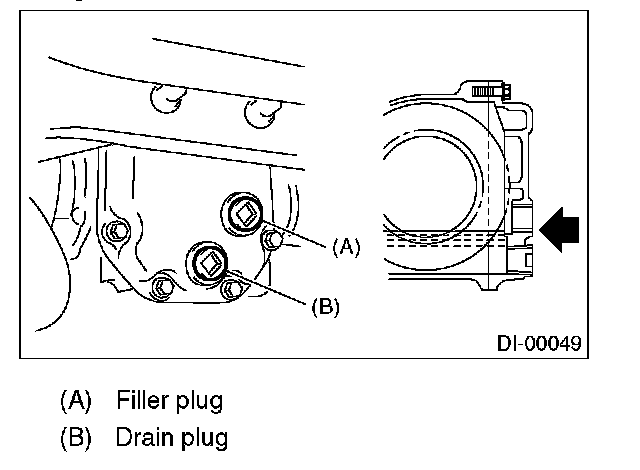

1) Remove the filler plug, and then check the gear oil. If it is contaminated or deteriorated, replace the gear oil.
2) Check that the gear oil level is up to the bottom of filler plug hole. If the level is low, check that there is no oil leakage and fill the oil up to the bottom of filler plug.
3) When checking is completed, tighten the filler plug.
NOTE: Apply liquid gasket to the drain plug.
Liquid gasket: THREE BOND 1105 (Part No. 004403010) or equivalent
Tightening torque: 49 N-m (5.0 kgf-m, 36.2 ft-lb)
