Trunk / Liftgate Lock: Service and Repair

Key Lock Cylinders

REPLACEMENT

1. FRONT DOOR
1. Remove the door trim.
2. Remove the sealing cover.
3. Completely close the front door glass.

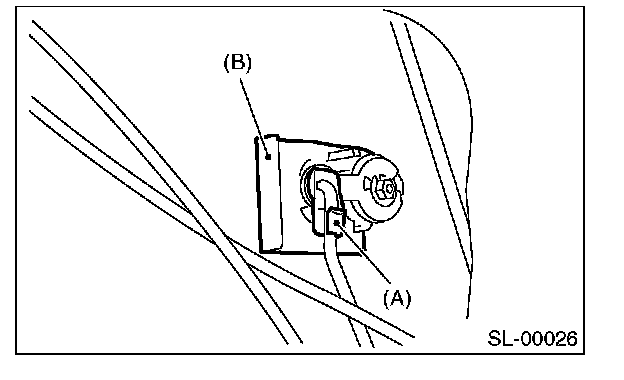

4. Remove the rod clamps (A) and lock plate (B). Replace the key cylinder.

NOTE: Replace the lock plate (B) with a new part.
