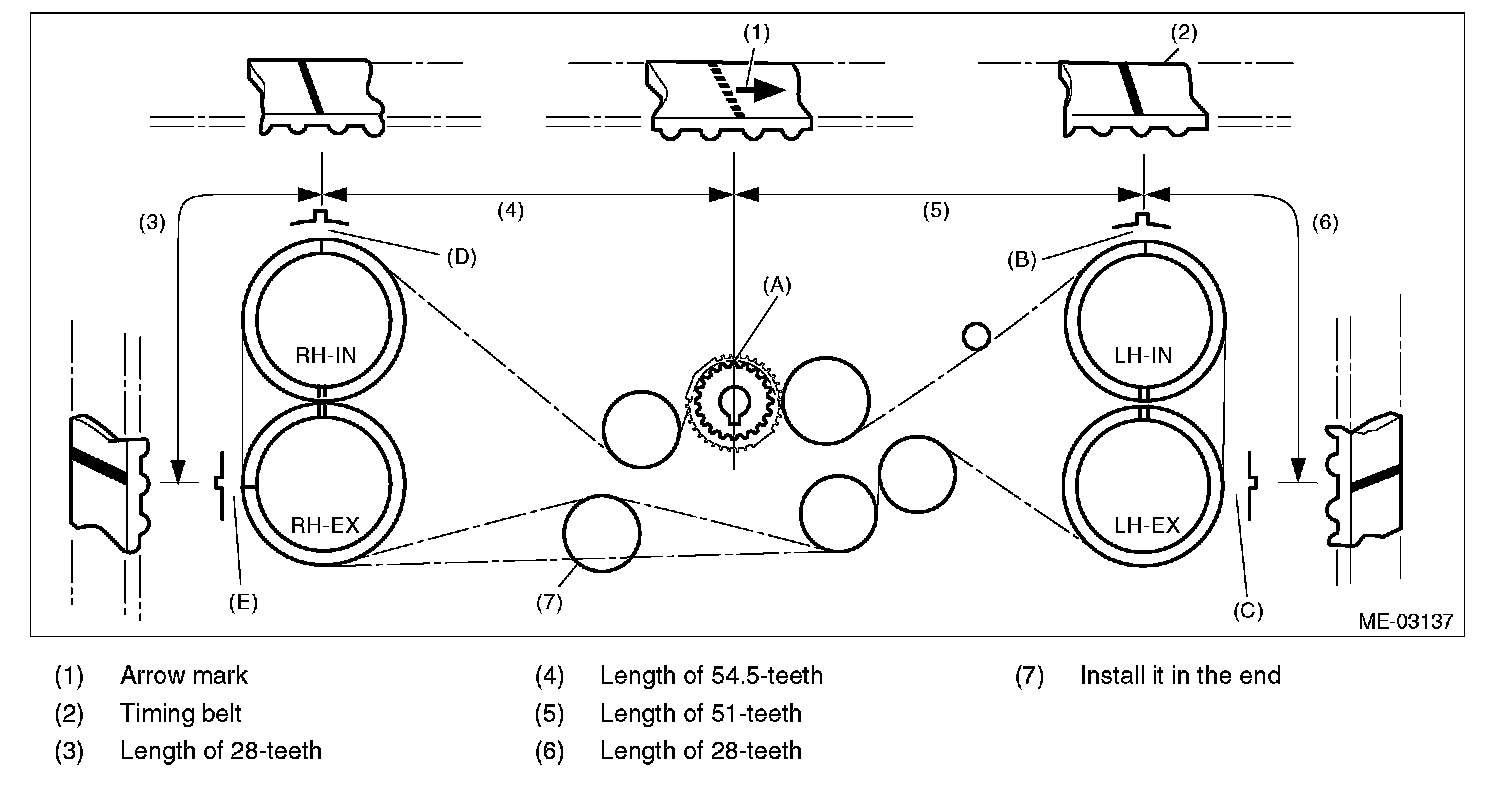

Timing Component Alignment Marks: Locations

Z1: 54.5-teeth length
Z2: 51-teeth length
Z3: 28-teeth length
