Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DETECTING CONDITION:
Defective harness connector

TROUBLE SYMPTOM:
Communication is impossible between airbag control module and Subaru Select Monitor.

Wiring Diagram:

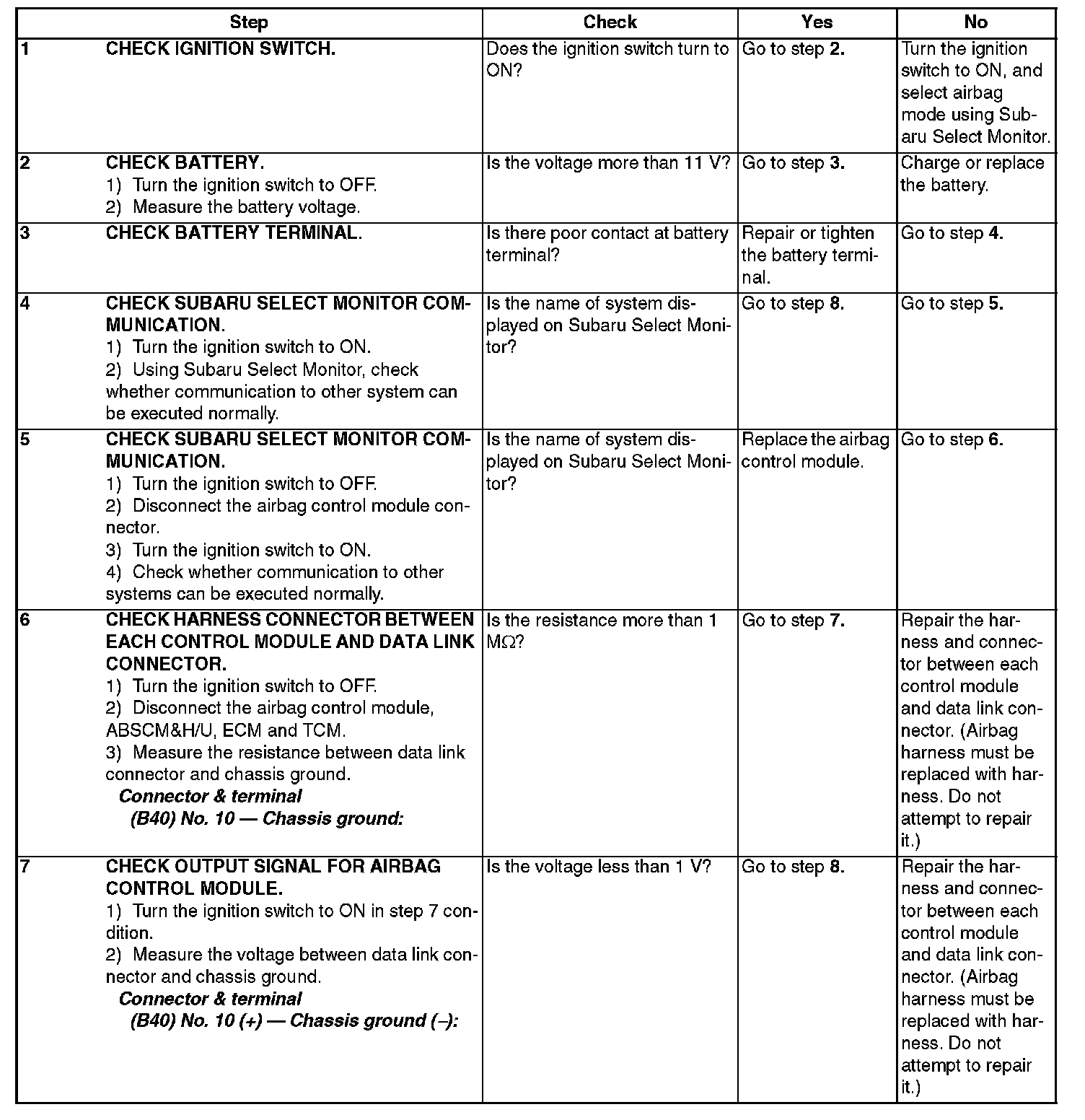

Step 1 - 7:

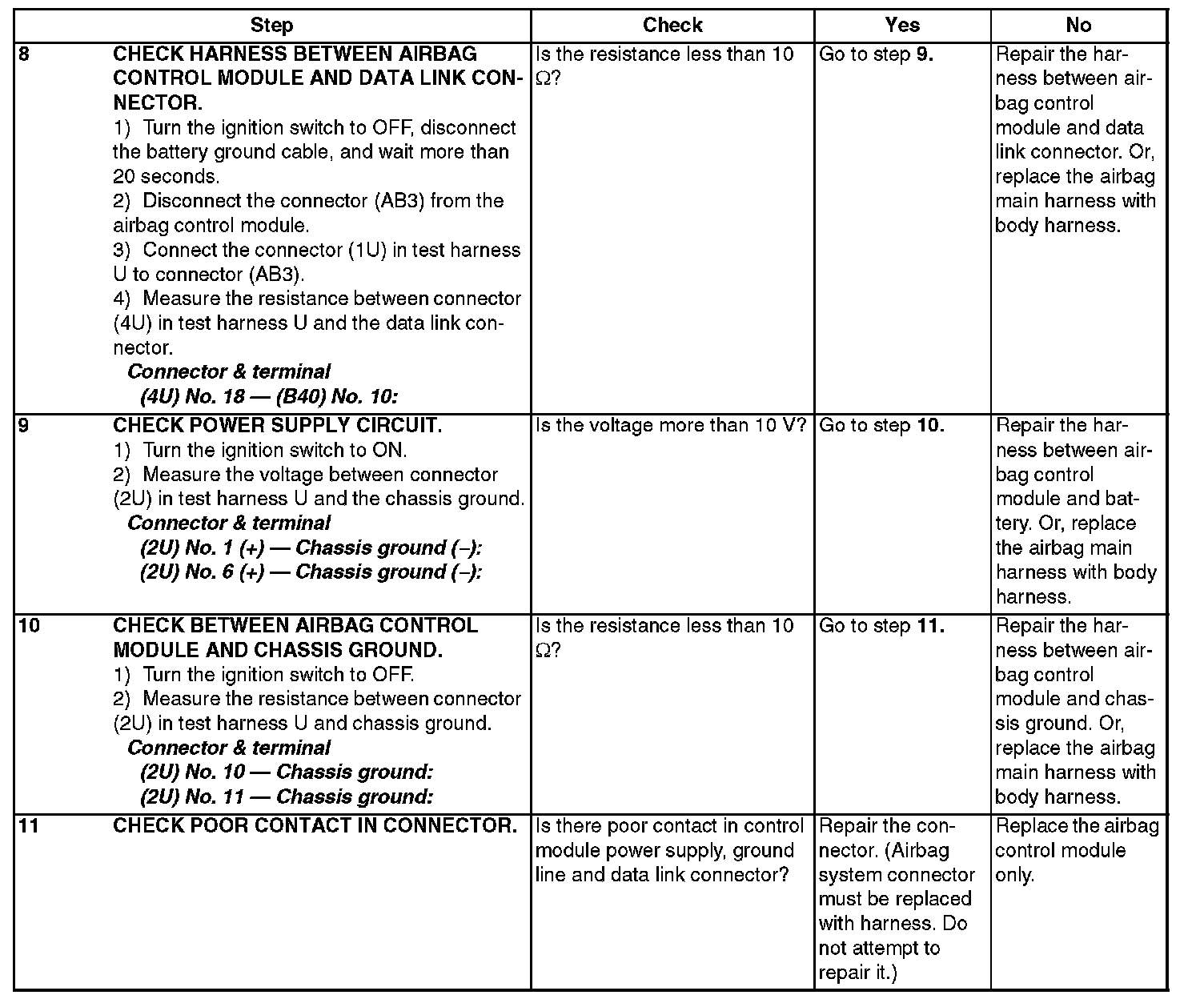

Step 8 - 11:

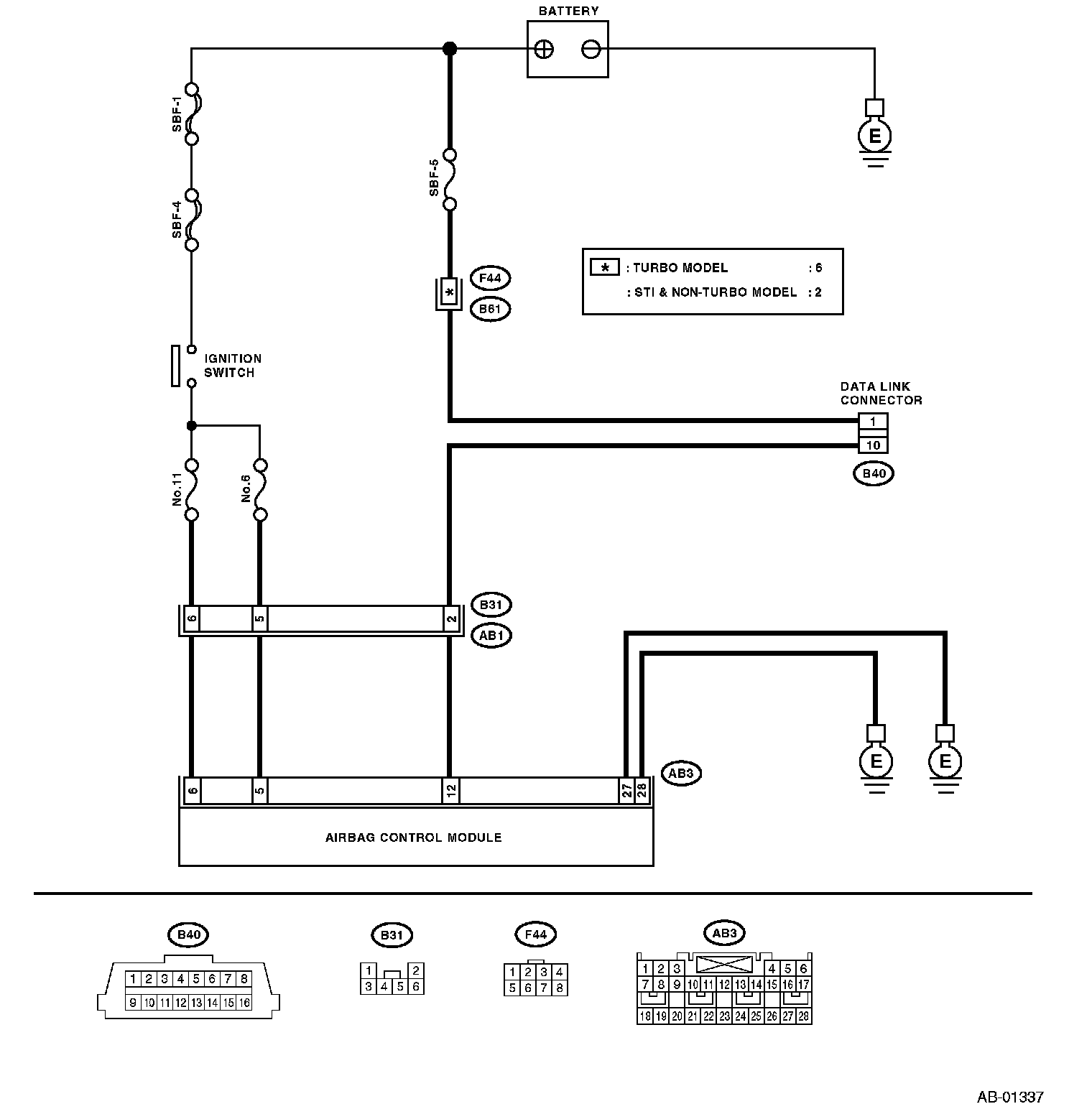

WIRING DIAGRAM:
