Cylinder Head and Valve Assembly

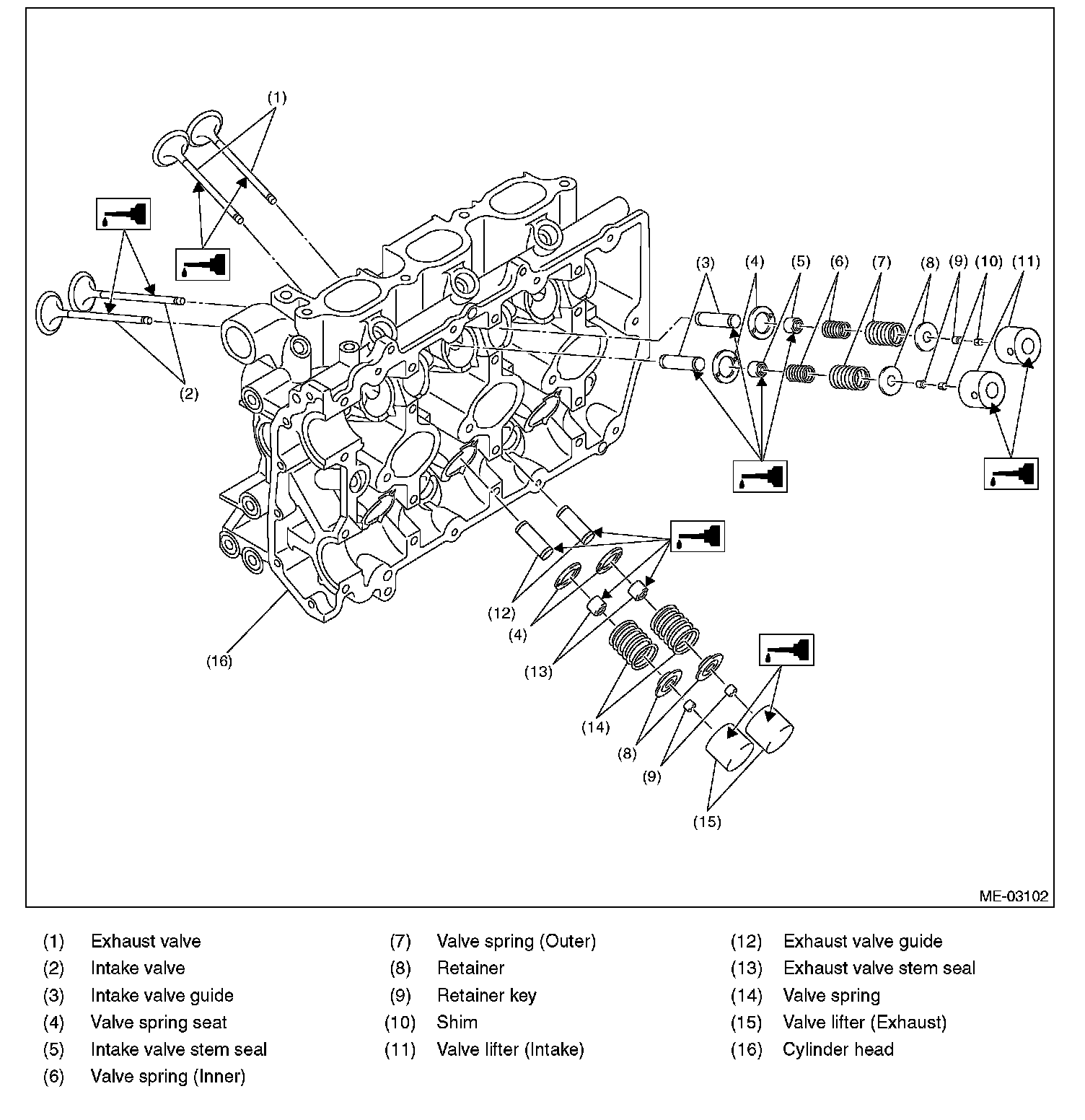

CYLINDER HEAD AND VALVE ASSEMBLY

CYLINDER HEAD AND VALVE ASSEMBLY:
