Starter Motor: Testing and Inspection
STARTER MOTOR CIRCUITCAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.

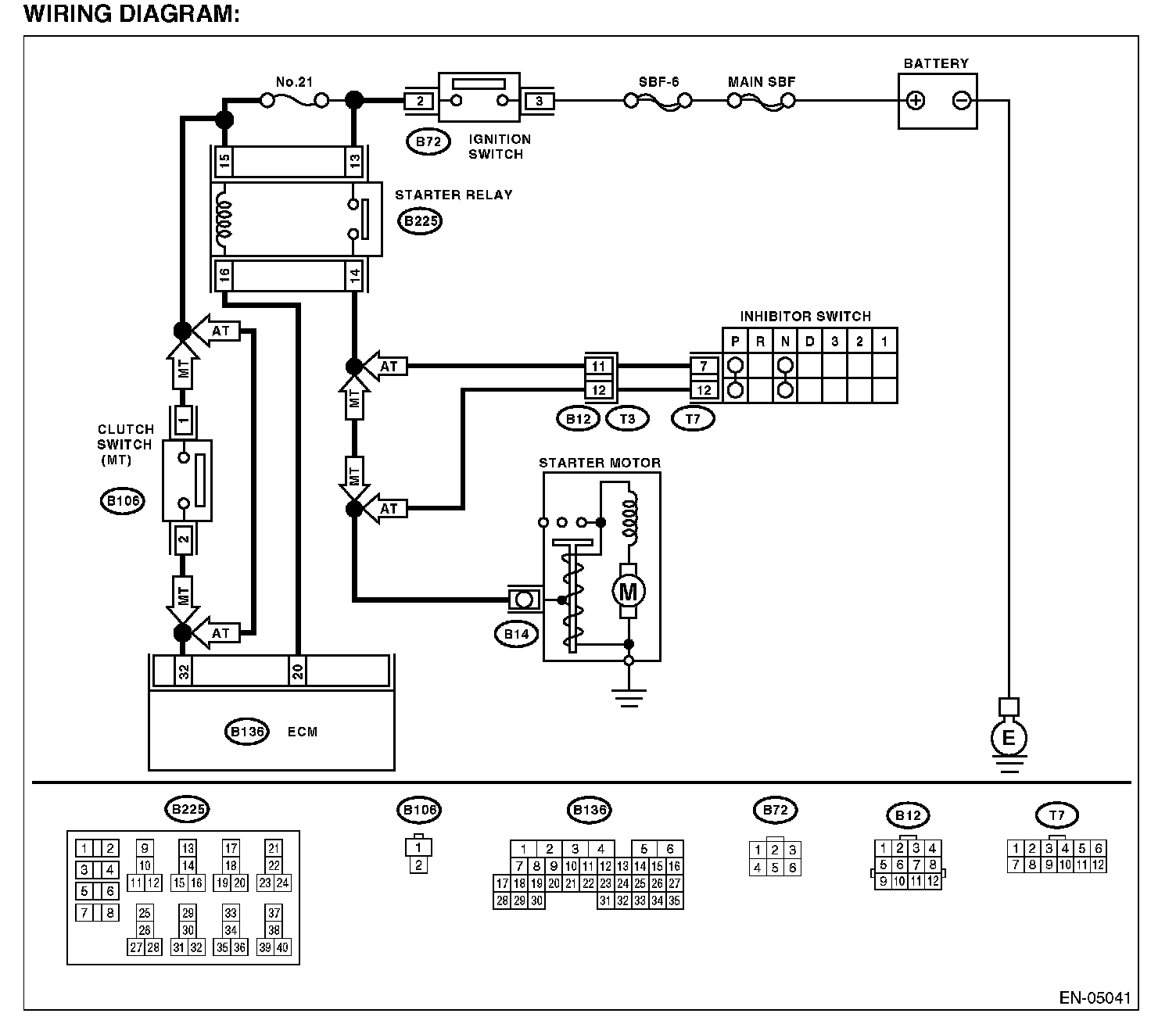

Wiring Diagram:
Step 1-2:

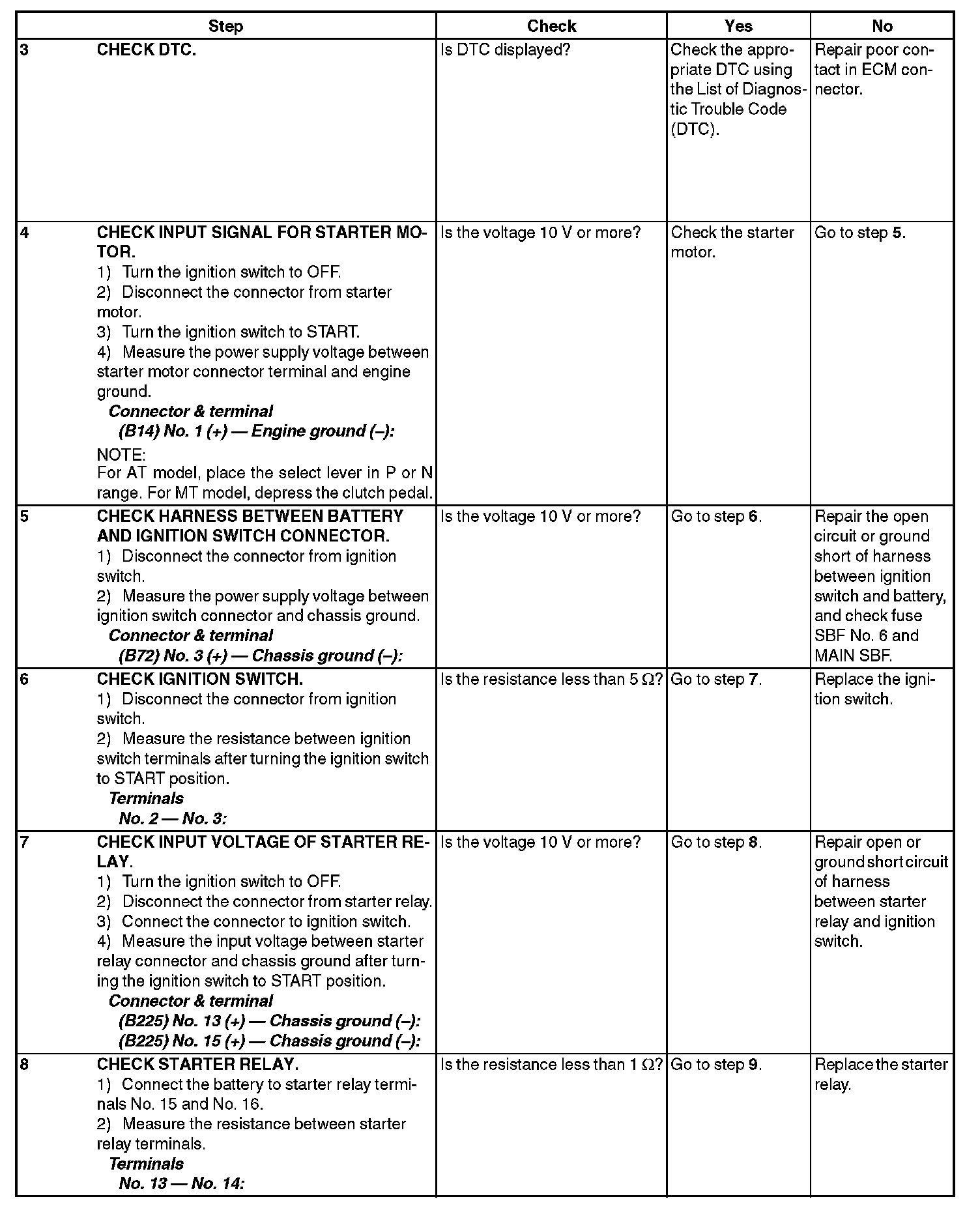

Step 3-8:

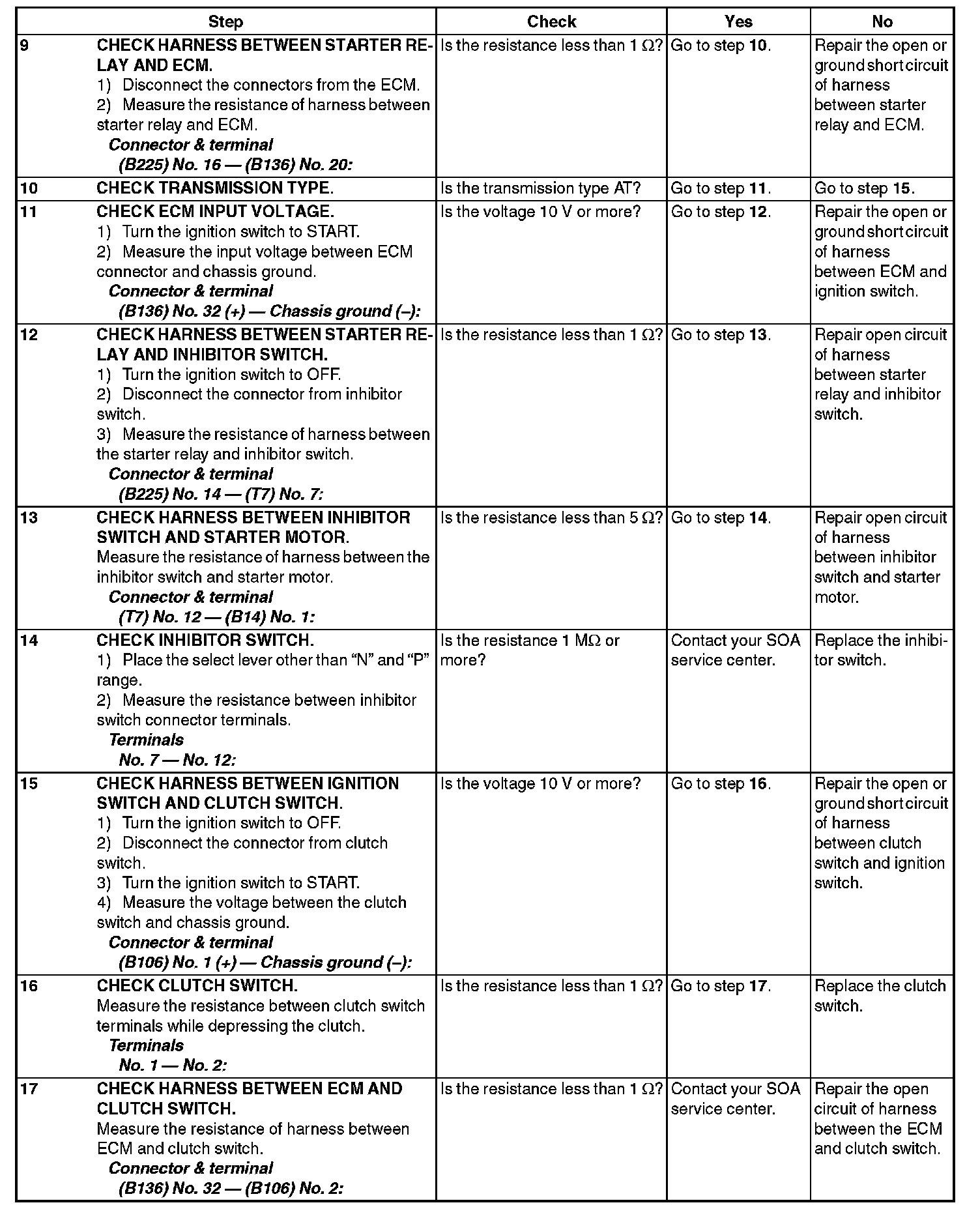

Step 9-17:
CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.
