Home >> Subaru >> 2007 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Belt Systems

Seat Belt Systems

Front Seat Belt:

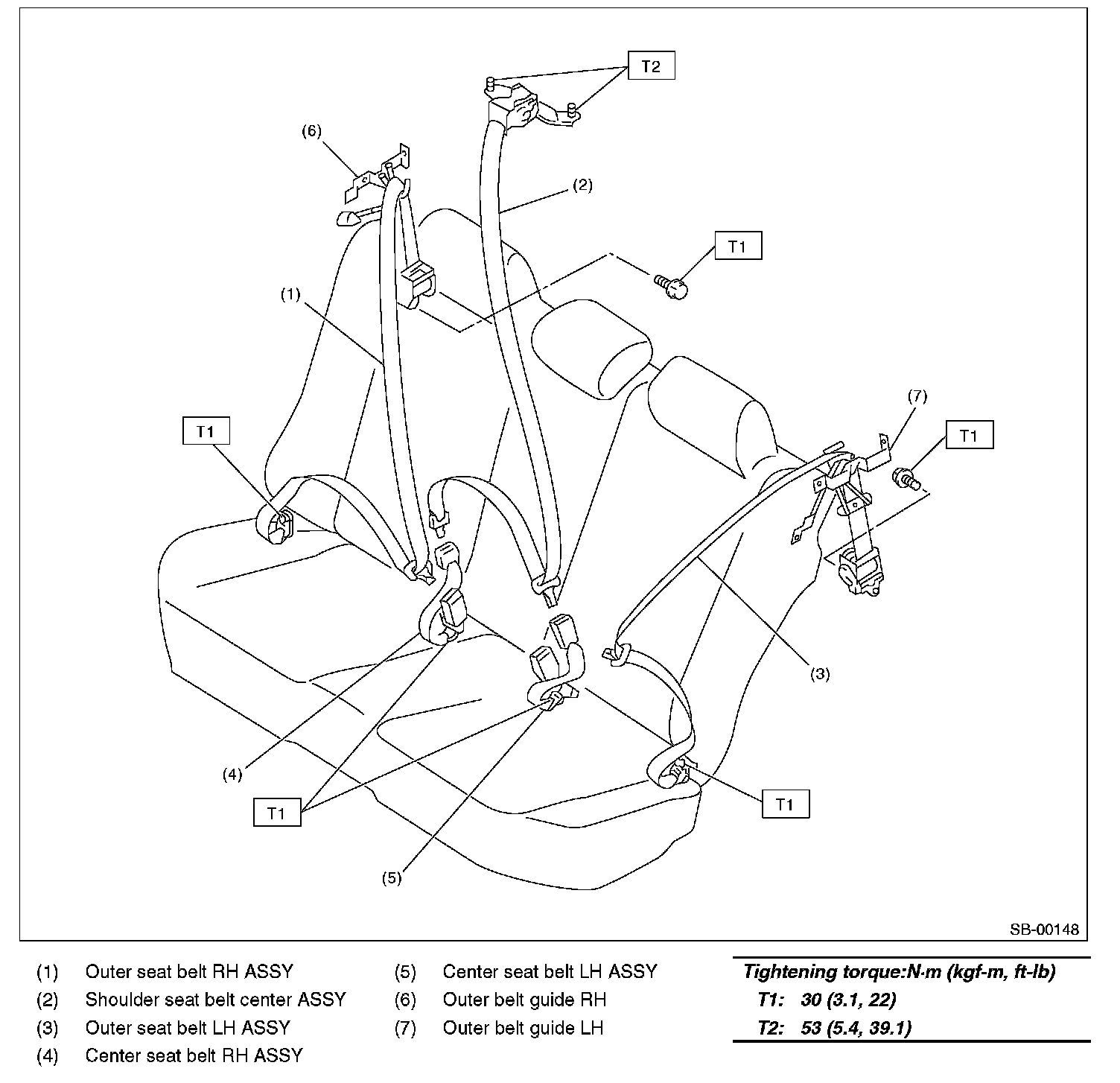

Rear Seat Belt (Sedan Model):

Rear Seat Belt (Wagon Model):
