System Diagram

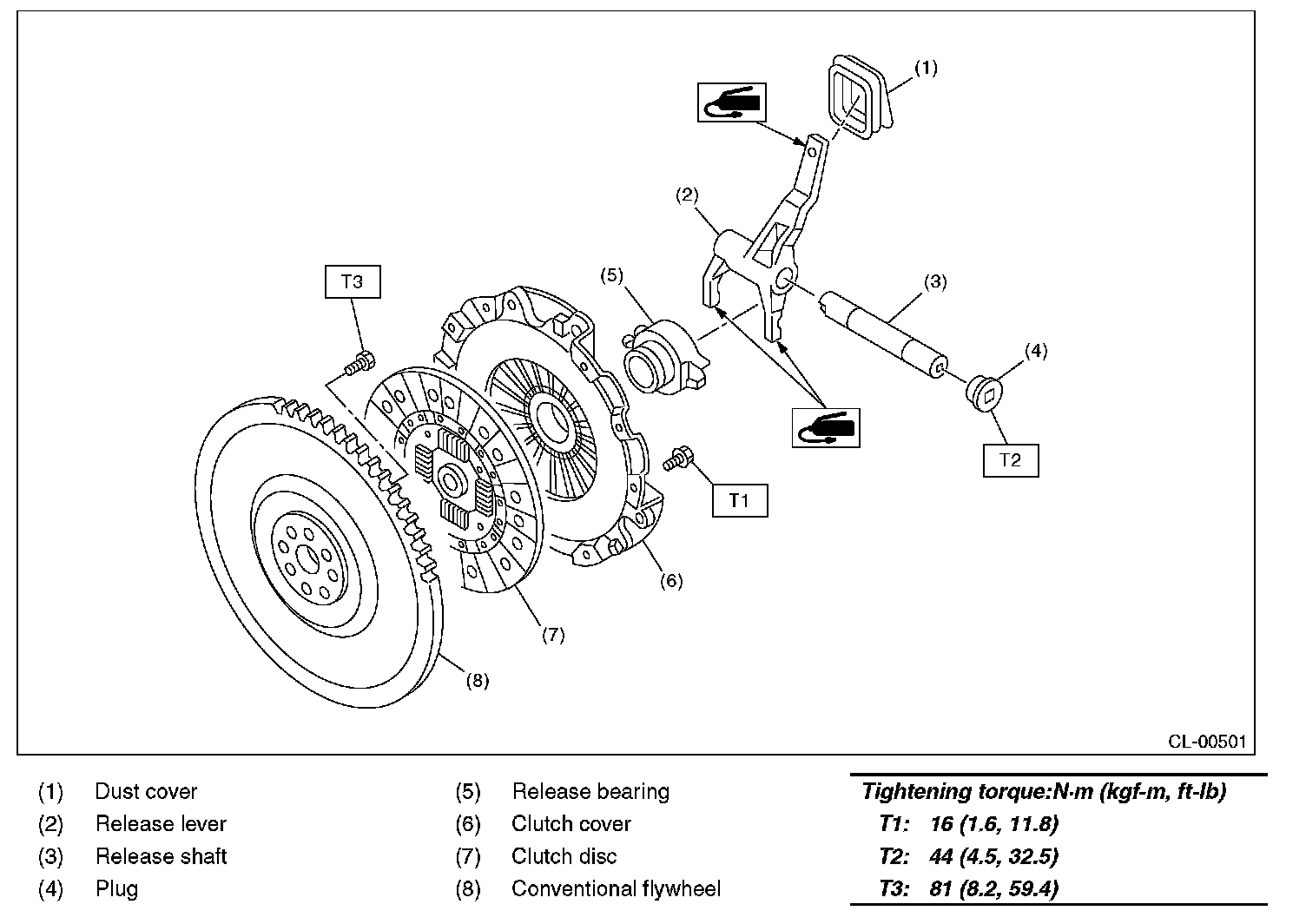

CLUTCH ASSEMBLY (MT non-turbo model):

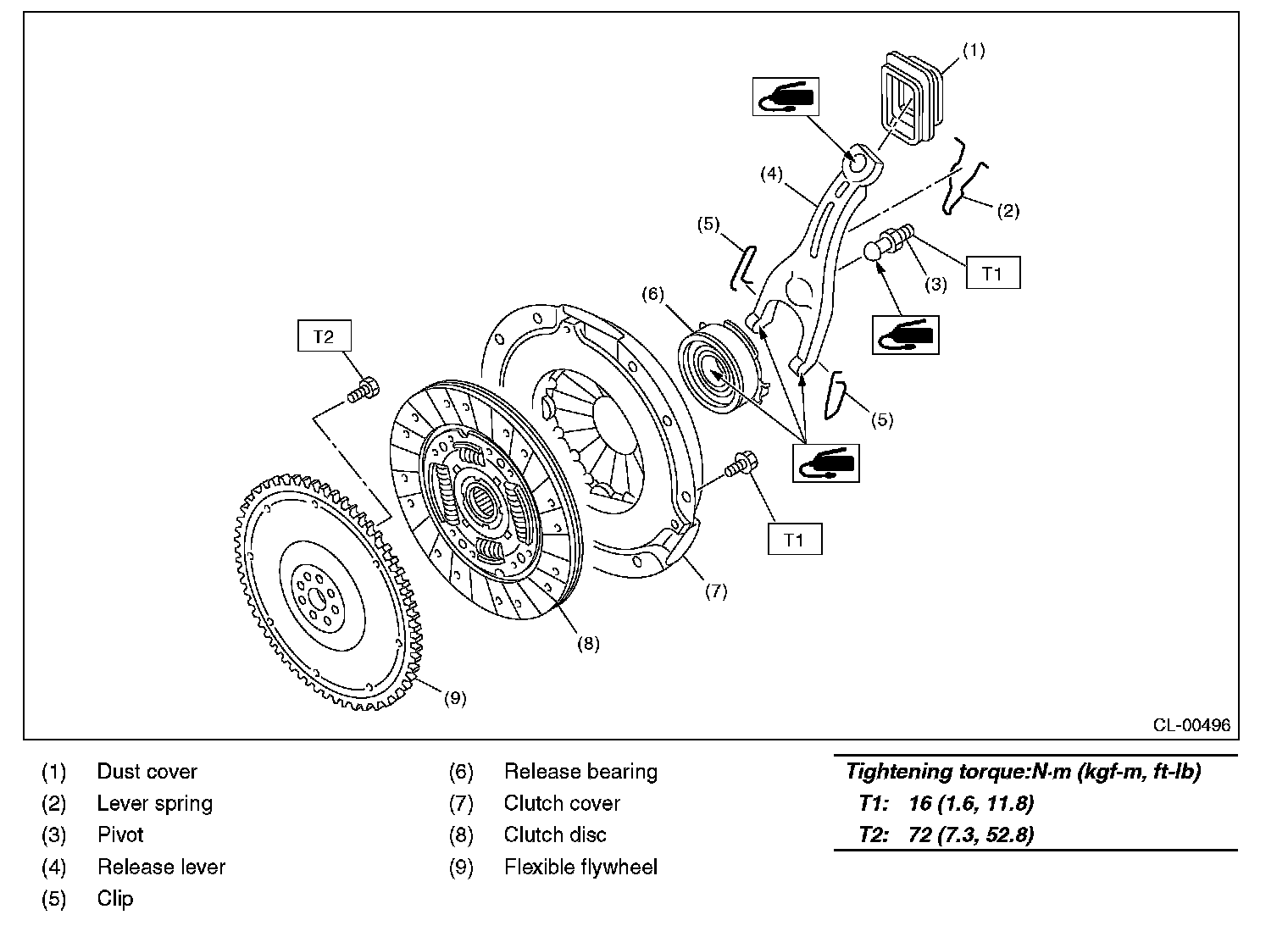

CLUTCH ASSEMBLY (MT turbo model):

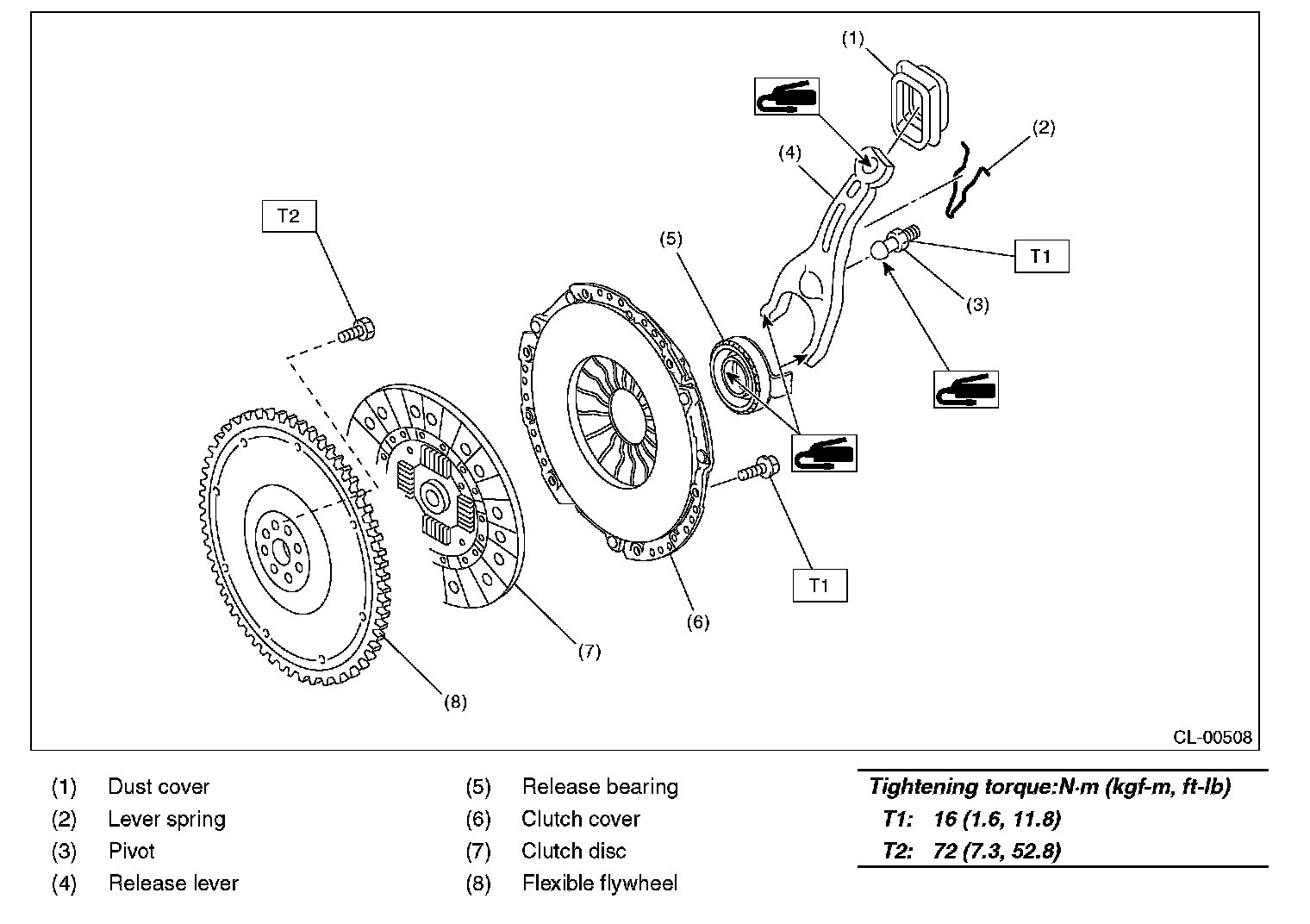

CLUTCH ASSEMBLY (MT model):
