Home >> Subaru >> 2007 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

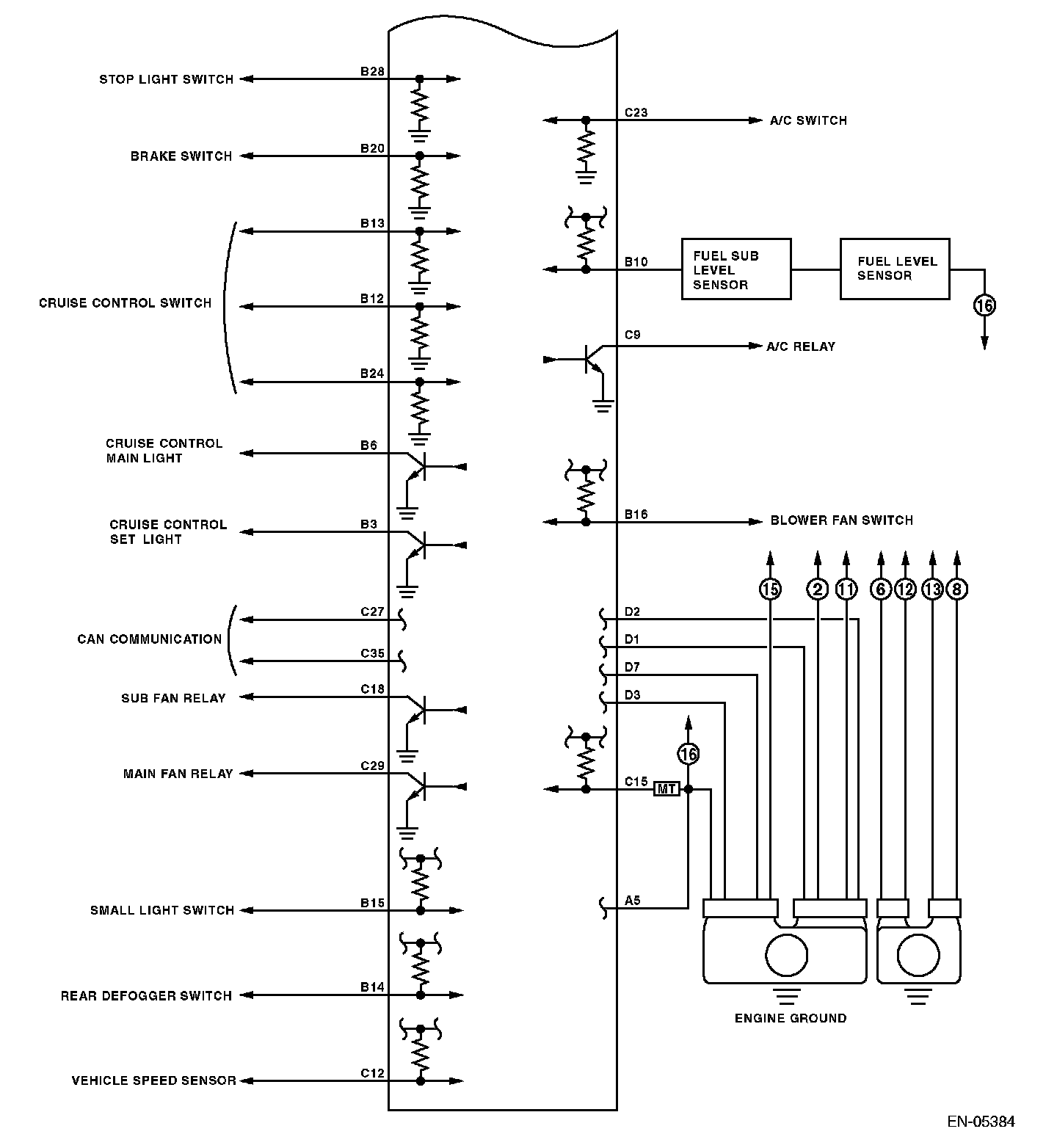

Engine Control Module (ECM) I/O Signal:

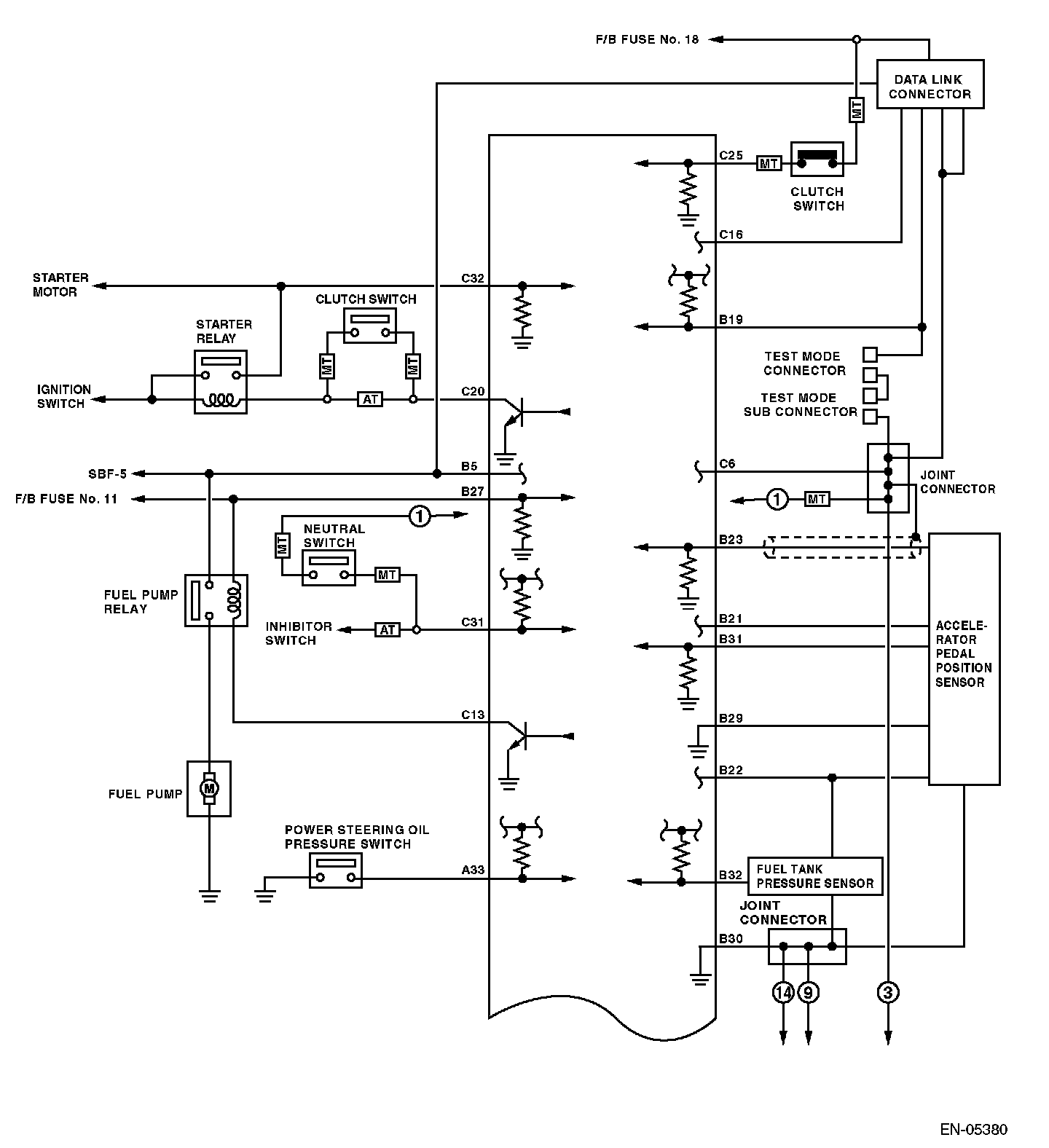

Engine Control Module (ECM) I/O Signal:

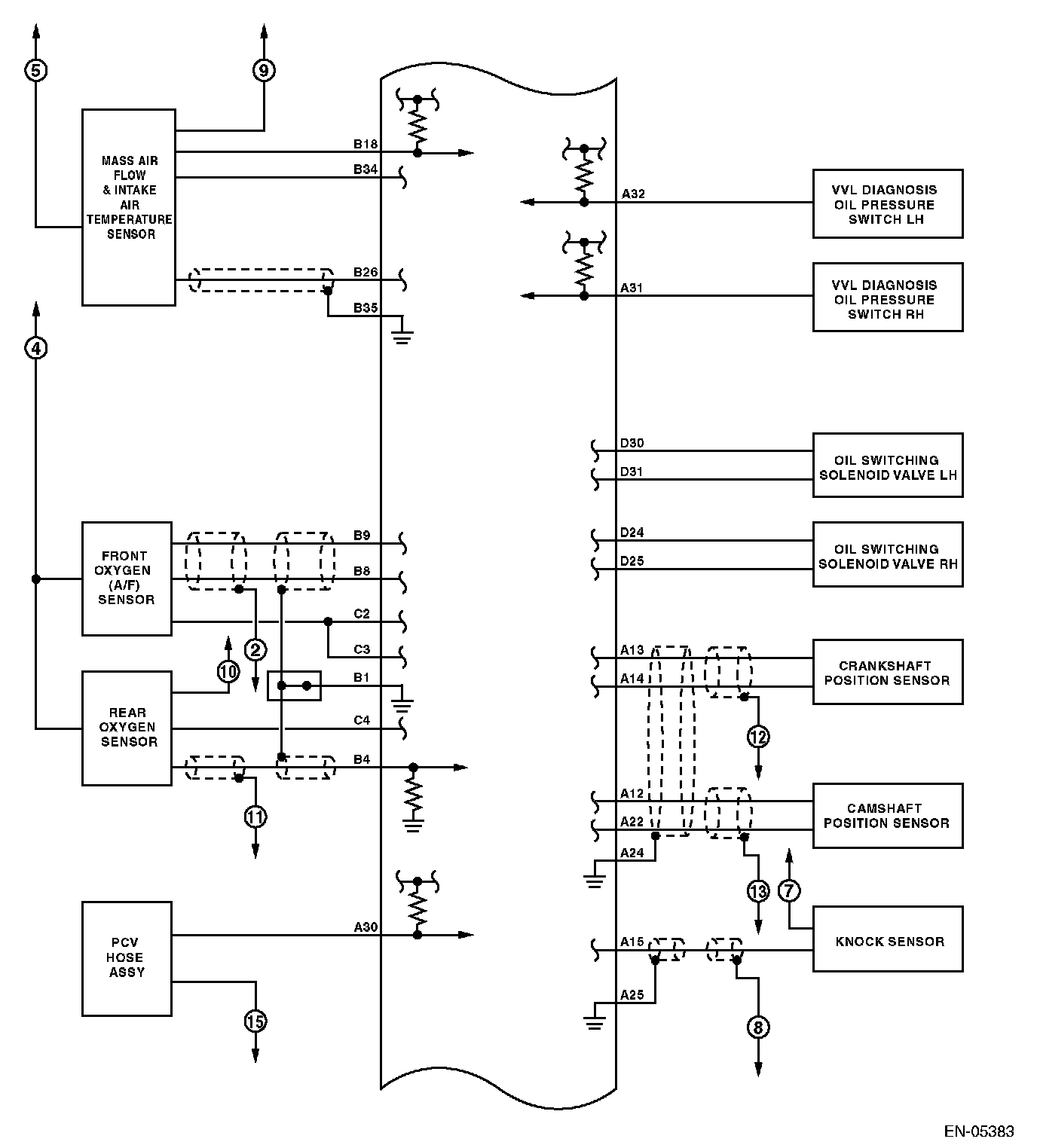

Engine Control Module (ECM) I/O Signal:



Engine Control Module (ECM) I/O Signal:



Engine Control Module (ECM) I/O Signal:
