Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

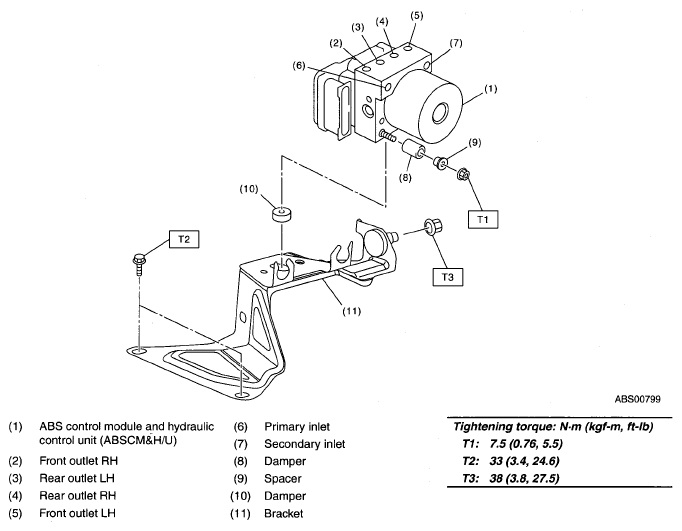

Fig 1: ABS Control Module And Hydraulic Control Unit Components With Torque Specifications

G05327248

Courtesy of SUBARU OF AMERICA, INC.
