Home >> Subaru >> 2007 >> Forester F4-2.5L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Engine Control Module (ECM) I/O Signal

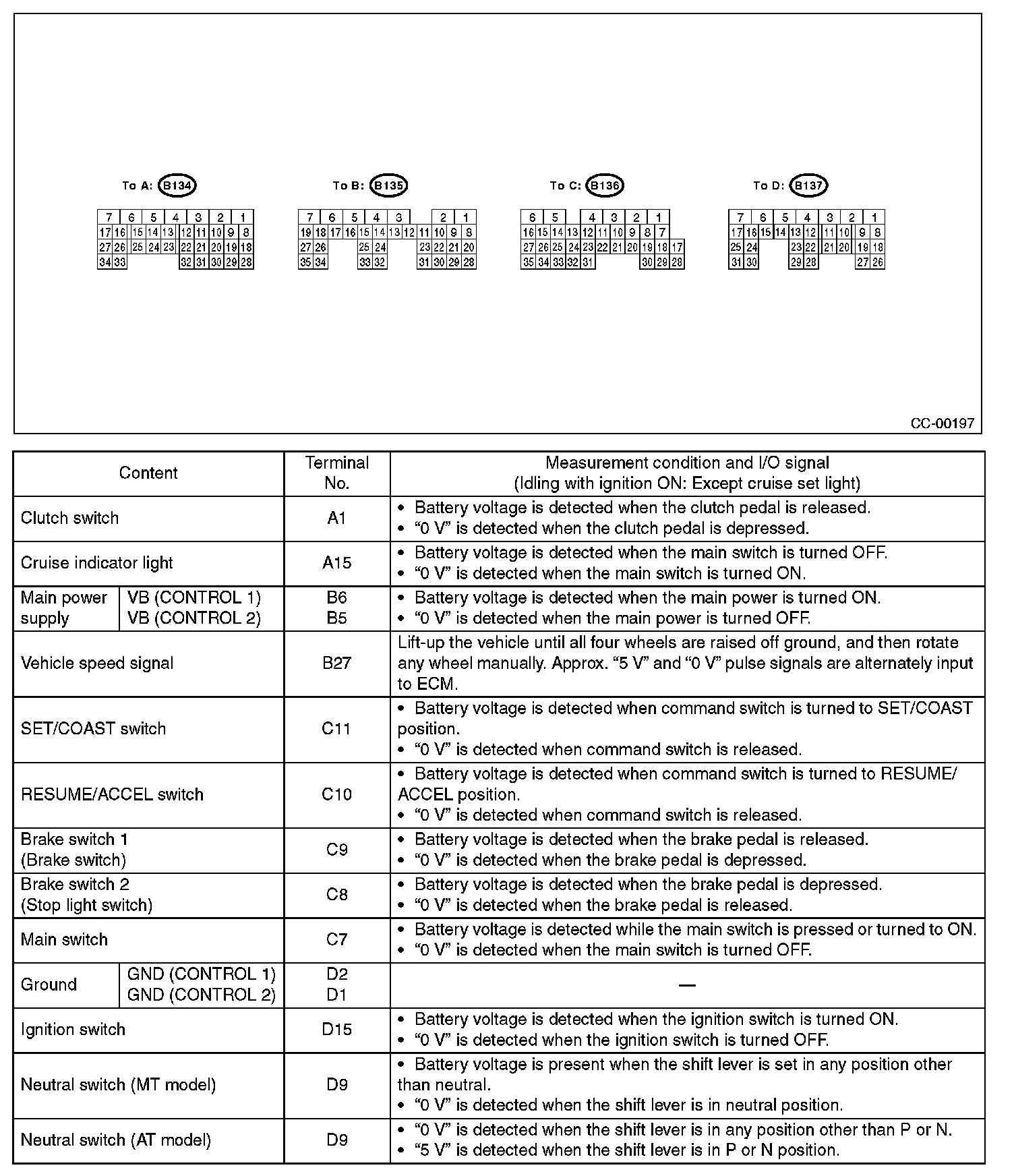

Engine Control Module (ECM) I/O Signal

Electrical Specification:
