Transmission Control Systems: Locations

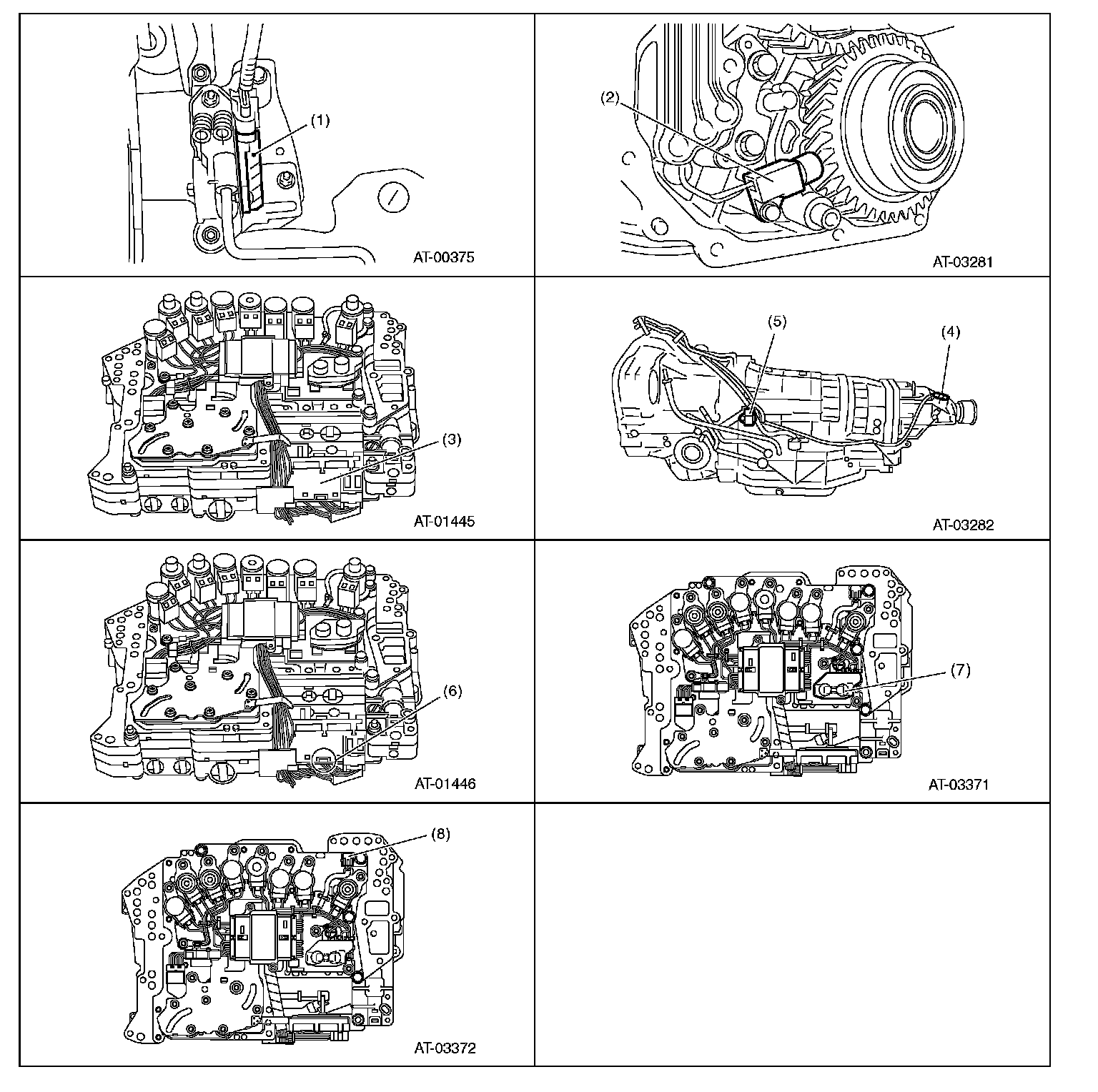

CONTROL MODULE (part 1):



CONTROL MODULE (part 2):



SENSOR (part 1):



SENSOR (part 2):

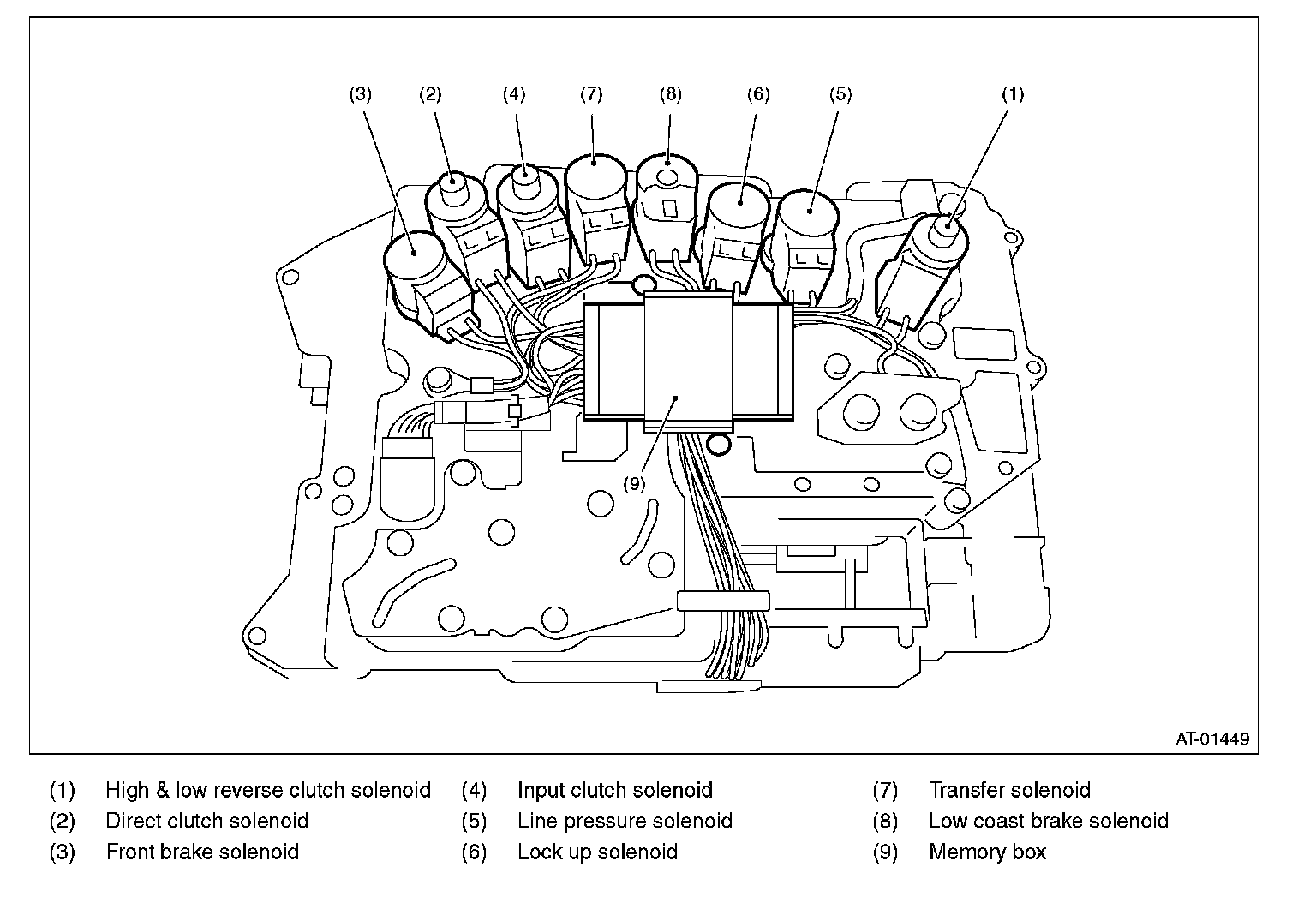

Solenoid:
