Ignition System: Testing and Inspection

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode Clearing Trouble Codes and Inspection Mode. List of Diagnostic Trouble Code (DTC)

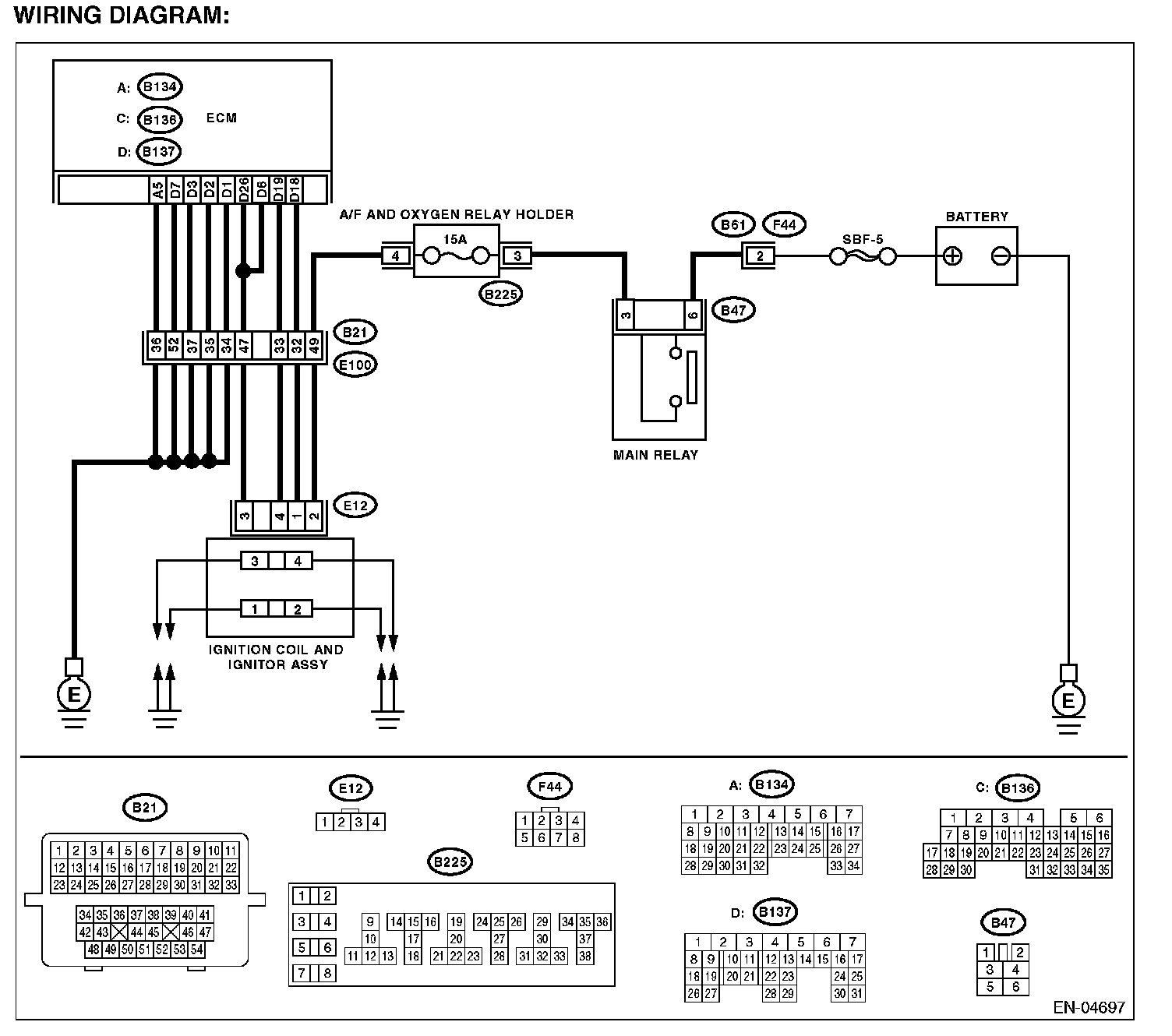

Wiring Diagram:

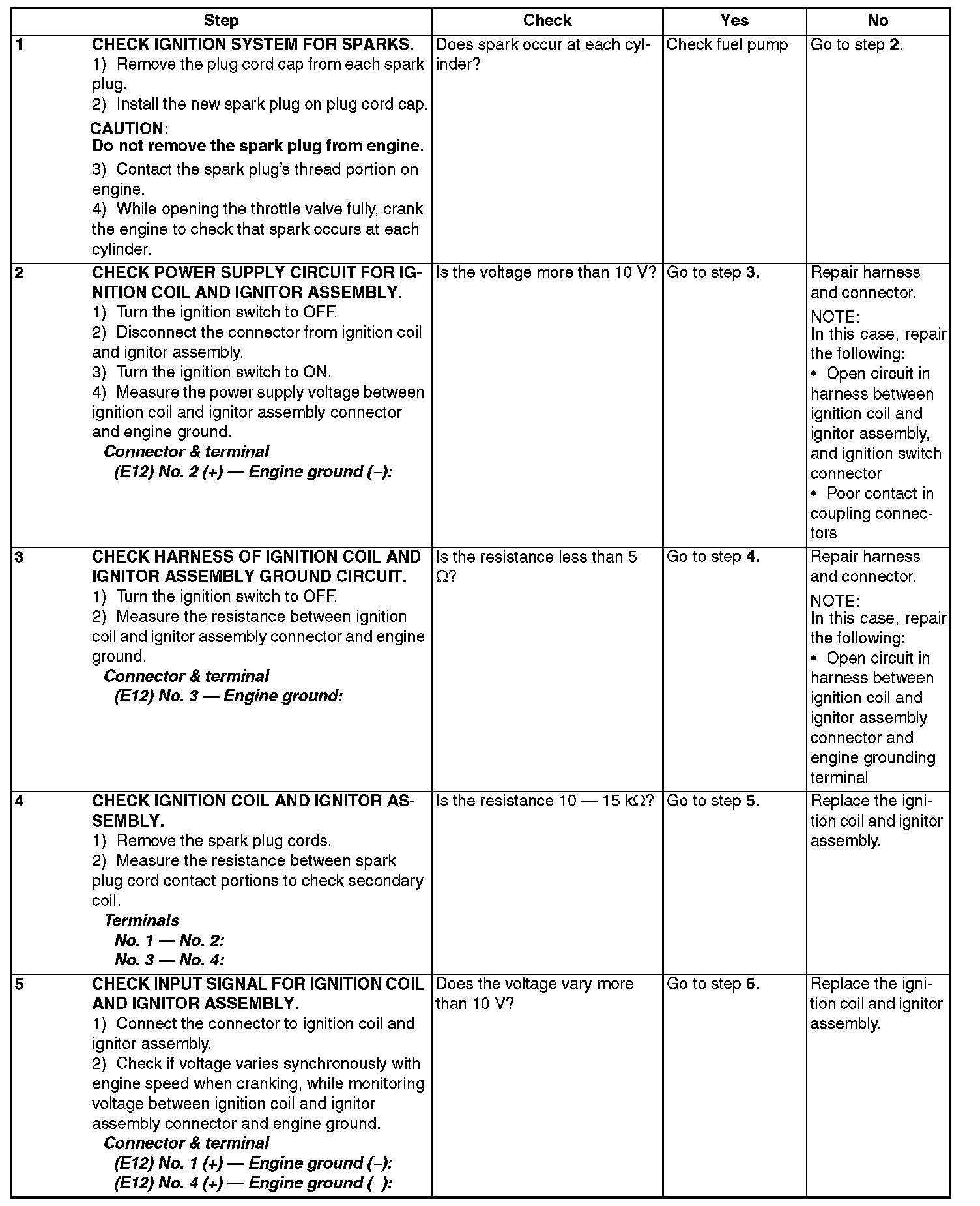

Step 1 - 5:

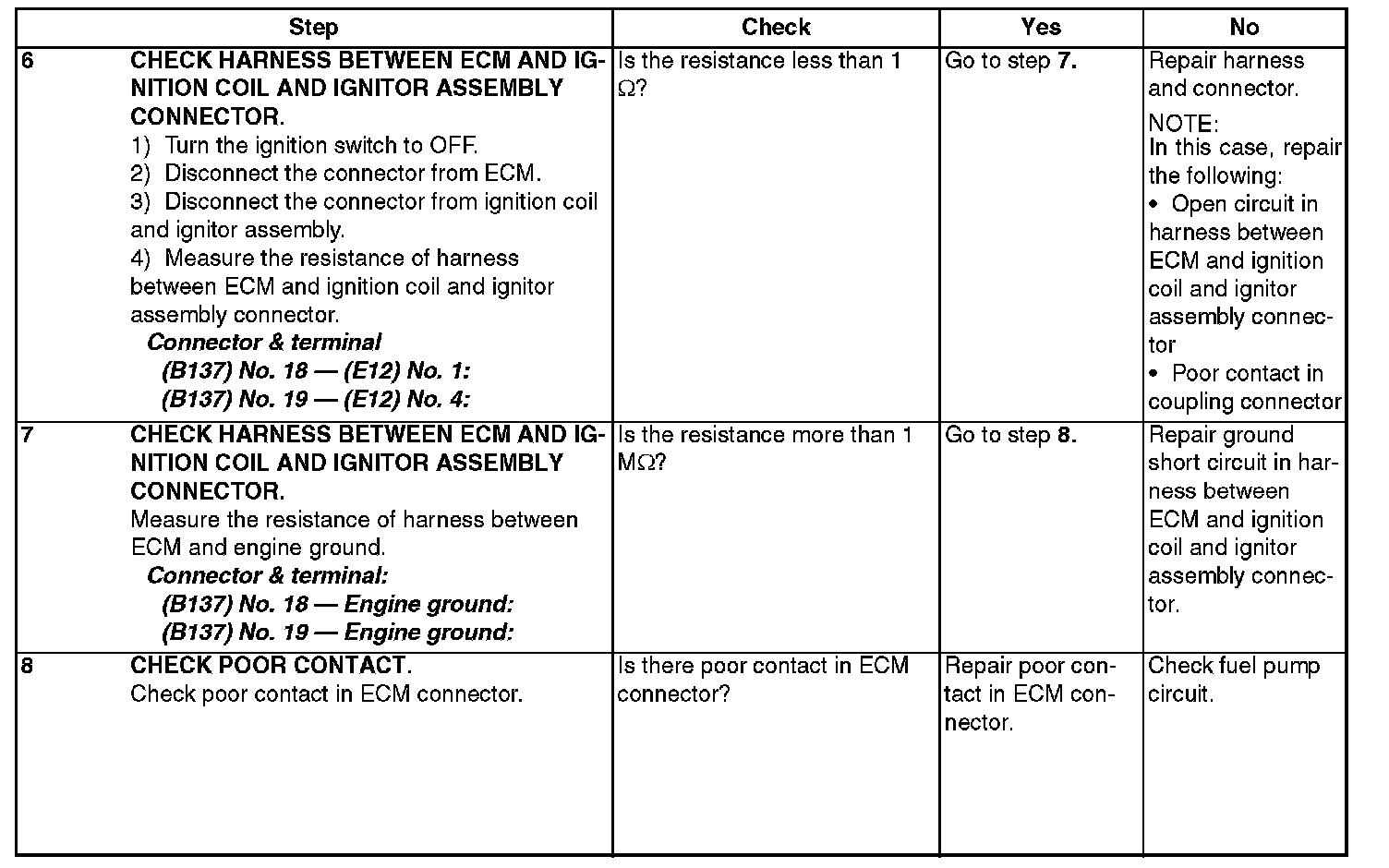

Step 6 - 8:
