General Diagnostic Table
GENERAL DIAGNOSTIC TABLEINSPECTION
Symptom Chart Part 1:

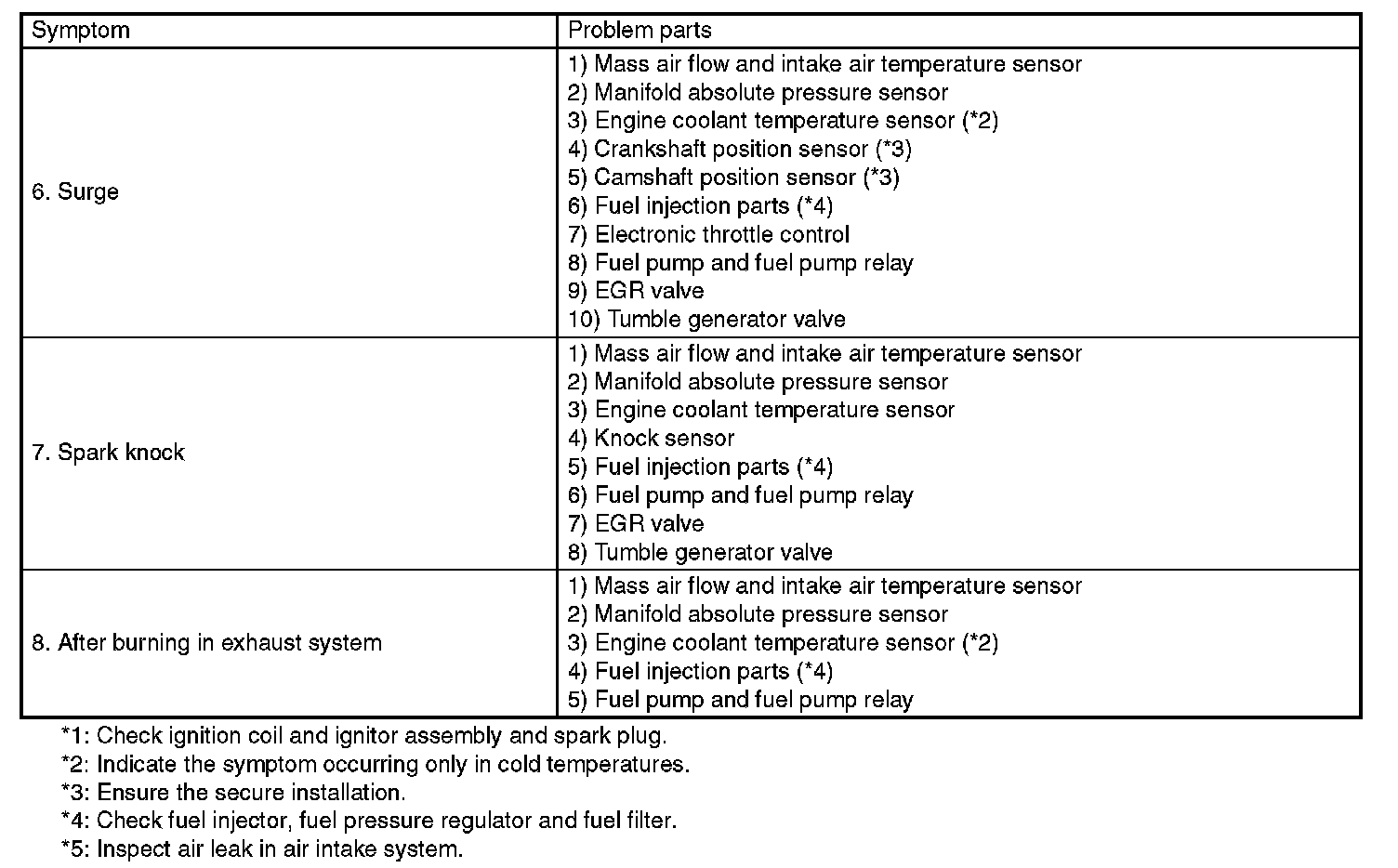

Symptom Chart Part 2:

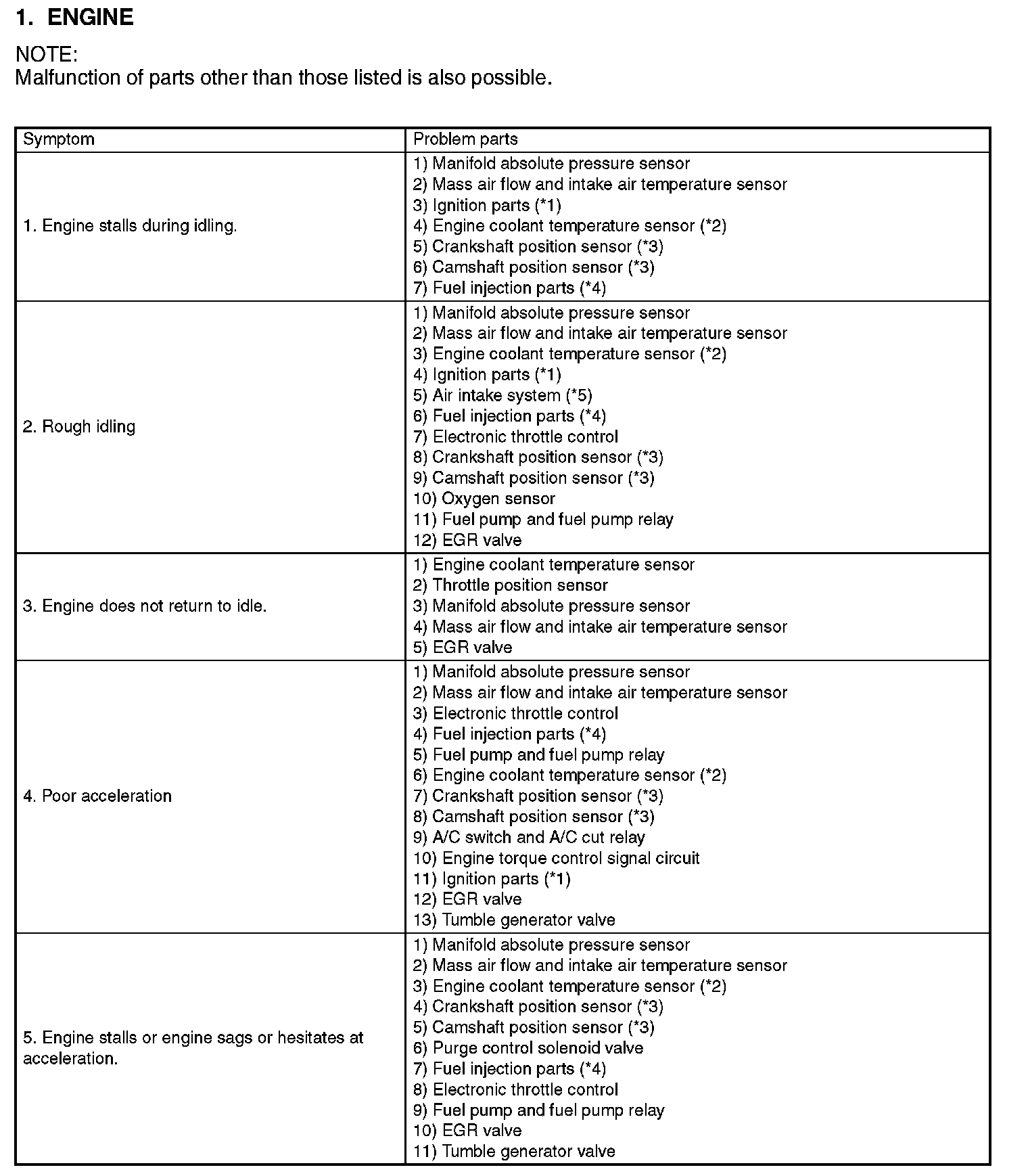

1. ENGINE
2. AUTOMATIC TRANSMISSION
NOTE: Check general diagnostics table with non-conformity symptom for automatic transmission.
INSPECTION
1. ENGINE
2. AUTOMATIC TRANSMISSION
NOTE: Check general diagnostics table with non-conformity symptom for automatic transmission.
