Subaru
>>
2006
>>
Outback Sport F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R16-R170
R16-R170
Rear Wiring Harness and Trunk Lid Cord

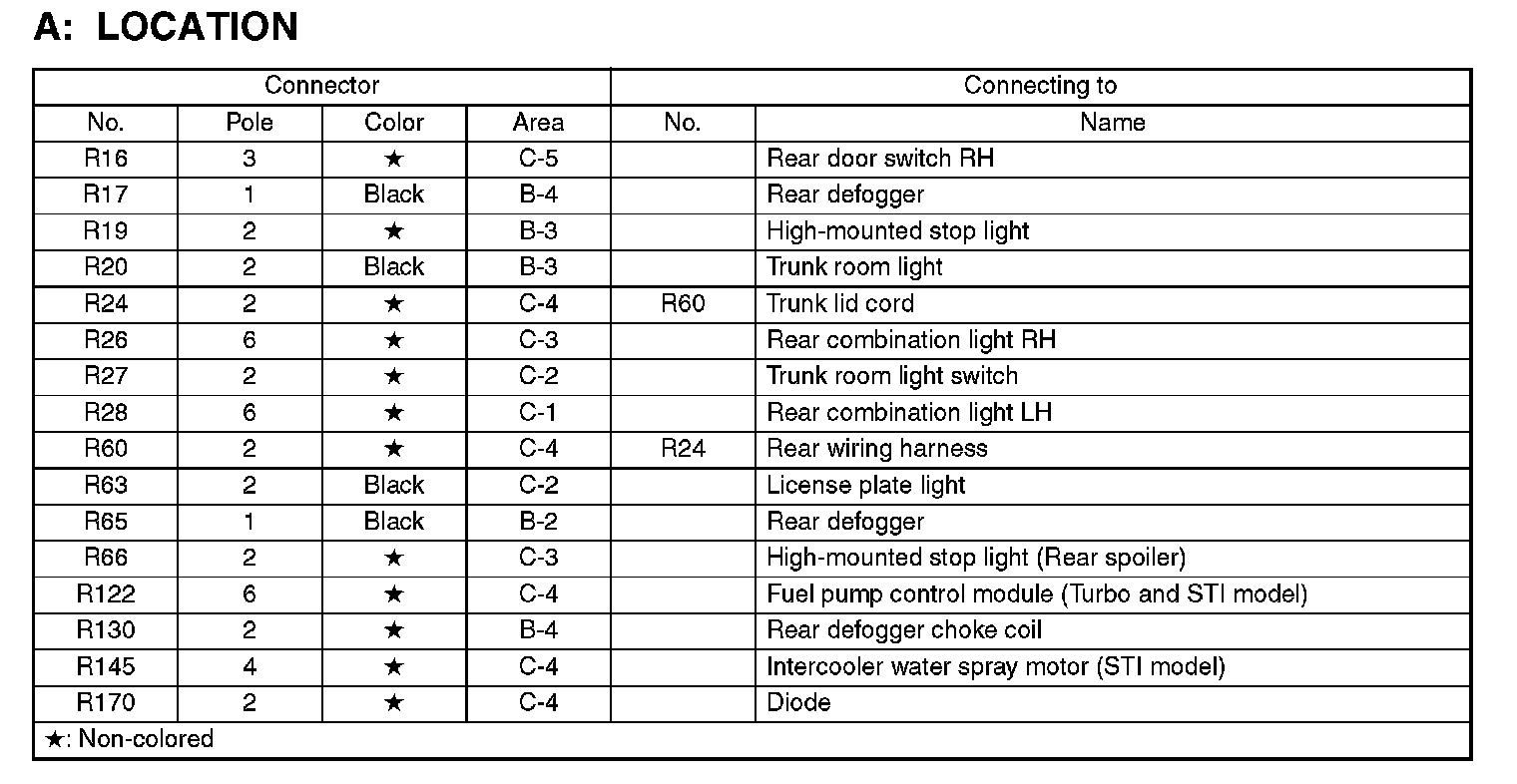

R16-R170:

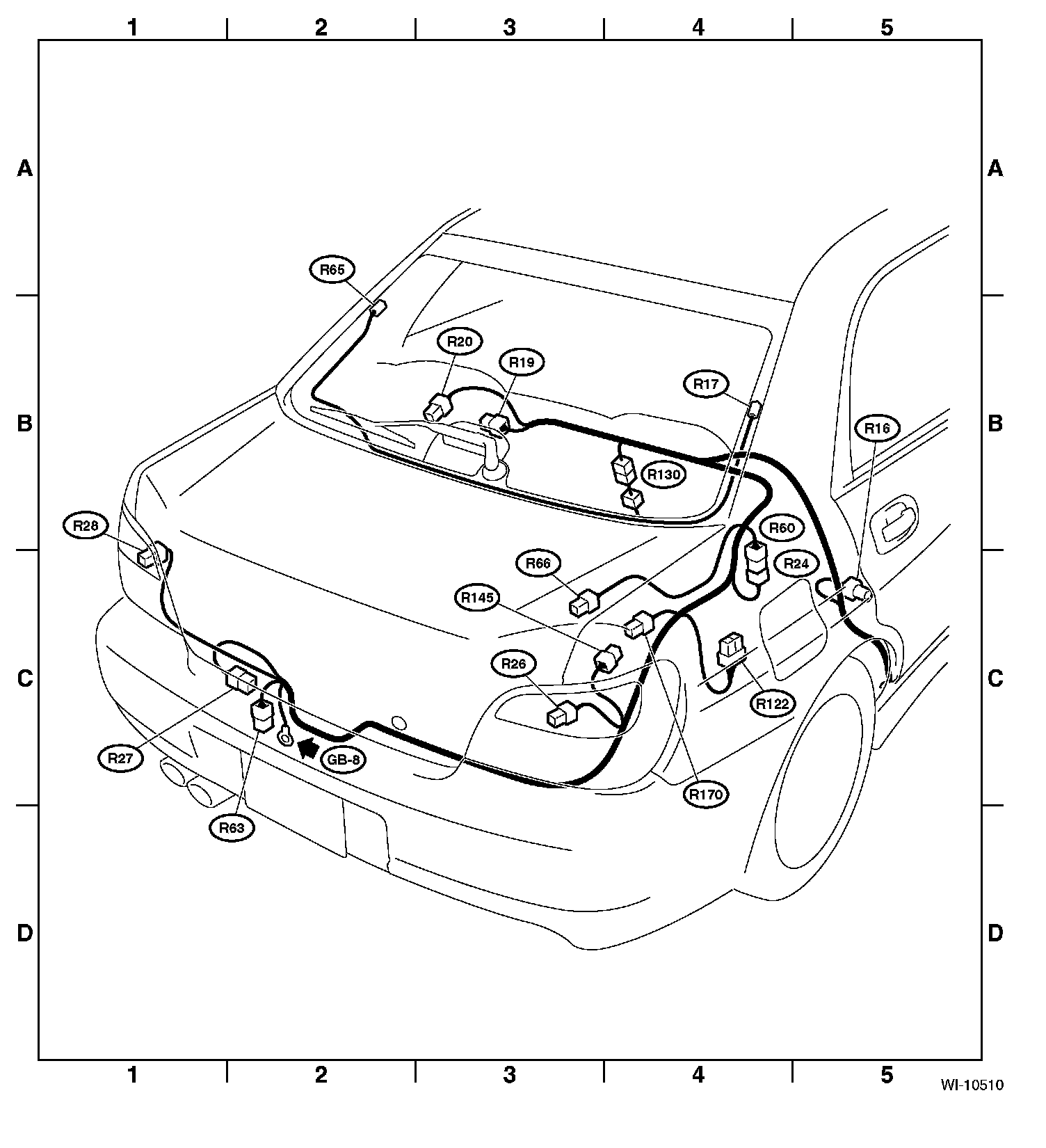

Area View:
