Section 11 (Clutch System)
>>
General Description
>>
Components With Torque Specifications
>>
Clutch Assembly
Clutch Assembly
WARNING:
This page is about a different variant/trim than selected.
Non-turbo model

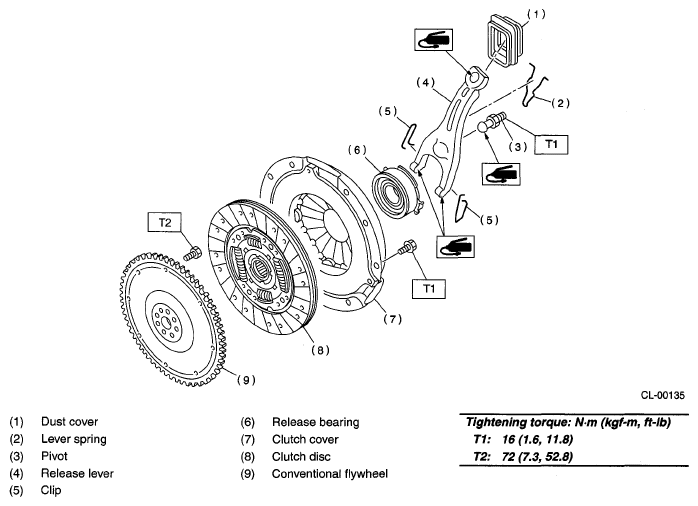

Fig 1: Clutch Assembly Components With Torque Specifications - Non-Turbo Model
Turbo model

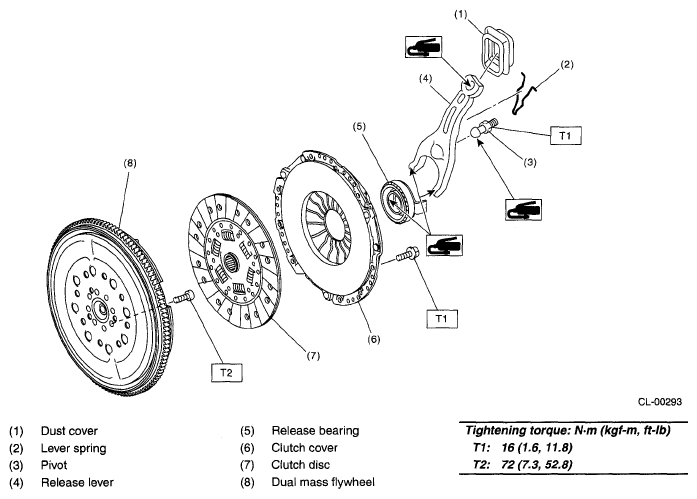

Fig 2: Clutch Assembly Components With Torque Specifications - Turbo Model
