Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R1-R226 & AB17-AB52
R1-R226 & AB17-AB52
Rear Wiring Harness

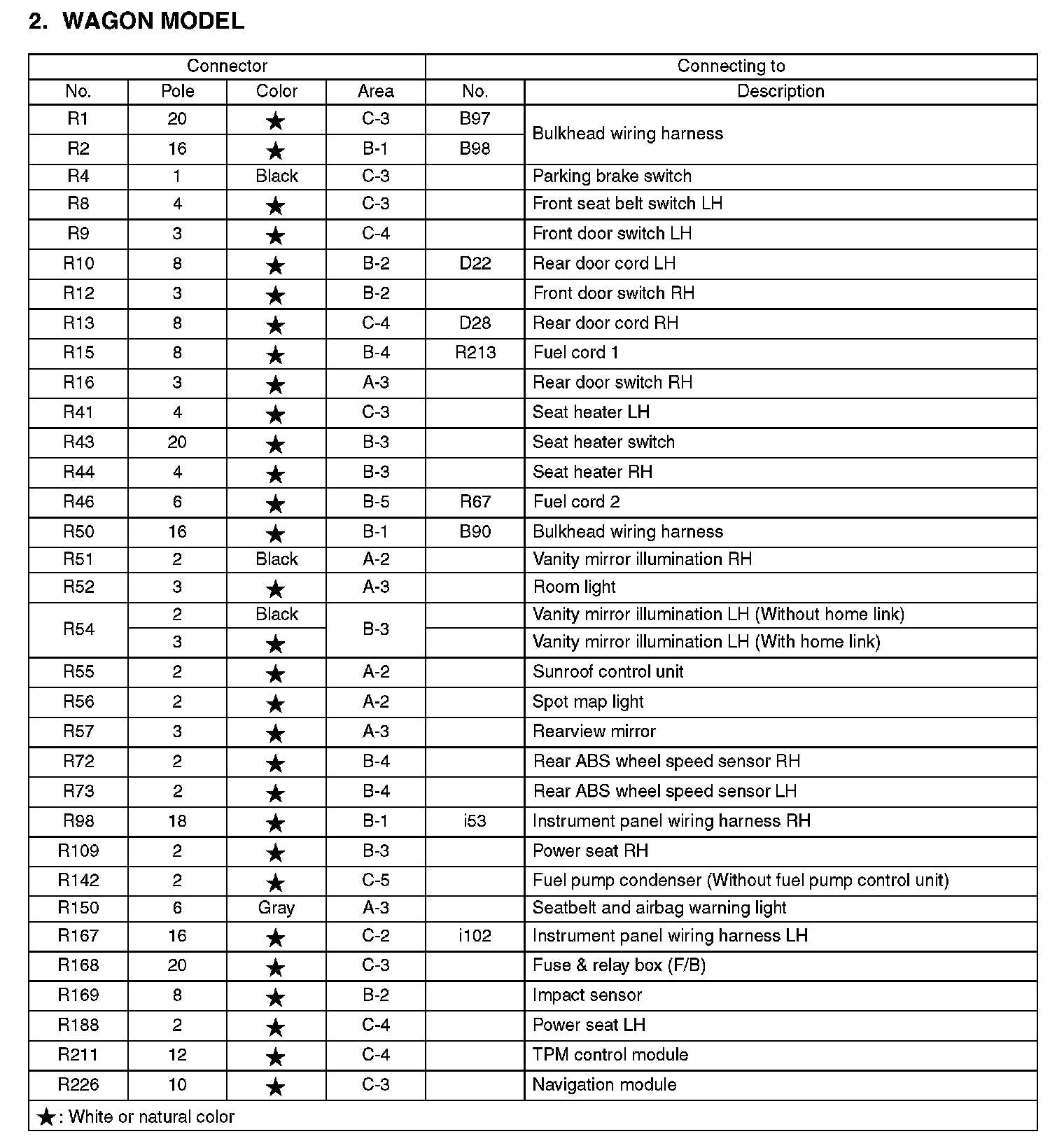

R1-R226:

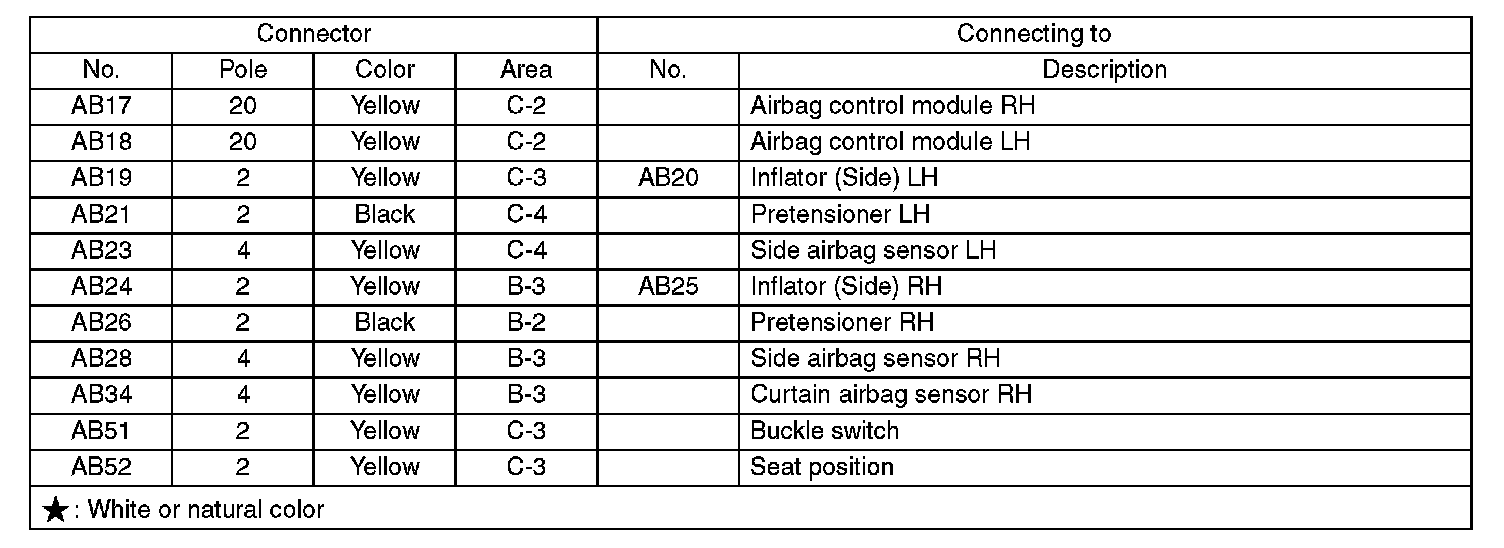

AB17-AB52:

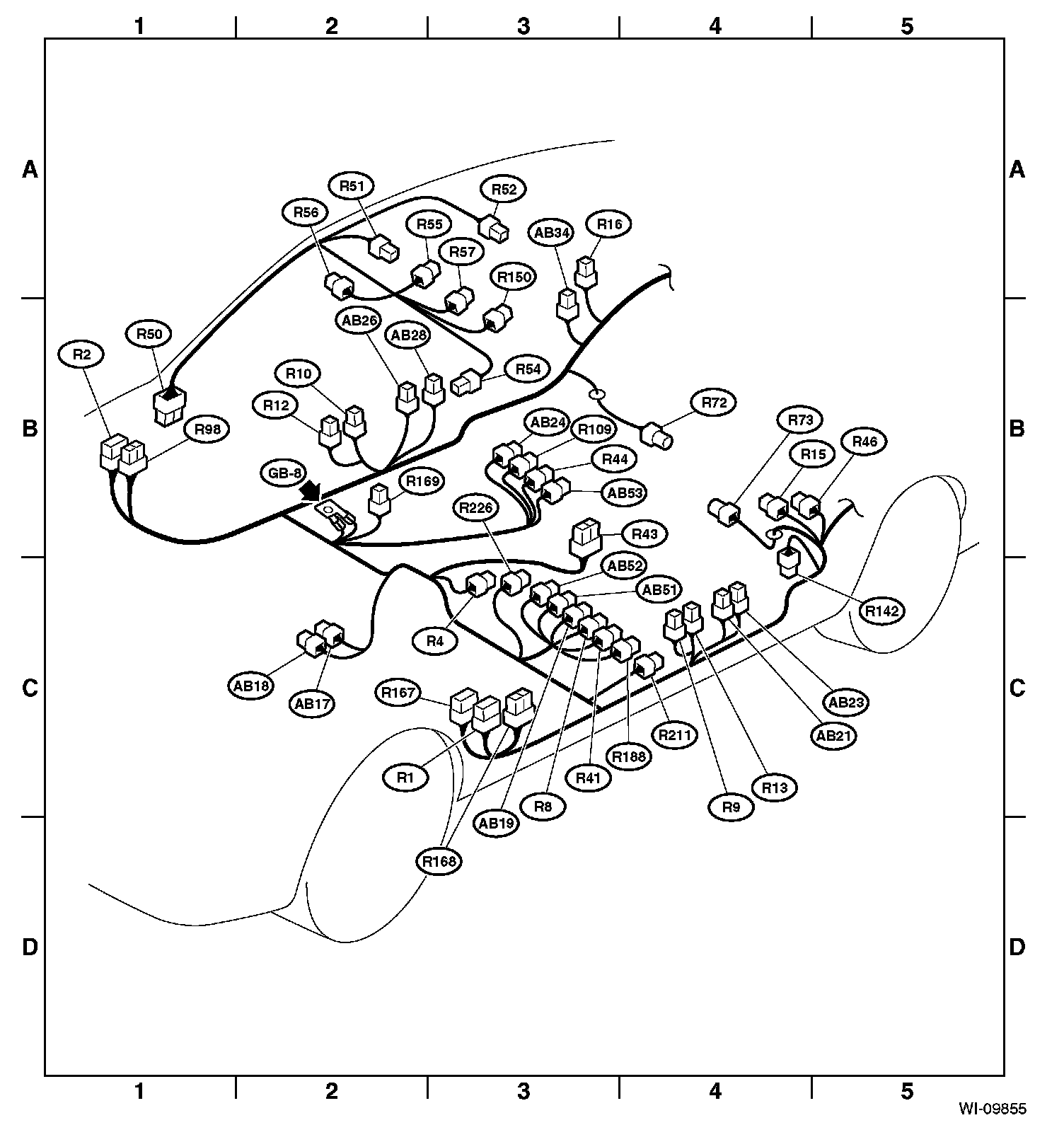

Area View:
