OE Harness Connector Repair Kits

Harness Repair Kit


Specification

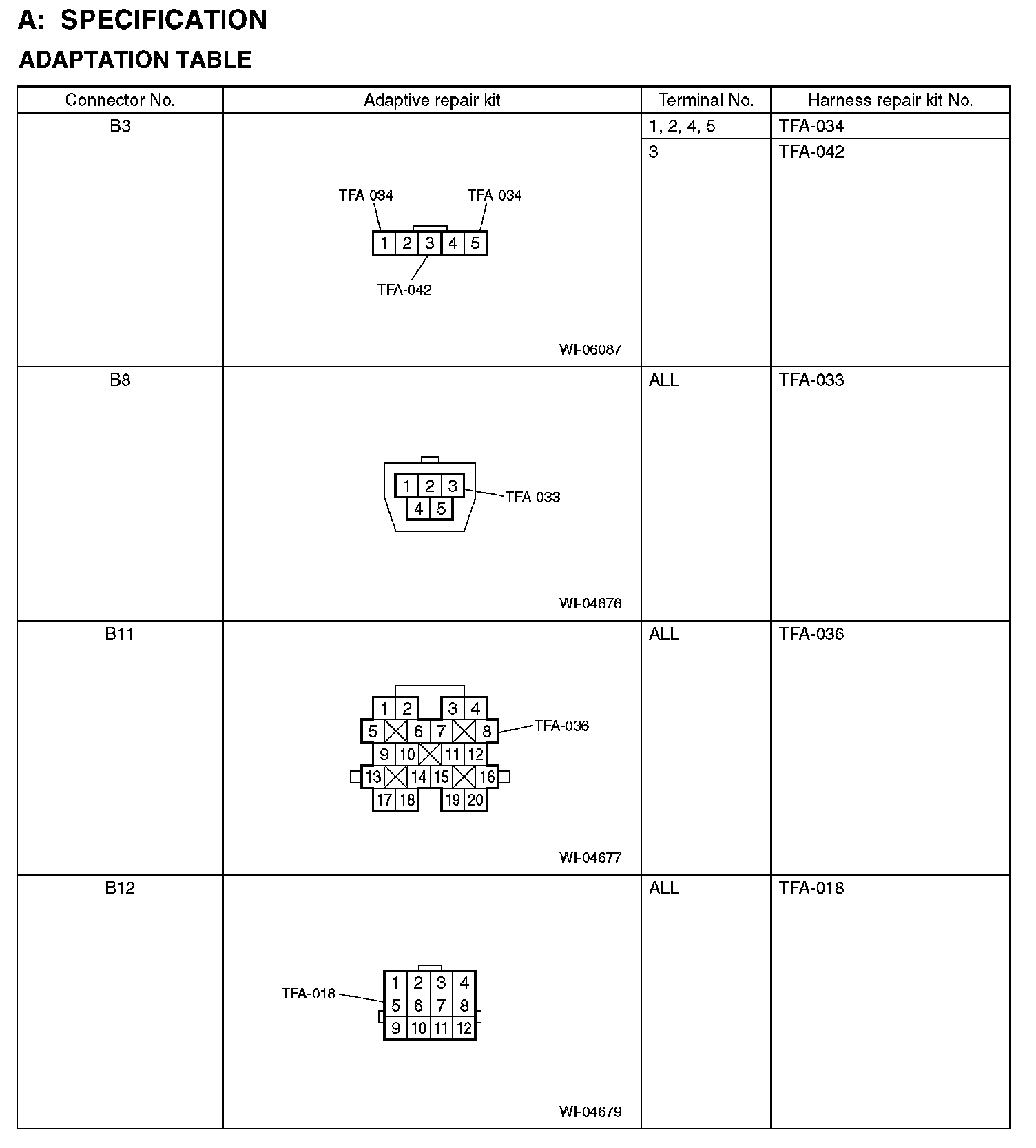

B3-B12:

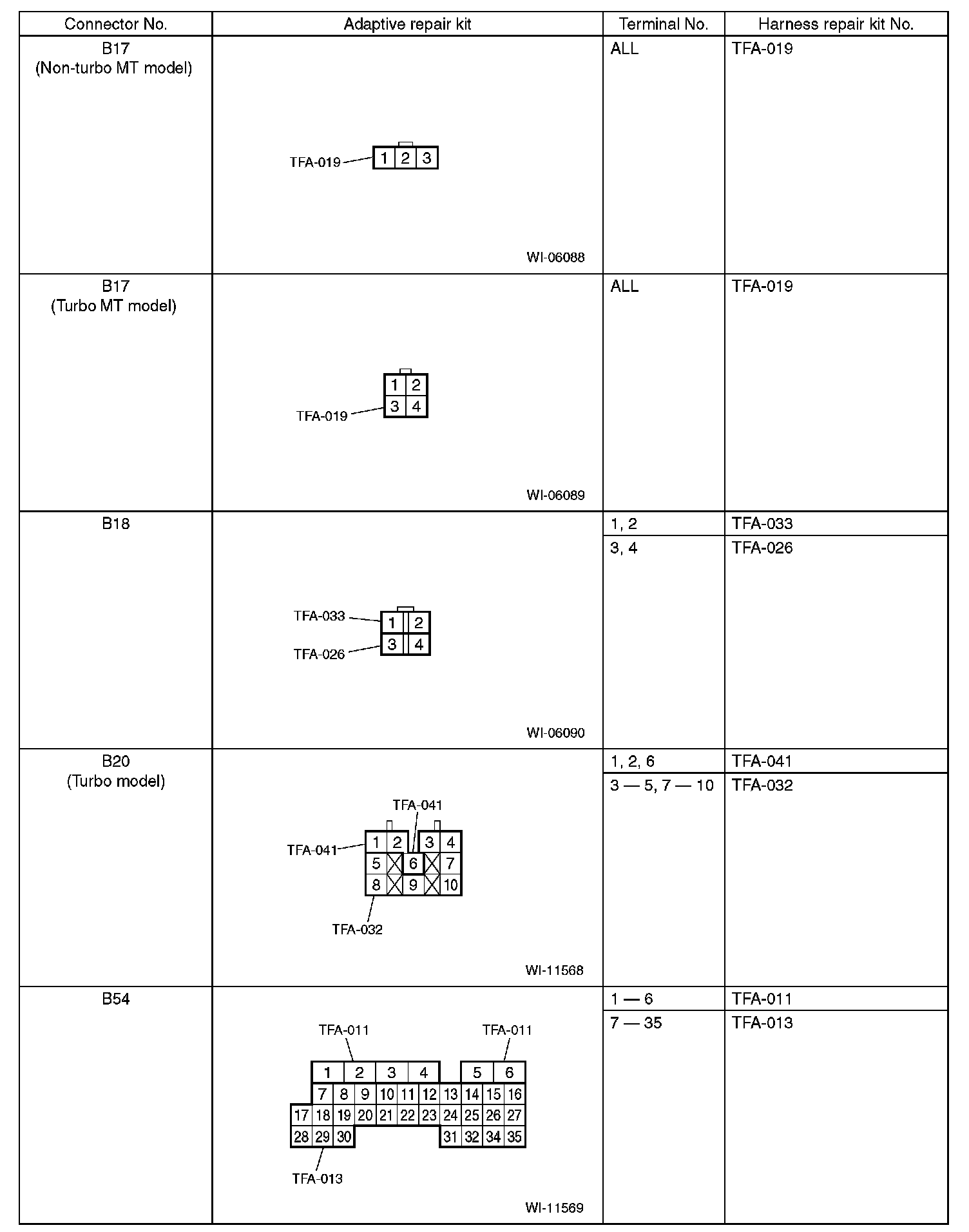

B17-B54:

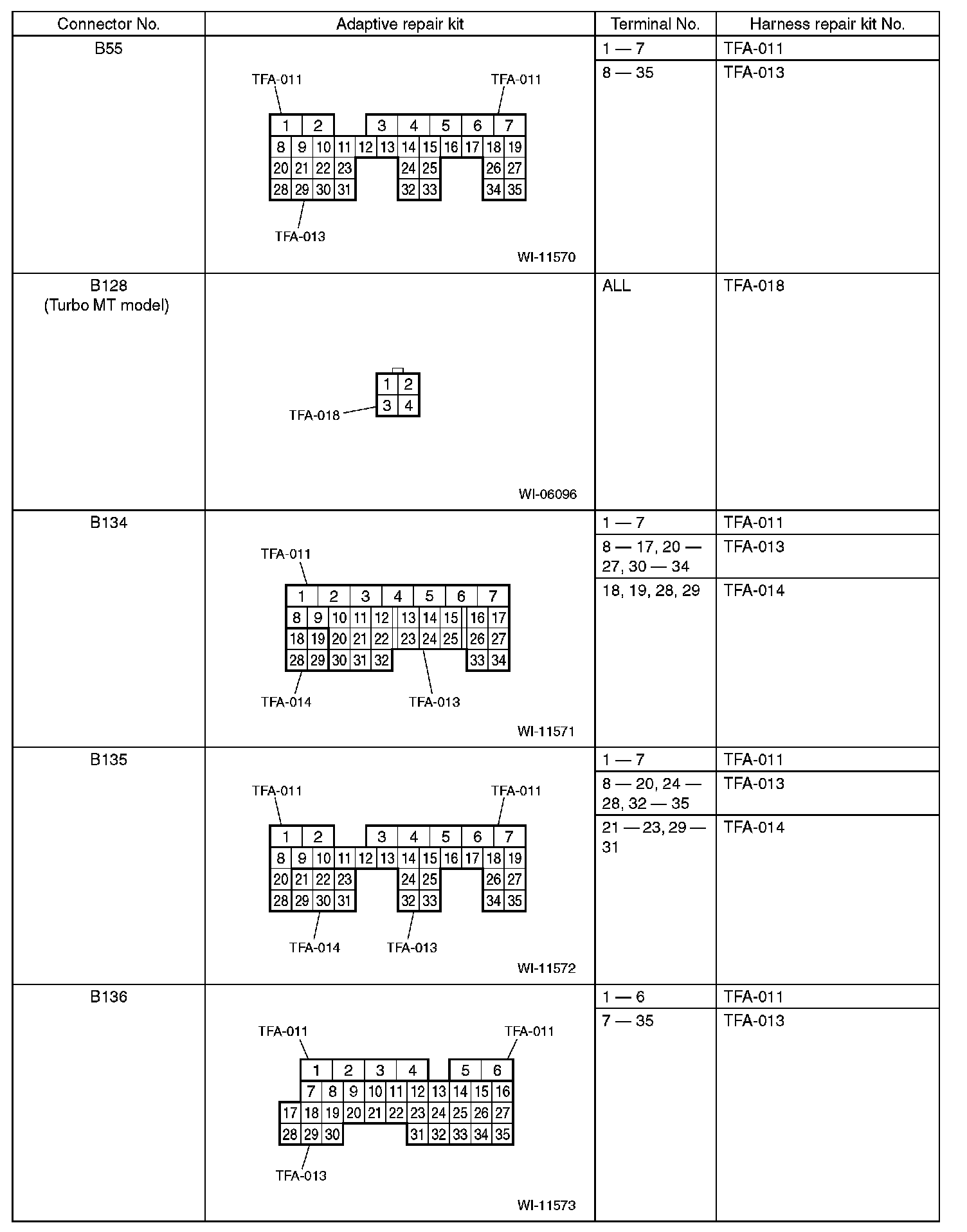

B55-B136:

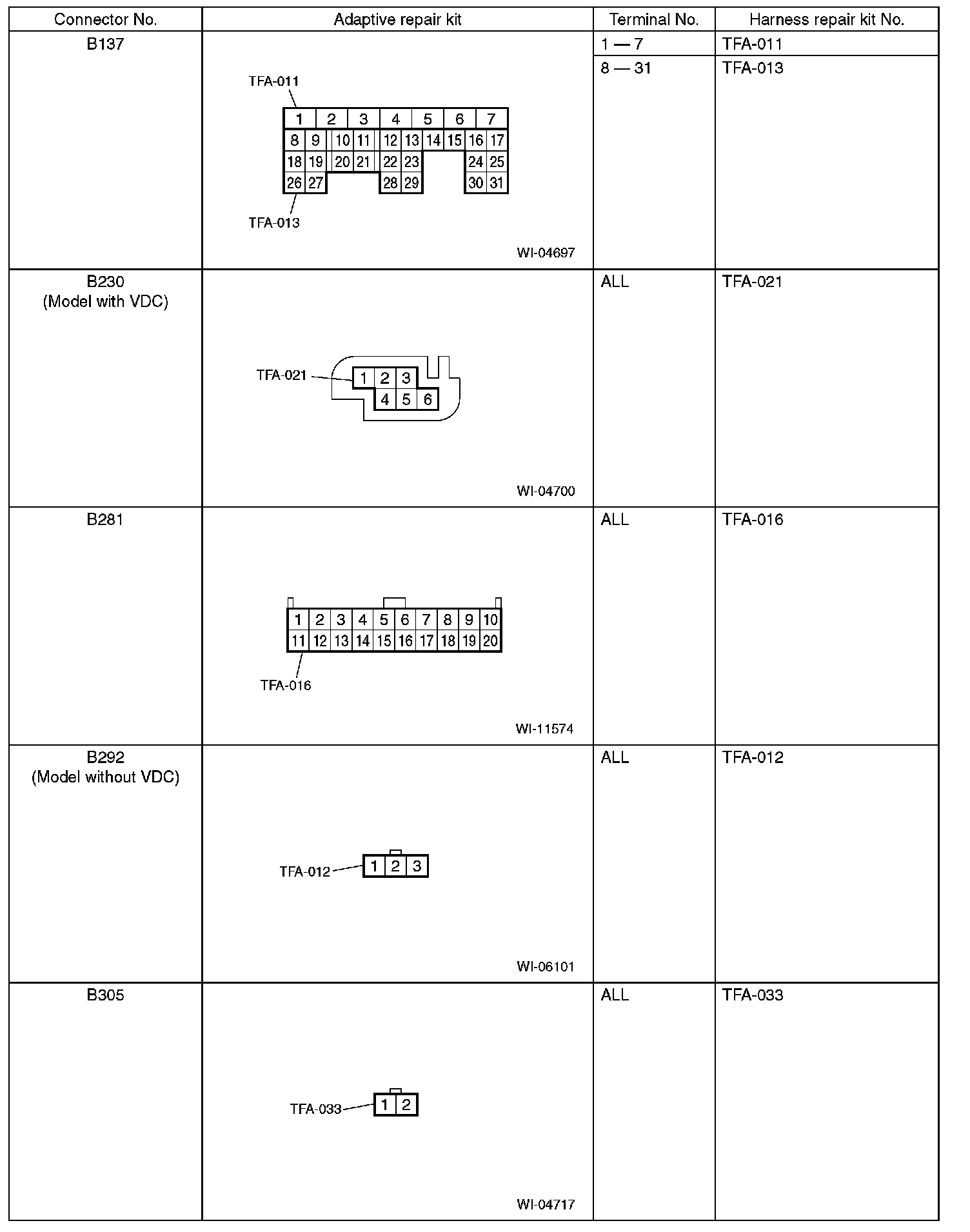

B137-B305:

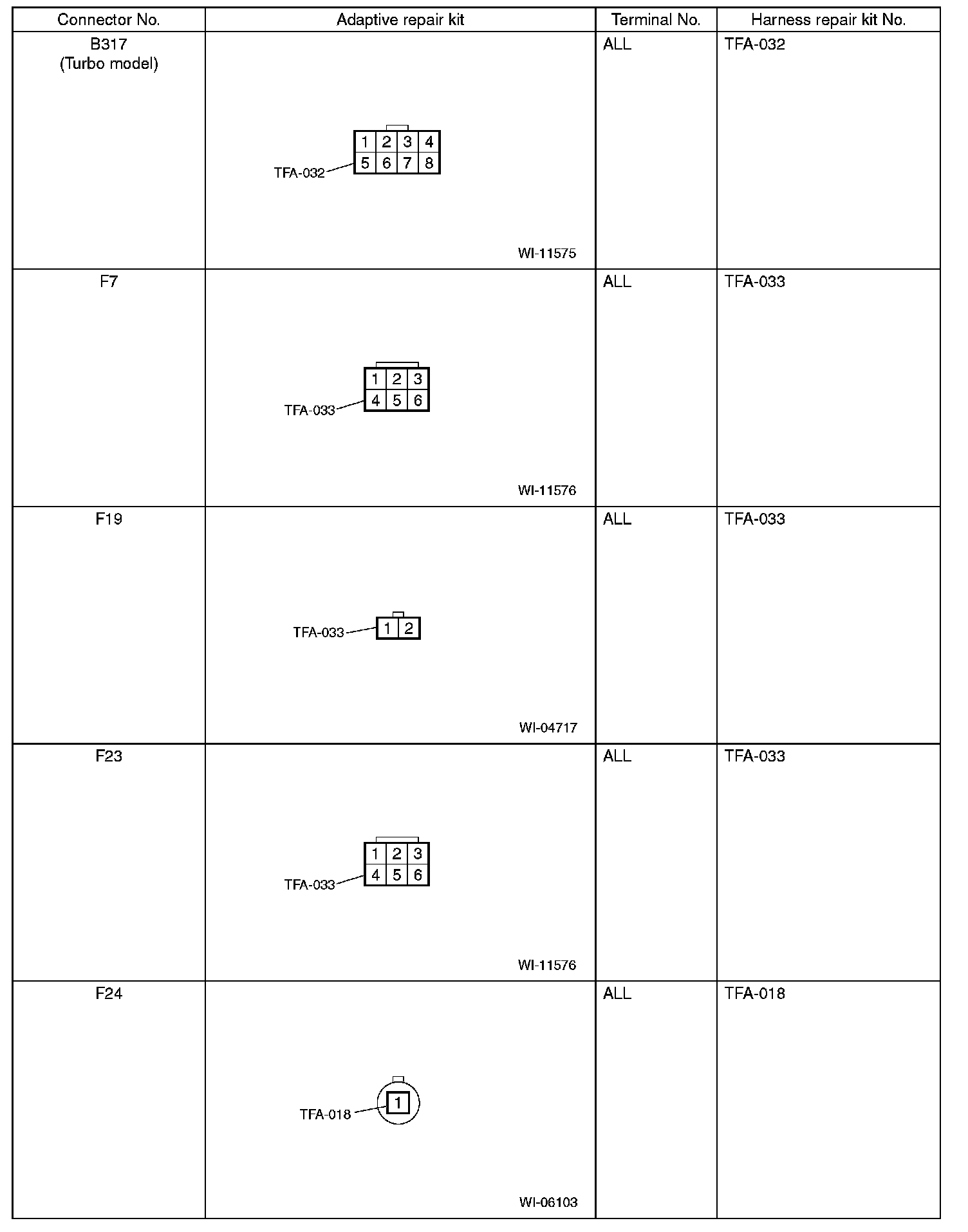

B317-F24:

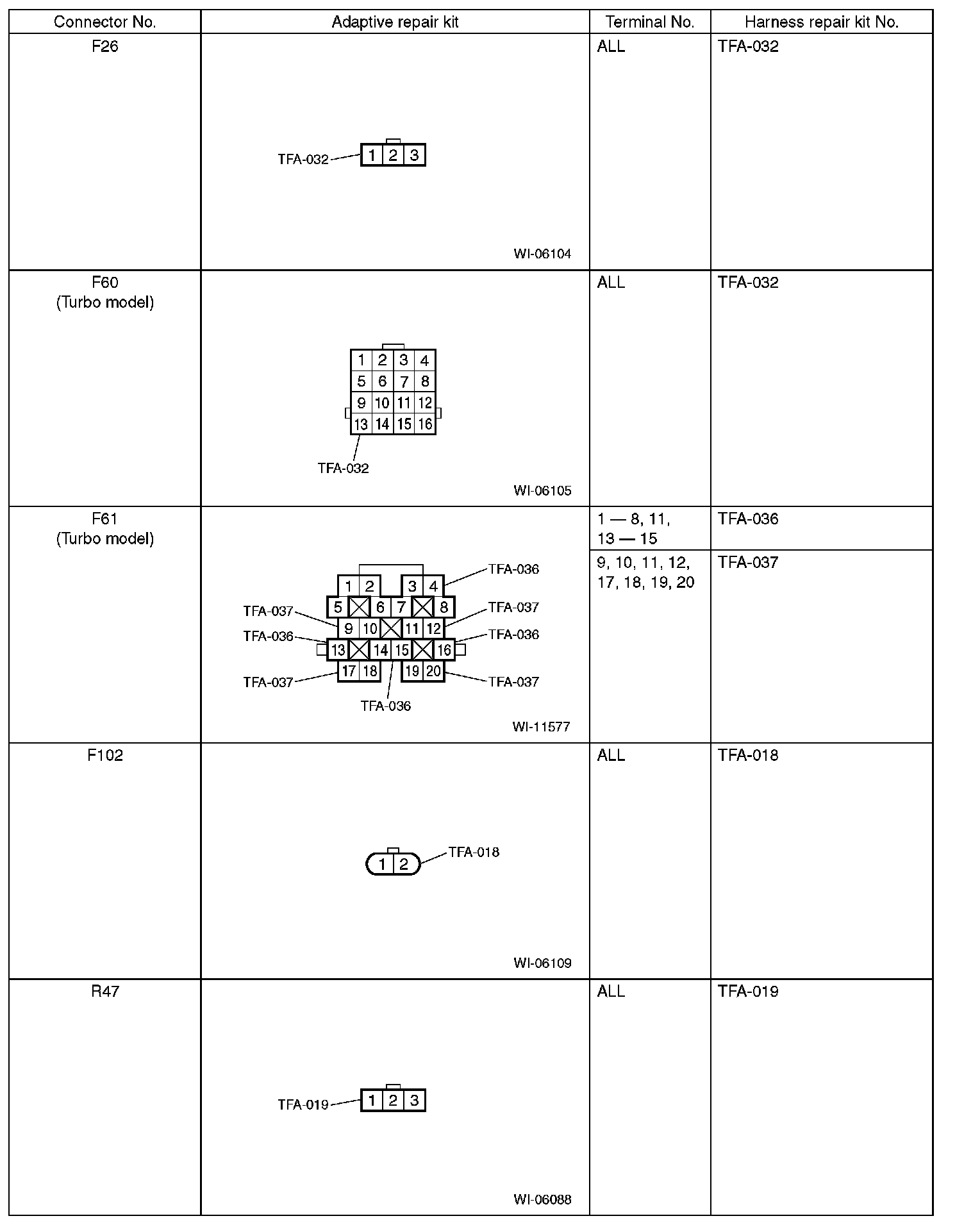

F26-R47:

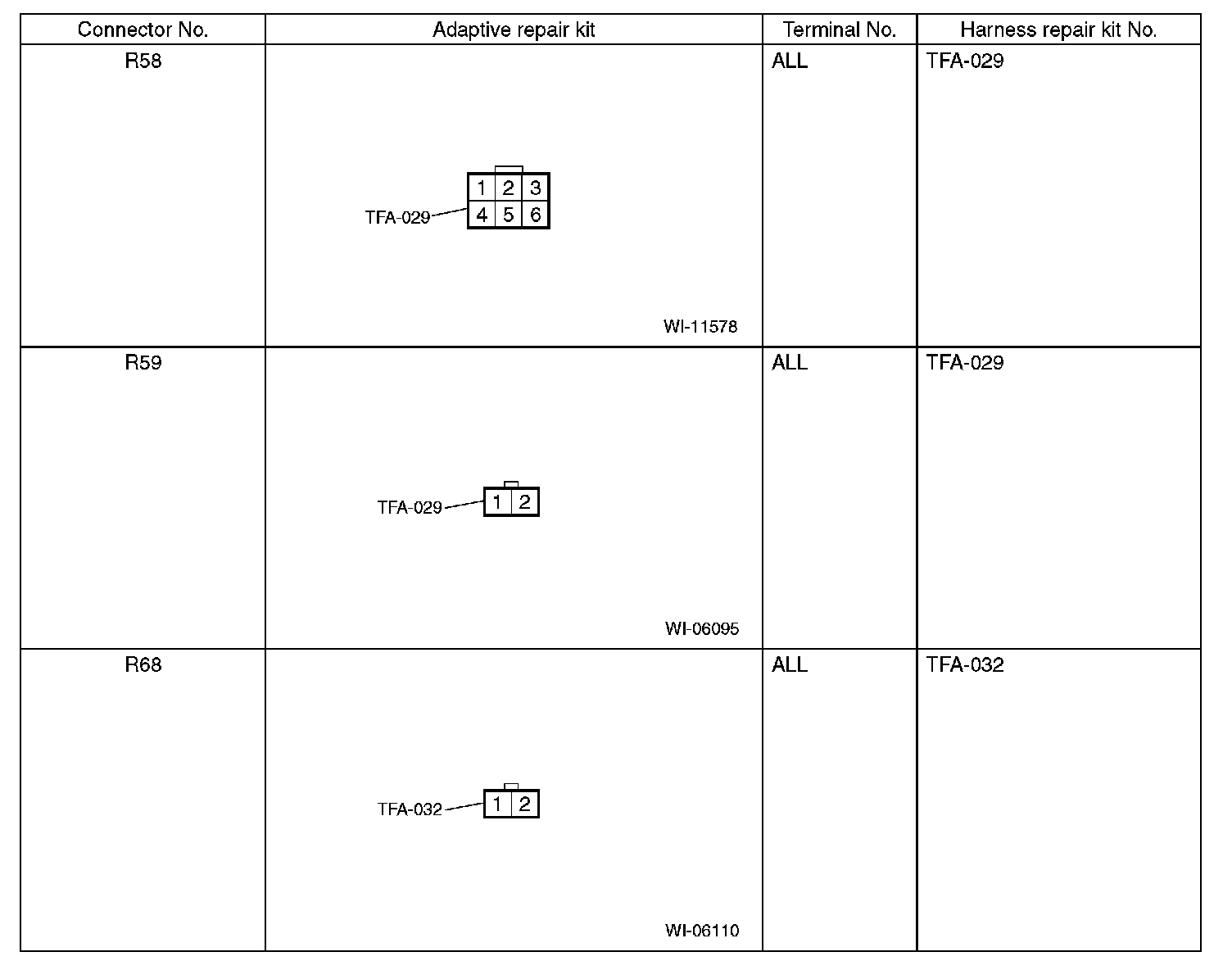

R56-R68:
