DTC P0133 O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)

DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
GENERAL DESCRIPTION < Ref. to DTC P0133 O2 SENSOR CIRCUIT SLOW RESPONSE (BANK 1 SENSOR 1) , Diagnostic Trouble Code (DTC) Detecting Criteria. >

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode.> and Inspection Mode < Ref. to , PROCEDURE , Inspection Mode.>.

WIRING DIAGRAM:

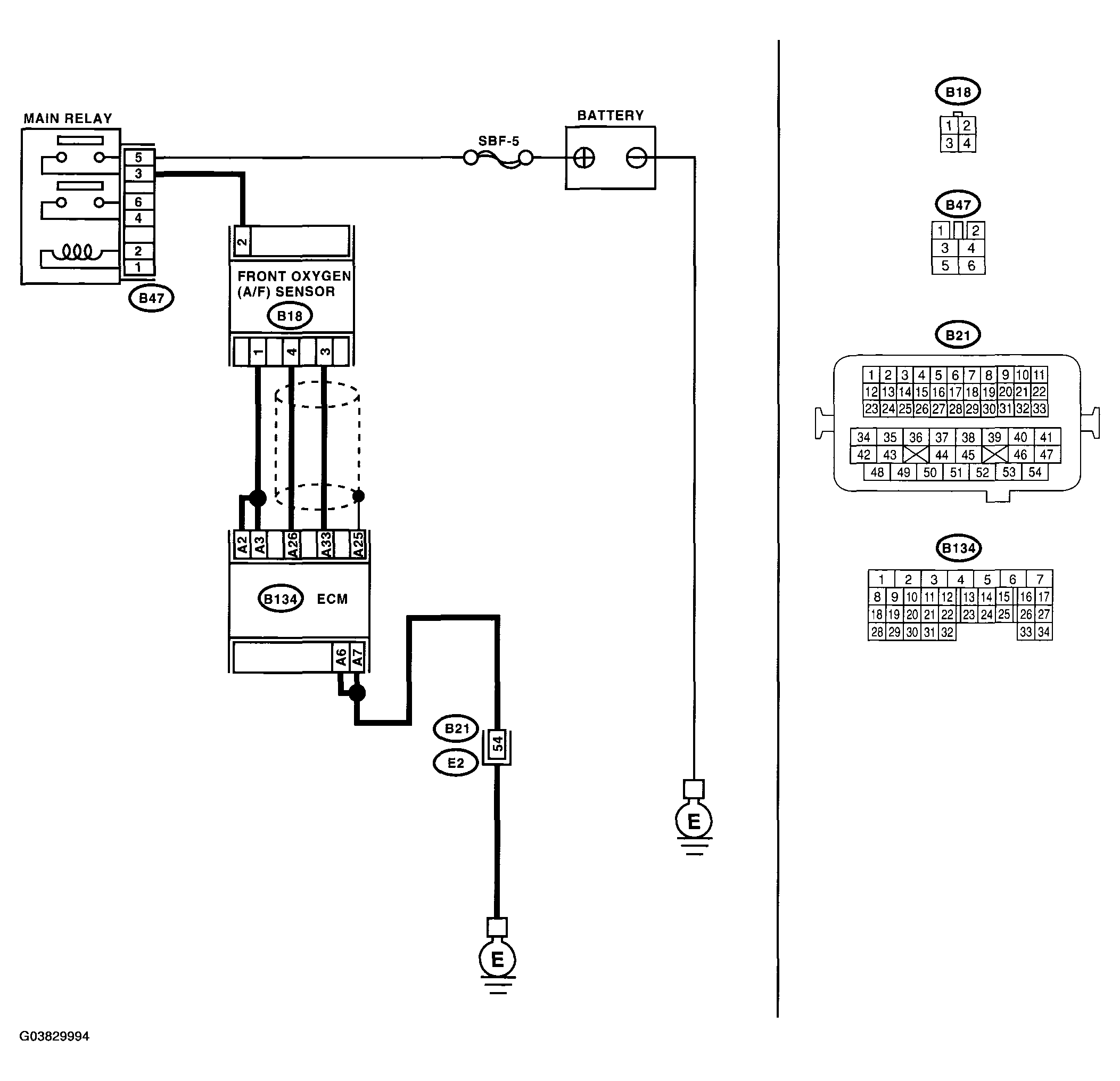

Fig 1: Wiring Diagram - DTC P0133 O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P0133)

Step		Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.		Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > NOTE: In this case, it is not necessary to inspect DTC P0133.	Go to step 2.
2 CHECK EXHAUST SYSTEM. NOTE: Check the following items. Loose installation of front portion of exhaust pipe onto cylinder heads Loose connection between front exhaust pipe and front catalytic converter Damage of exhaust pipe resulting in a hole		Is there any fault in exhaust system?	Repair the exhaust system.	Replace the front oxygen (A/F) sensor. < Ref. to FRONT OXYGEN (A/F) SENSOR . >
