Home >> Subaru >> 2005 >> Outback Sport F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Gear

Steering Gear

POWER ASSISTED SYSTEM

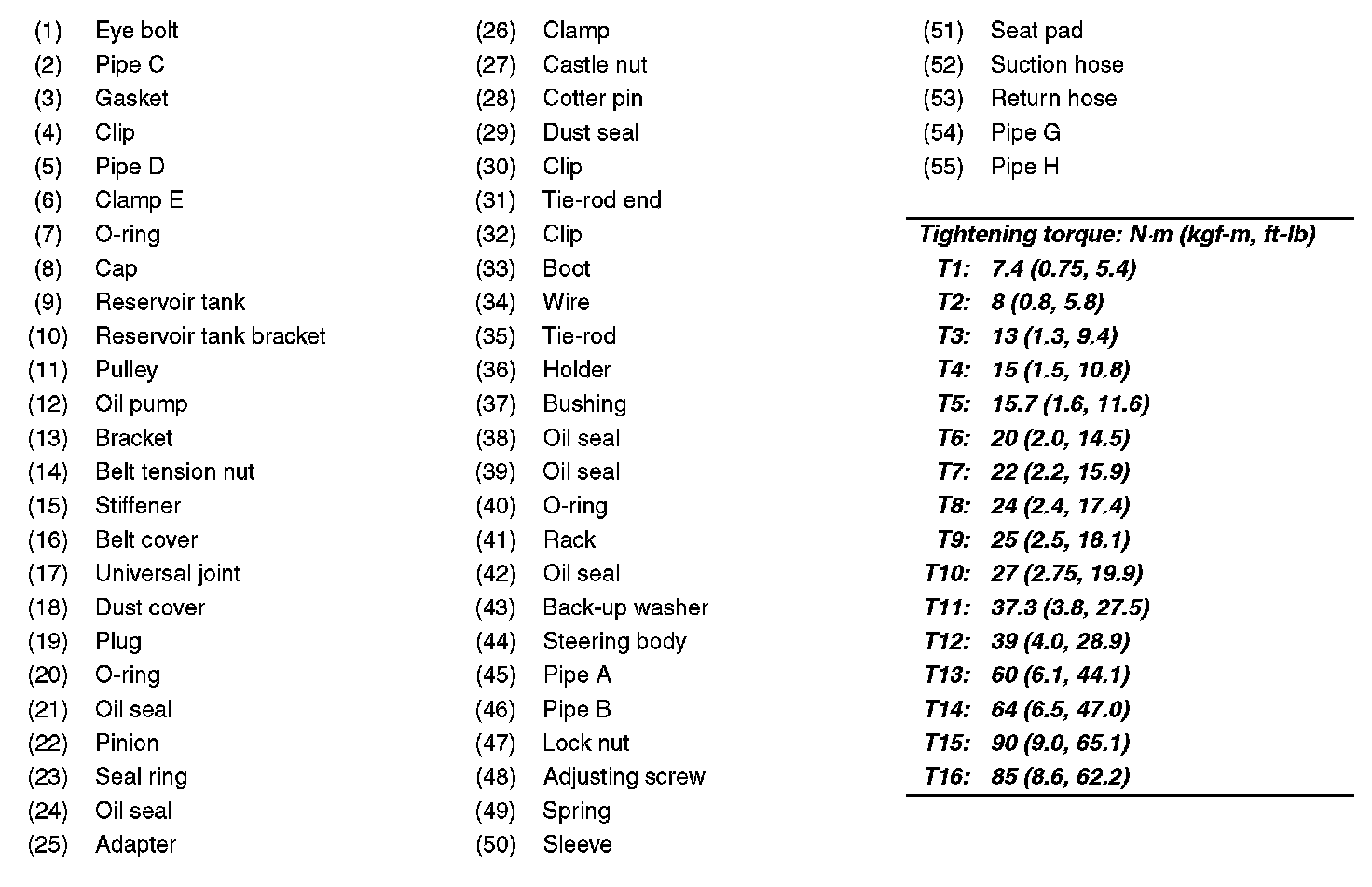

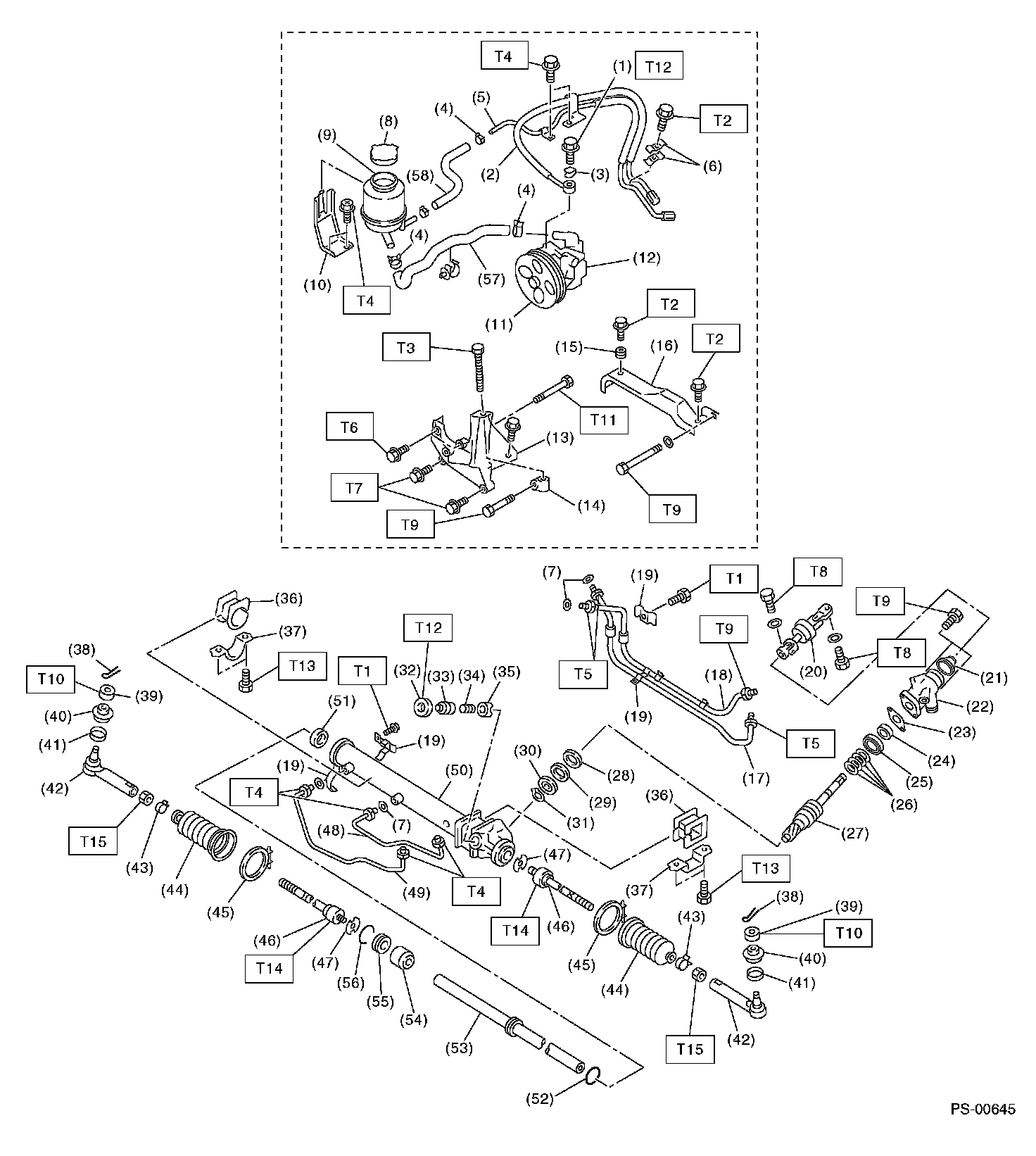

^ NON-TURBO MODEL

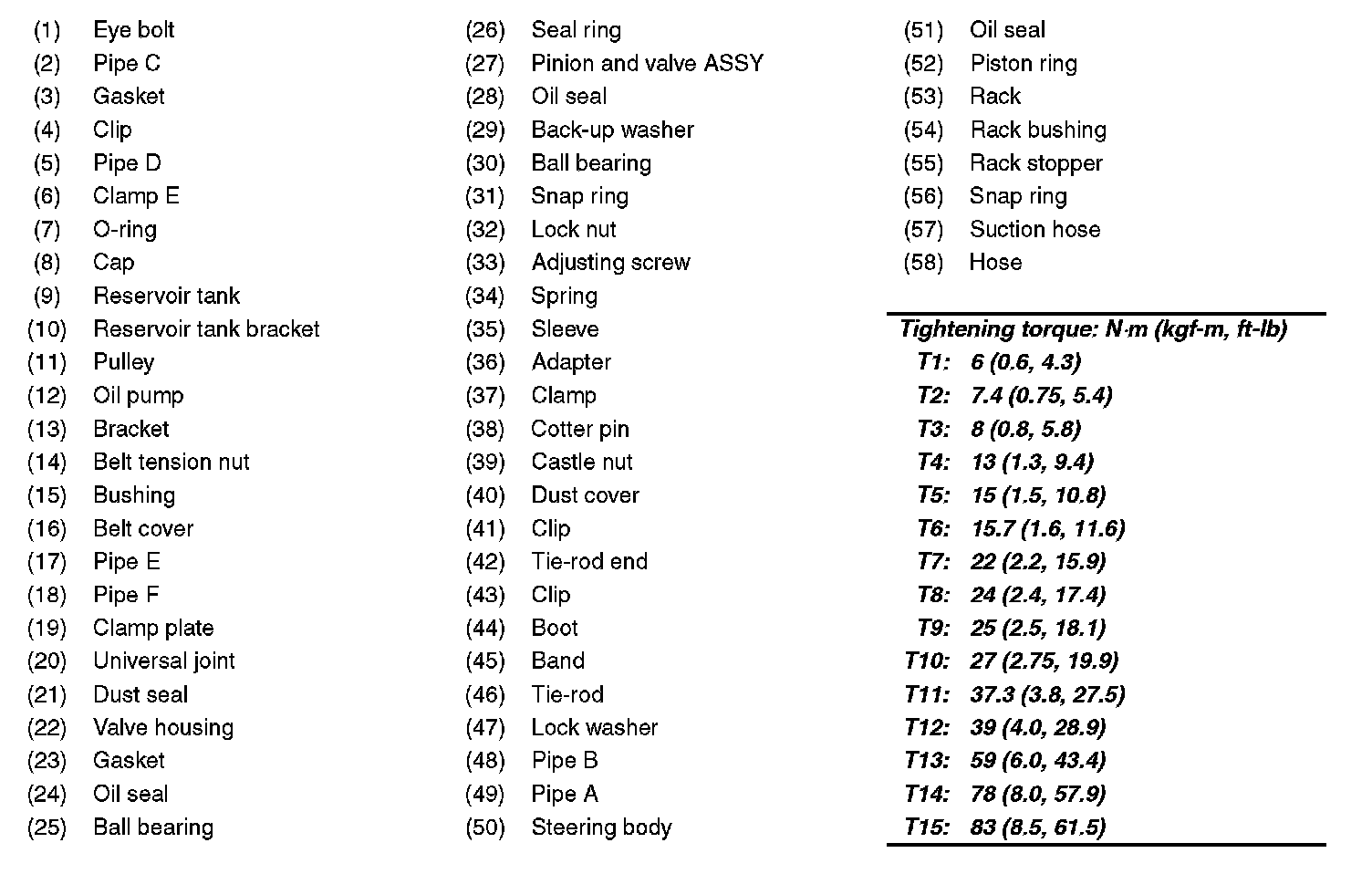

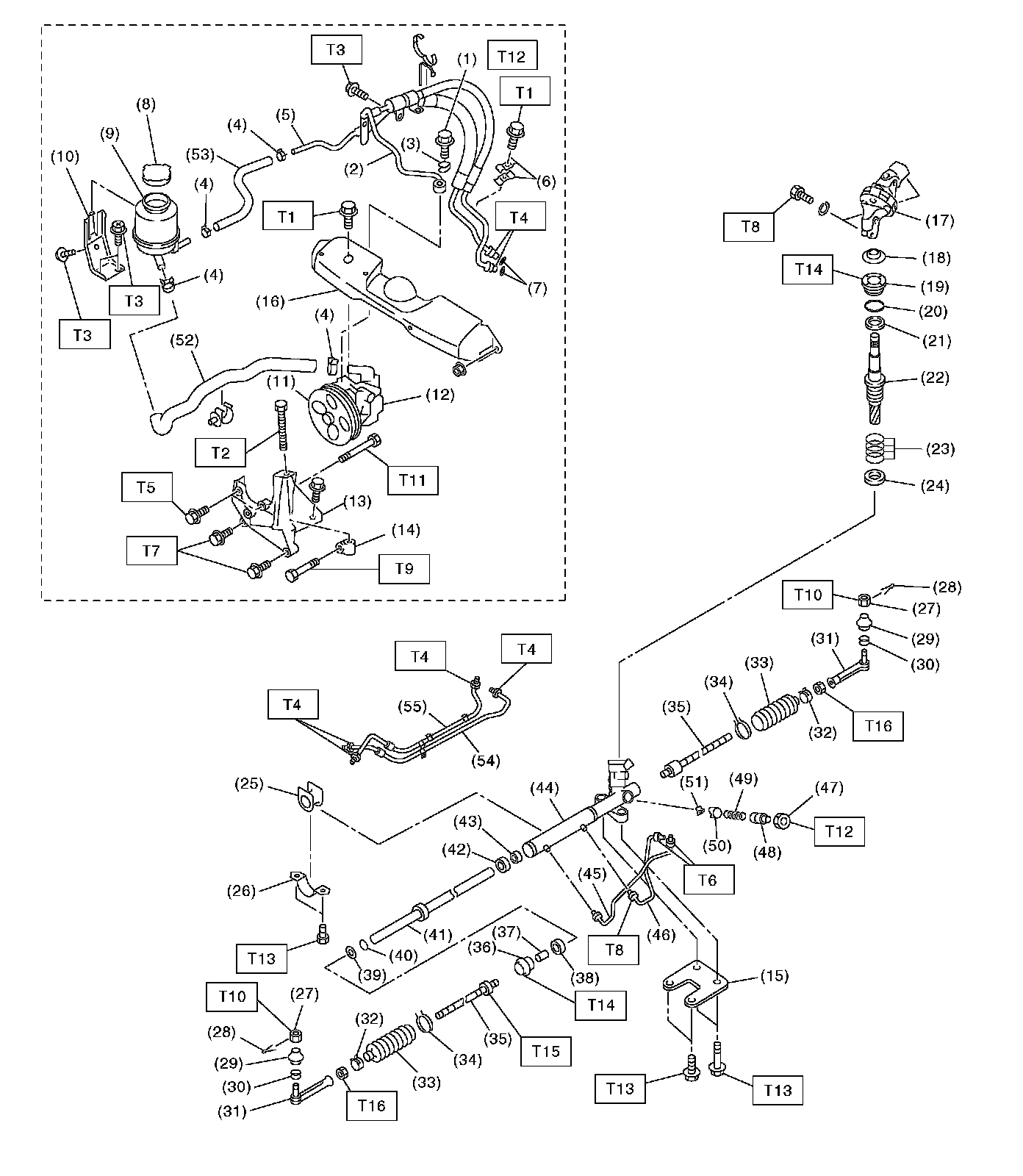

^ TURBO MODEL AND STi model
