Component Location Graphics

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

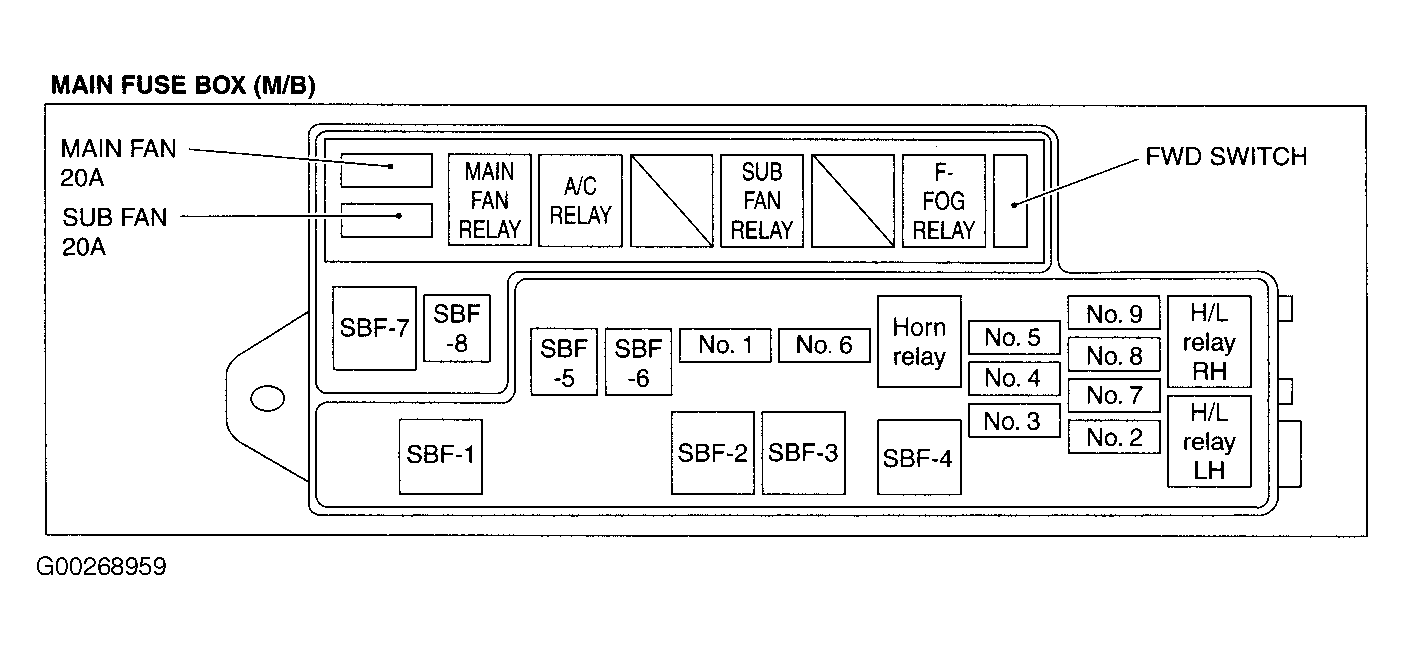

Fig 1: Main Fuse Box

G00268959

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Front Engine Compartment

G00365365

Courtesy of SUBARU OF AMERICA, INC.

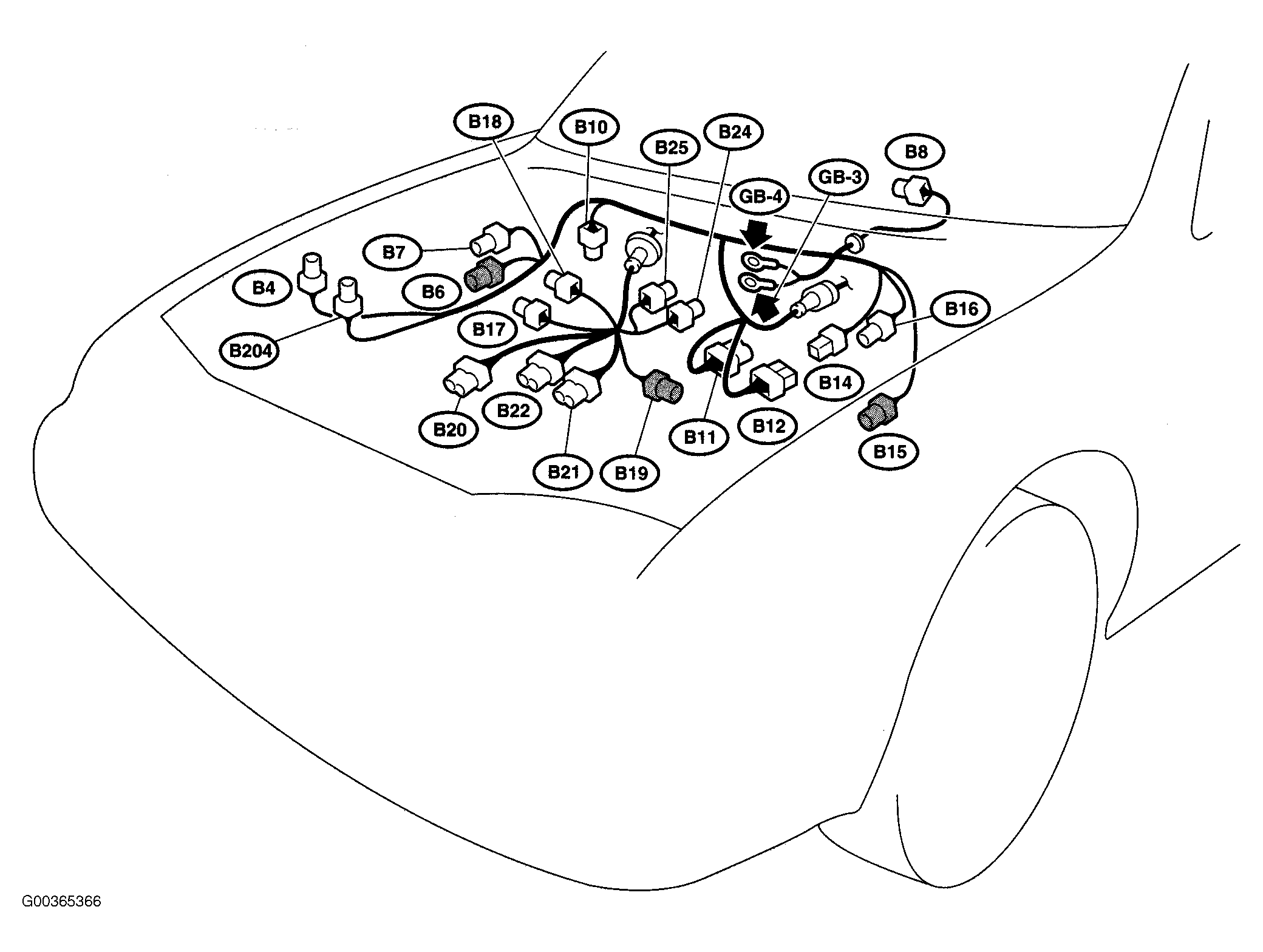

Fig 3: Engine Compartment (Non-Turbo)

G00365366

Courtesy of SUBARU OF AMERICA, INC.

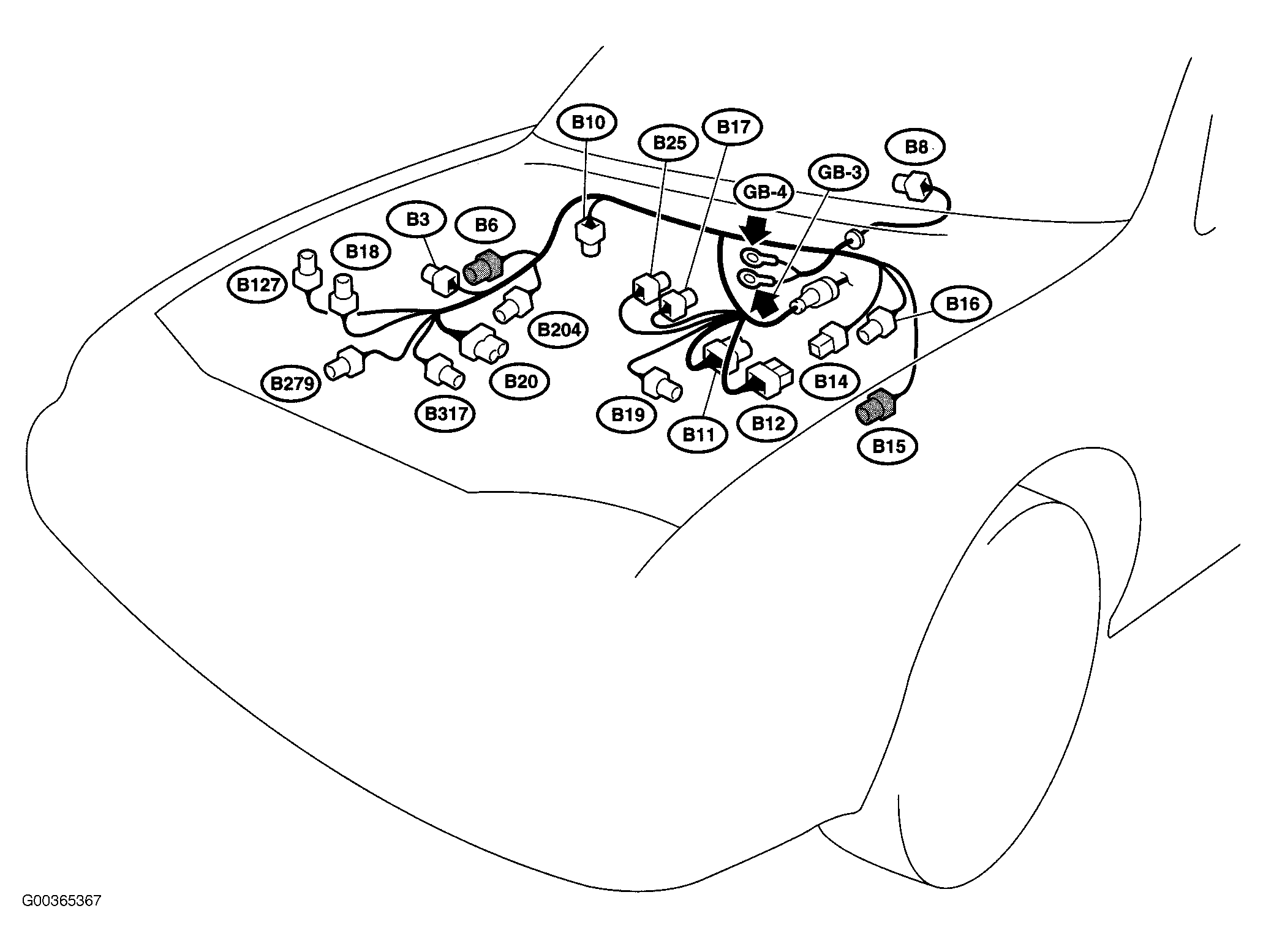

Fig 4: Engine Compartment (Turbo)

G00365367

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Dash

G00365368

Courtesy of SUBARU OF AMERICA, INC.

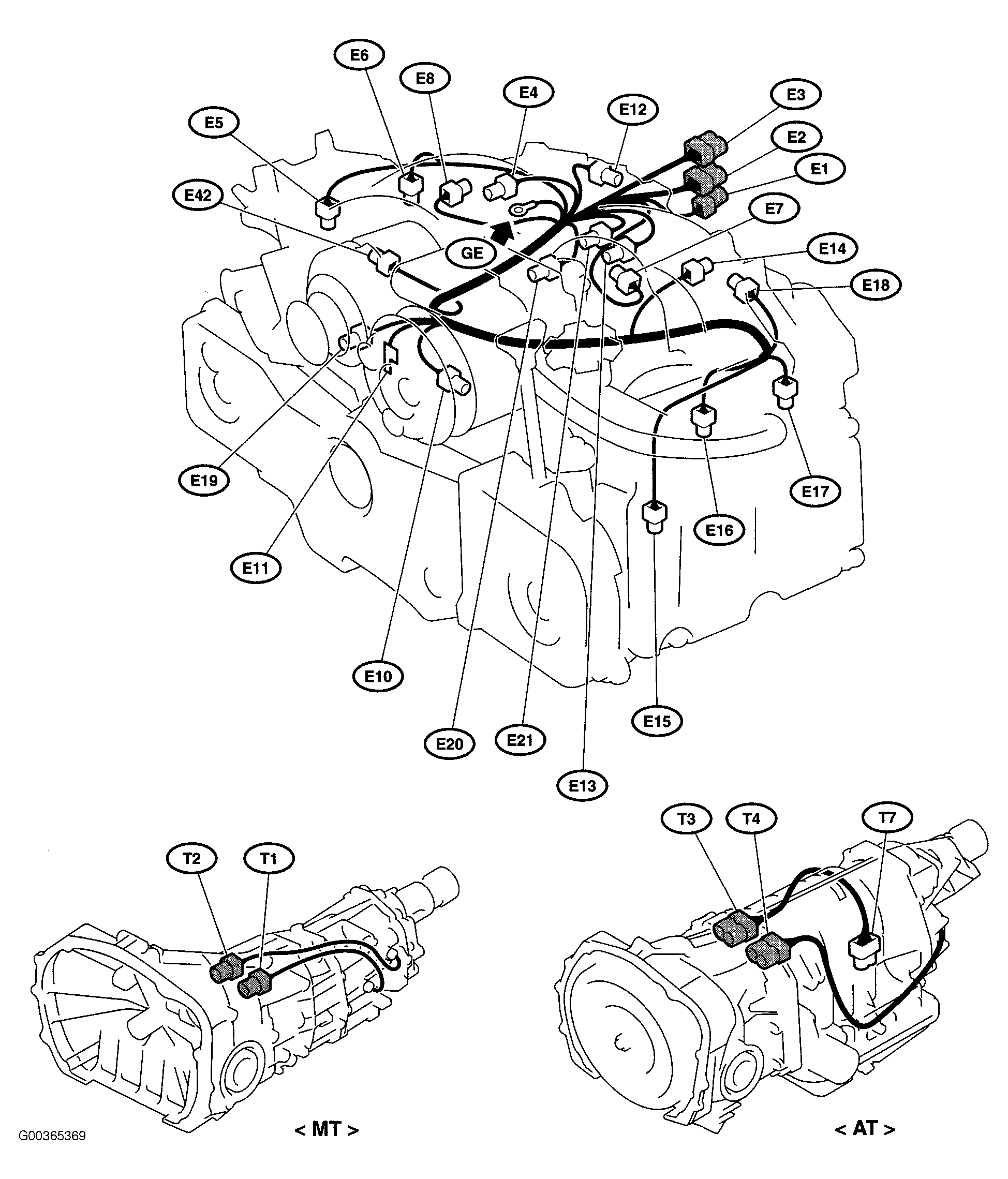

Fig 6: Engine & Transmission (Non-Turbo)

G00365369

Courtesy of SUBARU OF AMERICA, INC.

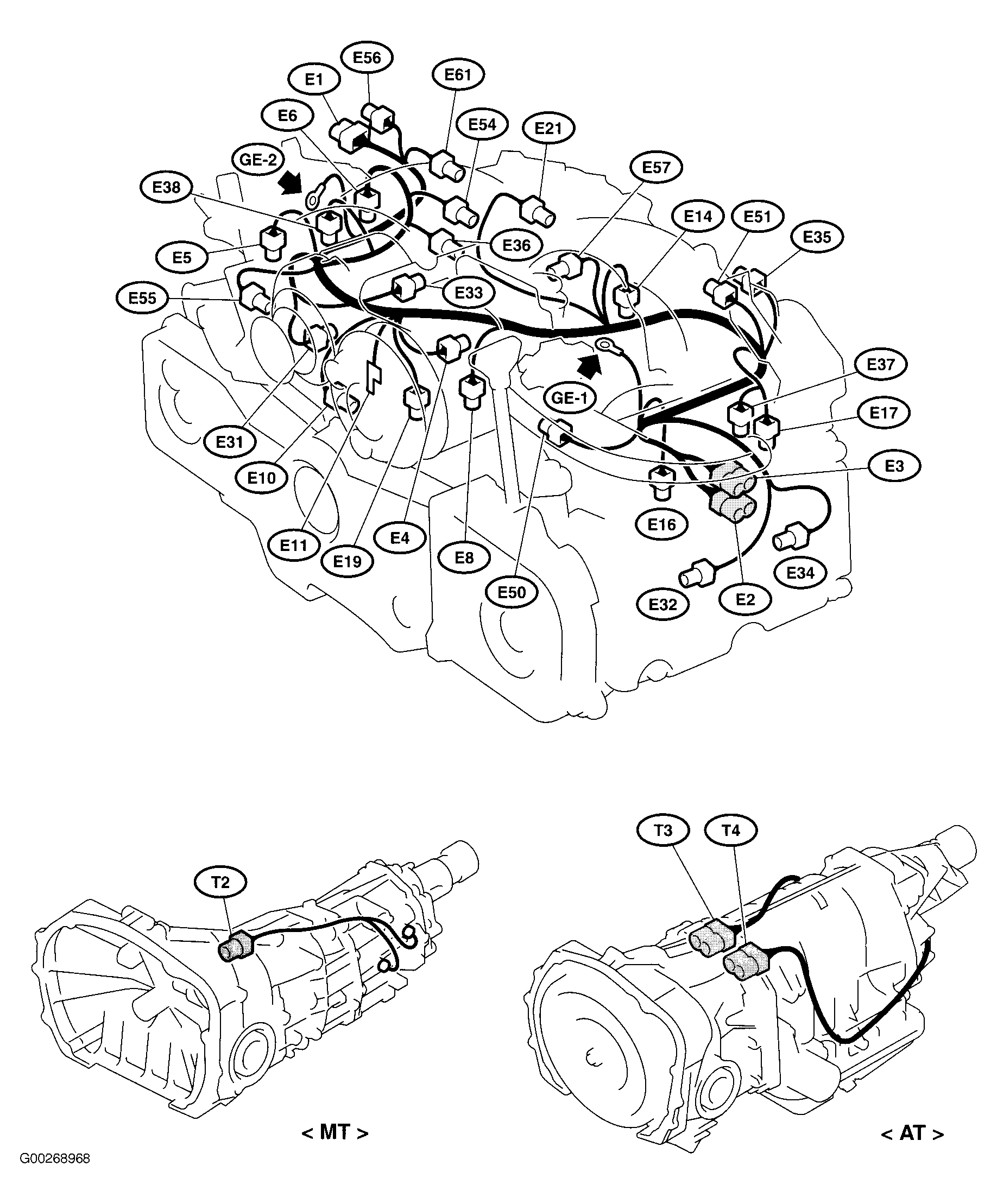

Fig 7: Engine & Transmission (Turbo)

G00268968

Courtesy of SUBARU OF AMERICA, INC.

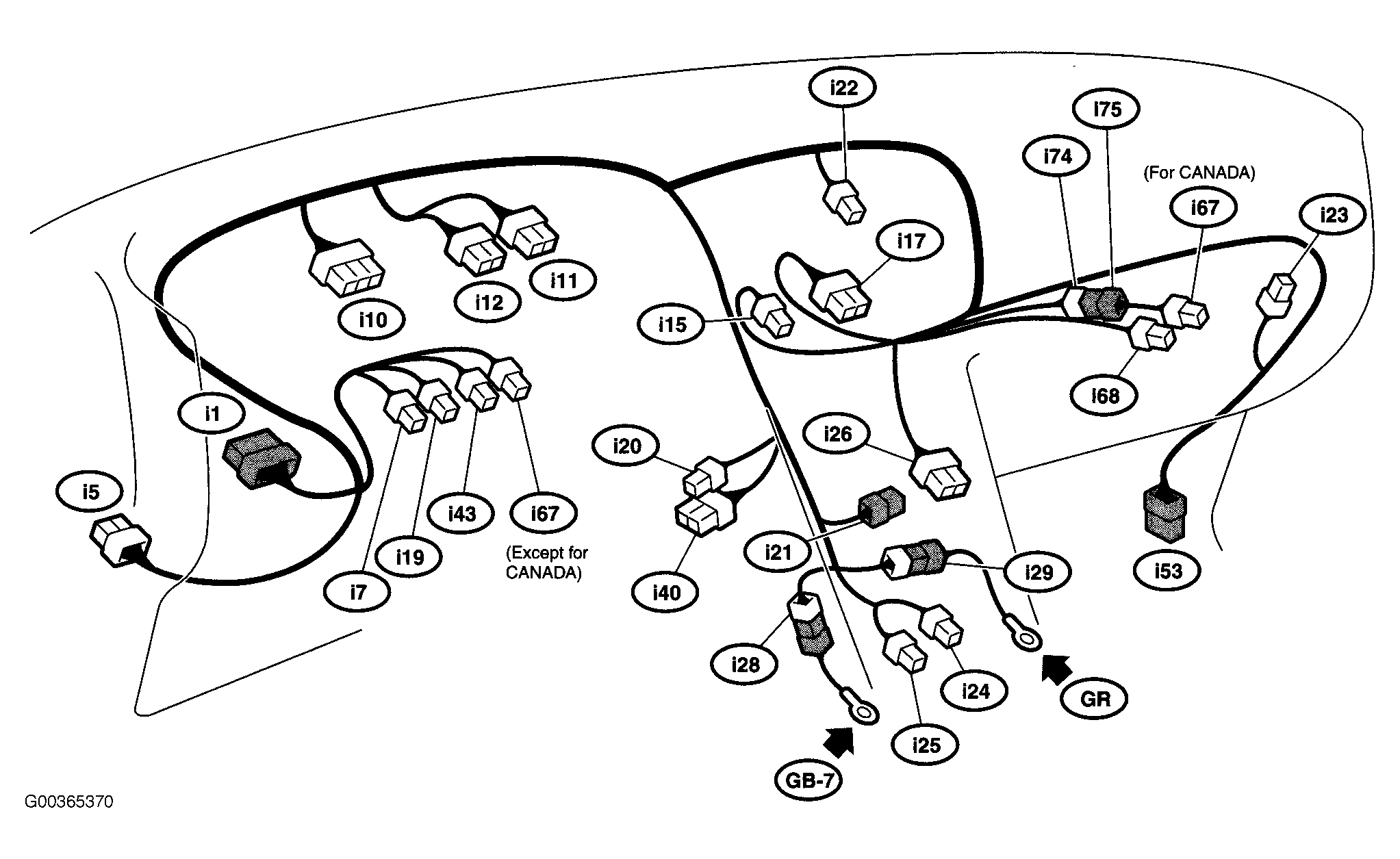

Fig 8: Dash

G00365370

Courtesy of SUBARU OF AMERICA, INC.

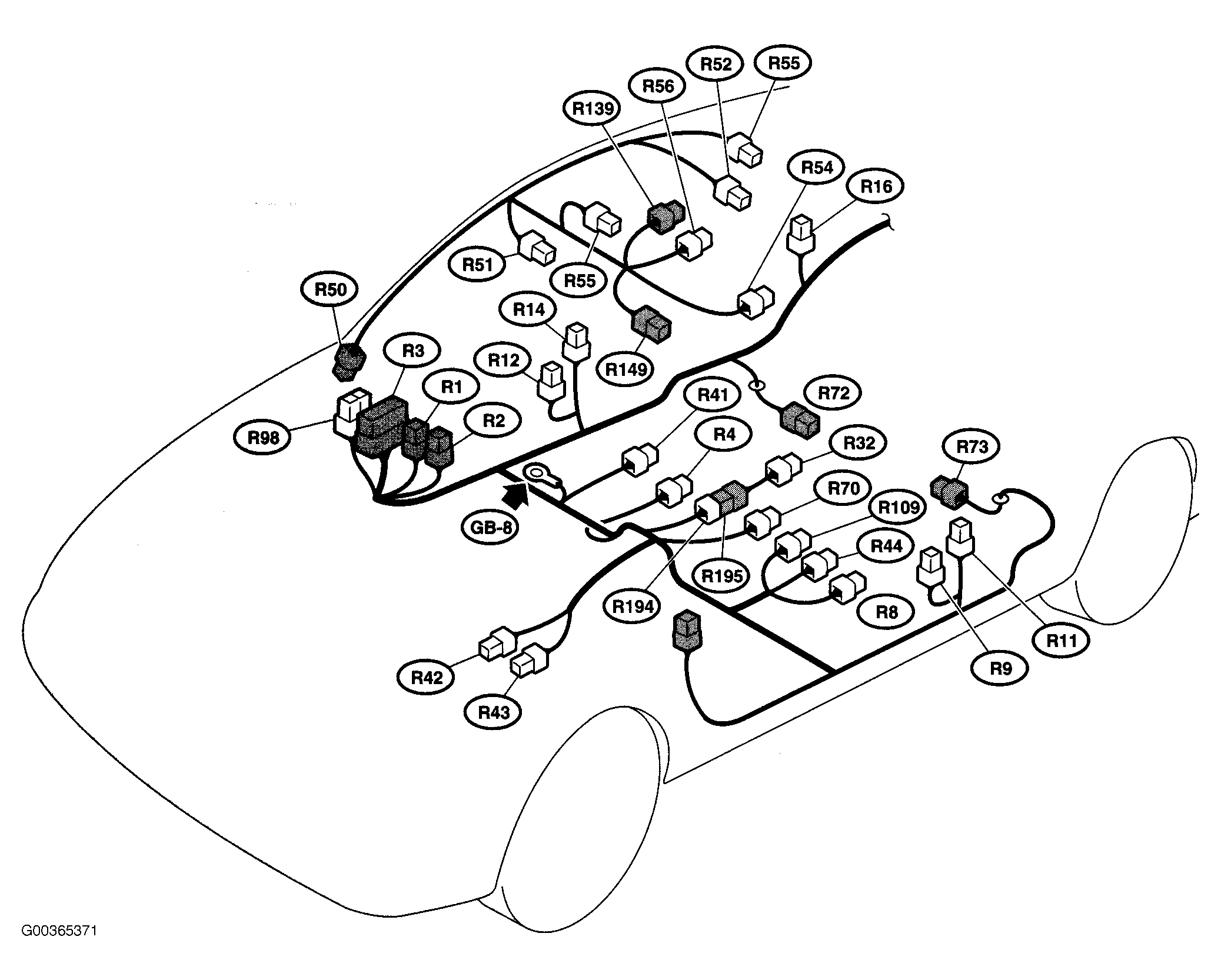

Fig 9: Rear Wiring Harness

G00365371

Courtesy of SUBARU OF AMERICA, INC.

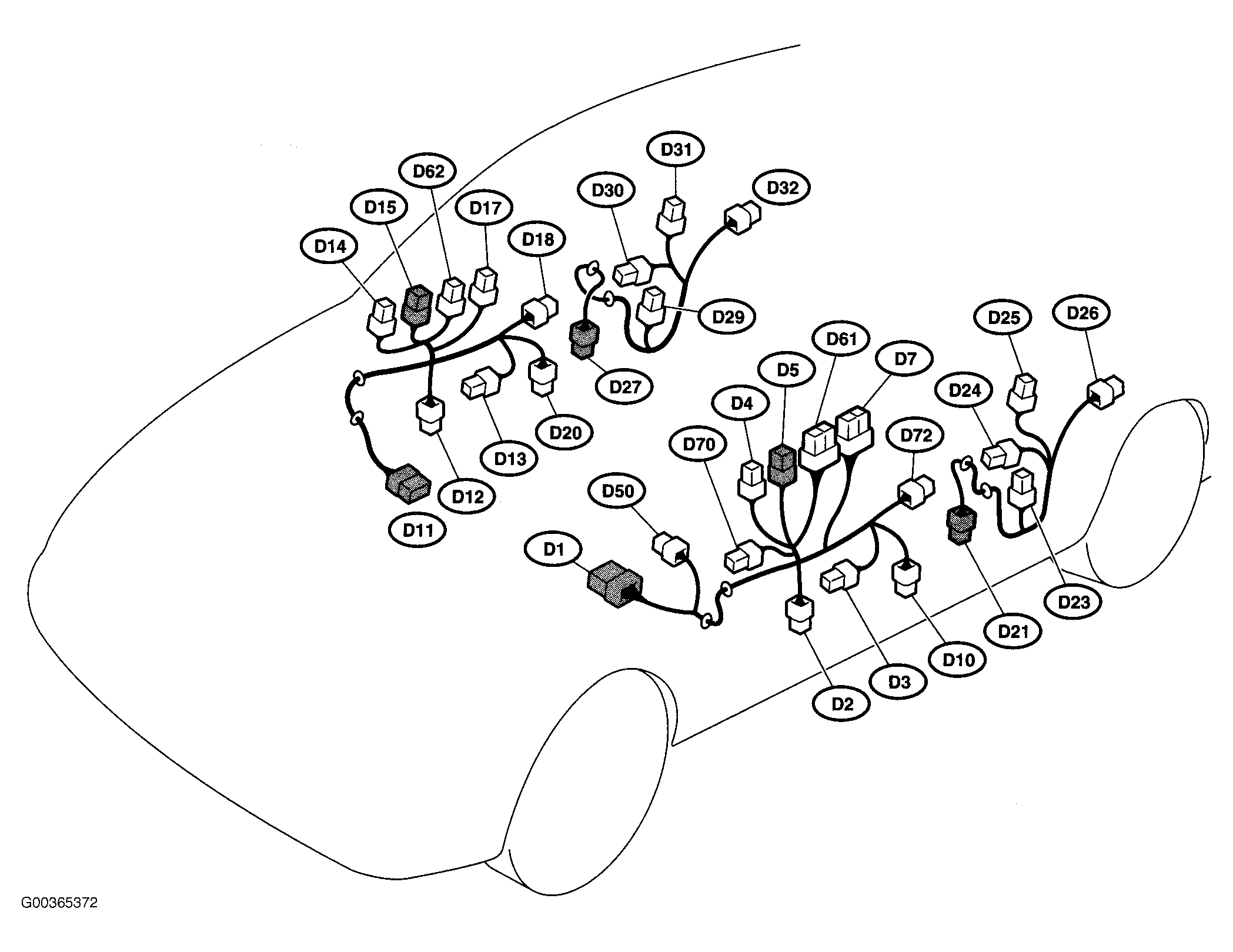

Fig 10: Door Harnesses

G00365372

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Tailgate & Rear Wiring Harness

G00365373

Courtesy of SUBARU OF AMERICA, INC.
