A/T Shift Lock Control System Connector End Views

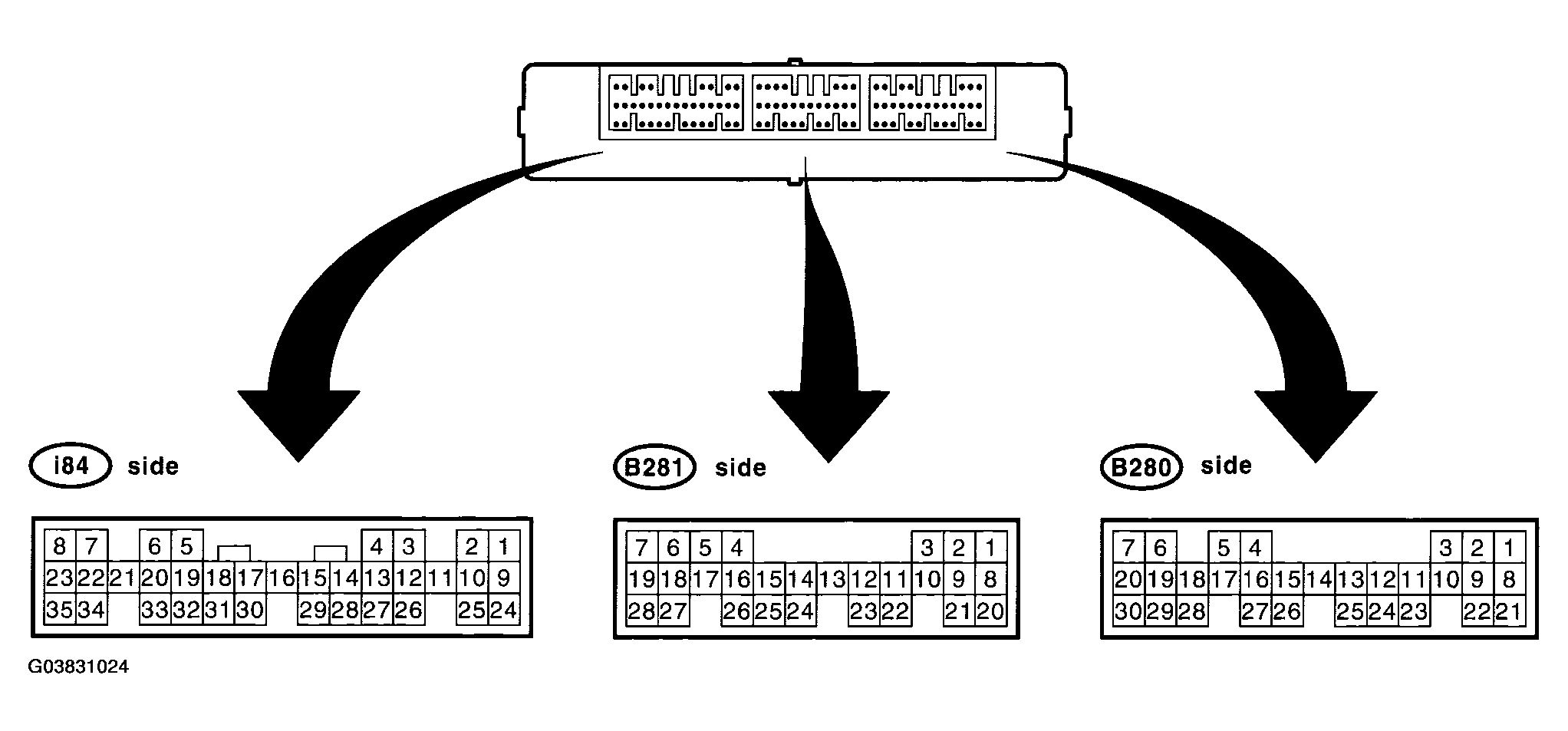

Fig 1: A/T Shift Lock Control System Connector End Views

G03831024

Courtesy of SUBARU OF AMERICA, INC.
