Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Description and Operation >> Transmission Control Module (TCM) >> Schematic Diagram

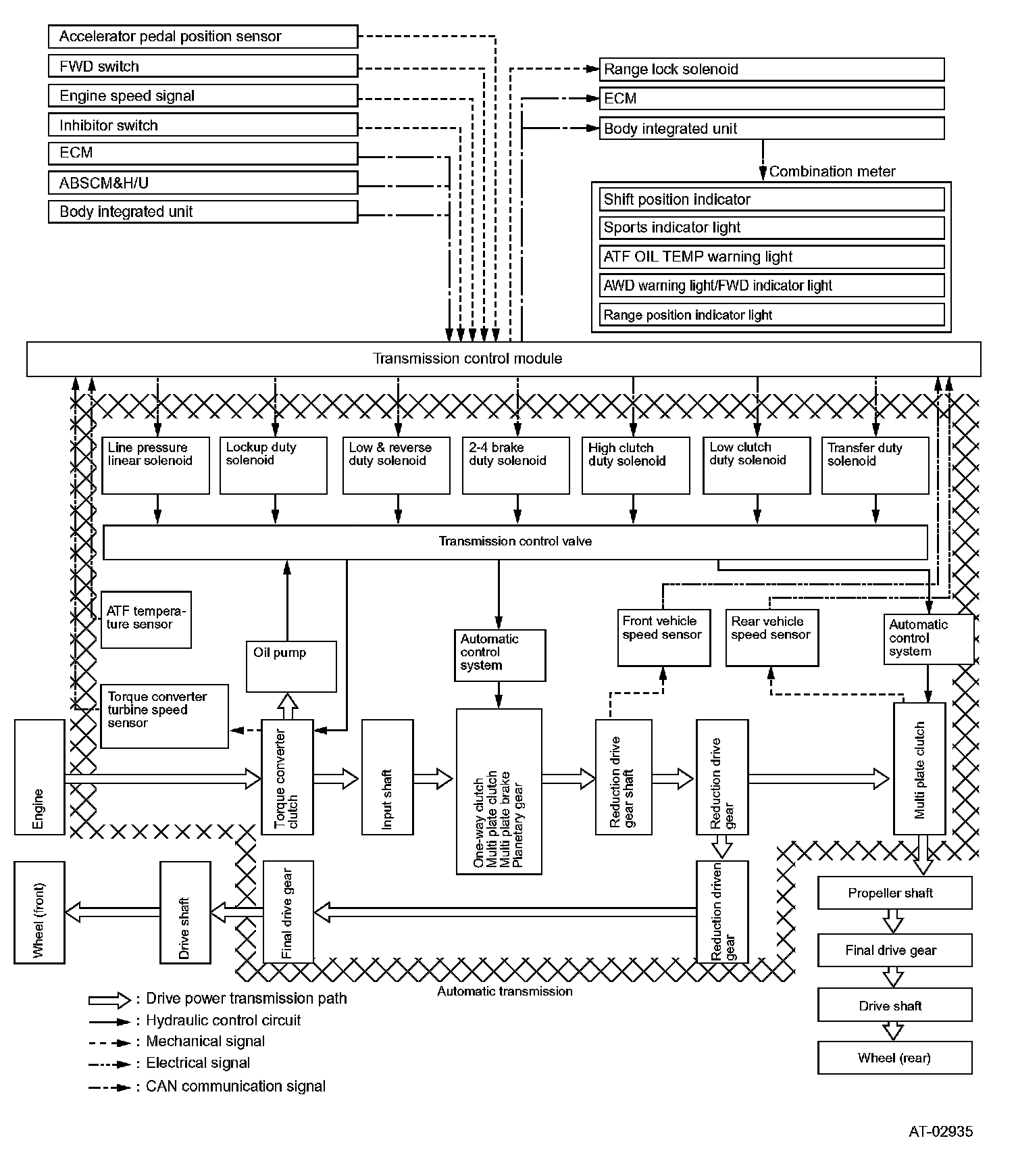

Schematic Diagram

Schematic Diagram:
