Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Description and Operation >> Schematic Diagrams

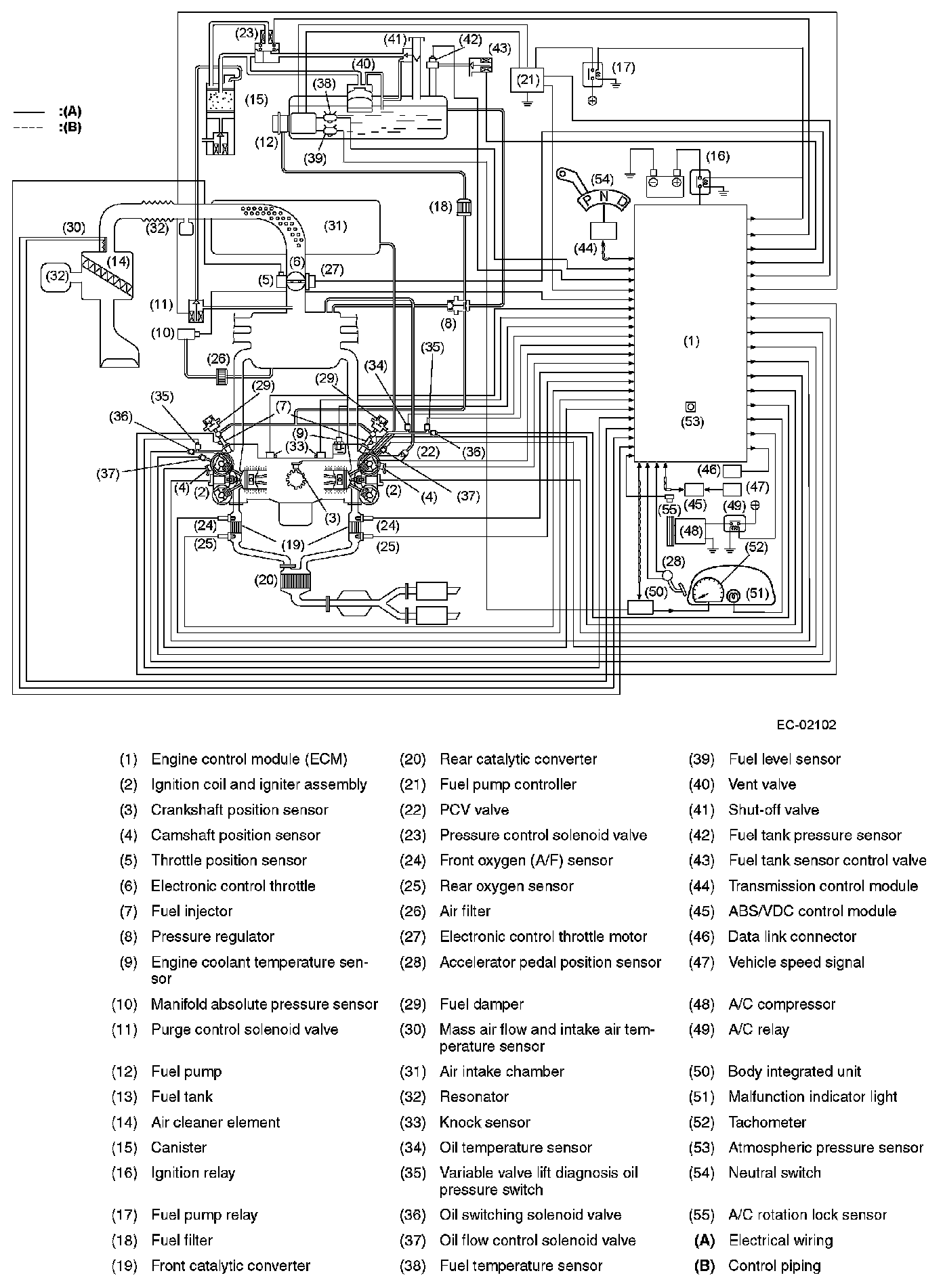

Schematic Diagrams

Schematic Diagrams:
