Automatic Transmission/Transaxle
>>
System Diagram
>>

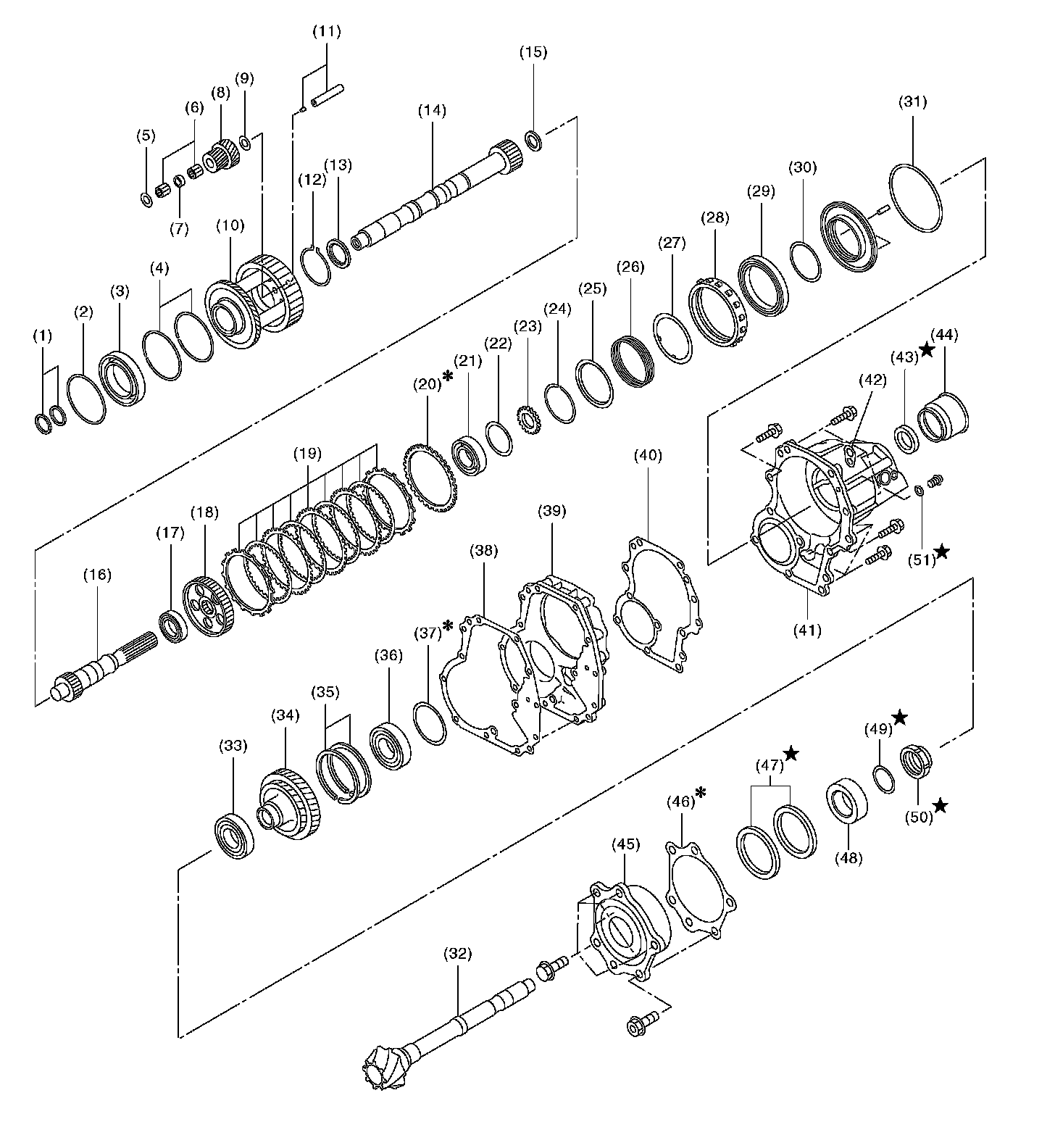

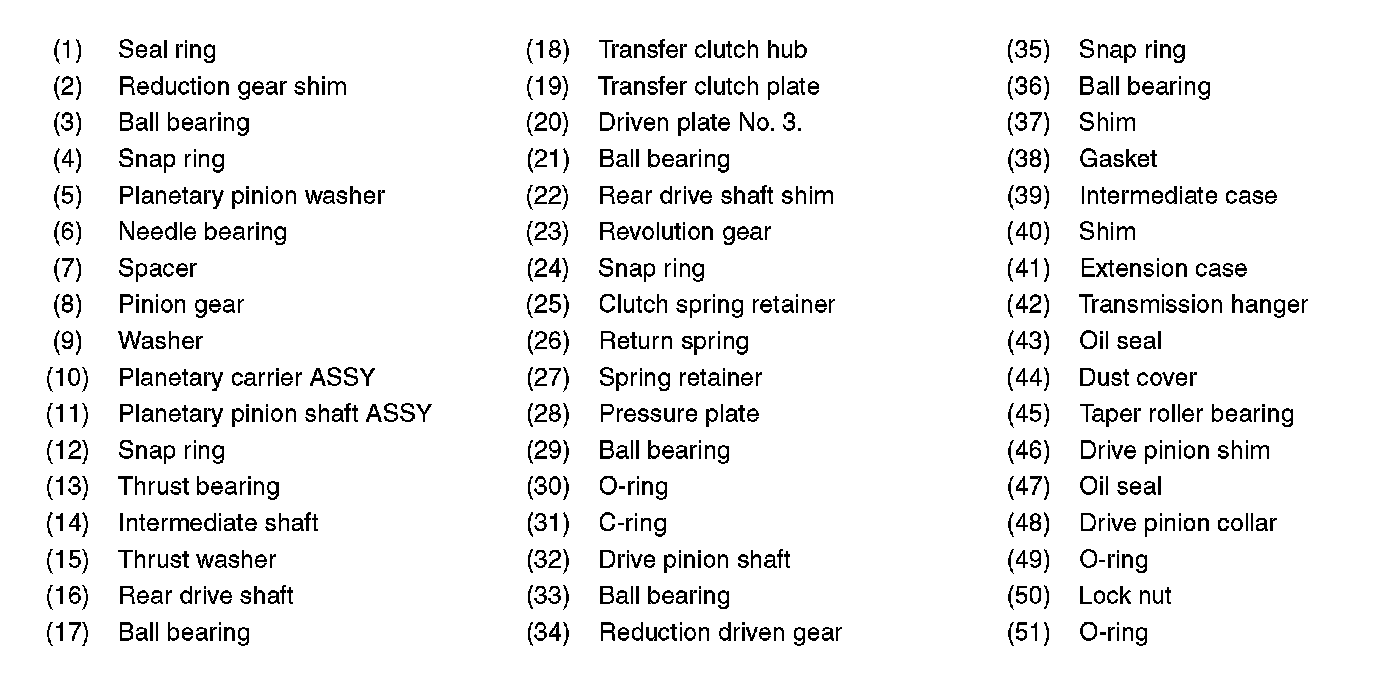

Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear
