Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.
Clearing Diagnostic Trouble Codes
Basic Descriptions

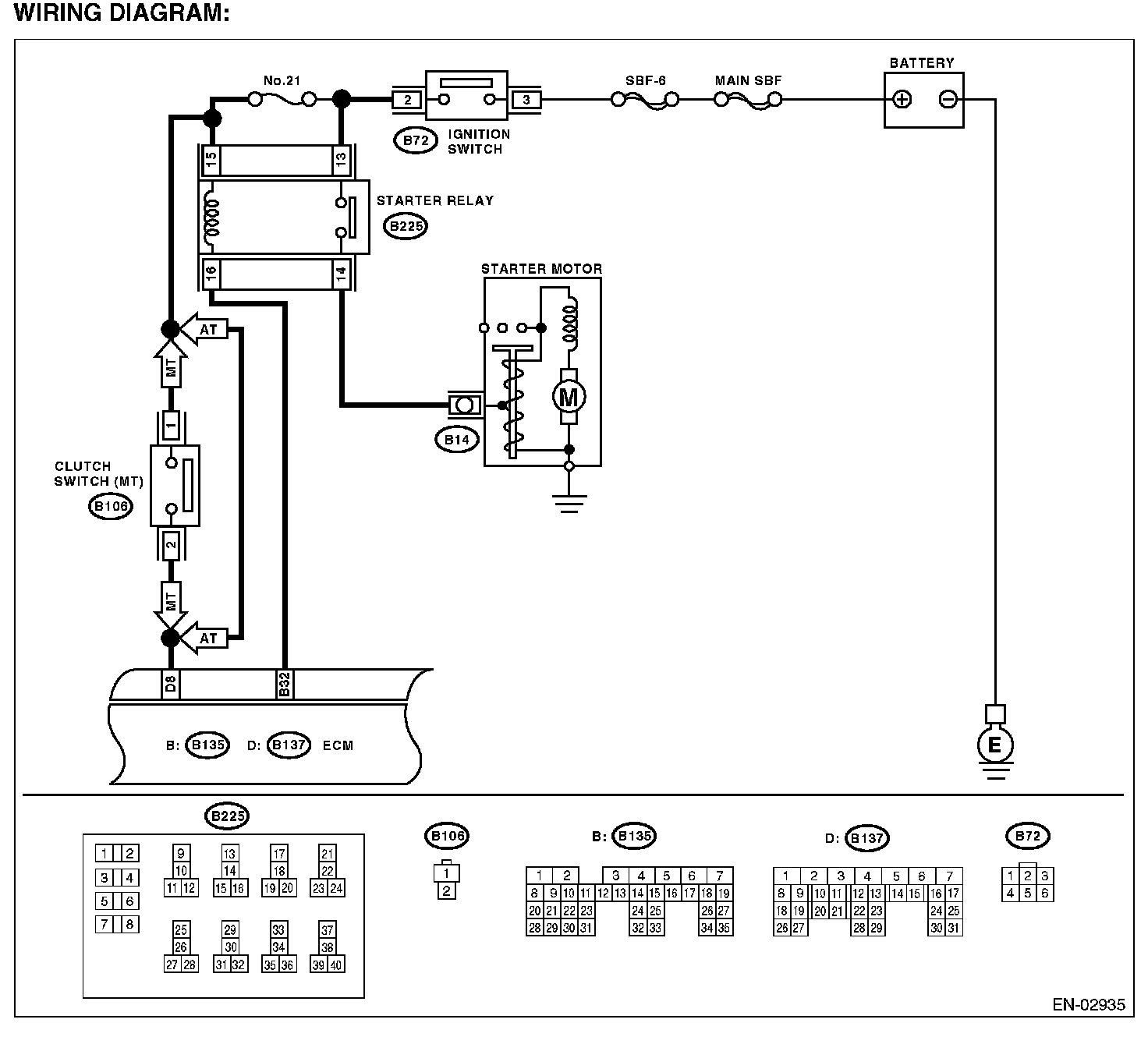

Wiring Diagram:

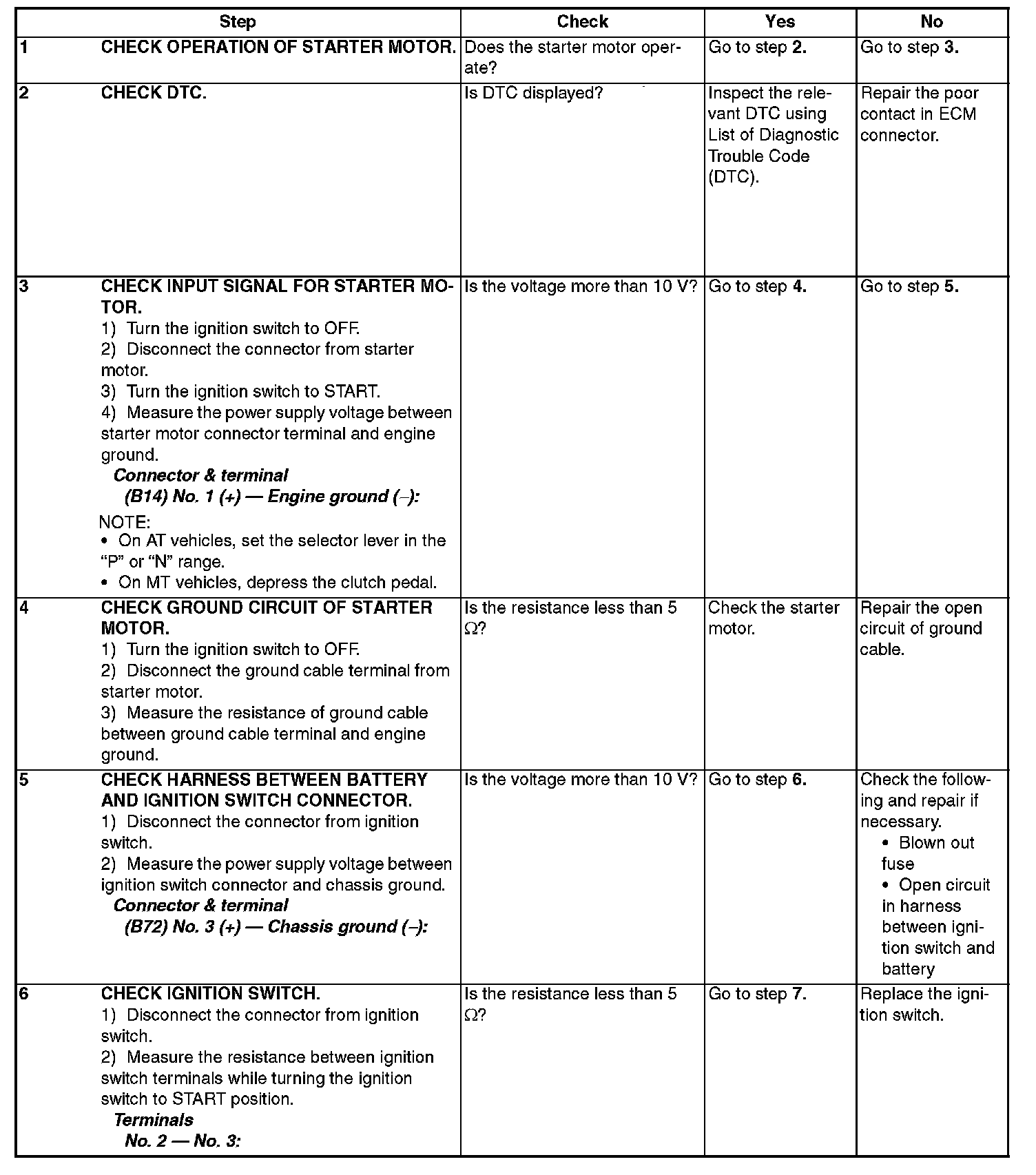

Step 1 - 6:

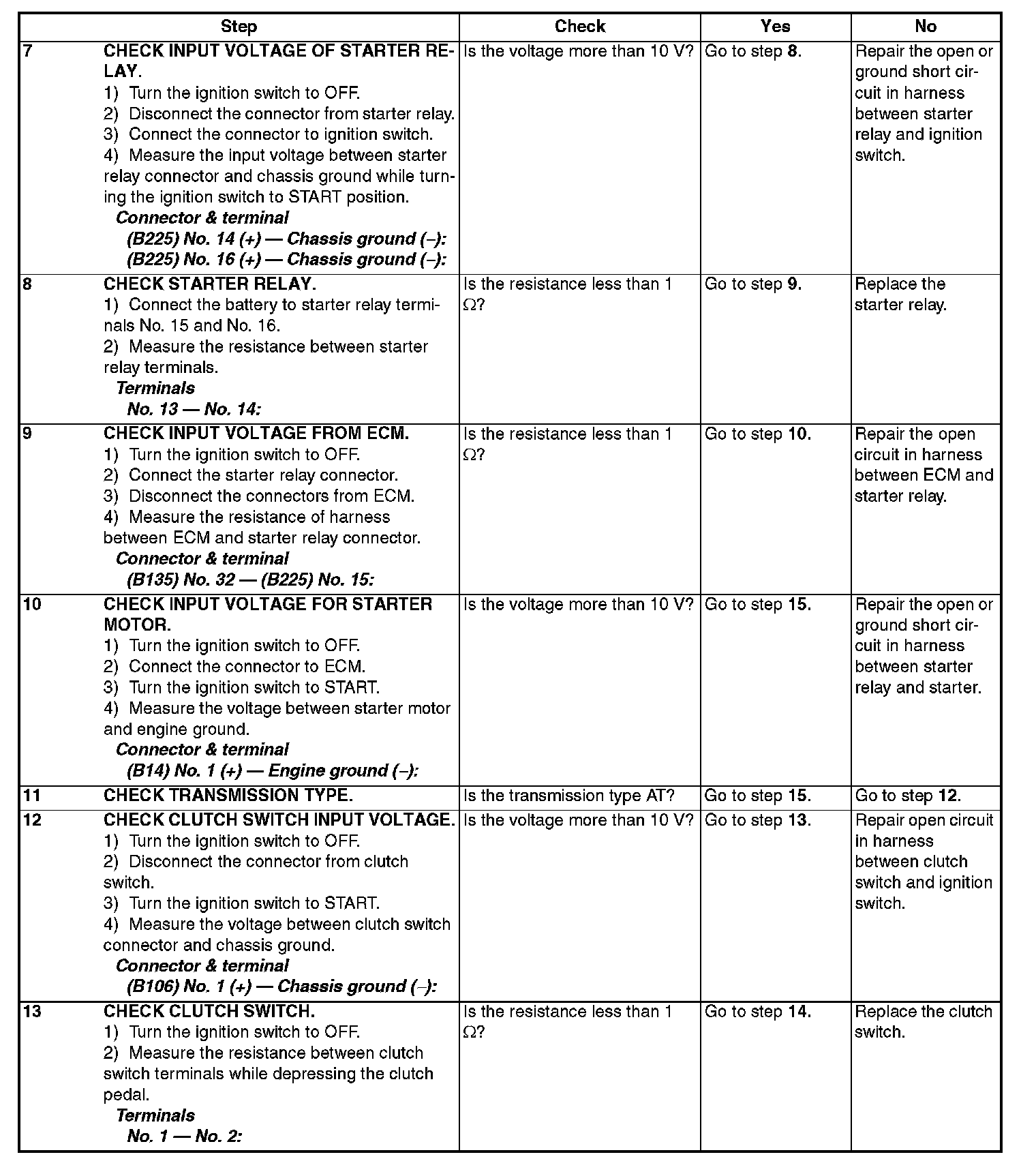

Step 7 - 13:

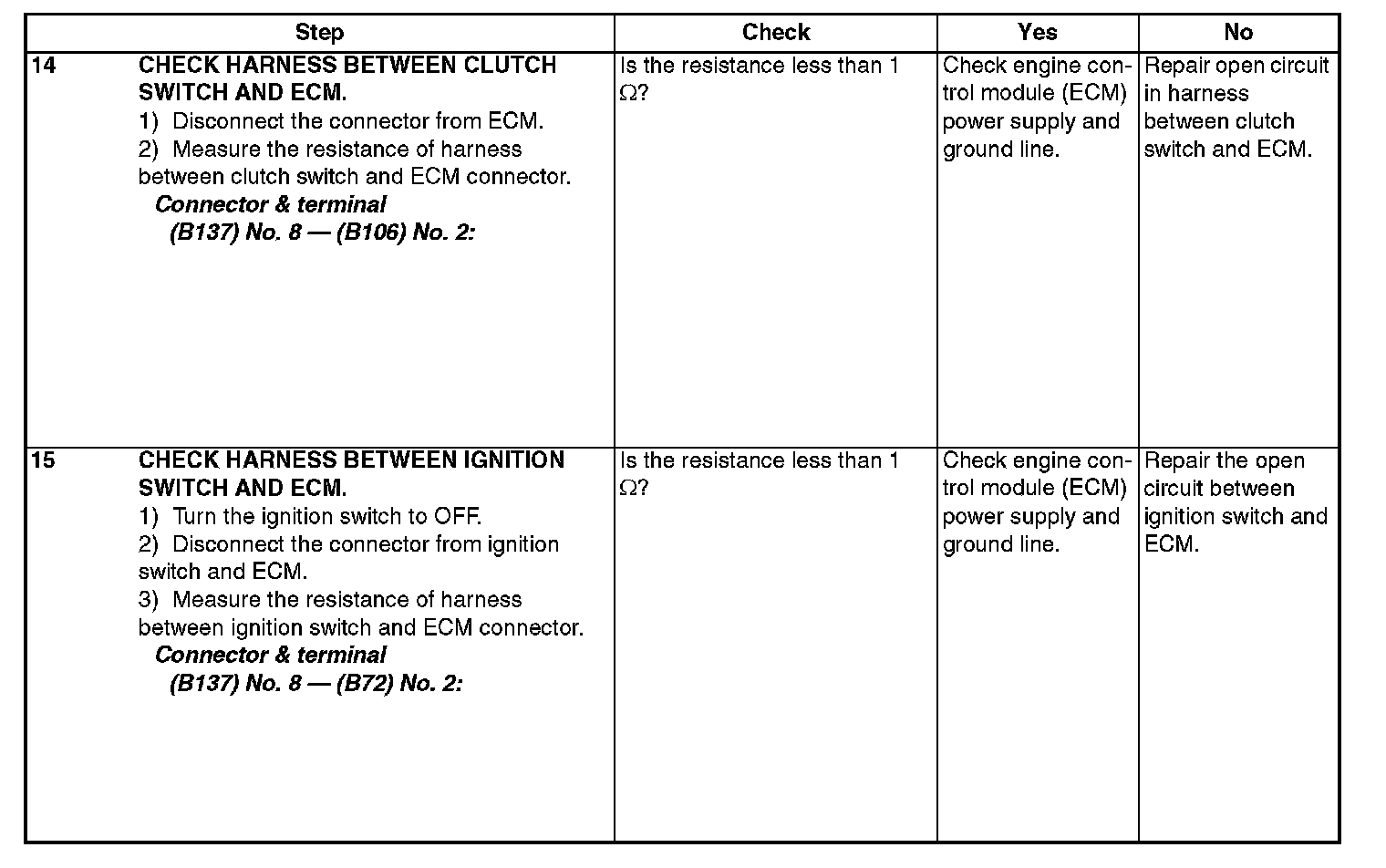

Step 14 - 15:
